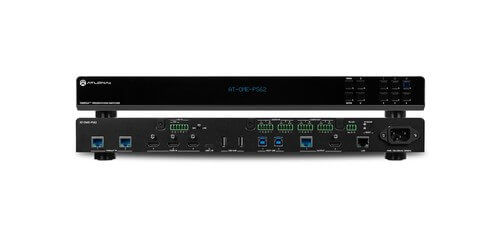

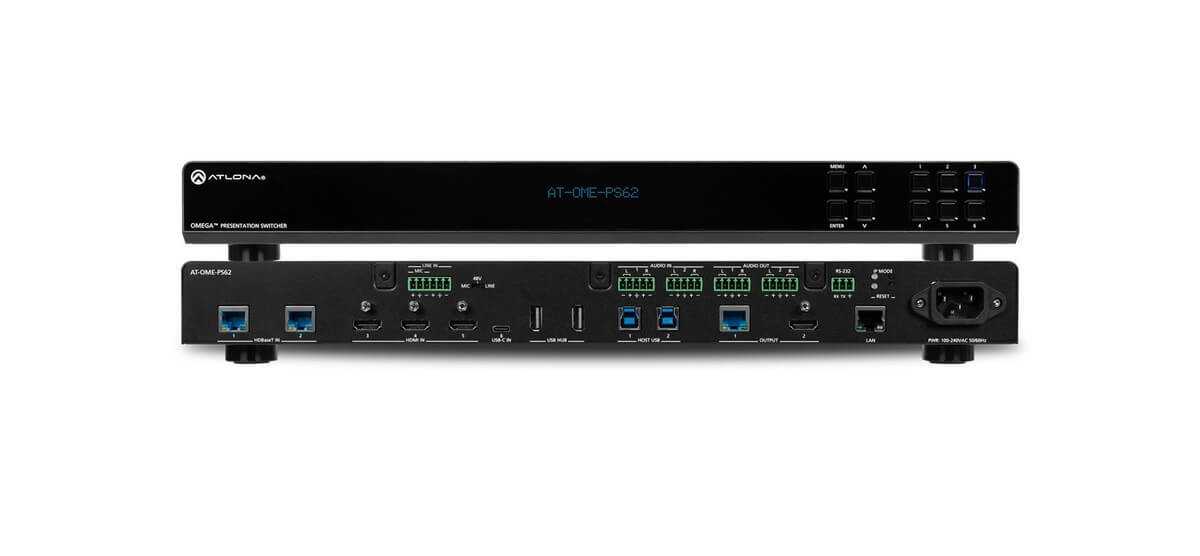

Atlona AT-OME-PS62
6x2 Matrix Presentation Switcher - USB-C, HDBaseT, HDMI and 4K

Description

The Atlona AT-OME-PS62 is a Matrix Presentation Switcher that offers you 6 Inputs and 2 outputs that has been designed for modern AV communications and collaboration systems. The OME-PS62 offers HDMI, USB-C, and HDBaseT inputs, plus HDMI and HDBaseT outputs to provide extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The HDMI and USB-C inputs support video up to UHD/60 4:4:4. The OME-PS62 is HDCP 2.2 compliant and features 4K/60 4:4:4 upscaling and downscaling for the HDMI output.

 Features:

• 6×2 AV matrix switcher with HDBaseT, HDMI, and USB-C inputs
• USB-C input for AV, data, and device charging
• HDBaseT and HDMI outputs with selectable AV switching modes
• USB 2.0 interfacing and extension up to 330 feet (100 meters)
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI and USB-C)
• 4K/UHD downscaling and upscaling for HDMI output

Applications:

• Meeting rooms and conference rooms – The OME-PS62 can serve as an AV integration centerpiece in a credenza, with interfacing into sources in the rack, plus remote AV and USB data connectivity from wall, table, and display locations.
• Video conferencing – With compatible Omega Series endpoints, this presentation switcher provides interfacing for local and remote USB devices for soft codec conferencing, with video and USB switched together between host PCs. As a matrix switcher with scaling, the OME-PS62 is also ideal for hardware-based video conferencing, with the ability to route and optimize any source content to the codec far-end.
• Auditoriums and lecture halls – The HDBaseT output of the OME-PS62 can be used to extend 4K video to a projector, while the HDMI output serves to optimize for a 1080p or 4K confidence monitor. Also available is a mic input and mixing with program audio.
• Active learning classrooms – In education applications, the OME-PS62 can be installed below each student table, with the HDMI output feeding a local display, and the HDBaseT output used to send content to the main classroom AV switcher and display.
• Lecture capture – The secondary, HDMI output can also be used to feed into a lecture capture or streaming video system, with video scaled as appropriate for the application.

 Additional Information:

The OME-PS62 combines the benefits of 4K/UHD scaling, auto-switching, integrated display control, microphone input with mixing and ducking, USB extension, and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The USB-C input is ideal for AV interfacing with newer laptops and mobile devices, plus powering and data connectivity (to the local USB hub and over HDBaseT). The OME-PS62 can remotely power Atlona HDBaseT devices through Power over Ethernet (PoE). For additional integration convenience, the OME-PS62 features audio embedding and de-embedding, audio output matrix mixing, internal video test patterns for setup and troubleshooting, a customizable welcome splash screen for meeting presenters, and remote management with AMS (Atlona Management System).

Specifications

• HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision up to 60Hz
• HDMI and USB-C ports only
• Control: RS-232, IP, CEC Support
• USB Signal: 2.0
• USB-C: Supports Audio, Video, and device & host data
• Audio: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround , DTS-HD Master Audio, and DTS:X Power Supply: 100-240 VAC, 50/60Hz
• Dimensions (HxWxD): 1.73 x 17.24 x 10
• Weight: 7.76lbs
• Warranty: 10 Years

Downloads

• Atlona AT-OME-PS62 Specifications (PDF)
• Atlona AT-OME-PS62 Manual (PDF)
