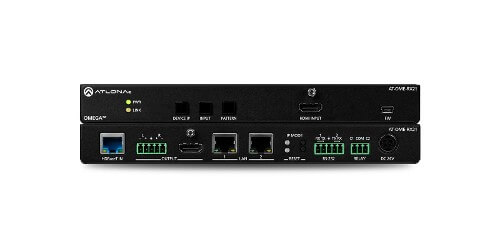

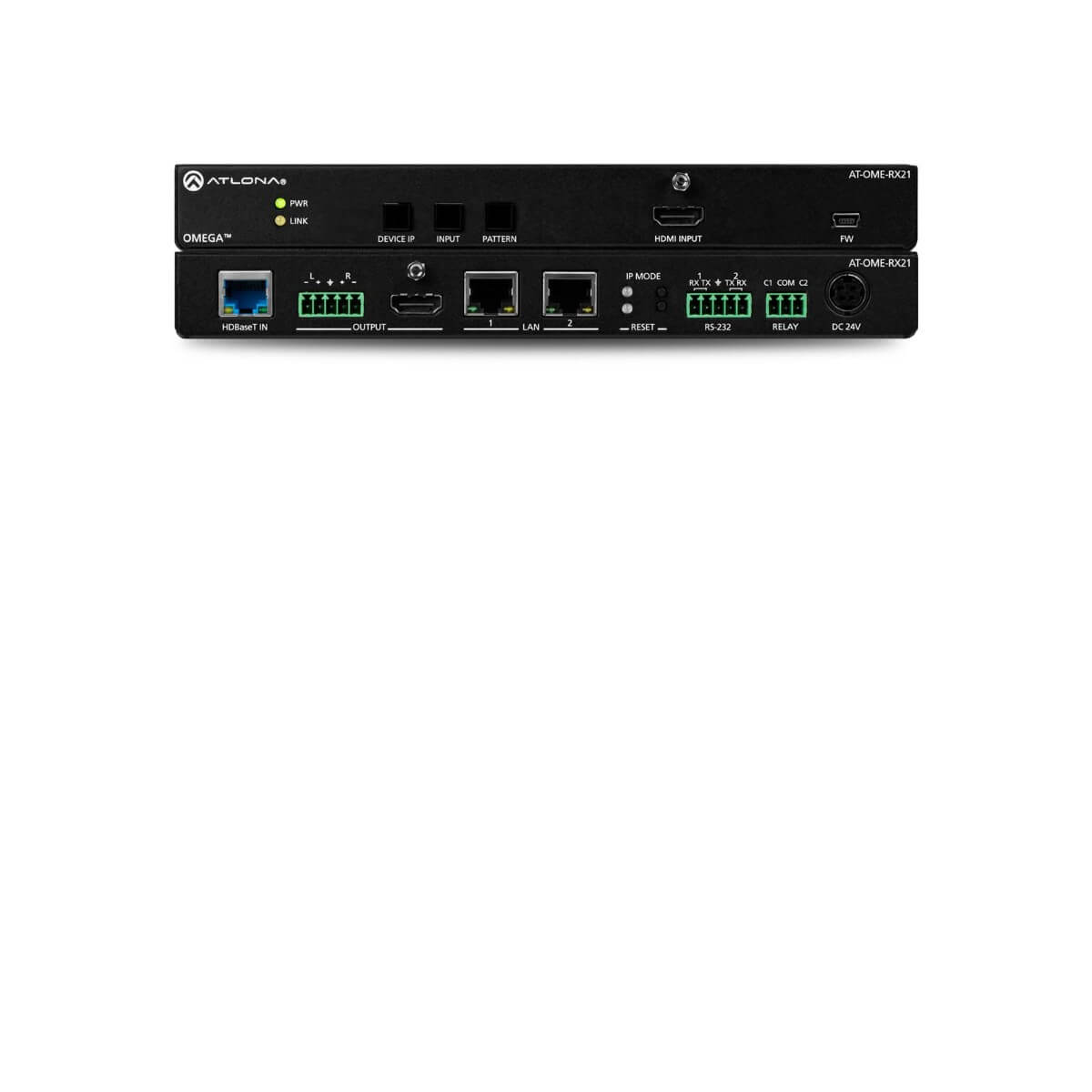

Atlona AT-OME-RX21
2x1 Switcher / Receiver with Scaler HDBaseT and HDMI Inputs
- HDBaseTTM receiver for HDMI , Ethernet, power, and control
- Local HDMI input
- 4K/UHD downscaling and upscaling
- Supplies powering over HDBaseT to a transmitter
Description
The Atlona AT-OME-RX21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. The OME-RX21 is ideal for 4K presentation applications with Omega, HDVS-200, or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain™ Series amplifiers.

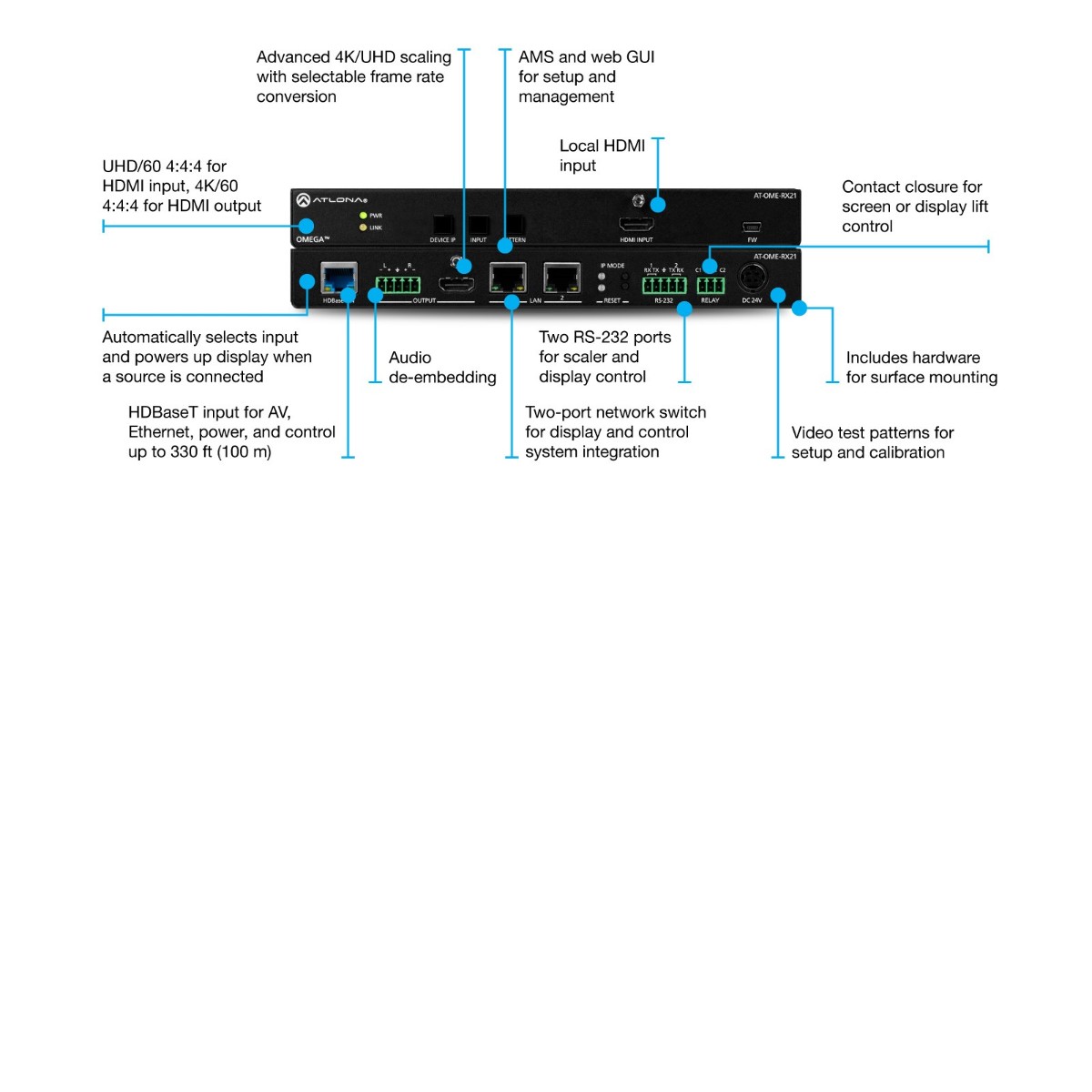

Versatile scaler, switcher, and extender
The OME-RX21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-RX21 can remotely power an Atlona transmitter over HDBaseT. For additional integration convenience, the OME-RX21 features audio de-embedding, integrated two-port Ethernet switch, contact closure ports for controlling a motorized screen or display lift, internal video test patterns for setup and troubleshooting, and remote management with AMS (Atlona Management System).
Specifications
- HDBaseT receiver with local HDMI input
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling for HDMI input and output
- HDCP 2.2 compliant
- Advanced 4K/UHD scaling with selectable frame rate conversion
- 4K/UHD downscaling and upscaling
- Audio de-embedding: De-embeds two channel PCM audio from any video source to a balanced, analog audio output
- Multi-channel audio compliant: Supports PCM, Dolby Digital, Dolby Digital Plus , Dolby TrueHD, Dolby Atmos , DTS Digital Surround , DTS-HD Master Audio , and DTS:X
- HDCP management
- EDID management
- TCP/IP and RS-232 control
- Front panel power and signal status LEDs
- Included accessories: Installation guide, surface mounting hardware, and external universal power supply
- Warranty: 10 Years
