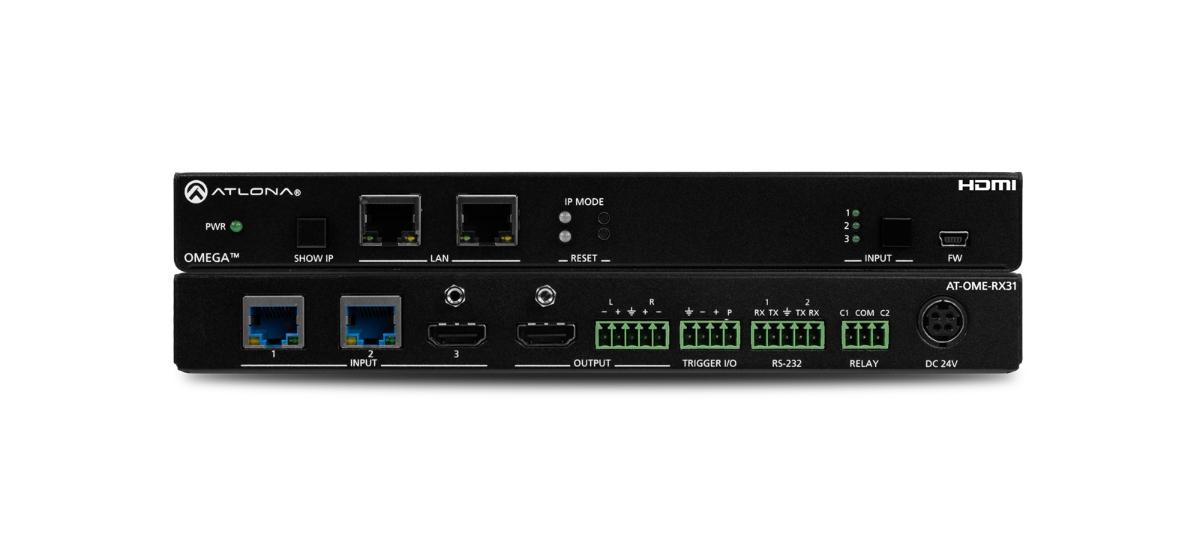

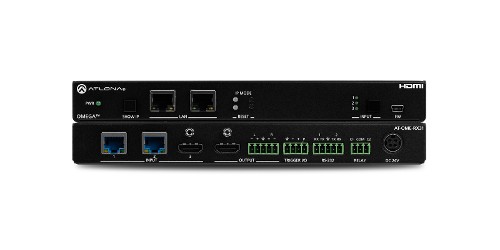

Atlona AT-OME-RX31
3x1 AV Switcher and Receiver with Scaler Dual HDBaseT Plus HDMI Inputs
- Dual HDBaseTTM receiver for HDMI , Ethernet, power, & control
- Local HDMI input
- 4K/UHD downscaling and upscaling
- Supplies power over HDBaseT to a transmitter
Description

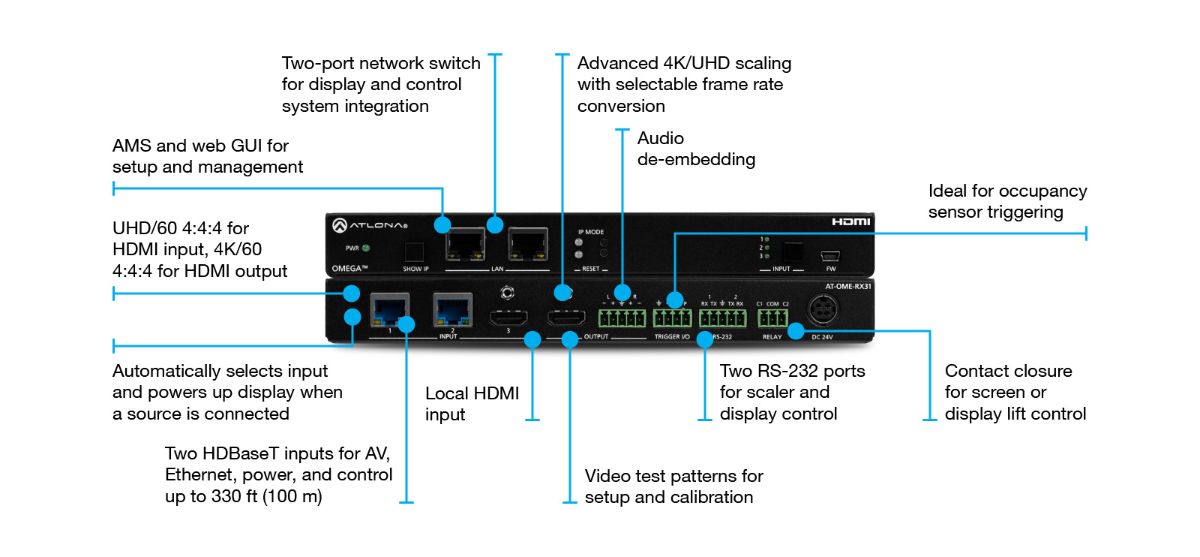

The Atlona AT-OME-RX31 is an HDBaseT receiver, three-input switcher, and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX31 features two HDBaseT inputs for receiving video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX31 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. Additionally, it provides integrated control for displays and room functions such as motorized screens, and can be externally triggered with the addition of an occupancy sensor. The OME-RX31 is ideal for 4K presentation applications with Omega or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain™ Series amplifiers.
Specifications
- Audio de-embedding
- Dual Ethernet ports and integrated network switch
- Two relays provide control for motorized screen, shades, or display lift
- Trigger I/O ports for occupancy sensing
