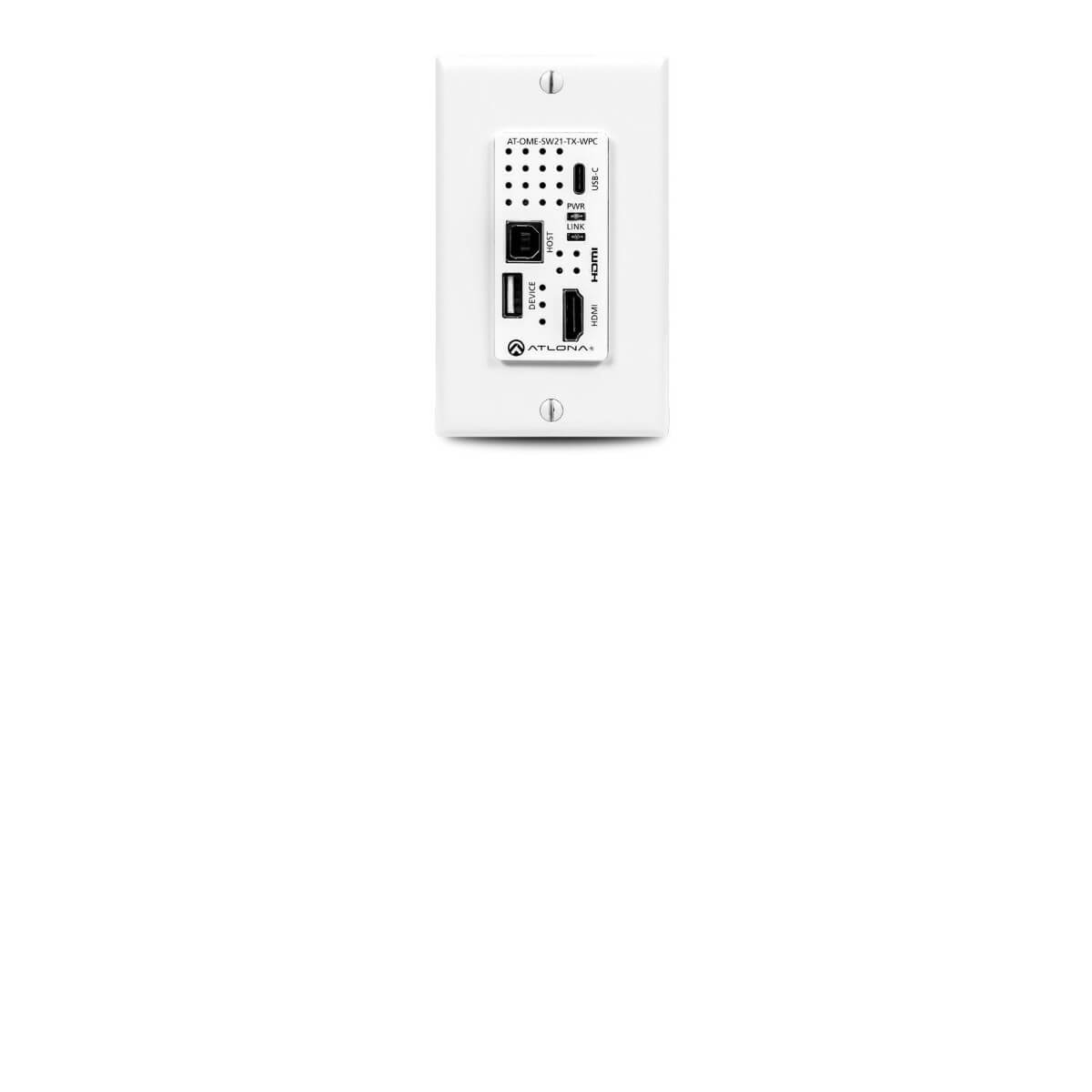

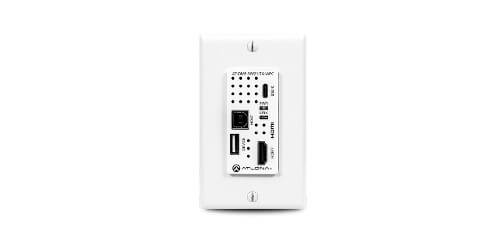

Atlona AT-OME-SW21-TX-WPC
Wallplate HDBaseT Transmitter for HDMI and USB-C USB Hub
- 2 1 HDBaseT switcher with HDMI and USB-C inputs
- HDBaseT transmitter for AV and USB (host and peripheral)
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- US one-gang enclosure for wallplate openings interchangeable black or white trim kits
-Patrick S.
Description

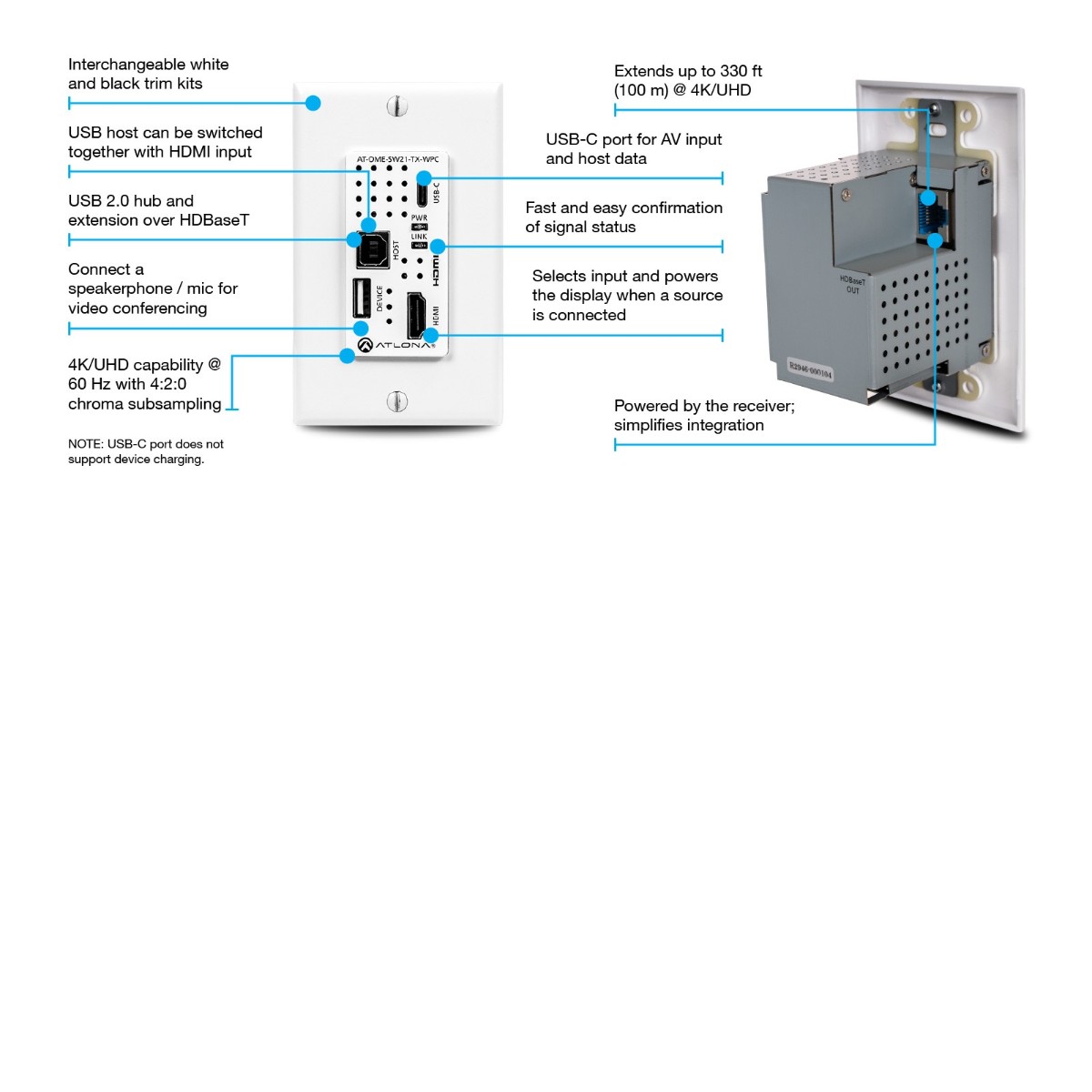

The Atlona AT-OME-SW21-TX-WPC is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The OME-SW21-TX-WPC features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SW21-TX-WPC is HDCP 2.2 compliant.
The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-SW21-TX-WPC includes USB 2.0 and USB-C PC host interfaces, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
The OME-SW21-TX-WPC incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-SW21-TX-WPC can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.
Specifications
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Remote powering over HDBaseT
