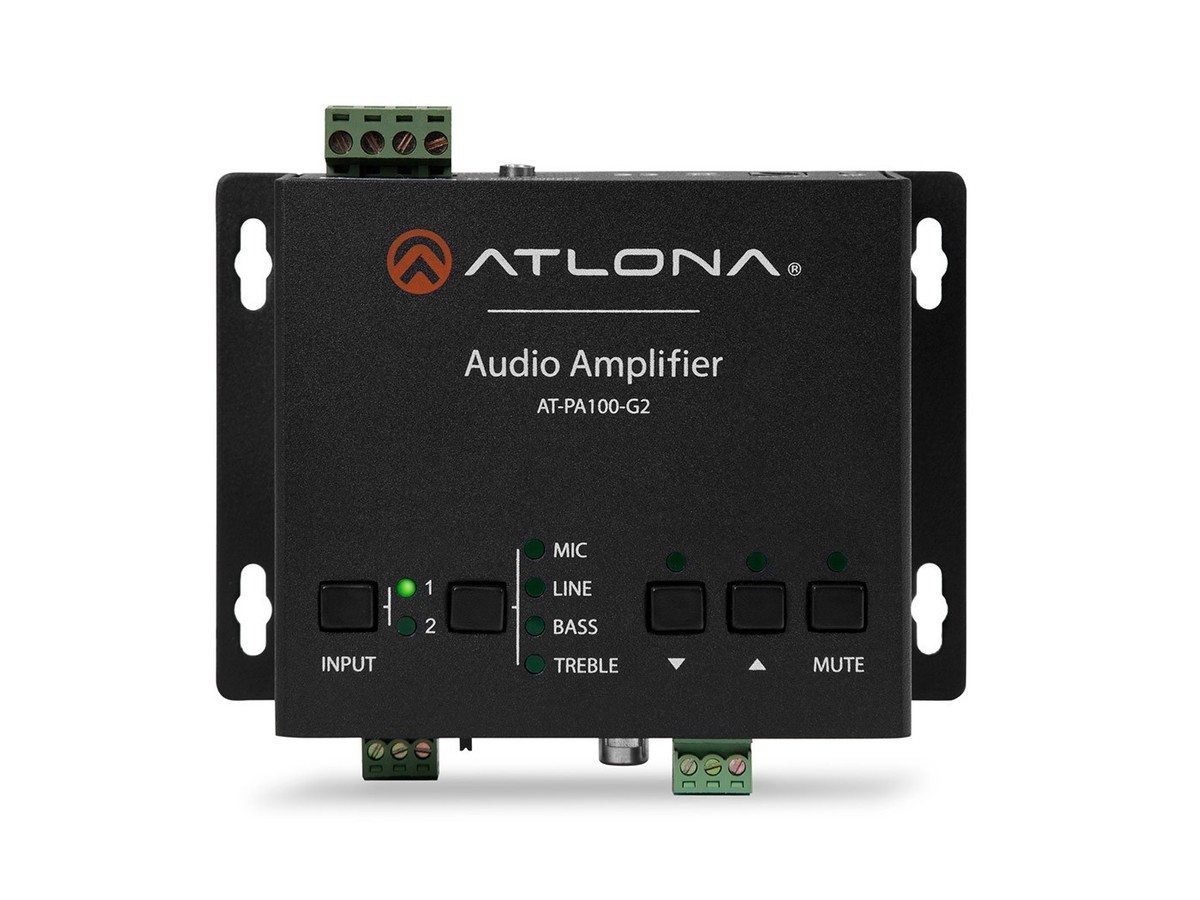

Atlona AT-PA100-G2
20W x 2 Stereo/Mono Audio Amplifier w/ Microphone Input
- Class D amplifier
- Output: 20W x 2, or 40W x bridged

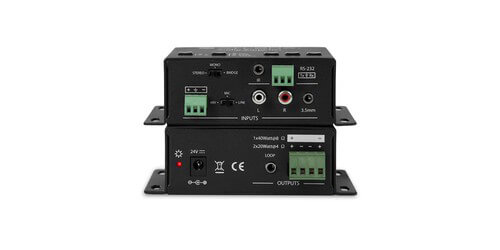

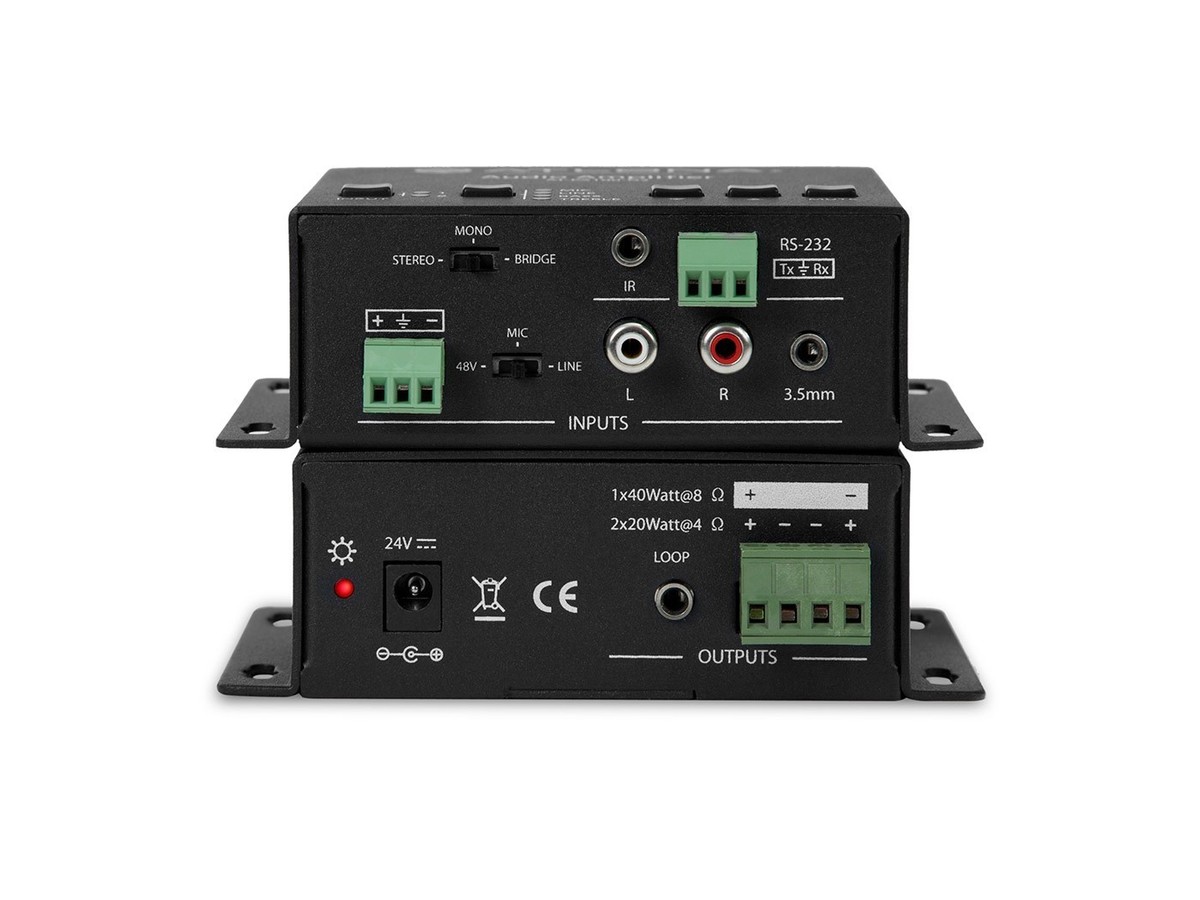

- Input Ports: 2 x RCA connectors, 1 x 3.5mm Audio, 1 x 3.5mm IR, 1 x Captive Screw MIC, 1 x Captive Screw RS-232
- Output Ports: 1 x Captive Screw Audio, 1 x 3.5mm Loop Out
-Timothy J.
Description
The Atlona AT-PA100-G2 is a stereo and mono audio amplifier in a small compact chassis, with dimensions of only 1.5" x 3.78" x 3.43" this amp can fit anywhere. This energy efficient amp delivers 20W x 2 of power, or 40W x 1 in bridged mode. You can connect up a microphone via the balanced 3-pin captive screw connector. The 3 position input switch offers settings for 48V providing phantom power for condenser mics, Mic for dynamic and battery-powered mics, and Line for line-level wireless mics. Also conveniently located on the amp is selector and adjustment controls that allow for the gain to be matched between microphone and unbalanced line level inputs.
The amp can be controlled via RS-232, IR, and the push buttons on the unit itself. A toggle button on the top of the unit allows for selection between the 3.5mm audio or RCA inputs. An audio output format switch allows users to switch between Stereo, Dual Channel Mono, and Bridged audio outputs. There is also a loop out that allows you to connect to an additional AT-PA100-G2 unit via audio connector.
The Atlona AT-PA100-G2 comes with a lot of features at an affordable price point, coupled with an easy set up and the ability to install anywhere it is an ideal choice to integrate into any system.
Specifications
- Gain: 32DB
- Control: RS-232, IR, and push buttons
- Includes: Power supply
- Warranty: 10 years
