Atlona AT-RON-444
4K60 4:4:4 Four-Output HDMI Distribution Amplifier - HDCP 2.2
- Resolutions: Up to UHD 4K@60 4:4:4
- Supports HDMI 2.0a and HDCP 2.2 Compliant
- Input: HDMI
- Outputs: 4 x HDMI
-Jeff A.
Description

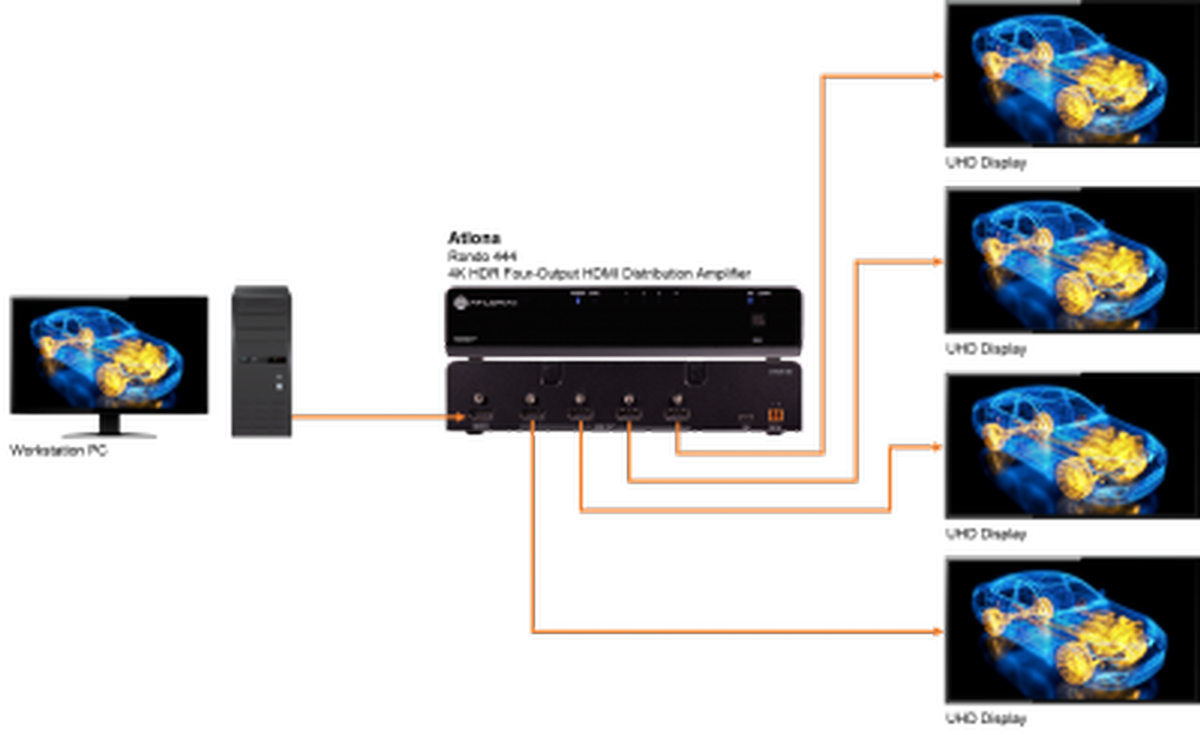

Atlona's AT-RON-444 is a top of the line high-speed four-output Distribution Amplifier for HDMI signals, with resolutions up to UHD 4K60 4:4:4. This top of the line 1x4 distribution amplifier is HDCP 2.2 compatible and supports High Dynamic Range (HDR) formats, as well as HDMI data rates up to 18Gbps. The Rondo amplifier (AT-RON-444) is an ideal solution for situations requiring the latest in 4K/UHD and HDR sources and displays to suit your high-end conference rooms, learning centers, or digital signage type applications, as it is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specifications, plus it can pass metadata for HDR content.
This distribution amplifier from Atlona includes EDID management features, easy to read front panel LED indicators for power and signal status, and has the capacity for cascading several units without compromising performance quality. Through EDID management the user can manage EDID communications with the source through a display's EDID or internally stored EDID, it as well ensures desired audio formats and video resolutions are provided to the AV system. Being able to support cascading you can combine multiple Rondo 444's and other Rondo series distribution amplifiers without compromising performance or reliability, and the system designs and configurations can easily be adapter or modified as needed.
Being multi-channel audio compliant, the distribution amplifier allows any multi-channel audio stream to be used within a residential or professional audio system and will support PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio.
Housed in a rugged and compact enclosure this unit has a very low-profile of 1" high, making it easy on installations into racks and confined spaces, as well as being able to keep the device out-of-sight when placed in public spaces, making for a more aesthetic over look to your Pro A/V system.
The AT-RON-444 was designed by Atlona to deliver a very high-end dependable distribution that maintains pristine image quality for presentations in commercial and residential applications. This device is backed by a phenomenal 10 year warranty from Atlona to give you peace of mind and confidence in buying a high-quality product, and comes with rack mount brackets, a user guide, and external universal power supply.
Specifications
- HDMI In/Out Resolution Distances at 4K: Up to 15'
- HDMI In/Out Resolution Distances at 1080p: Up to 30'
- Bandwidth: 18Gbps
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio HDMI Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Ports: mini-USB for firmware updates

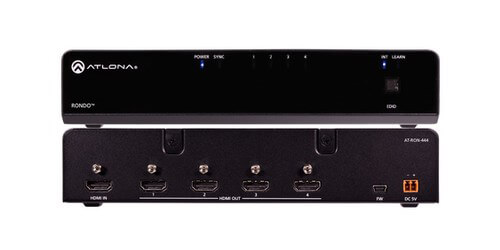

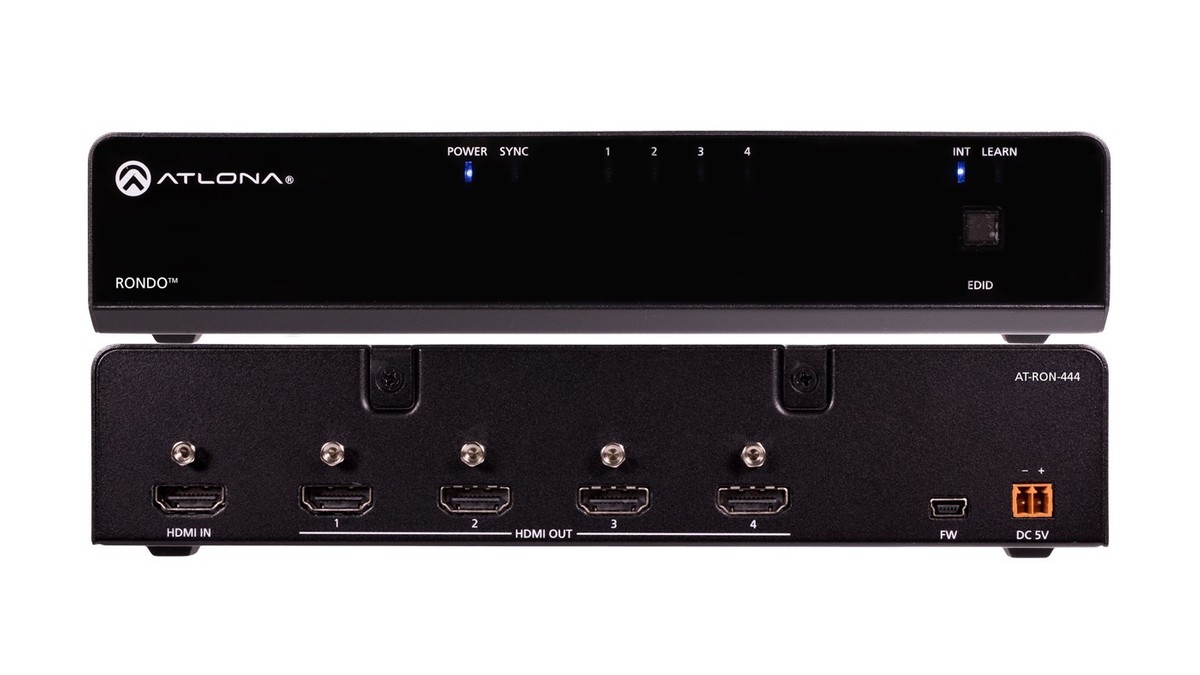

- Front Panel LED Indicators: Power and Signal Staus
- Certifications: CE, FCC
- Power Consumption: 6W
- Power Supply: Input: AC 100-240V - 50/60Hz, Output: DC 5V
- Included Accessories: User guide, rack mount brackets, and external universal power supply
- Warranty: 10 Years
