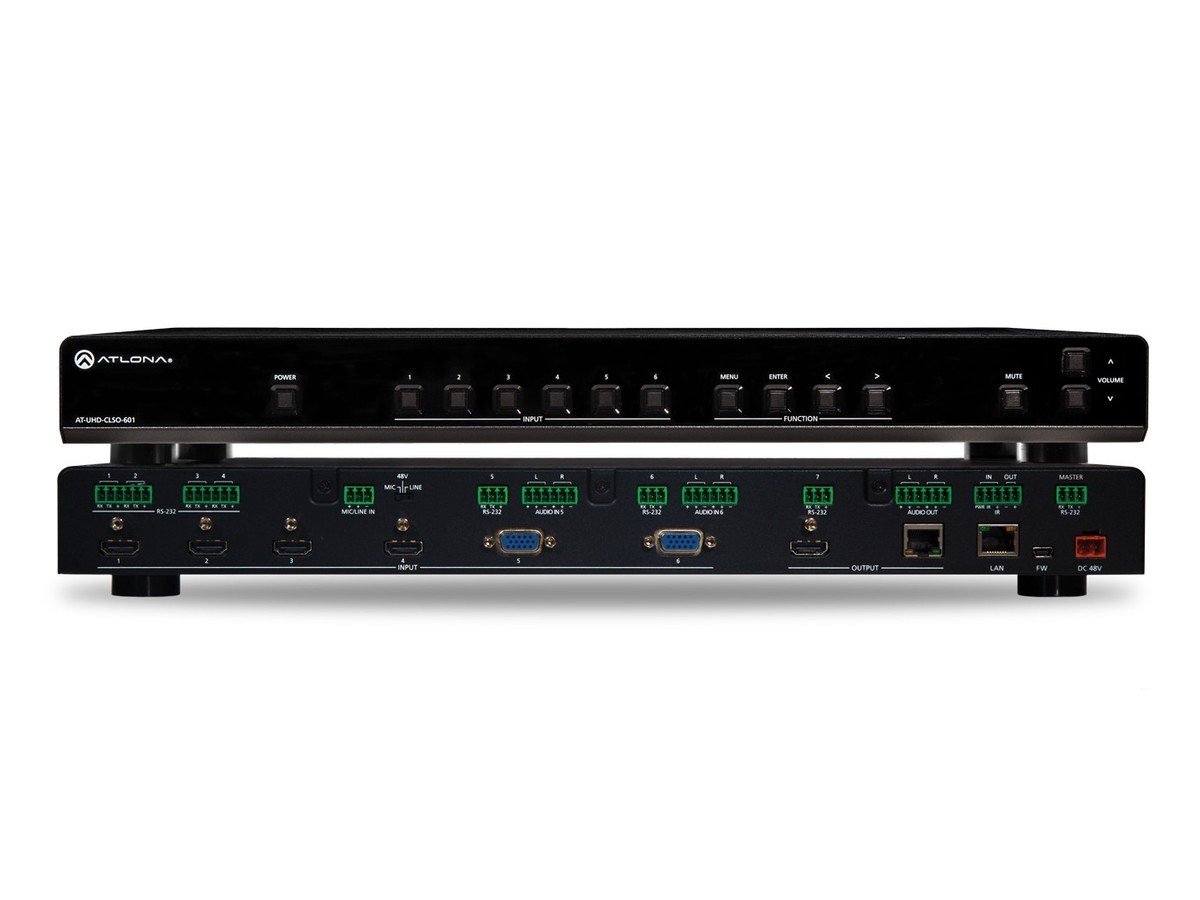

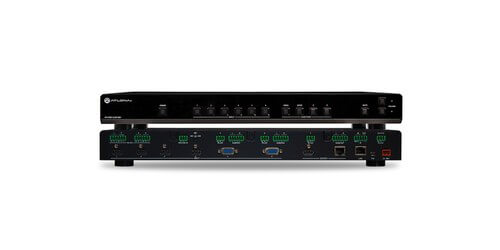

Atlona AT-UHD-CLSO-601
4 HDMI, 2 VGA In w/ 1 HDMI & 1 HDBaseT Out 4K@30 Switcher
- Inputs: 4 HDMI and 2 VGA
- Outputs: HDMI, HDBaseT- Mirroring
- Scaling: Upscaling and downscaling to ensure compatibility with any display up to 4K/UHD @ 30Hz resolution
- Distance: Up to 230' with CAT6a/7
Description
The Atlona AT-UHD-CLSO-601 is a multi format switcher for digital and analog devices with an integrated 4K/UHD@30 scaler, inputs include 4 HDMI and 2 VGA, an HDBaseT output with a mirrored HDMI output will feed any digital display. The HDBaseT output can send your signal up to 230' away as well as power to your receiver.
The integrated scaler solves the issue of your VGA and HDMI signals, preferred input resolutions can simply be set for optimal results. Scale down your 4K sources to 1080P if needed. The microphone input works with dynamic or phantom powered mics, or with line level inputs from wireless receivers. Presenters can easily talk over program material since the ducking circuit has multiple adjustments. The AT-UHD-CLSO-601 integrates easily with commercial audio equipment with balanced, analog audio in/out at +4 dBu, on captive screw connectors. “Sub” volume controls allow matched volume levels from any source.
Switch and control with either auto switching, front panel buttons, IR, IP, or RS-232.
Specifications
- Bandwidth: 10.2Gbps
- HDCP Compliant
- Supports 3D pass through
- Enables Display Control over IP, RS232 and CEC
- Dimensions: 1.73 x 17.08 x 10.04, 1RU
- Weight: 6.92lb
- Includes: Power supply
- Rack ears
- IR remote
- Warranty: 10 years
