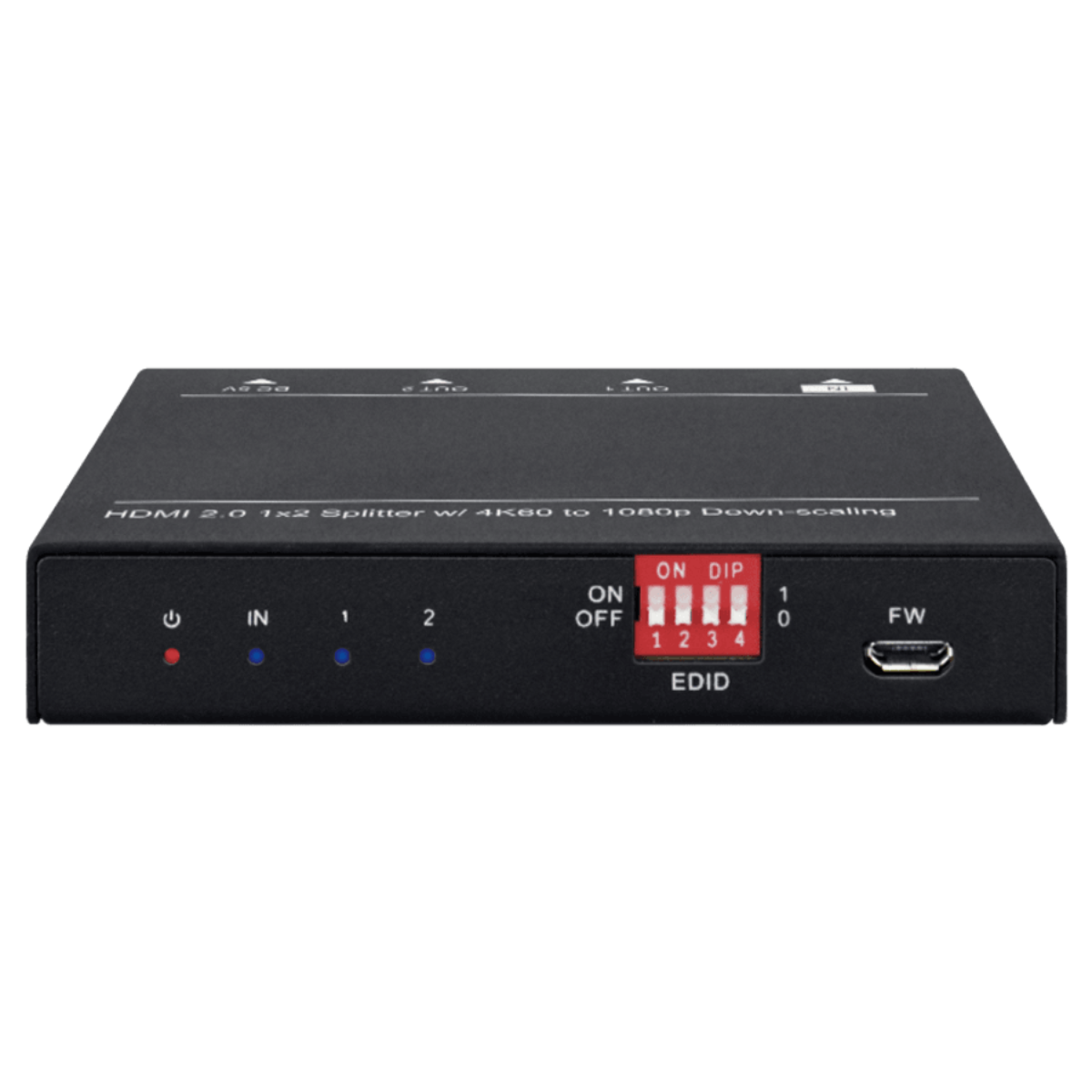

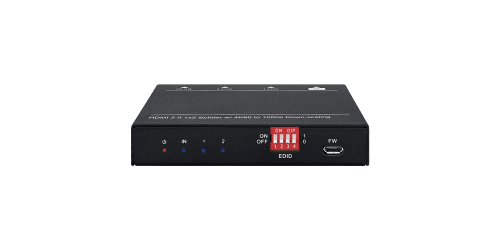

Aurora DXE-122A-DS
1x2 HDMI 4k Splitter
- Supports HDMI 2.0A Deep Color & 3D / DVI 1.0 compliant
- HDCP 1.4/2.2 compliant
- Wide frequency range: 25MHz~600MHz
- Video bandwidth: 18Gbps
-Timothy J.
Description
The DXE-122A-DS 1x2 HDMI 2.0A 4K Splitter with Auto EDID Management provides one of the most advanced HDMI splitter solutions by which the Ultra High Definition video and high quality audio can be transmitted to multiple locations without losing quality. The DXE-122A-DS supports all 3D formats and true 4K2K video. EDID management can be one of the most important capabilities to a splitter. Taking it one step further Aurora has added the ability to customize EDID for complete EDID emulation. This allows full control over the source and what it will be allowed to do. The DXE splitter have firmware upgrade capability via the USB port ensures compatibility now and in the future. With 48bit deep color video and high definition audio support, the DXE-122A-DS is suitable for high quality HDMI broadcasting, conference room, digital signage and education applications.
Specifications
- Resolution up to 4K2K @ 60Hz
- Auto EDID Management
- EDID Emulation & Customizable EDID
- Supports xvYCC, x.v.Color & Deep Color
- Mini-USB port for firmware updating & EDID Setup
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

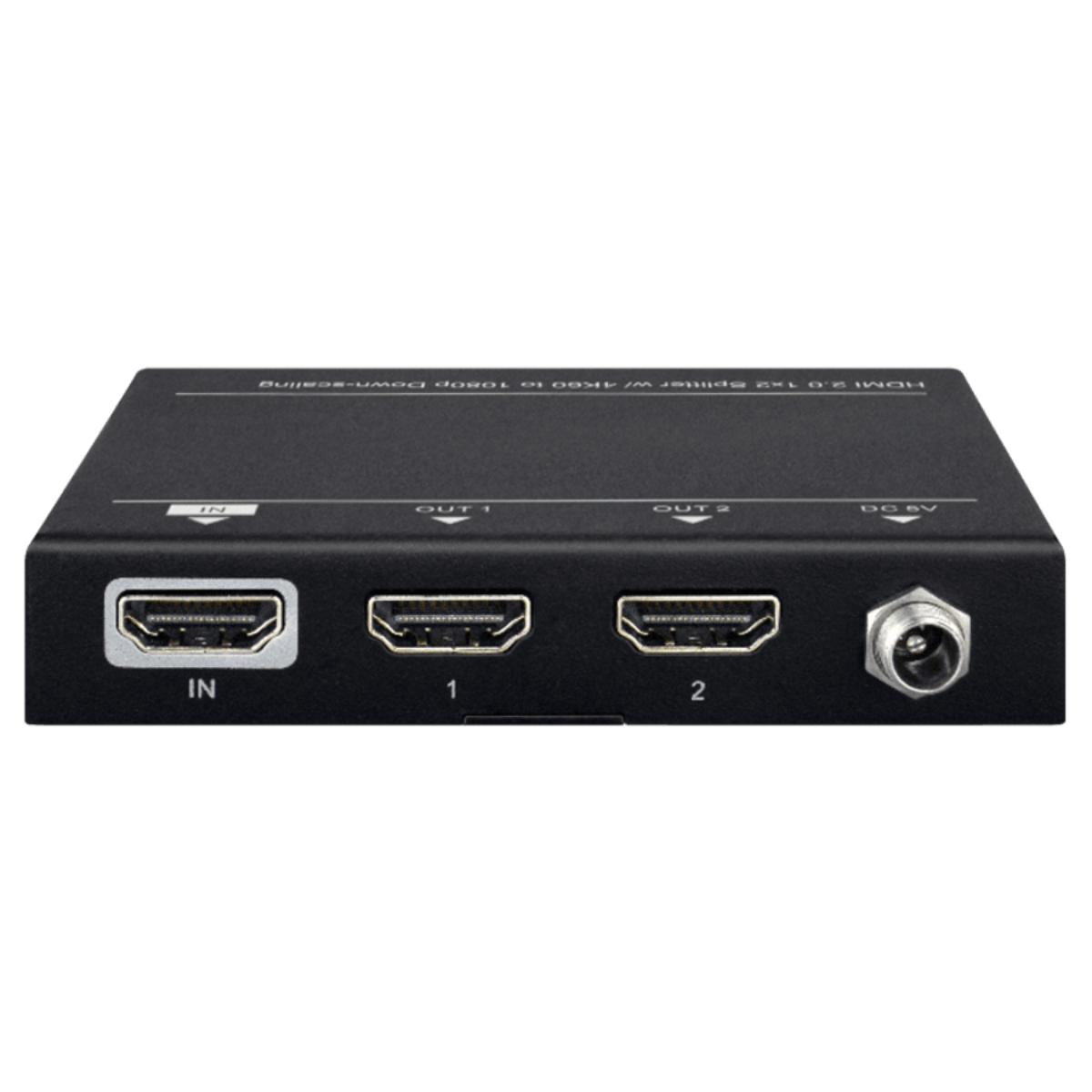

- HDMI & Power Connectors on same side for easy installation
- Ultra-low profile to fit behind displays
