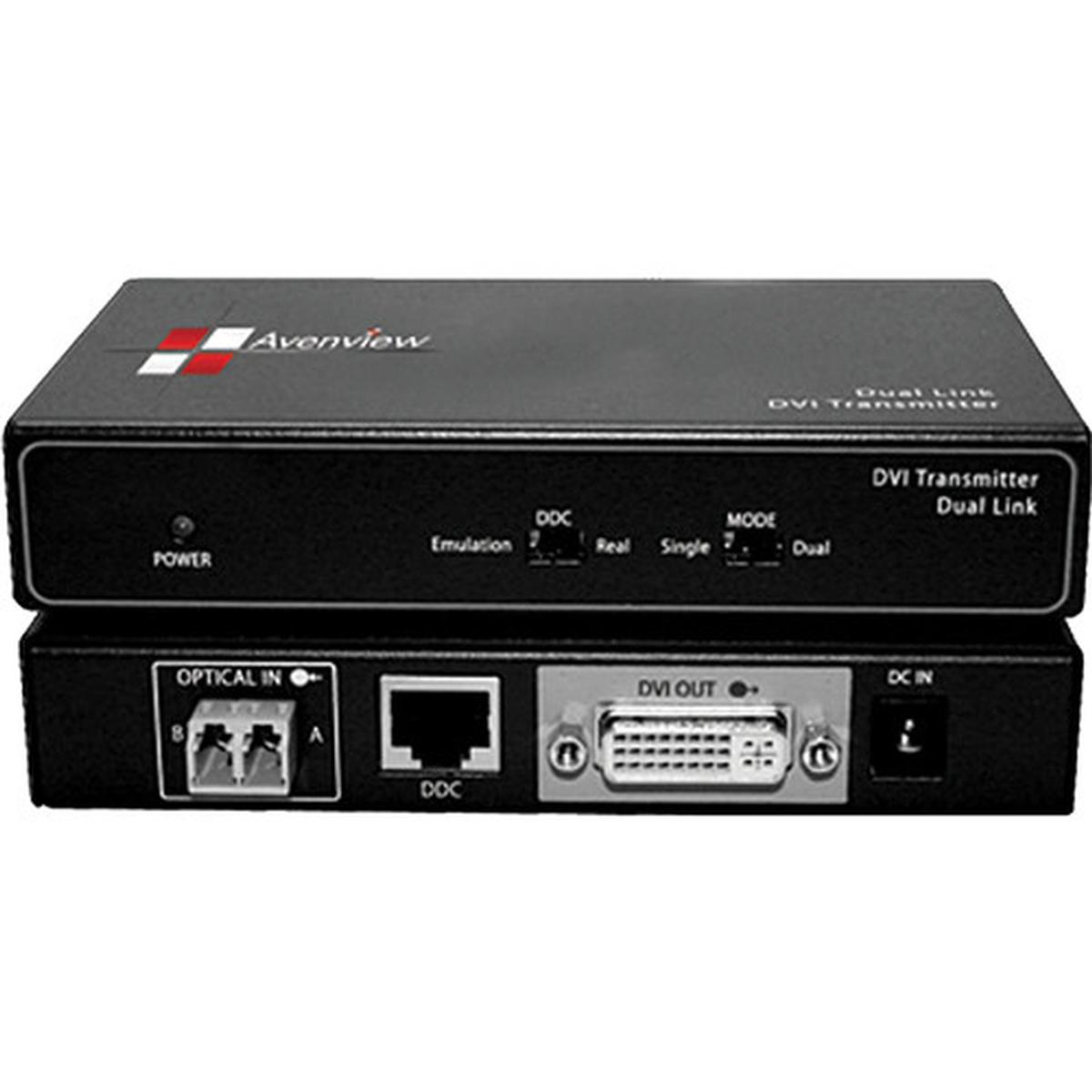

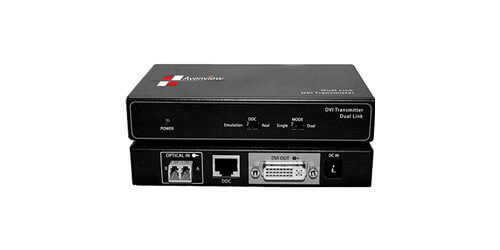

Avenview FO-DVI-DL-330X
Dual Link DVI Extender over 2 LC Cable HDCP Compliant
Part #: FO-DVI-DL-330X
Satisfaction Guaranteed!
Our Price:
$2,195.00
Top FO-DVI-DL-330X Specifications
- Input/Output Signal: TMDS signal (DVI 1.0 standard)
- Video Bandwidth: 1.65 Gbps (single link)
- Supported Resolution & Range: Single link: WUXGA 1920 x 1200 @ 330', Dual link: WQXGA 2560 x 1600 @ 330'
- DVI Connector Type: 24 pin DVI-D plug
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

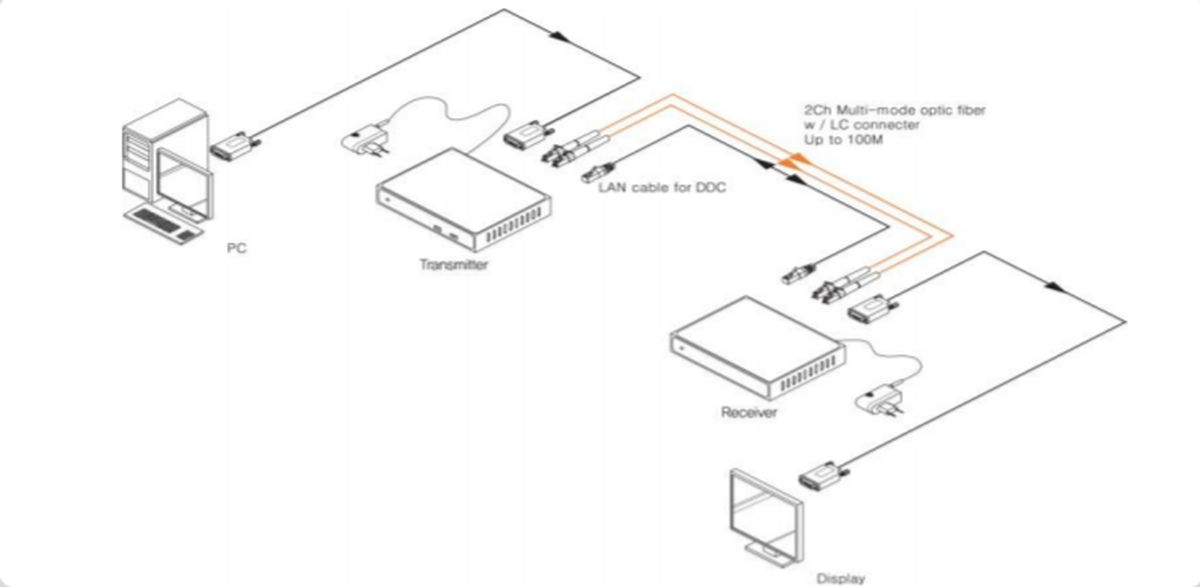

The Avenview FO-DVI-DL-330X is a Dual Link DVI Extender set over 2 LC cable that is HDCP compliant. This system, that comes with both a transmitter and receiver, was designed to let you extend dual link digital signals up to 330' using fiber optic cable at 1.65Gbps bandwidth. It uses 2-strand multi-mode LC fiber optic cable, supports both single-link and dual-link through a selectable function switch, and supports resolutions up to dual-link WQXGA and WUXGA single link. Other great features built-in to this DVI extender system include a self-detecting function for EDID, supports two mode for DDC, and can emulate Pseudo DDC detection function for EDID information.
Specifications
- Optical Connector: 2 LC connector
- DDC: Link Connector: RJ-45
- HDCP compliant
- Fiber Type: 62.5/125 m multi-mode glass fiber
- Uses 2-strand multimode LC fiber optic cable
- Supports 2 modes for DDC
- Self-detecting function for EDID
- Real Mode: Uses 1 CAT5 cable for DDC
- Supports both single and dual links by selectable function switch
- Power Supply: 5V DC, 2A
- Power Consumption: 1.5W
- Package Contents: Transmitter, Receiver, Power Adapter
- Warranty: 3 years on parts and labor
