Avenview FO-HDM-IP4K-SET
4K HDMI 2.0 Extender Set over Single SC Fiber Optic Cable
- TMDS Bandwidth: 10.2Gbps
- Supported Bandwidth: Up to 4K@30
- Range: 12.4 miles
- Audio Support: Surround Sound (up to 7.1 Ch) or Stereo Digital Audio
-Gregory W.
Description

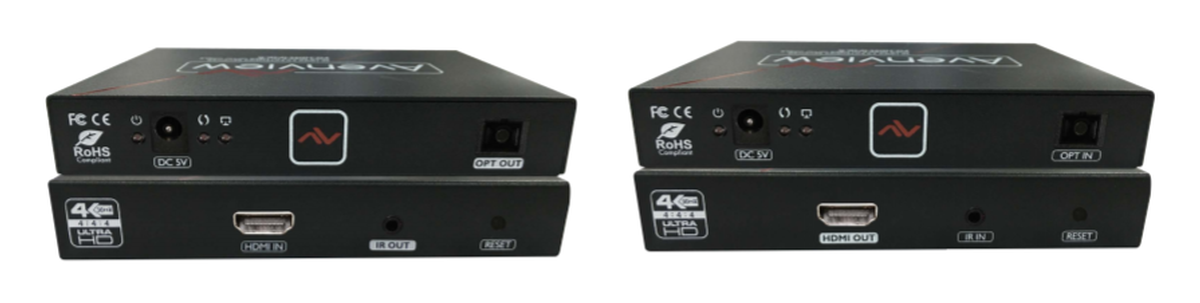

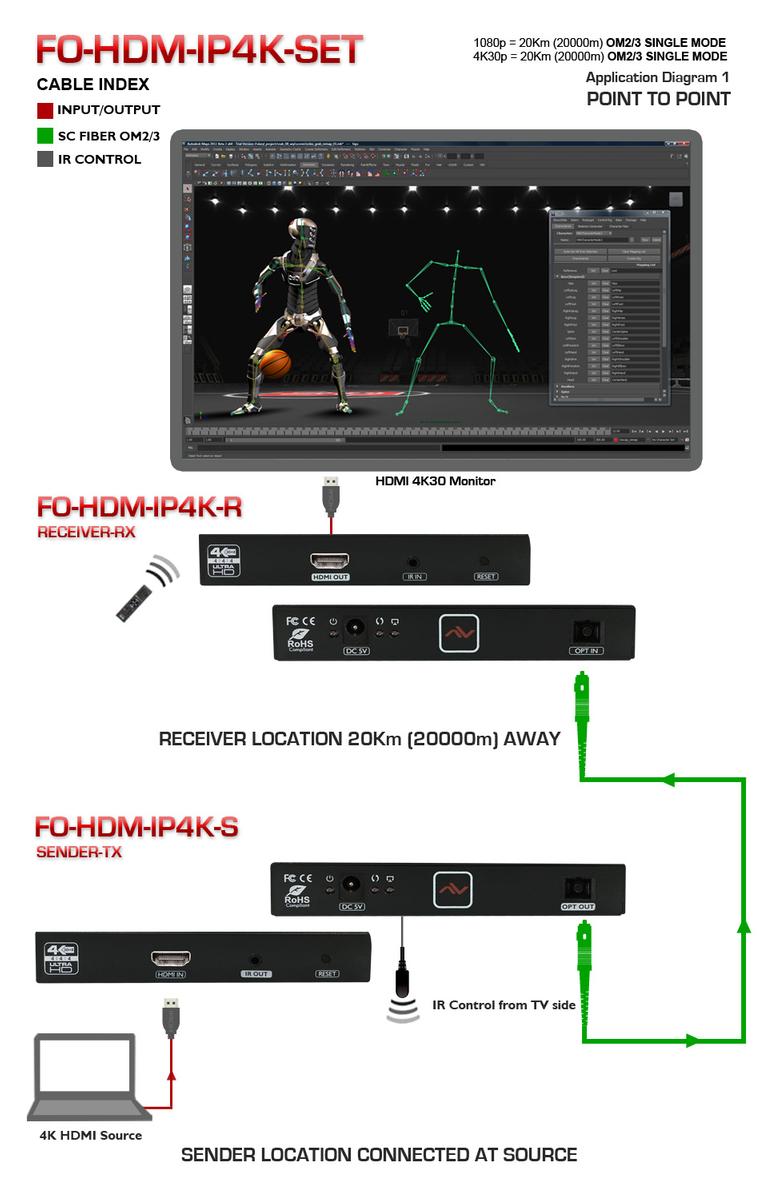

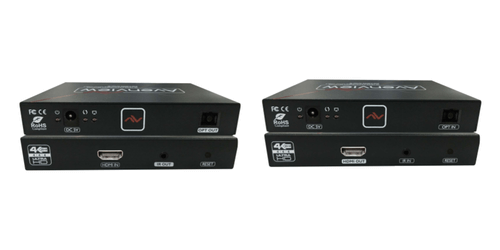

The FO-HDM-IP4K-SET from Avenview is an HDMI 2.0 Extender Set that comes with both a transmitter and receiver. This range extension system was designed to provide a long haul video signal transmission over fiber optic cable at the furthest possible distances. The FO-HDM-IP4K-SET truly delivers in this aspect as it is to transmit amazing pixel to pixel transmission of 4K@30 or 1080p HDMI signal up to a whopping 20KM (12.4 miles). Using this system users are able to overcome the length restrictions commonly found when standard HDMI cables with IR support. The Sender on this system can be connected to a Gigabit switch to establish an IP address therefore sending 1080p/4K video signals to multiple receivers connected to the Gigabit swtich and the HDMI displays (network switch with fiber optic ports required). Equally in this situation multiple Senders can be connected to a managed Gigabit switch with VLAN/IGMP support therefore sending 1080p/4K video signals to receivers connected to the Gigabit switch to show different sources on multiple displays (Requires a managed Gigabit switch with VLAN/IGMP support to have a solution with multiple sources (Transmitters)).
Specifications
- Tx Inputs: HDMI
- Tx Outputs: Fiber Optic, IR
- Rx Inputs: Fiber Optic, IR
- Rx Outputs: HDMI
- HDCP Compliant
- IP Pass-Through: Supports 20~60KHz IR devices
- Fiber Optic Connector: SC Single Mode
- HDMI Connector: Type A (19-pin female)
- Low signal loss, wide frequency band and strong anti-interference features
- High-end aluminum alloy enclosure design
- Wall-mountable design for convenient installation
- Support IR pass back for easy control
- Single mode fiber optic transmission
- Supports point to point transmission function which can be expanded to the multi-point to point transmission function
- Number of Senders and Receivers that can be used is dependent on bandwidth of the switch (Recommended Gigabit switch 10/1000, not included).Built-in electromagnetic interference prevention in environment for long distance transmission
- Package Contents: Transmitter and Receiver
- Warranty: 3 Years
