Avenview
FO-HDM4K-200-EMIX-SET
4K HDMI 2.0, Single SC Fiber Cable Tx/Rx Set - 656'
- ** This Set Comes with both a Transmitter and Receiver Unit**
- Supported Resolutions: Up to 4K (4096X2160) @ 60Hz
- Transmitter Input/Output: HDMI/Optical Receiver Input/Output: Optical/HDMI
- Range: 656'
-Brandon K.
Description

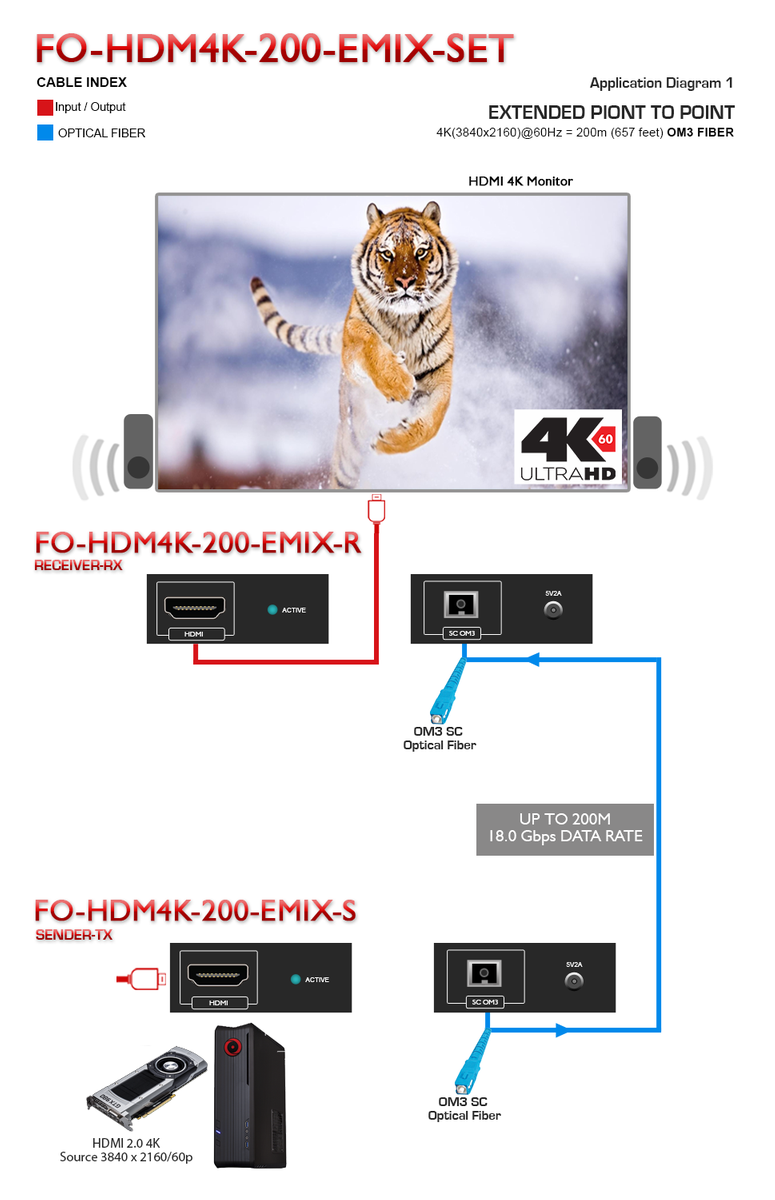

The FO-HDM4K-200-EMIX-SET Transmitter/Receiver Extender Set over Single SC OM3 Fiber Cable has been designed to extend 4K video and multi-channel audio formats to any compatible 4K display up to 656' away. Video signals include 4K60 (4096x2160) and 4K60 (UHD 3840x2160), 3D and Full HD 1080p/60. This kit includes both a Transmitter (FO-HDM4K-200-EMIX-S) and Receiver (FO-HDM4K-200-EMIX-R) with one FTP output port that allows users to extend video and audio up to 656'. Input and Output ports support HBR2 cable assembly and can handle up to 5.4Gbps/lane data rate (18Gbps). EDID and Hot Plug channels are transmitted by copper line. Avenview has also re-designed the enclosure of these devices allow them to be easily installed into any environment, behind a monitor, or rack mounted on a rack shelf. With this new compact rugged design, installers now benefit from a complete solution that keeps pace with the new trends of rackmounted 4K streaming, network connected devices that are in demand with the latest Smart TV, ultra HD monitors and content.
Specifications
- Data Rate: 18Gbps (5.4/ graphics channel)
- Signal transmission through one SC terminated Multimode fiber optic (OM3)
- HDMI 2.0 and HDCP Compliant
- CEC Compliant
- Supports SCDC (Scrambling) function
- Real EDID Transmission
- Audio Supported: Surround Sound Up to 7.1 Channel or Stereo Digital Audio
- HDMI Connector: Type A (19-pin Female)
- Fiber Type: 50/125 Multi-mode glass fiber OM3 rated fiber
- Power Supply (2 x Included): 5 V/2 A DC (US/EU standards, CE/FCC/UL certified)
- Included Cables: 2 x HDIMI (Copper Cable - 3')
- Weight: 1.5lbs
- Dimensions (LxWxH): 114L x 25W x 20H(mm) for each unit
- Warranty: 3 Years
