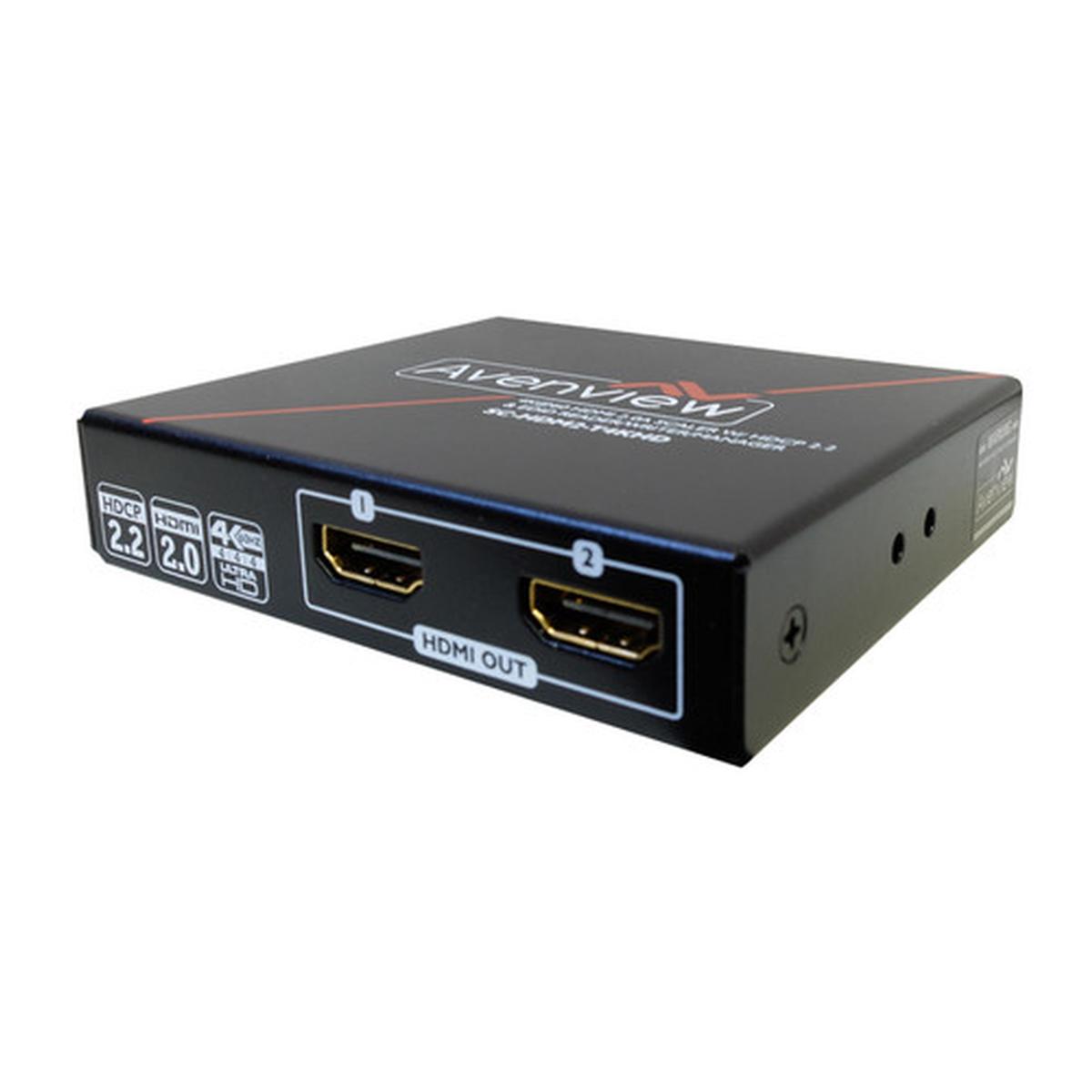

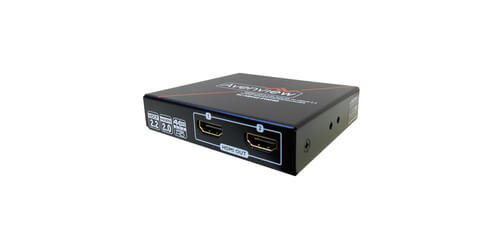

Avenview SC-HDM2-T4KHD
HDMI Scaler with 1080P and Ultra HD 4K@60 with EDID Support
- Inputs: HDMI, mini-USB
- Outputs: 2x HDMI
- Supported Resolutions: Up to HDR 4K60 4:2:0 (10-bits) & 4K@60hz 4:4:4 (8-bits)
- HDCP 2.2 Compliant
-Brandon K.
Description
The SC-HDM2-T4KHD Scaler from Avenview with HDMI 2.0 and HDCP 2.2 support, was designed as a device that can assist in solving EDID information problems that occur within a system design that uses different connected devices with varrying resolutions. With supported resolutions of 4K60 4:4:4 (8-bits) and HDR (4K60 4:2:0, 10-bits), this device uses its own supplied control software so the user can easily store and recall default EDID information, which also supports EDID Re-time / EDID Recorder setting in non-volatile memory that supports HDCP handshaking. This unit features resolution upscaling from 1080p to 4K2K or downscaling from 4K2K to 1080p (No frame rate conversion).
The SC-HDM2-T4KHD Scaler will allow an HDMI source to boot directly from EDID Reader/Writer/Re-Time mode which allows users to very simply remove the monitor at any time while installing the SC-HDM2-T4KHD between HDMI source and monitor. With the aid of the control software users can read, store, and modify the EDID of any HDMI/DVI display and upload the modified EDID to displays. With a video bandwidth of 18Gbps this scaler features, 1 HDMI input and 2 HDMI outputs, the HDMI outputs can be optionally used as a bypass to upscale to 4K or as a bypass to downscale to 1080p. To maintain or improve signal quality, this device Re-synthesizes the input HDMI stream to keep video signal quality at its original resolution.
Click the link below to Download the PC Software required to assign HDMI ports to upscale, downscale or bypass:
Specifications
- Bandwidth: 18Gbps
- Supported Digital Audio: 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound'

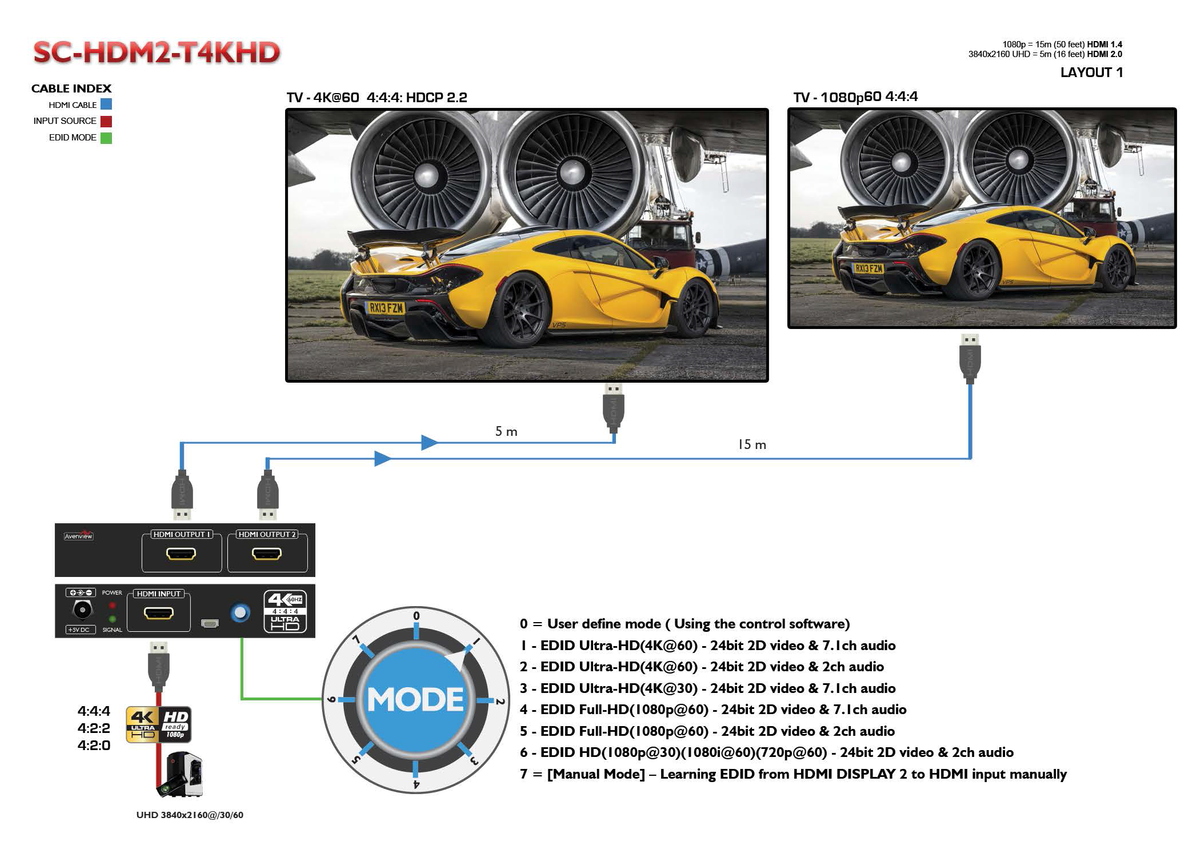

- EDID Modes: 7 Adjustable Modes
- Built-in Default EDID
- HDMI Output Options: Output 1: Bypass - Upscale to 4K / Output 2 : Bypass - Downscale to 1080p
- Chroma Sampling: 4:2:0, 4:2:2, 4:4:4
- Power Supply: 5V 2A
- Power Consumption: 4W
- Dimensions (L X W X H): 3.7" x 3.2" x 1"
- Warranty: 3 Years
