AVPro Edge AC-AVDM-AUHD
18Gbps 8 Channel Audio Down Mixer
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 2.3 and all earlier version supported
- Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit)
-Jeff A.
Description

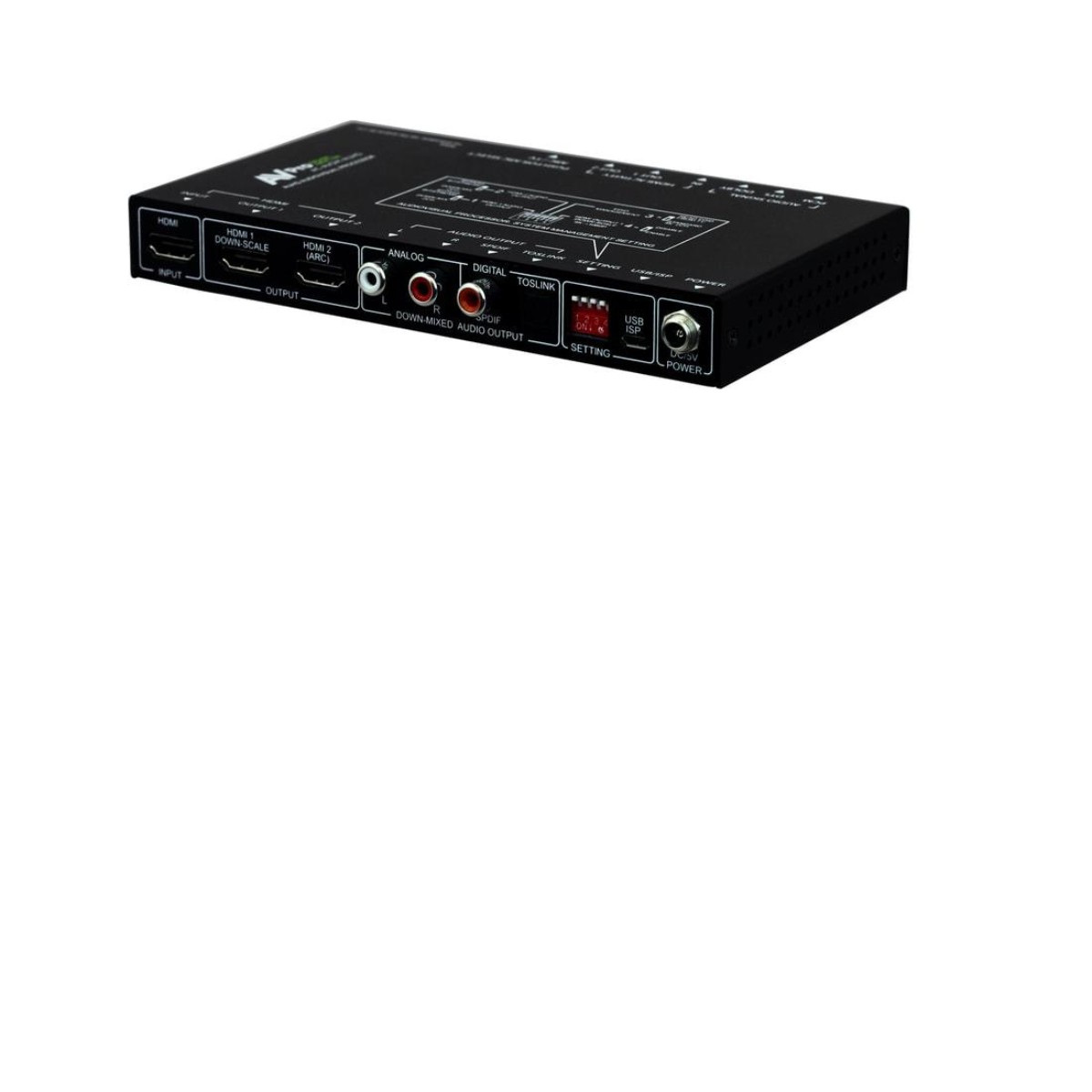

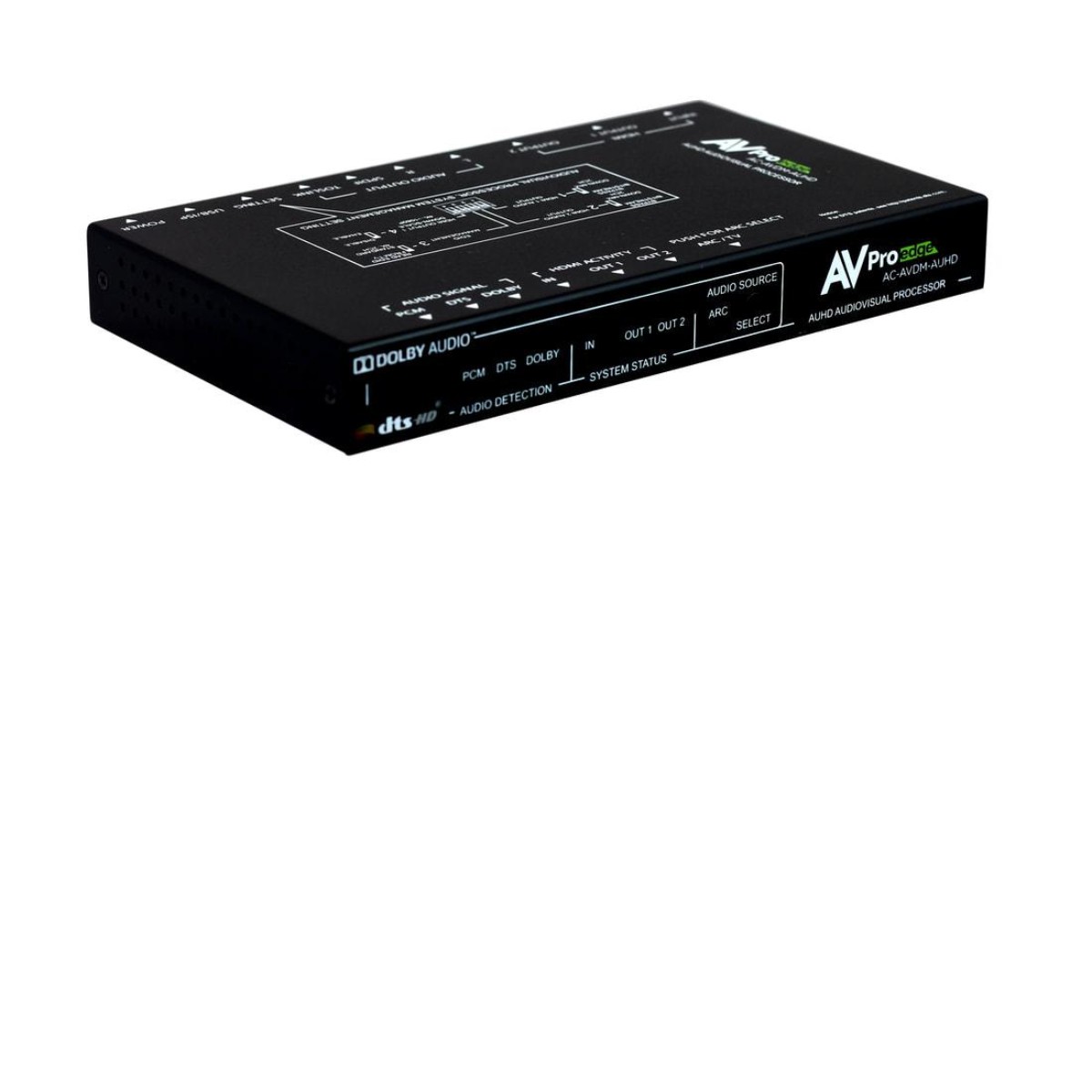

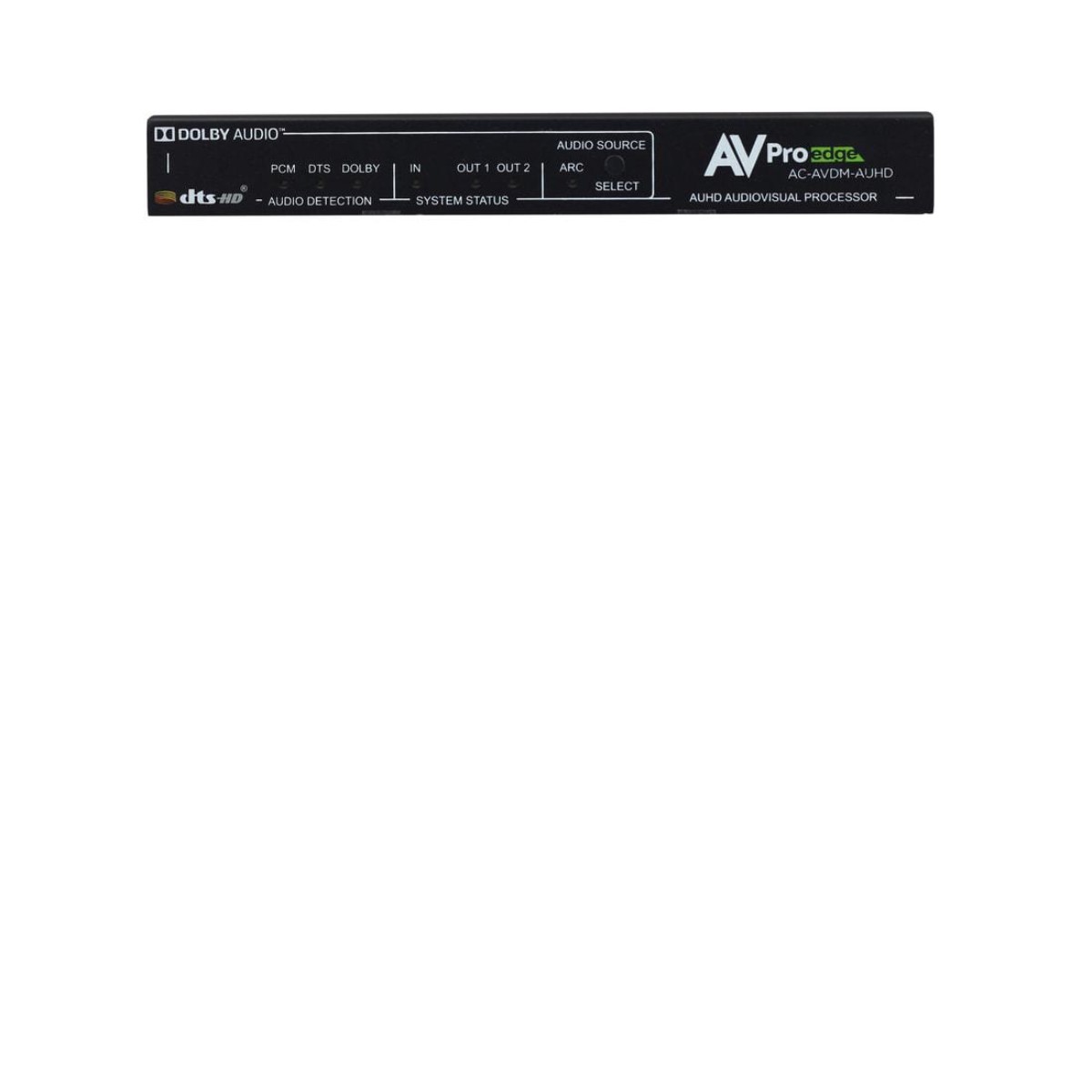

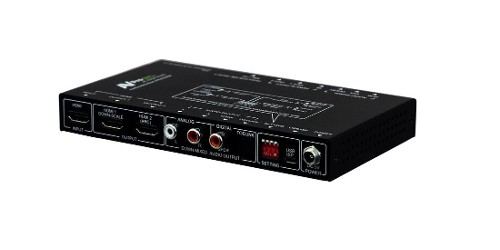

The AVPro Edge AC-AVDM-AUHD 4K UHD HDMI with Dolby Audio™ and DTS-HD® Stereo Audio Downmixer supports the transmission of high bandwidth (18Gbps) video through HDMI, and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance.
This unit can downmix standard Dolby Audio & DTS-HD formats up to 7.1 and output the audio as stereo (LPCM 2.0) over HDMI, S/PDIF (optical and coaxial) as well as analog RCA connections. It is also able to manage Dolby Atmos signals by extracting 7.1 channels from Atmos and downmixing that audio. It can also support the pass-through of HD and standard bitstream formats as well as LPCM 7.1 with audio sampling rates up to 192 kHz if needed.
If the connected display supports ARC (Audio Return Channel), and has it enabled, then this unit can extract the ARC audio and output it via all available audio outputs. Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit).
Specifications
- Supports 48-bit Deep Color up to 1080p60
- Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMI
- Embedded Dolby Audio Decoder technology
- Embedded DTS 2.0 + Digital Out Decoder technology
- Integrated digital interpolation filter and Digital-to-Analog Converter (DAC)
- Supports LPCM sampling rates up to 96kHz.
- Supports Dolby Digital sampling rates up to 48kHz.
- Supports DTS sampling rates up to 96kHz.

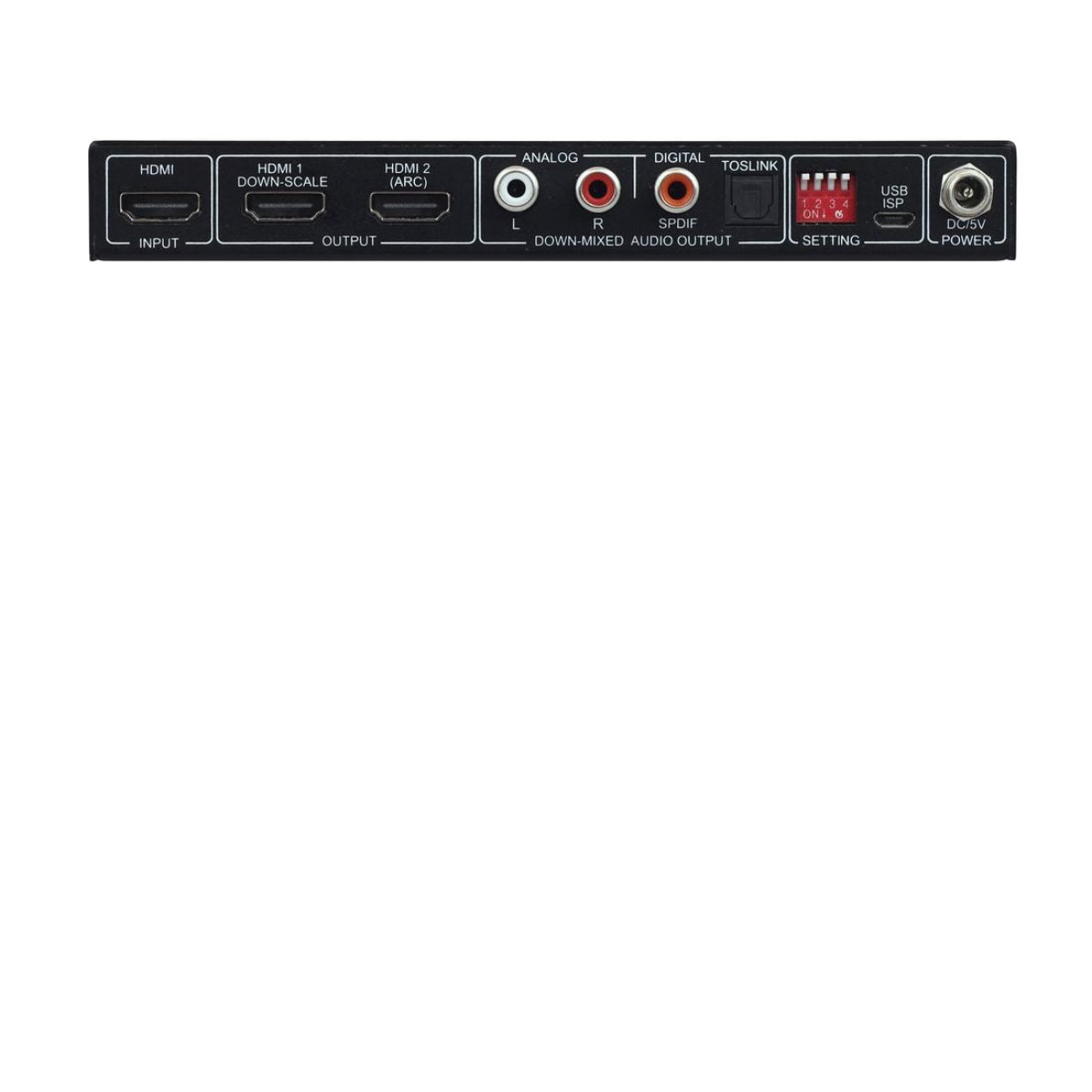

- Simultaneous audio output via HDMI, analog stereo, Coaxial and Optical.
- Supports coaxial and optical audio sampling rates up to 96kHz.
