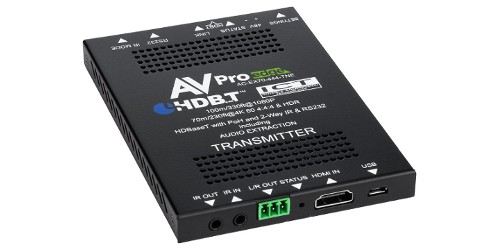

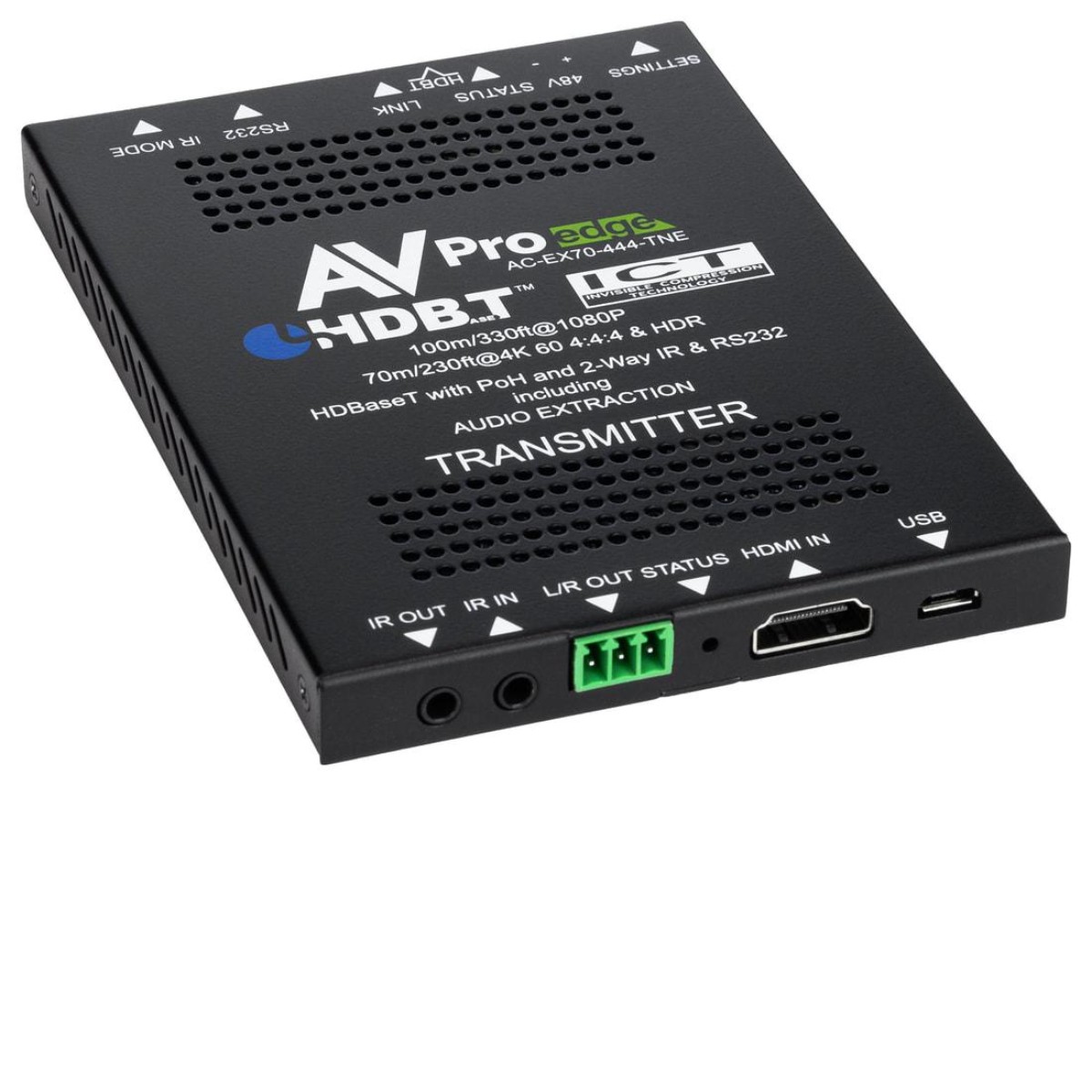

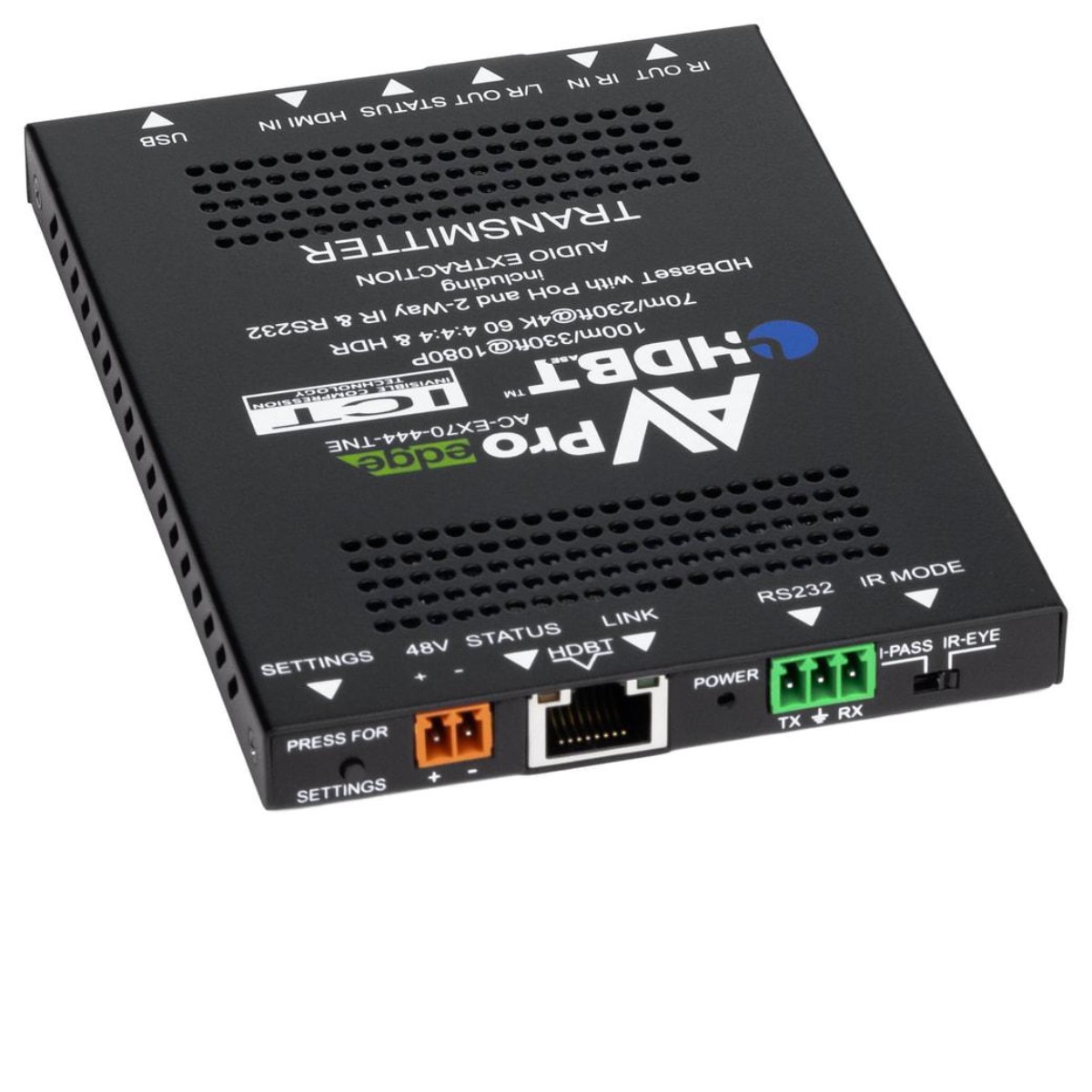

AVPro Edge AC-EX70-444-TNE
4K 70 meter audio/video transmitter using HDBaseT

Description

AVPro Edge’s 70-meter 4K transmitter can support long-distance runs of high bandwidth data signals over standard category cable. Professional AV installers will use this device anytime they need to send HDMI signals long distances. This device will convert the HDMI signal into an HDBaseT type that distributes uncompressed video data through walls and underground to areas that are not easily reached.

This device works perfectly with any HDBaseT TV, projector, or AVR, but even more so works with AVPro Edges scaling HDBaseT Receiver (AC-EX70-SC2-R). When paired together you are in full control of the video signals that are passing through, you can input a full 4K60 signal, but scale it to a standard 720p for legacy TVs and projectors.

Specifications

• Full HDR (HDR, HDR10+, and HLG) and Dolby Vision Support
• HDCP 2.2 & Earlier Supported
• EDID Management and EDID emulate
• L/R Audio Extraction on Tx
• CEC Pass Through
• 3D Support
• Ultra Slim (.47 inch/12mm)
• Bidirectional RS232 Transport
• LED Status, Link, Power indication lights
• 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
• Bi-Directional PoE (ieee)
• Rugged, long-life chassis
