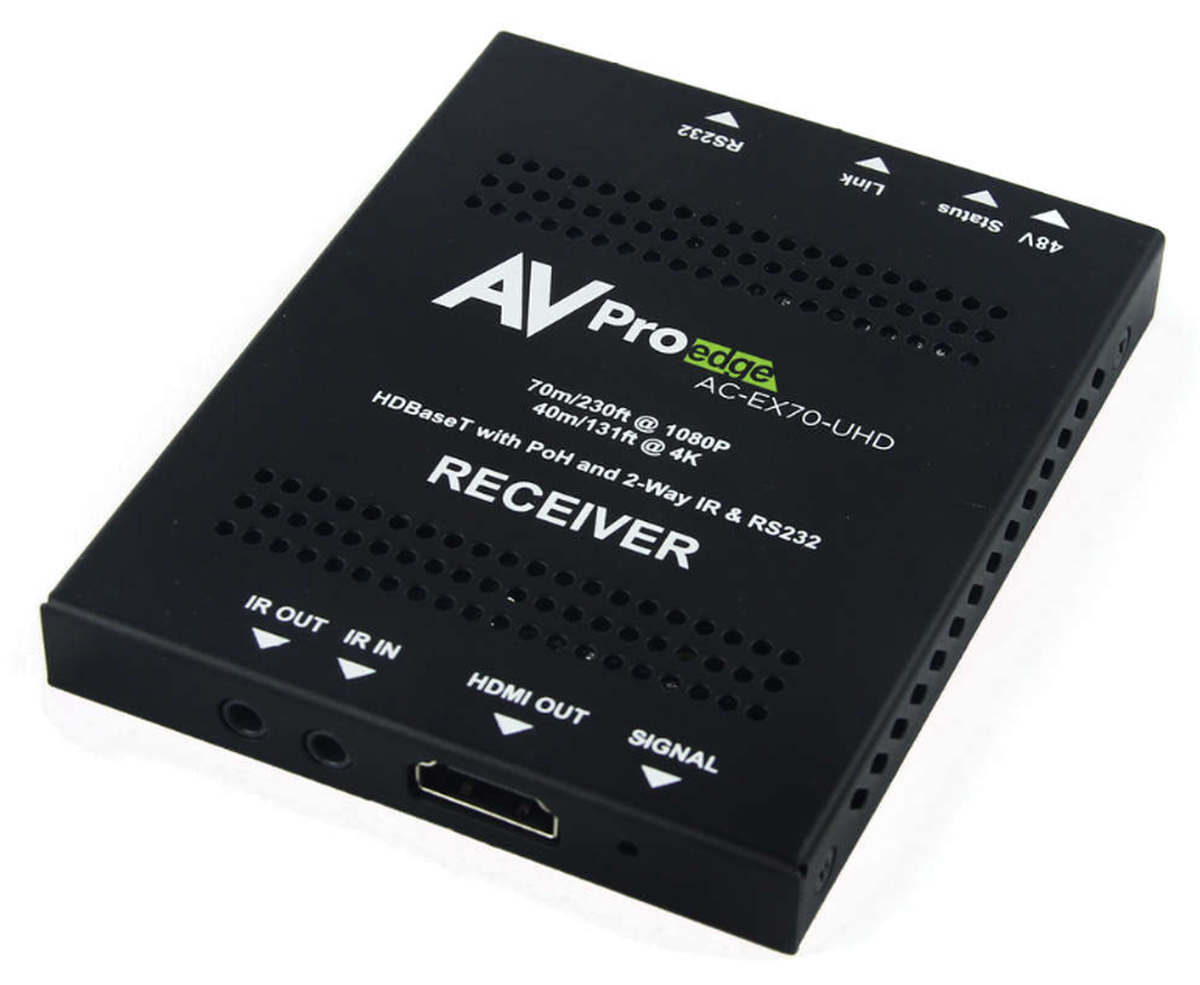

AVPro Edge AC-EX70-UHD-R
4K60 HDMI 2.0 and HDCP 2.2 HDBaseT Receiver
- Max resolution: 4Kx2K 30Hz or 4Kx2K 60Hz YUV 4:2:0
- Compliance: HDCP 2.2 and HDMI 2.0
- Distance: 1080P up to 230', 4K up to 131'
- Sends HDMI with embedded audio, bi-directional IR and RS-232
Description
The AVPro Edge AC-EX70-UHD-R is an HDBaseT Receiver that features the latest in 4K technology, the kit will send your 4K60 content up to 131' and 1080P content up to 230'. The receiver supports HDCP 2.2 and HDMI 2.0 for the ultimate in signal transmission. The receiver is extremely thin coming in at under 1/2" thick so they can be mounted behind any TV or any location where space is tight. Supports Power over HDBaseT (PoH), this means that the receiver does not require power, when being used in conjunction with a transmitter that is PoH enabled. For extra long runs this receiver with when added with transmitter can be cascaded up to 8 times and maintain perfect signal with no loss. Bi-directional IR and RS-232 for your control needs, when paired with a compatible receiver.
The AVPro Edge AC-EX70-UHD-R also has support for HDR as a 10.2GBPS device. HDR pass-through is supported as long as the source device connected is sending the correct signal, this also can be done using proper EDID management. Most UHD/HDR devices will work (due to their design) automatically.
This receiver is an ideal choice in any commercial or residential application where you need to receiver the highest quality signal possible with the reliability you demand.
Specifications
- LED indicator lights
- Use with: AC-MX9X & AC-DAEX282-UHD
- ESD protection circuitry
- Cascadable up to 8 times
- Audio: All DTS-HD and Dolby-HD
- Dimensions: .47" H x 3.93" D x 3.15"W
- Weight: .7lbs (pair)
- Warranty: 10 years
