AVPro Edge AC-EXUSB-2-KIT
USB 2.0 via HDBaseT 100 Meter Extender
- Full USB 2.0 Support
- 480 Mbps
- Optimized for Microsoft Teams
- Optimized for Zoom
-Timothy J.
Description

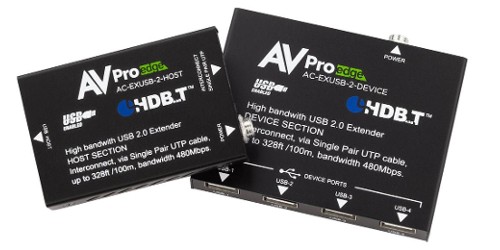

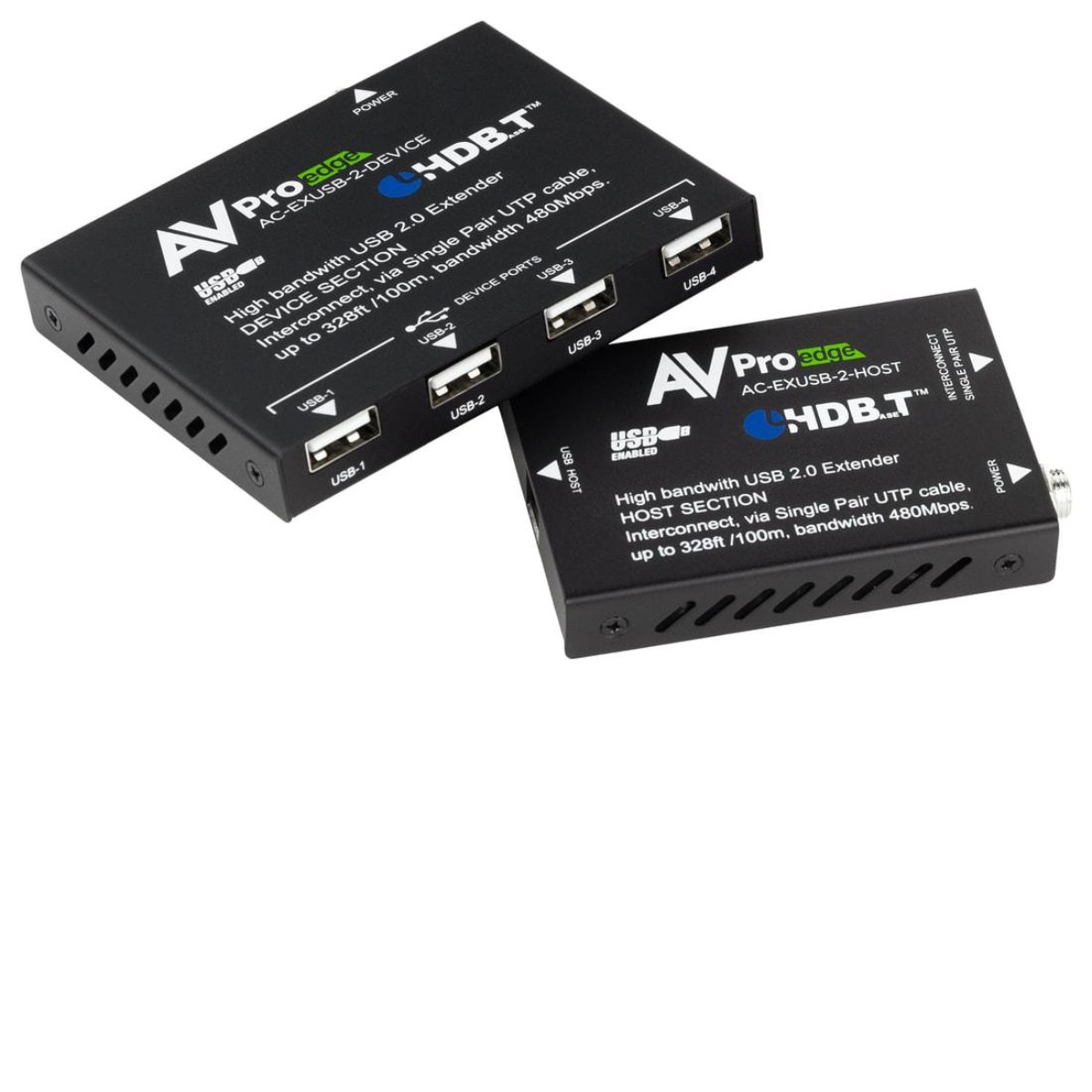

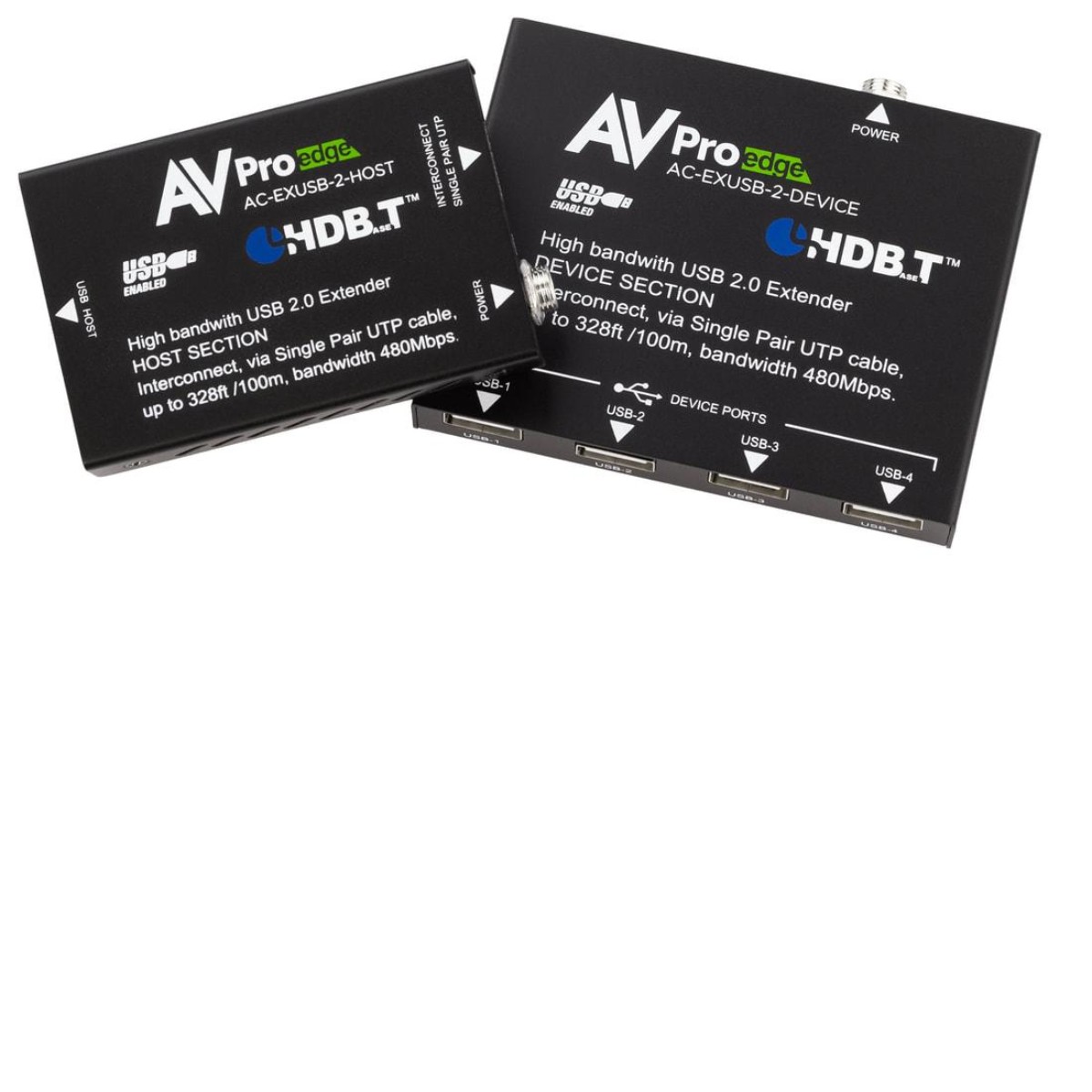

This AVPro Edge AC-EXUSB-2-KIT USB extender kit comes with two parts, a transmitter unit, and a receiver unit. When you connect these two ends with any standard category cable, you can transfer USB signals with almost zero latency from end to end. Long USB cables are cumbersome and expensive. By converting the signal to a category cable, we can deliver these signals long distances without interrupting the dataflow. We can offer this stable solution by using HDBaseT technology.
Key benefits of using AC-EXUSB-2-KIT:
Extend USB Signals: The USB 2.0 Specification only allows for signals to travel 16ft 5inches and remain stable. With this solution you bump that up to 328 feet! This allows you to keep computers and other USB devices in secure locations.
Use Category Cable that is already installed: Today’s data rates are larger than ever, many times calling for more expensive cables. With AVPro Edge’s USB 2.0 Extender you can still use Cat 5e, a cable found throughout most construction builds since the early 2000s.
Built in USB Hub: Extend four signals at once with the built in USB hub, meaning you can have 2 mics, 2 cameras. Or you could have a keyboard, mouse, camera and a mic all connected at the same time, and each one would be as if it was directly connected to your computer.
Power over Ethernet: You only need to power one end of this signal extension set, with Power over Ethernet (POE) the power travels over the same category cable, along side your data, delivering a power to the other end.
Optimized for Teams and Zoom: Many USB connections are not able to handle the high data rate that comes from steaming and conferencing audio and video files at the same time, needing to be delivered in sync. Our engineers built this solution to reliably deliver any resolution, timing and audio type that is allowed in the USB 2.0 specification, including 4K.
Specifications
- USB Camera Support
- 100 meters using Category Cable
- Host has USB Type B connection

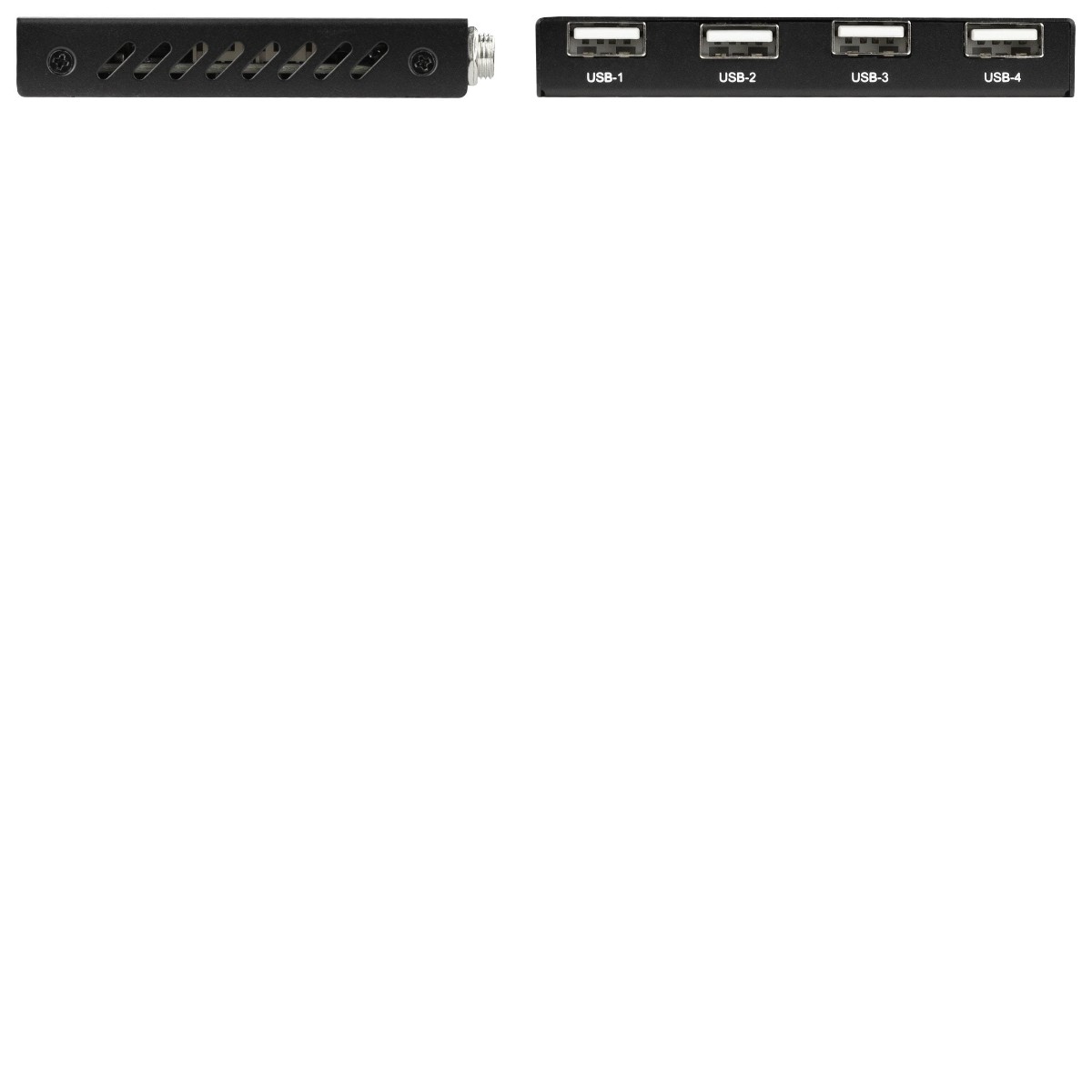

- USB Hub has Four USB Type A Connections
- Small form chassis for sleek install
