AVPro Edge AC-FXHD-KIT
HDMI 2.0(a/b) Test Kit - 18Gbps, 4K60 4:4:4, HDR, HDCP 2.2

Description

Featuring the AC-FXHD-KIT HDMI 2.0(a/b) portable, battery operated, Generator and Analyzer from AVPro Edge. This quality made A/V testing and troubleshooting kit has been designed as the ideal testing unit for all commercial and custom integrators. It comes with an 18Gbps Generator and 18Gbps Analyzer, and can handle the highest quality available in 4K resolutions, up to 4K60Hz 4:4:4. This tool allows users to quickly and correctly confirm correct bandwidth, HDCP, resolution, timing, and HDR MetaData to avoid system hiccups and correct handshaking of devices being used.

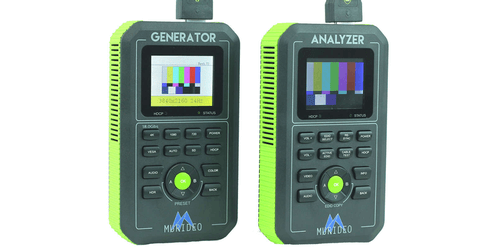

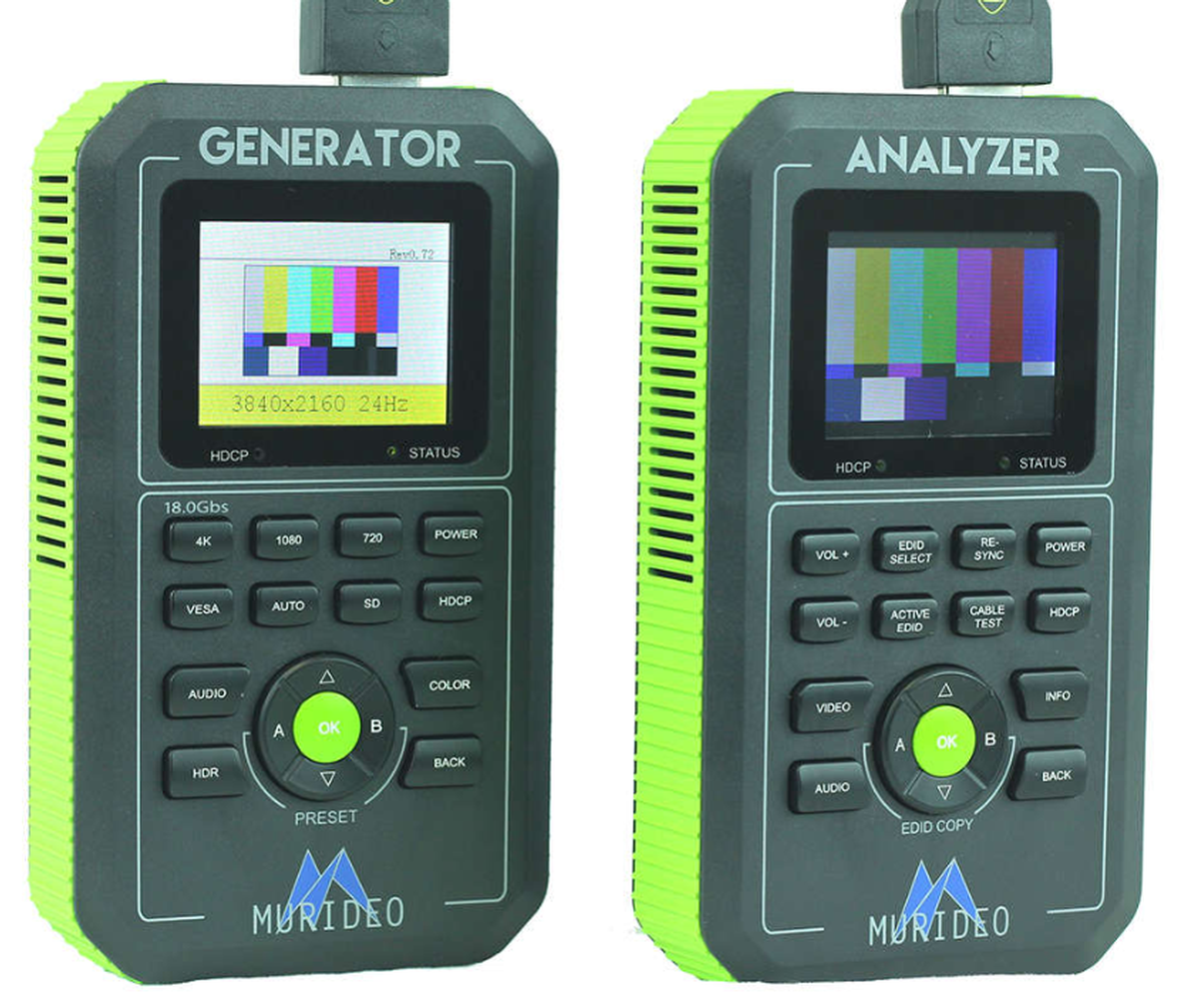

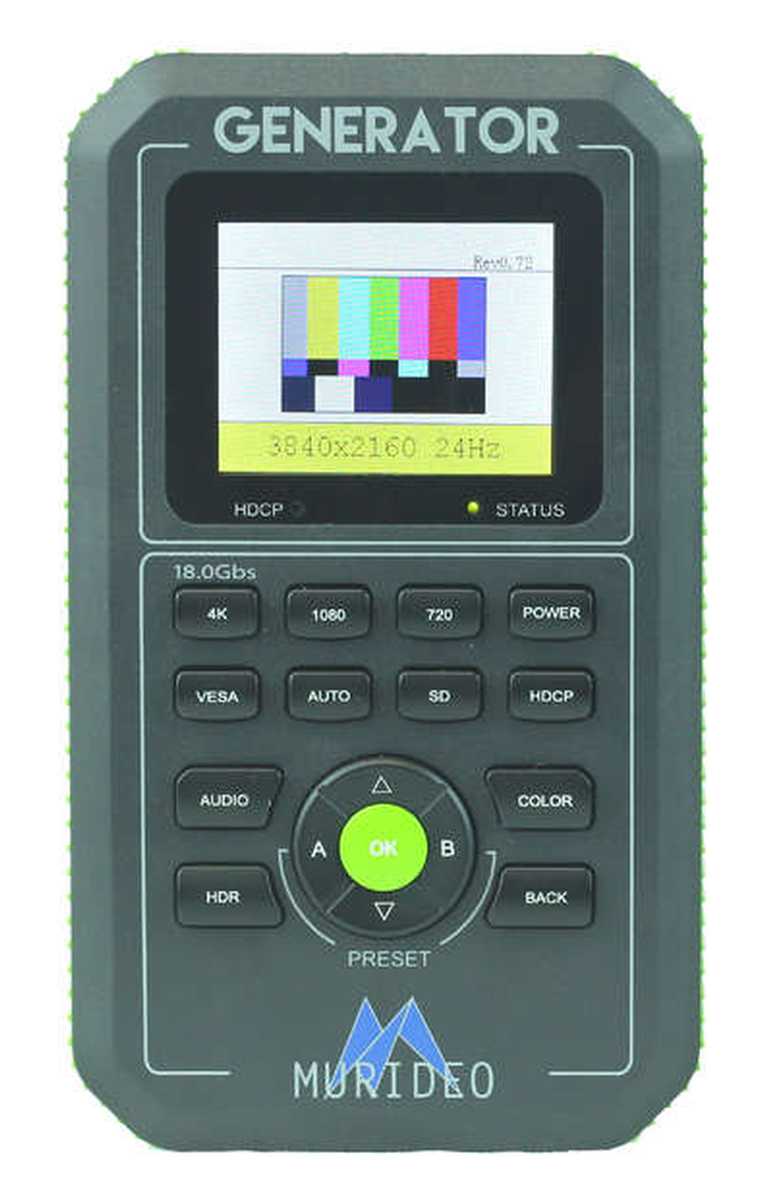

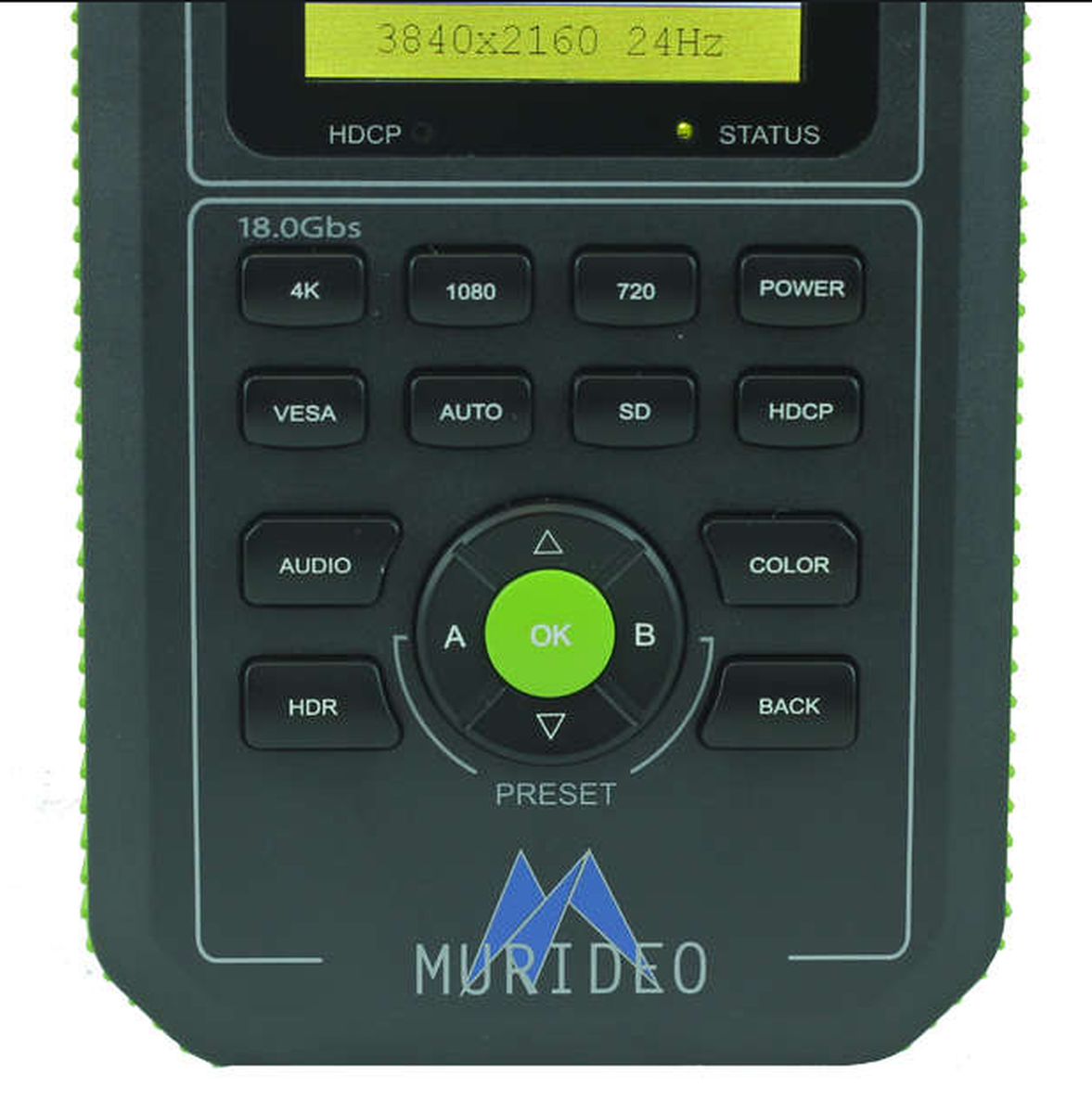

The Fox & Hound test pattern generator and analyzer works by placing the generator in place of your source, and setting the analyzer in place of your sink. These 2 units will then read the data that is being sent throughout your system. It offers the ability to run any type of signal through through the unit and confirm that the same signal is being passed through the product without any changes. Not only is this kit a cost affordable solution, it further reduces costs by aiding in diminishing call to support and replacement of products. Making trouble shooting a simple efficient effort for integrators and installers, you will never have to worry if a cable or extender is bad again, and with lightning fast testing speeds you will have the answer to a potential problem in less that minute.

Additional features found in the AC-FXHD-KIT (Fox & Hound) Include:

• HDR (High Dynamic Range) Injector and Management
• Optimized Ergonomics - 2" Color Display
• Rechargeable Batter
• Audio Confidence Tests
• EDID Read Functionality
• Hot Plug Detect and HDCP Lights
• 4K 10, 12, 16 Bit Support
• Dolby Vision Support
• RS-232 or USB Controllable

Specifications

• HDCP 2.2 Compatible
• EDID Read Functionality
• L/R Audio In

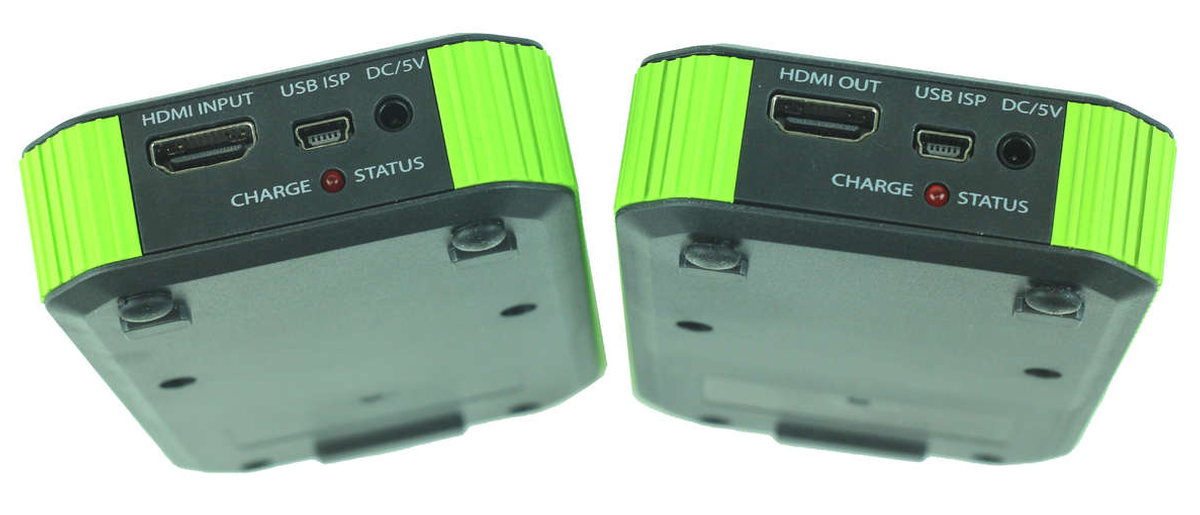

• Control: Push Buttons, RS-232 or USB
• HDR Injector and Management
• 4K 10, 12, 16 Bit Support
• Dolby Vision Support
• Battery: 7.4V LI-ION 2600MAH Internal Rechargeable Battery
• DC 5V Power
• Warranty: 10 Years

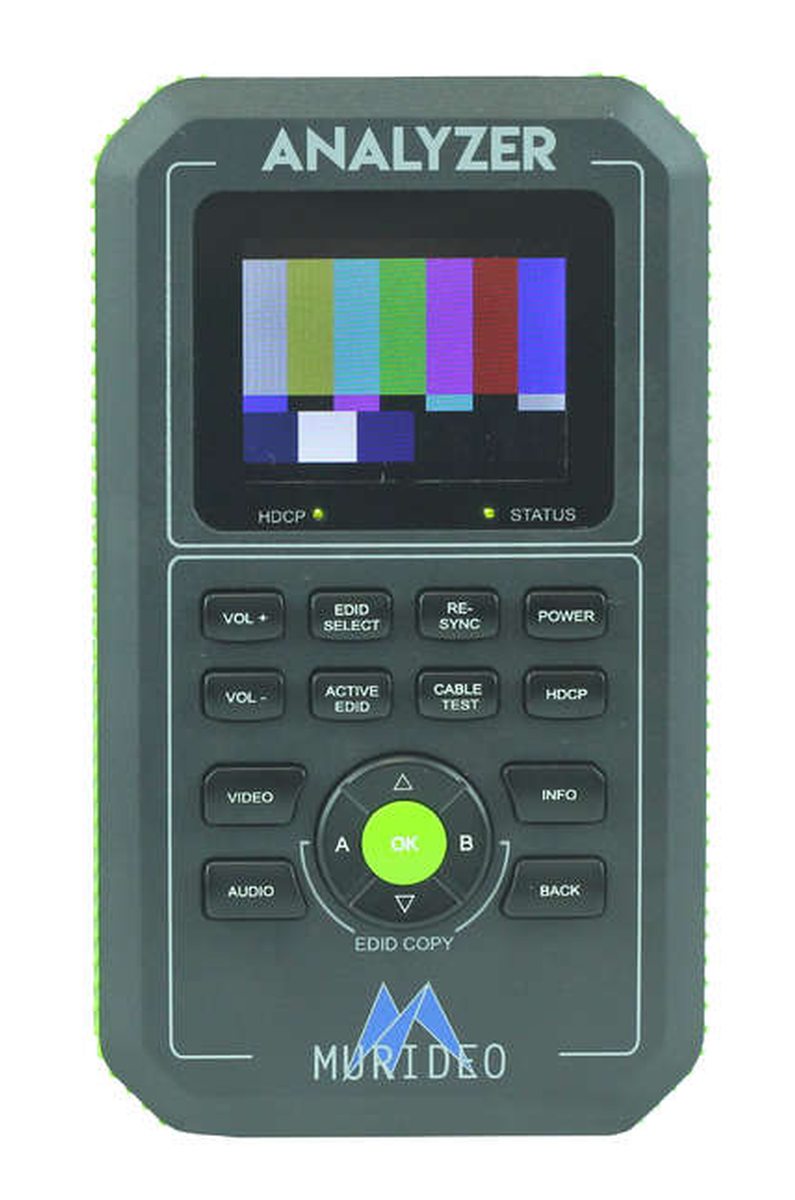

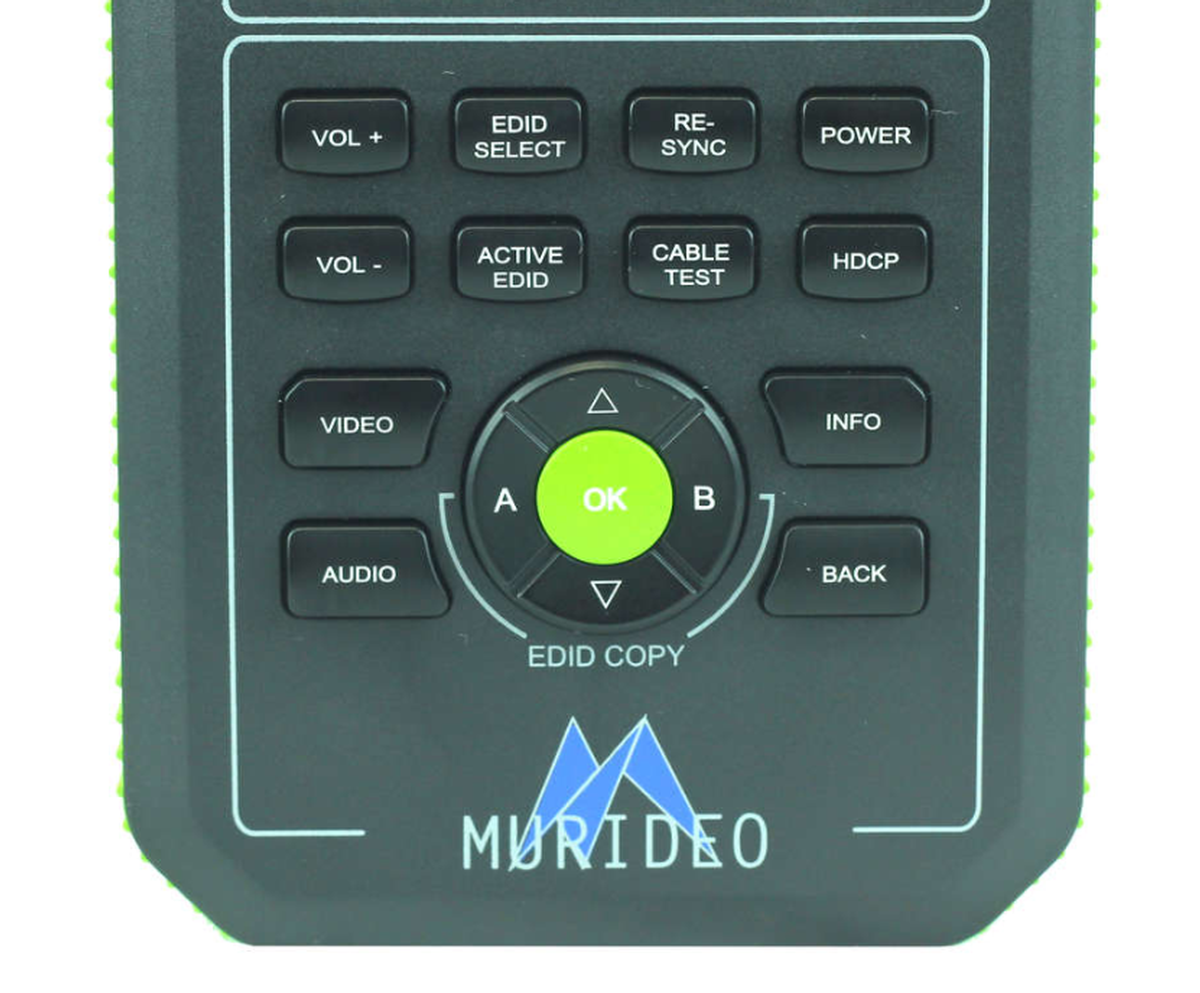

• Analyzer Specifications:
• Analyze Any HDMI/DVI signals up to 18Gbps (4096x2160p60 4:4:4
• HDMI 2.0(a/b) - 600MCSC, 2160p60 4:4:4 Maximum Resolution Analysis
• HDCP 2.2 Compatible
• Video Bandwidth: 18Gbps
• HDCP Tester: 2.2, 1.4, None
• HDR MetaData Infoframe Reading and Management
• Dolby Vision Support
• 4K 10, 12, 16 Bit Support
• Battery: 7.4V LI-ION 2600MAH Internal Rechargeable Battery
• DC 5V Power
• Warranty: 10 Years

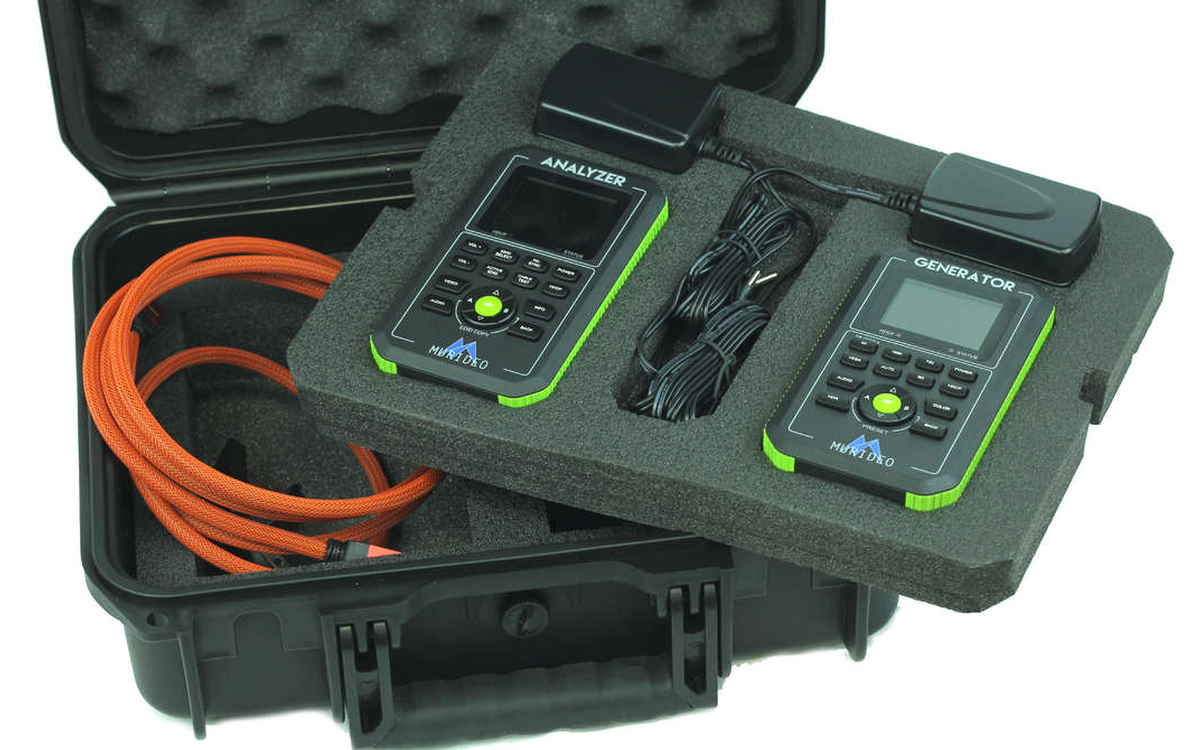

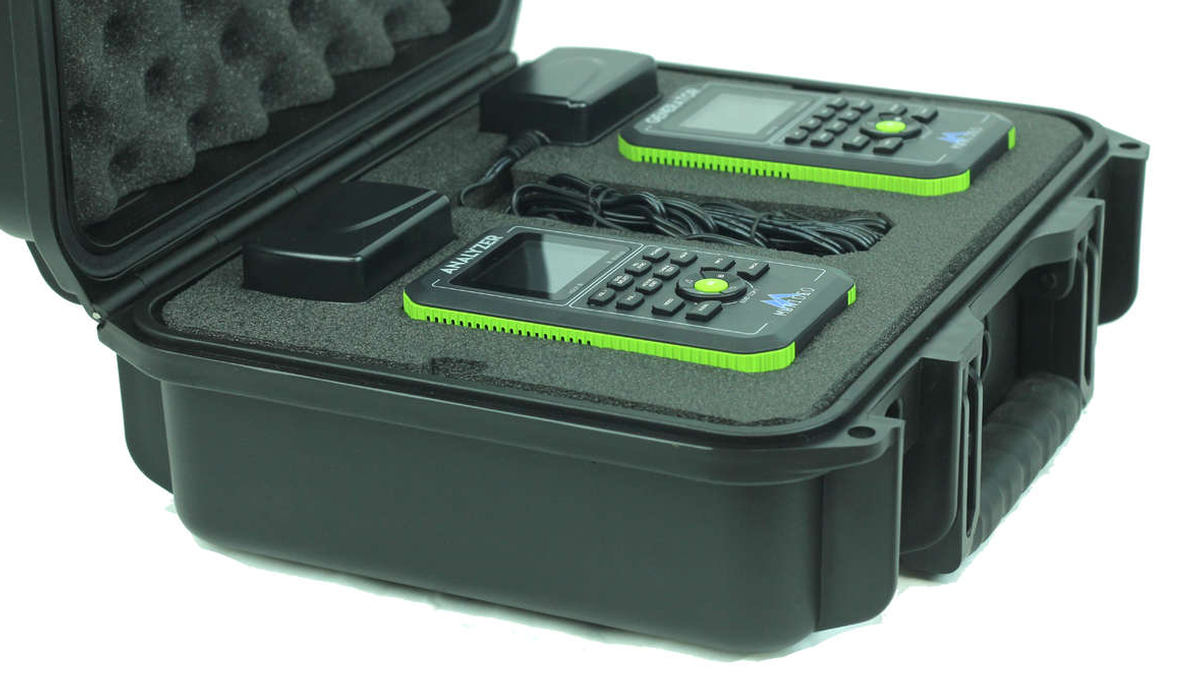

• This Kit Includes: Generator, Analyzer, Power Supplies, Carrying Case, HDMI Cables, Quick Start Guide

Downloads

• AVPro Edge AC-FXHD-KIT Specifications (PDF)
