AVPro Edge AC-MXNET-1G-EV2WP
MXnet 1G Evolution II Wall Plate Encoder
-Timothy J.
Description

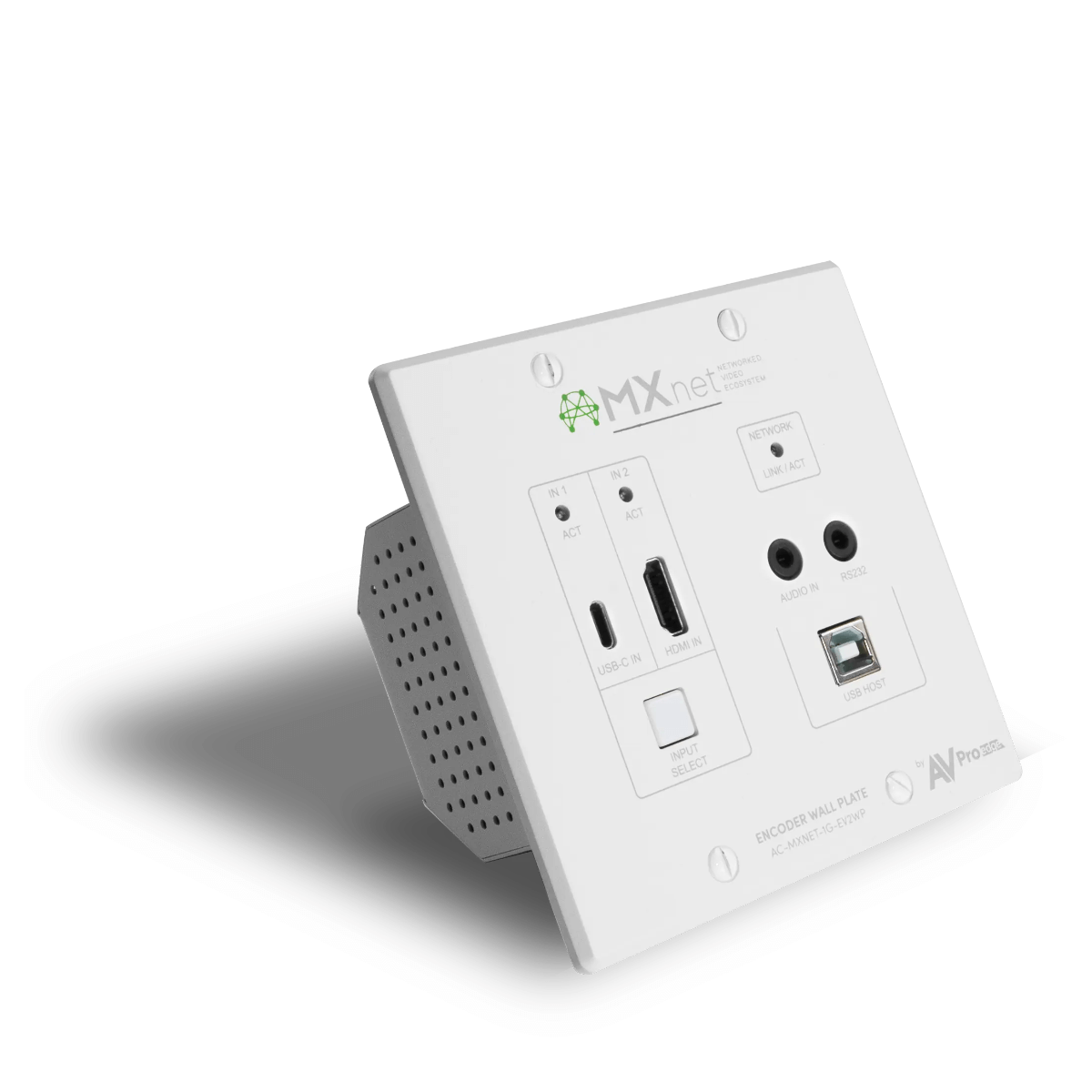

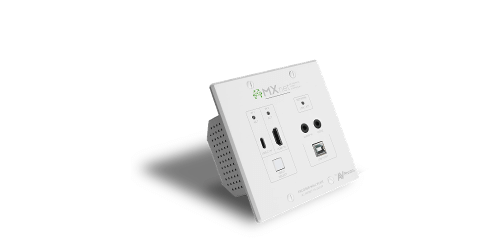

The AC-MXNET-1G-EV2WP is an MXnet Evolution II encoder with selectable switching between the HDMI and USB-C inputs, packaged in an elegant, low-profile wall plate. As a wall-plate version of the AC-MXnet-1G EV2, system encoding may now be placed where it is most convenient. A/V signals are converted into precision multicast data packets, routed to any or all system decoders via category cable (CAT-6A is strongly recommended) tethered to an MXnet PoE network switch, which also powers the unit. AC-MXNET-1G-EV2WP multicast encodes HDMI content up to 4K/60 fps, including HDR and Dolby Vision, with 8-, 10-, and 12-bit color depth. It is capable of full chroma subsampling, from RGB to 4:4:4, while supporting all 3D immersive audio formats. Proprietary Video and Audio Codecs based on modified M-JEG algorithms manage data in a parsed, flexible manner that minimizes bitrate errors, allocates adequate signal headroom, and optimizes compression for artifact-free, visually lossless image fidelity. Applications best suited to the AC-MXNET-1G-EV2WP might include installation into a wall adjacent to a desk, creatively flushed into the desktop, or a lectern for religious or performance hall projects. For educational environments, a substitute educators portable laptop in a locked office and not permanently installed in a system rack may be controlled from the classroom via an AC-MXNET-1G-EV2WP. In governmental or judicial applications, a clean, clutter-free installation is made possible, as is convenient, fool-proof input selection, from the plate-embedded push button switch.
