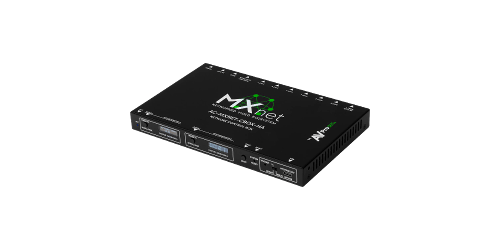

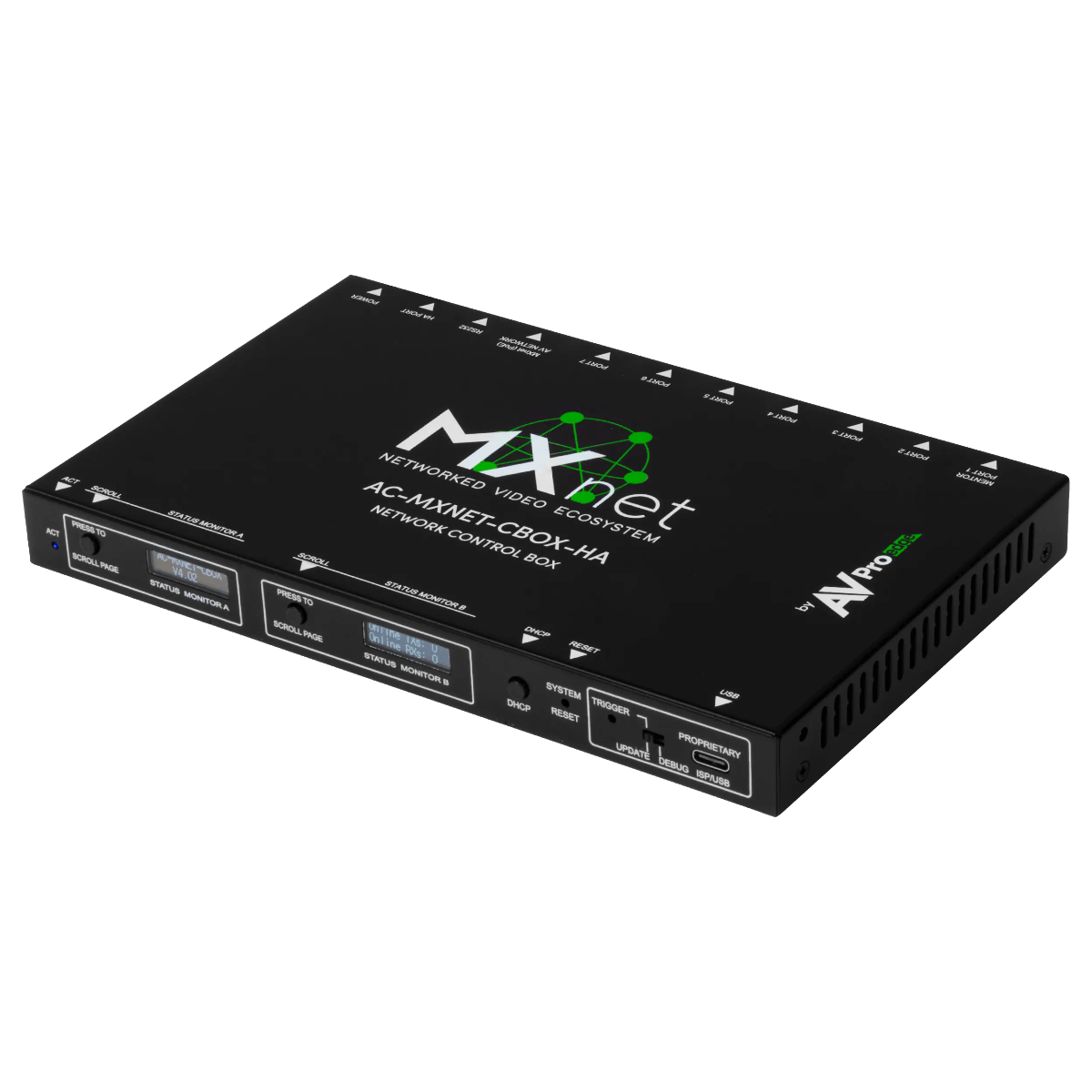

AVPro Edge AC-MXNET-CBOX-HA
MXnet 1G Control Box
Description
The CBOX is the system control component for an MXnet 1G ecosystem and is responsible for setup, control, diagnostics, troubleshooting, and endpoint updating. An AC-MXNET-CBOX-HA is a specially-equipped CBOX featuring a High Availability port tethered to a second, identical AC-MXNET-CBOX-HA. Configuration software in System Utilities provides naming conventions to designate one CBOX as being in a Main/Active operational state while the second CBOX remains in Backup/Standby status. The RJ45 communication interface connecting the two units enables RS-232 heartbeat monitoring, with the backup CBOX checking for the presence of the Active CBOX, launching the standby unit into active mode if, during the repetitive three-second status interval check, the main unit fails to deliver its active RS-232 heartbeat acknowledgment.
