Biamp Devio SCR-20T

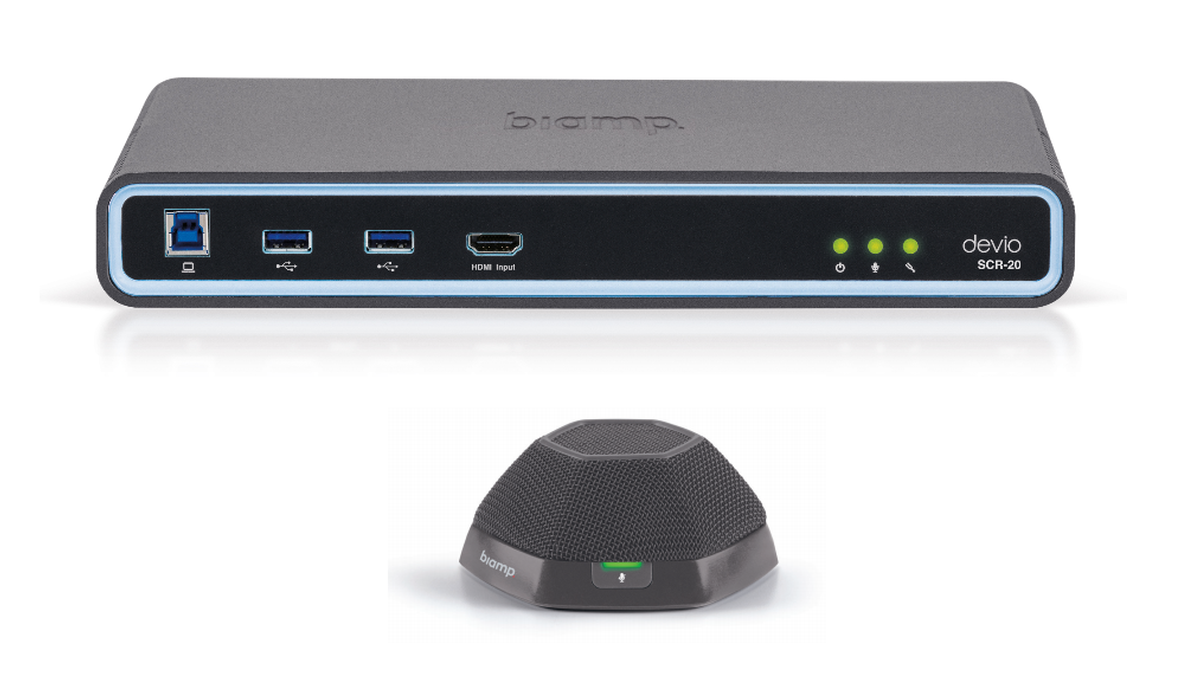

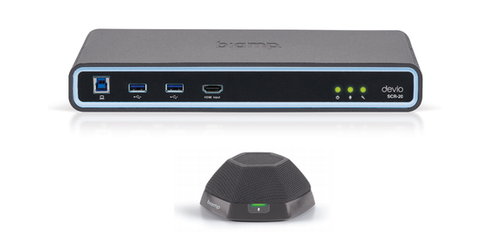

Conference Hub, w/ Devio SCR-20 Hub and 1 DTM-1 Tabletop Mic

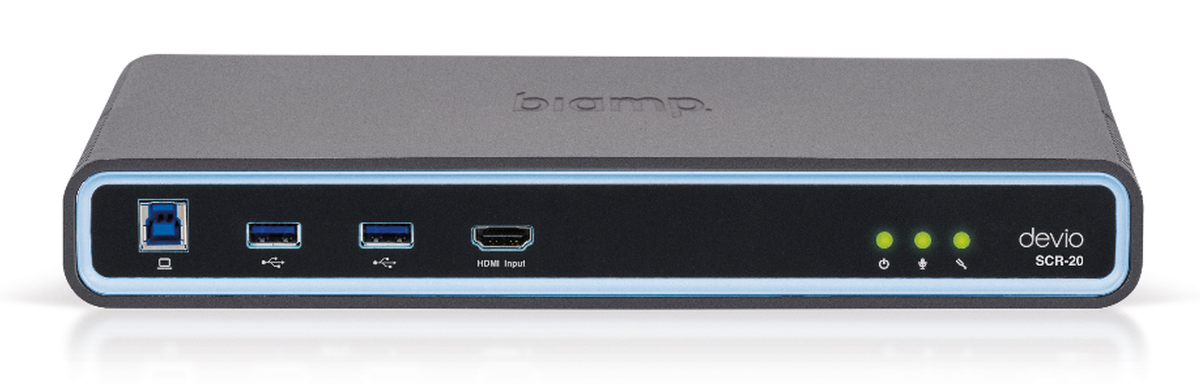

- Front panel Connectors
- Network Connections: RJ-45 with Ethernet cable

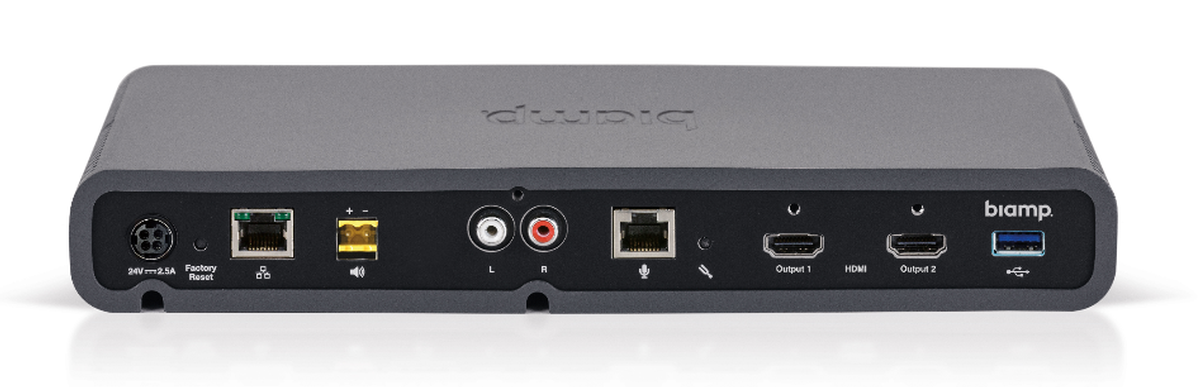

- Rear Panel Connectors
- 24V DC Input: Locking connection for Devio CR-1 60W inline power supply
-Brandon K.
Description
SCR-20 Summary
The Devio SCR-20 is a conferencing hub that provides users with exceptional AV experiences when using web-based conferencing systems. Intended for huddle rooms or small conference rooms, the SCR-20 uses Beamtracking microphones and professional grade DSP to optimize the audio quality, allowing far-end conference participants to experience the conversation naturally. The Devio SCR-20 supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC.
Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts/Google Meet, and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.
SCR-20 Features
- Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts™/Google Meet, and many more
- Supports both Windows and Mac PCs, and uses standard audio drivers
- Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink1 USB graphics technology
- Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality
- Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)
- Firmware updates can be scheduled and deployed to multiple Devio units via the SAU
- Speaker connectivity options include HDMI audio, a built-in 20W amplifier, or RCA line out
- Ships with a mounting bracket for under–the–table installation, and one DTM-1 tabletop or one DCM-1 ceiling microphone
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ two-year warranty

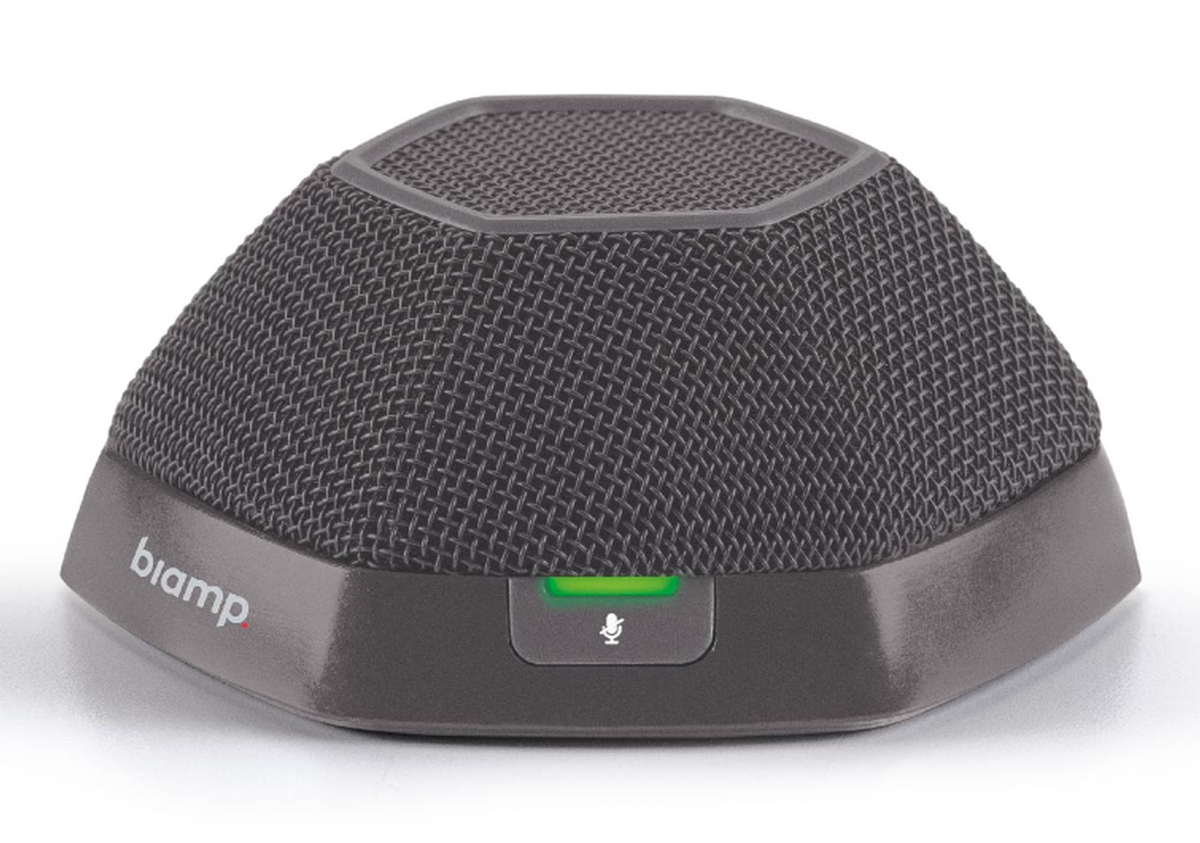

DTM-1 Summary
The DTM-1 is a tabletop microphone for use in Devio systems. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DTM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally.
DTM-1 Features
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120-degree zones for 360 degrees of coverage
- Mounting plate for secure installation included
- Easy single-cable installation process
- Additional RJ-45 for daisy-chain connection to another DTM-1 microphone
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ two-year warranty
Specifications
- Ethernet (RJ-45): 10/100/1000Base-T Ethernet network connection
- 2-pin Phoenix Connector: 20W powered output speaker connection
- 4-pin Phoenix Connector: For bridging in-room telephone into audio conferences via headset jack
- Line Out (RCA): Alternative connection to self-powered speakers
- MIC Out (RJ-45): Cat-5/5e/6 cable connection to Devio DTM-1 or DCM-1 microphone
- 2 HDMI Output Ports: Supports video output to up to two in-room HDMI-equipped displays
- Downstream USB 2.0 Port: Additional USB 2.0 peripheral connection
- Max Distance Between Devices: 49 feet from CR-1/SCR-20/SCR-25 to DTM-1 / 49 feet for daisy-chained connections between DTM-1 microphones
