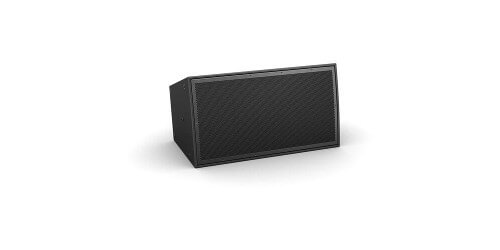

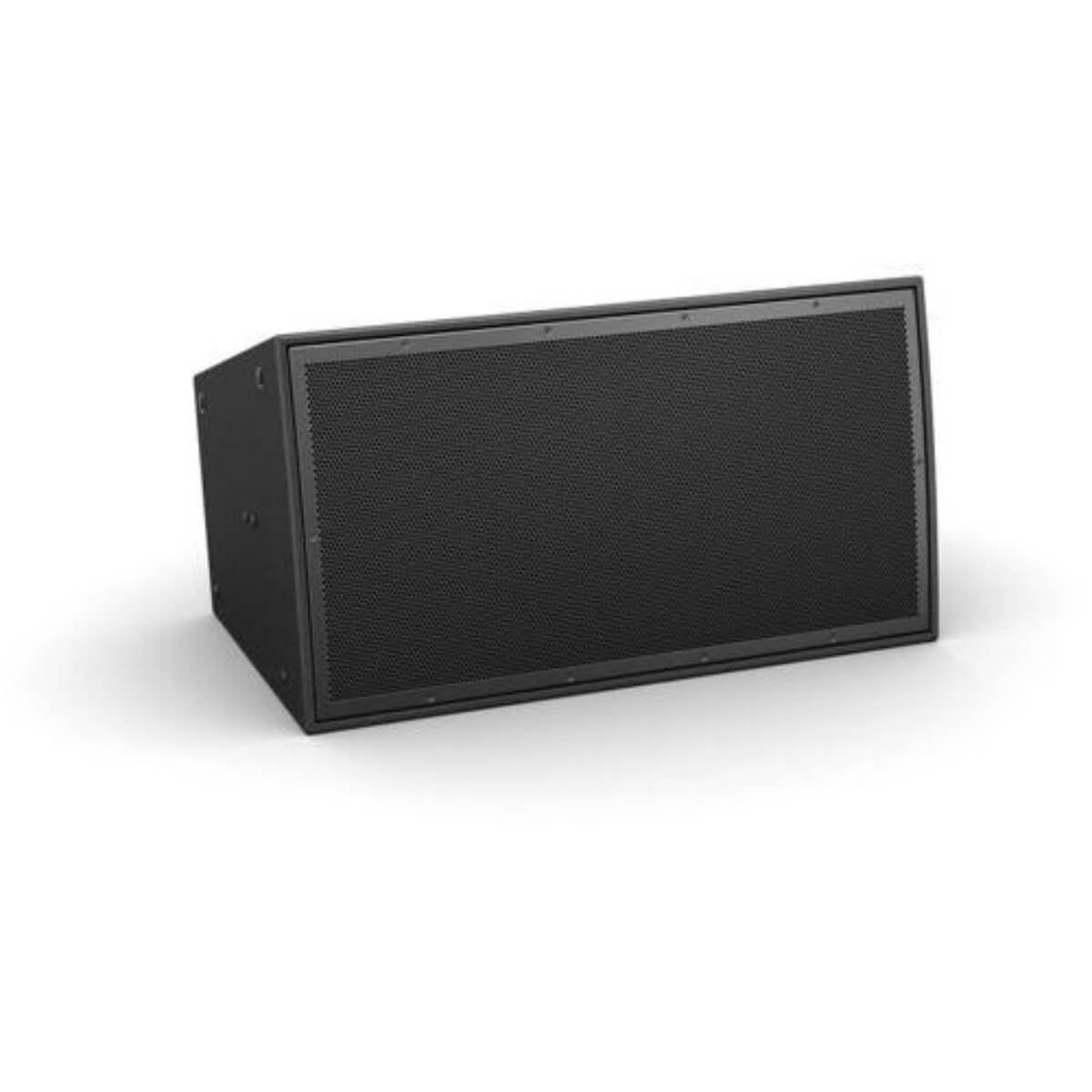

Bose AM20/100
ArenaMatch AM20 DeltaQ Array Loudspeaker
- Crossover Type: 2-way
- RMS Output Power: 750 W
- PMPO Output Power: 3000 W
- Woofer Driver Size: 14"
Description
Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations - sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules. Key FeaturesImprove sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or "Q," to vary in each module to more precisely match coverage to the audience areaEasily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arraysDeliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose EMB2S titanium-diaphragm neodymium compression driversRated for direct-exposure outdoor installations, with three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input coverProvide full coverage with fewer modules - 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arraysReduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays - all with the same transducers for consistent tonal balanceAdapt to a variety of configurations - all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputsStreamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSPsSave time during installation using Bose accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array framesEN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
Specifications
- Woofer Driver Material: Neodymium
- Tweeter Driver Material: Titanium/Neodymium
- Minimum Frequency Response: 65 Hz
- Maximum Frequency Response: 16 kHz
- Sensitivity: 97 dB
- Impedance: 8 Ohm
- Durability: Water Resistant
- Speaker Installation: Outdoor
- Height: 17.2"
- Width: 30.8"
- Depth: 16.38"
- Weight (Approximate): 79.81 lb
- Application/Usage: Alarm
- Application/Usage: Fire Alarm
- Application/Usage: Stadium
