Bose CC-16
ControlSpace CC-16 Zone Controller
-Brandon K.
Description

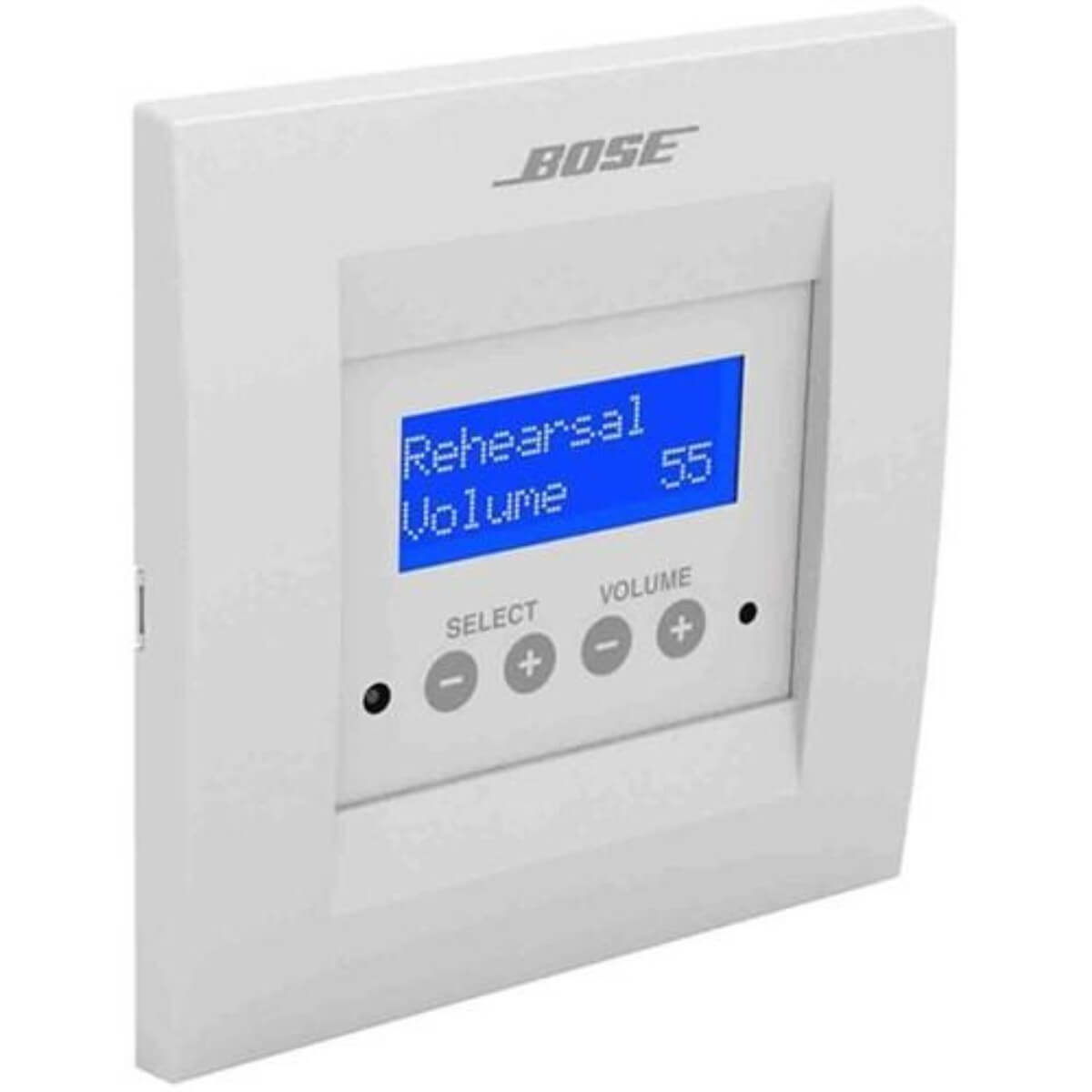

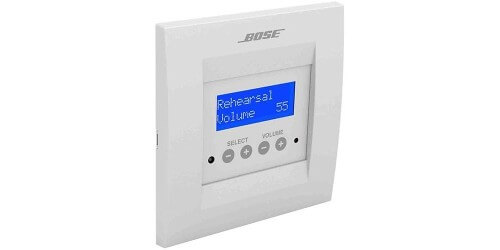

The Bose ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.Product InformationThe CC-16 is a RS-485 device wired directly to a ControlSpace ESP- 88 engineered sound processor. The zone controller, along with the ControlSpace CC-64 control center and passive controls like potentiometers and switches, allow ControlSpace systems to meet the end-user needs in most installations.The CC-16 is programmed - linking or mapping signal processing objects to its controls - using the ControlSpace Designer software. The software includes Smart Simulation, a virtual CC-16 display where all programming can immediately be verified on-screen - without being connected to the hardware. Smart Simulation facilitates working with end-users to refine the user controls before the installation is even started.When multiple CC-16s are used in a system there are times, such as in room-combining applications, where more than one unit is programmed to control the same zone, for example when a separate rooms are combined. Because the CC-16s controls are "soft", that is, they are not physically tied to a certain state like a mechanical volume control, multiple "ganged" CC-16s will all display the correct volume and selection for that combined zone.
