Bose CC-64
ControlSpace CC-64 Control Center
-Maciej Z.
Description

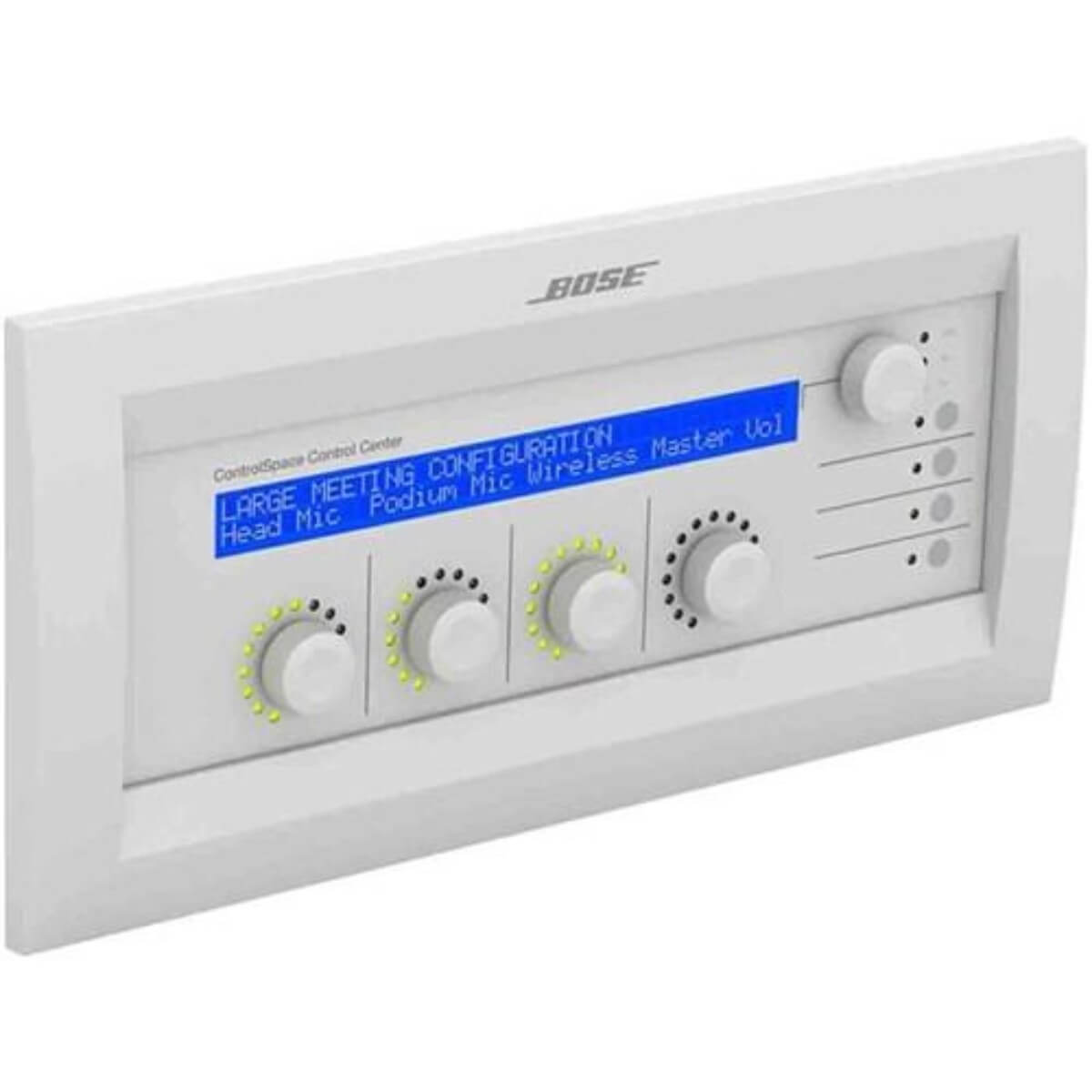

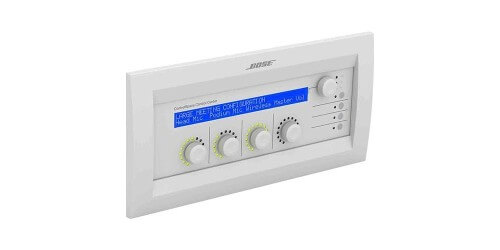

The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/ or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.Product InformationThe CC-64 provides four rotary encoders with circular LED arrays for a user friendly method of managing gain settings or scene selections. A fifth encoder provides control over programmed parameter sets or scenes. Each gain control knob can be programmed to control a single gain block or group of gain blocks. The group of gain device scan span elements of multiple ControlSpace ESP- 88 processors.The combination of the rotary encoders and LED display allow real time tracking of changes made elsewhere in the system. A large, 2-line by 40- character backlit LCD provides the user with the names of the system elements being controlled. Using custom programming, the CC-64 can manage a variety of system elements, including audio sources, scene selection settings, and specific system configurations.The CC-64 also supports a "custom mode"- intended for installers, not end users - in which any parameter in the system can be viewed and changed using the LCD display and control knobs. The CC-64 is programmed - linking or mapping signal processing objects to its controls - using the ControlSpace Designer software. The software includes many features to simplify programming including Smart Simulation. This feature includes a virtual CC-64 display where all programming can immediately be verified on-screen - without going "online" or connecting to hardware.
