BTX CD-MX15F
MaxBlox HD15(F) to Terminal Block Connector - Solderless
- Requires No Soldering or Crimping for Termination
- Female high density D-SUB to Terminal Block connectivity
- Low Profile: Less than 1" behind plate
- Accepts cable size range from 16 AWG to 30 AWG
Description

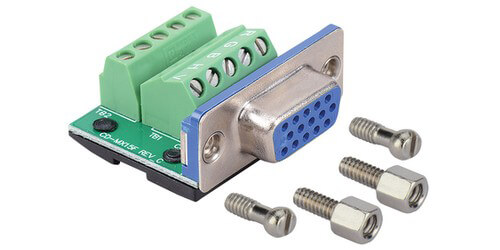

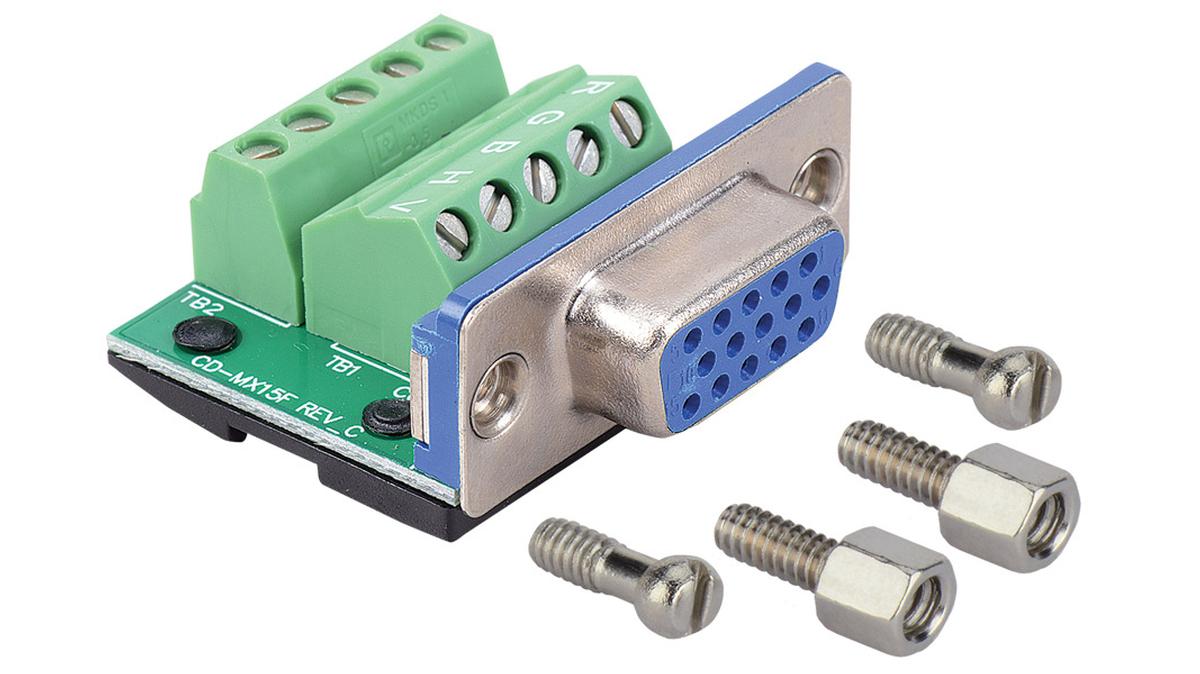

The CD-MX15F from BTX is a part of the MaxBlox Series of Solderless HD15 and DB9 EZ termination system. The CD-MX15F is a female high density 15-pin D-SUB to Terminal Block connection, that is used for RGBHV field termination with VGA connectors using a solderless termination design. This patented design was manufactured with genuine Phoenix Contact terminal blocks which allows the connector to maintain a very low profile and compact design, making for a truly reliable connection that when used with the compatible hood has a strain relief pull specification of up to 50lbs. By eliminating the need to crimp or solder these connections the MaxBlox series has dramatically reduced installation times which makes them a very cost effective item to use in the field they can be easily terminated with just a screwdriver. The unique sled-type bottom allows these connectors to slide, snap, and lock in the MaxBlox CD-MX915H hood (optional and sold separately) for a secure cable mount connection, which works in both cable and panel mount applications. When these devices are used in panel mount type applications these low profile connectors are less then 1" behind a plate.
The CD-MX15F and CD-MX15M terminal block contains 10 clearly visible labeled screw terminals for R, G, B, H, & V and their respective grounds. Each terminal can accommodate cable sizes ranging from 16 to 20 AWG and were designed for use with VGA to UXGA signals. Terminal blocks are great when you need a fast and easy termination that can be done in the field. In addition to easy termination, terminal blocks are used to create your own custom pinout. They require no special tools other than a screw driver. Comes backed by a 5 year warranty from BTX.
Specifications
- Gold Plated Contacts
- Tinned Copper Shell
- HD-15 Signals: VGA to UXGA
- HD15 Connectors Bandwidth: >345Mhz
- HD15 Contact Insertion Loss: (.63db for male, .71db for female) @100MHz
- HD15 Contact Return Loss: (20.49db for male, .71db for female) @100MHz
- Non-EDID compliant, RGBHV only cable connection
- Phoenix Connector Screw Down Termination
- PC Board mount for snap in to matching hood (CD-MX915H)
- Warranty: 5 Years
