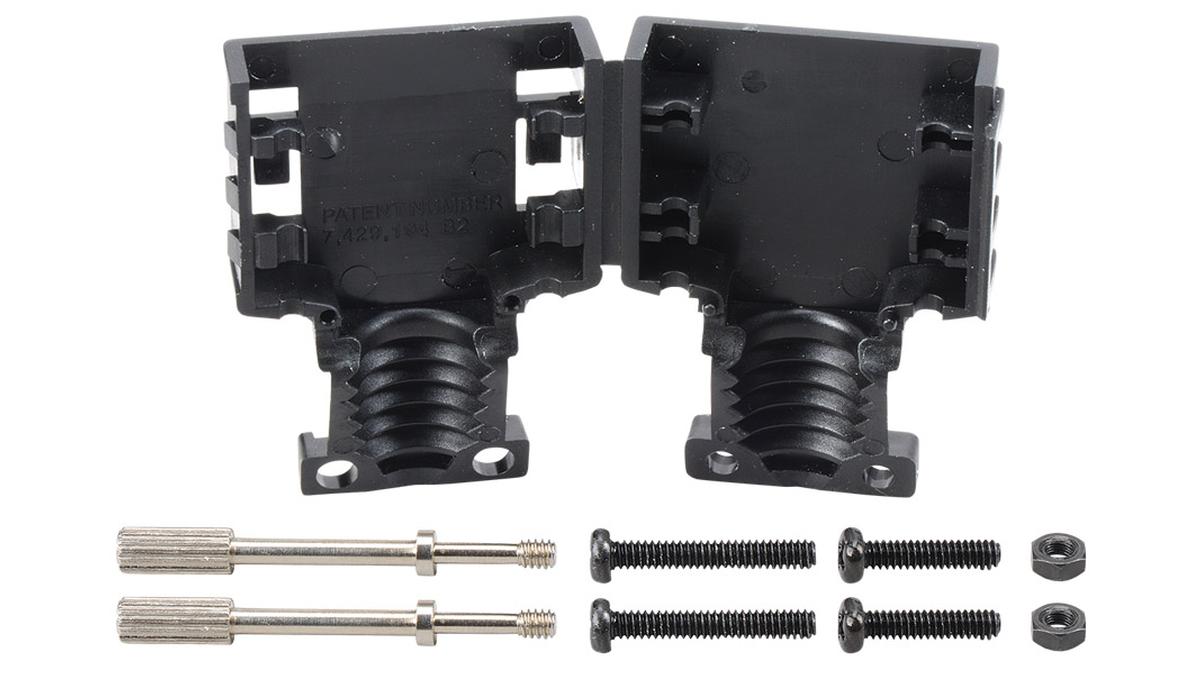

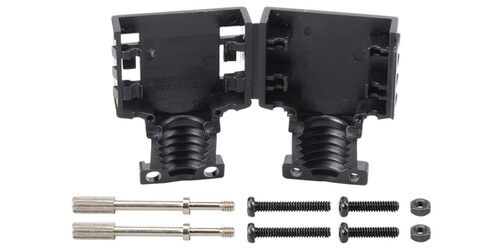

BTX CD-MX915H
MaxBlox D-SUB Termination System Hood for CD-MX Connectors
- Exclusively for MaxBlox D-Sub Connectors
- Hood can be applied pre or post termination
- Cable OD Range: .125" to .500"
- Strain Relief Pull Specs: up to 15 lbs fro .125" OD cable and 50 lbs .500" OD cable
-Gregory W.
Description

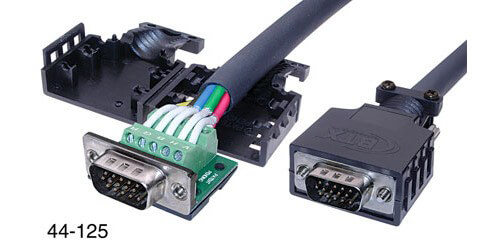

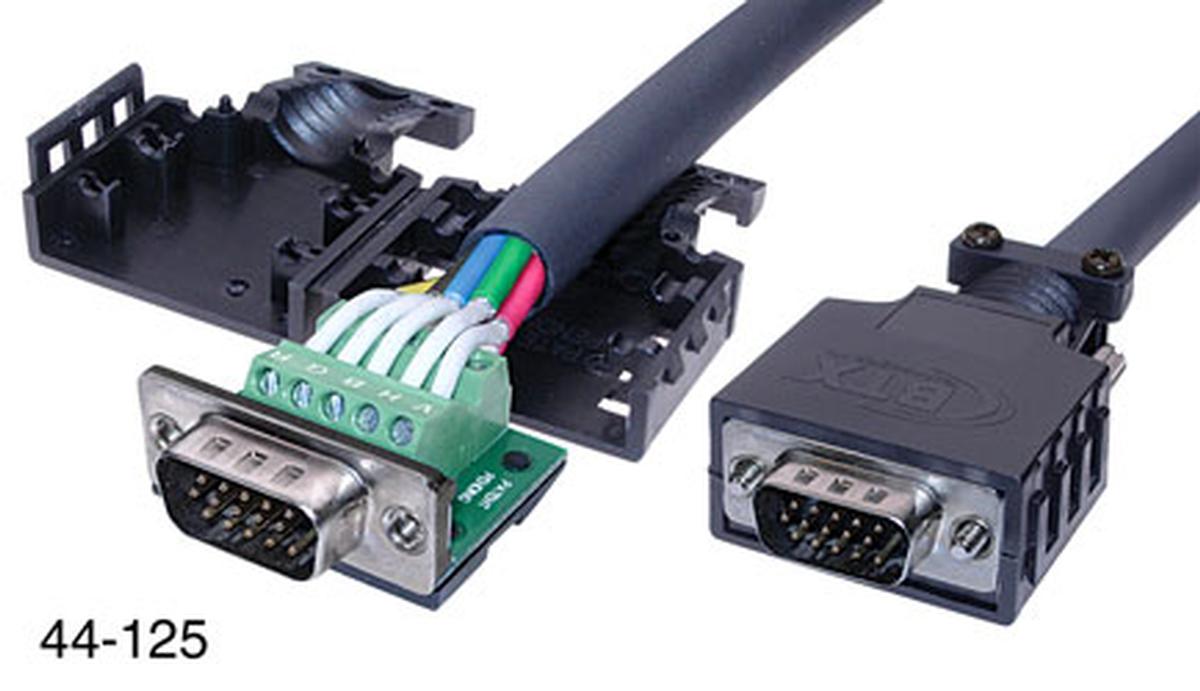

The CD-MX915H is a MaxBlox Series Hood that was designed to be exclusively used with the HD15 and DB9 d-sub connectors. This Hood is perfect for high density applications where side by side mounting of the solder-less MaxBlox connectors is required. When this hood is used in conjunction MaxBlox connectors, the connectors simply slide, snap and lock into the hood without the use of tools. Optimized for use in any A/V application where VGA or RS-232 controls are used, the HD15 and DB9 connectors are manufactured by BTX with genuine Phoenix Contact terminal blocks, the industry standard for reliability. The system accommodates wire diameters, from .120 inch. to .500 inch and has a strain relief pull specification of up to 15lbs from .125 OD cable and 50lbs on .500" OD cable. This product being able to be applied pre or post termination is used for cable or panel mounting type applications.
Specifications
- Warranty: 5 Years
