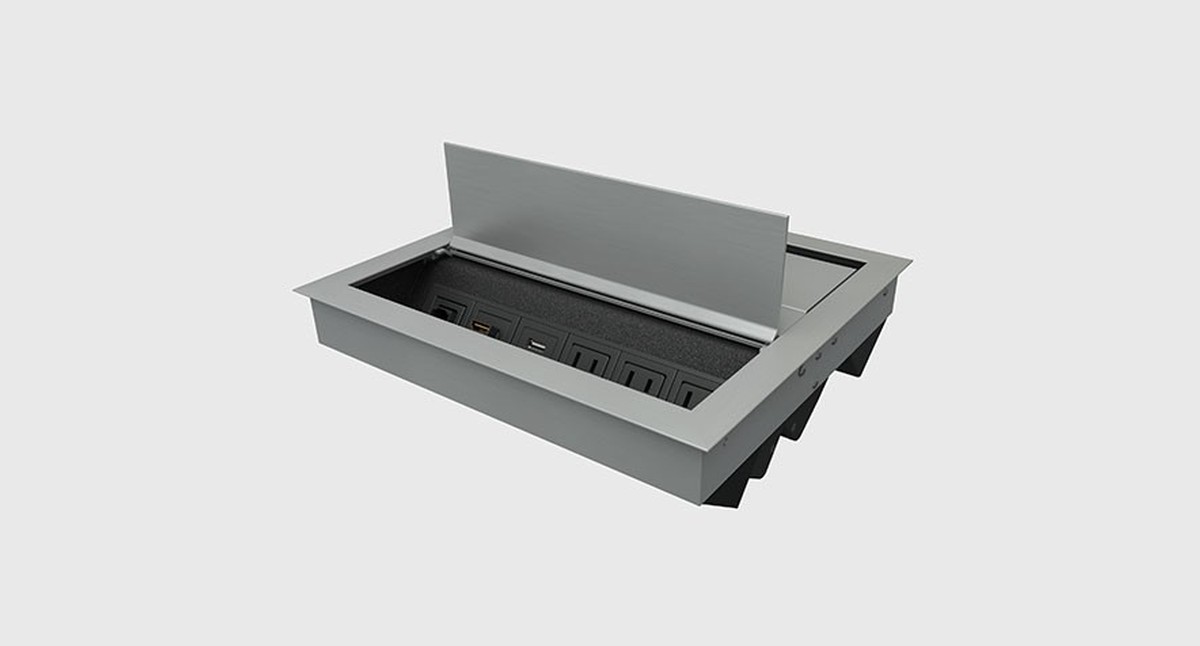

Byrne® E2X
Dual Sided Cable Well Box with 3 Power, HDMI, Data, & 2 USB Charging
- Back-to-back cable well table box
- Anodized aluminum

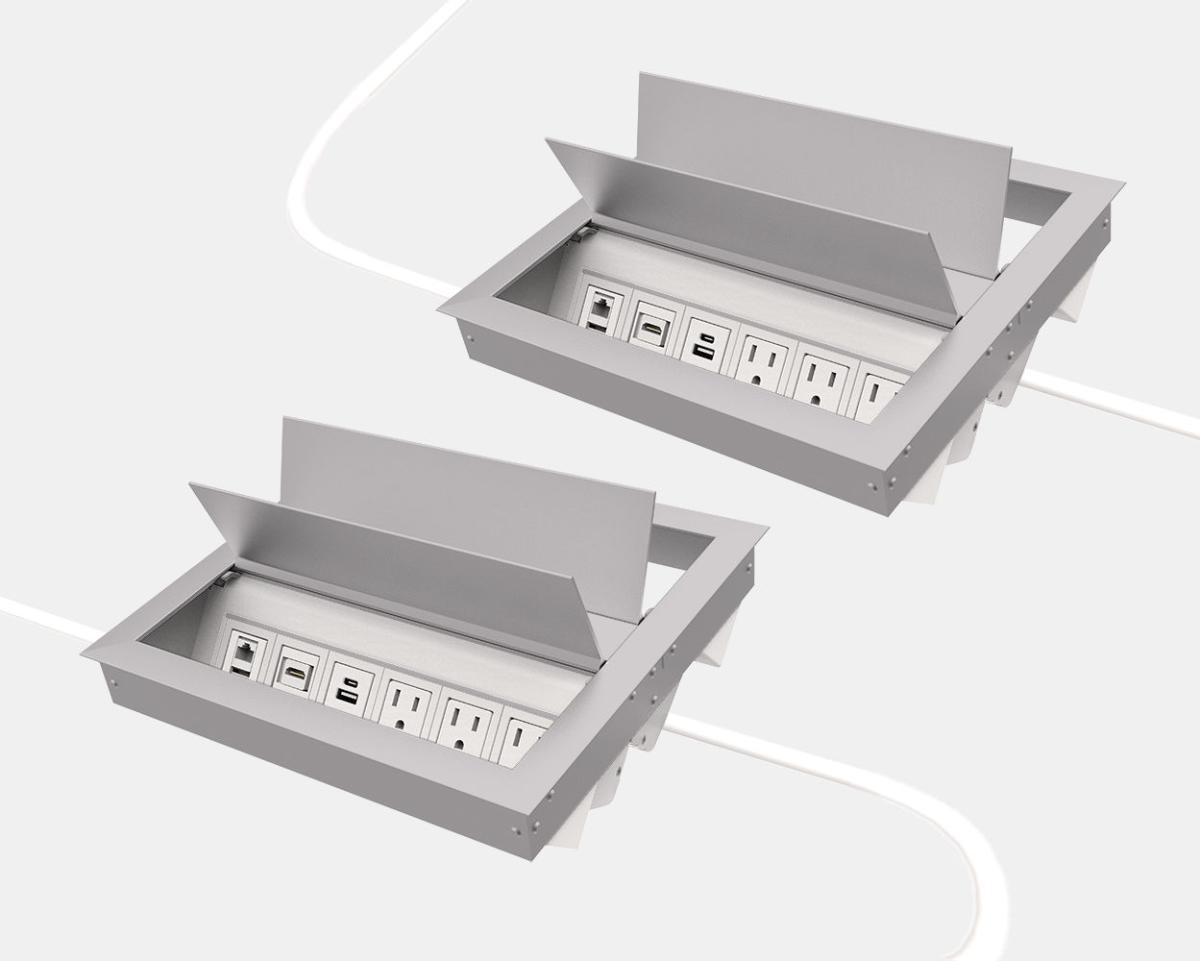

- Ships standard in silver
- Each side connections: 3 power, dual charging USB (1 of each type A/C), 1 HDMI, and 1 data jack
Description

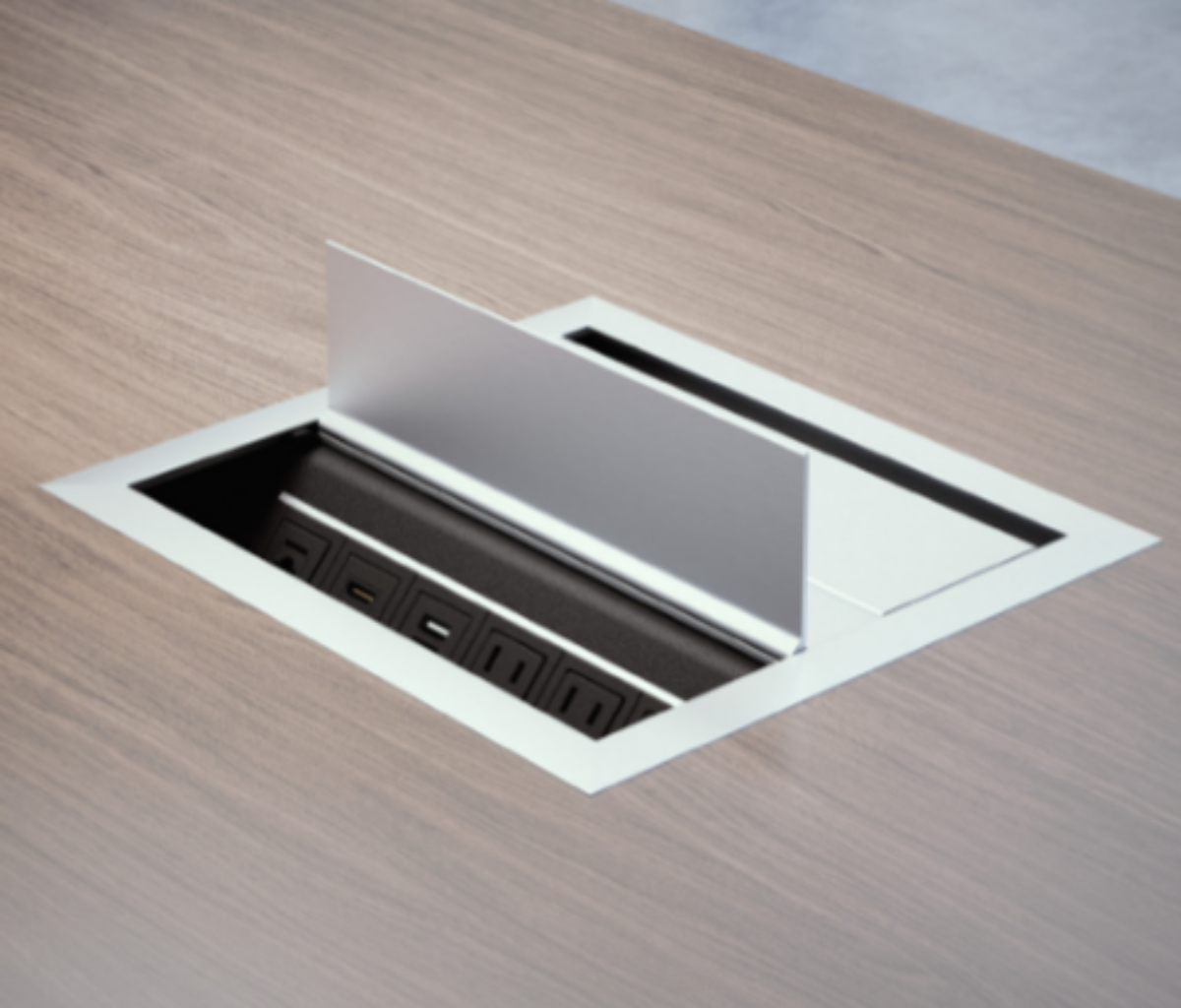

The Byrne Electrical E2X is a dual sided in-surface table box that installs flush in the table, when needed lift the lid to expose your connections and connect your cables. The top of the box features a small gap so that cables can remain plugged in with the lid closed, this creates a flush working environment and is also idea for items that always need to be plugged in such as phones. What is also special about this table box is that it has dual lids and double the connections as the Ellora model. This is perfect when you want access to the table box from both sides of the table or need a larger amount of connections in one box.

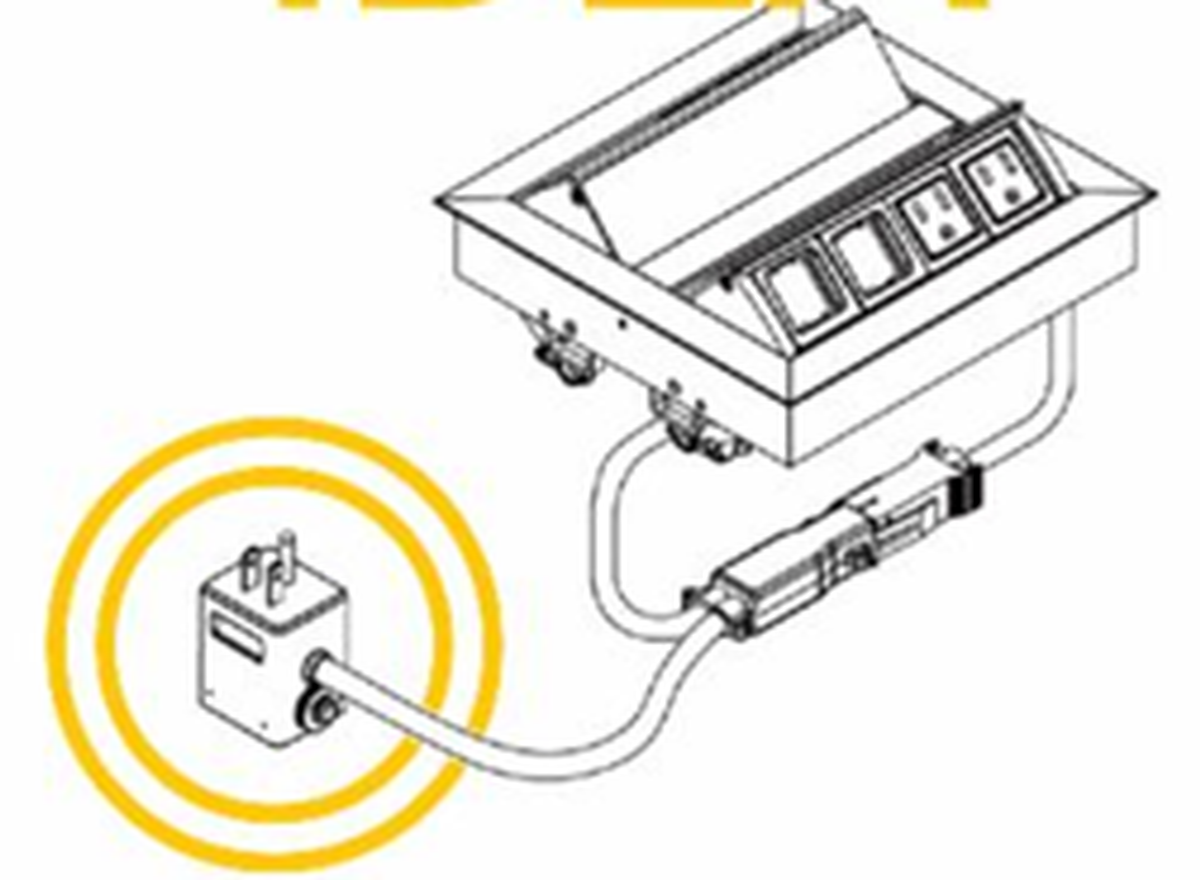

This unit comes with the following connections on each side: 3 power, dual charging USB (1 of each type A/C), 1 18" F-F HDMI, and 1 data jack with 9' male end. The charging USB ports are integrated into the power in the box so no separate power cable needs to be plugged in, only a single 10' power cord comes out of the unit. To install cut your hole and drop in the unit and secure with the included clips.
The connections are customizable and 2 more ports can be added if more connections are desired. The power outlets can even be upgraded to hospital grade UL listed spill proof outlets. Another feature that can be added is daisy link power for connecting multiple Ellora units together. To request a quote for a different configuration or more connections please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- A single 10' power cord comes out of the box
- Non-returnable
- Bezel dimensions: 11 3/8" x 10 1/8"
- Cutout dimensions: 11" x 9.81"
- Depth under table: 3 5/8"
- Warranty: 1 year
