Byrne® MS2
Table AV Box with Opposite Facing Tilt Up Connections

Description

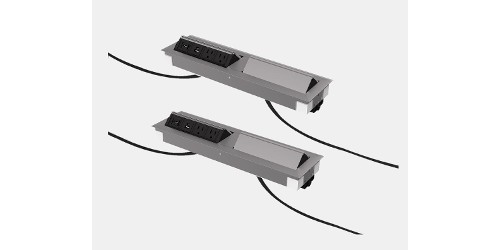

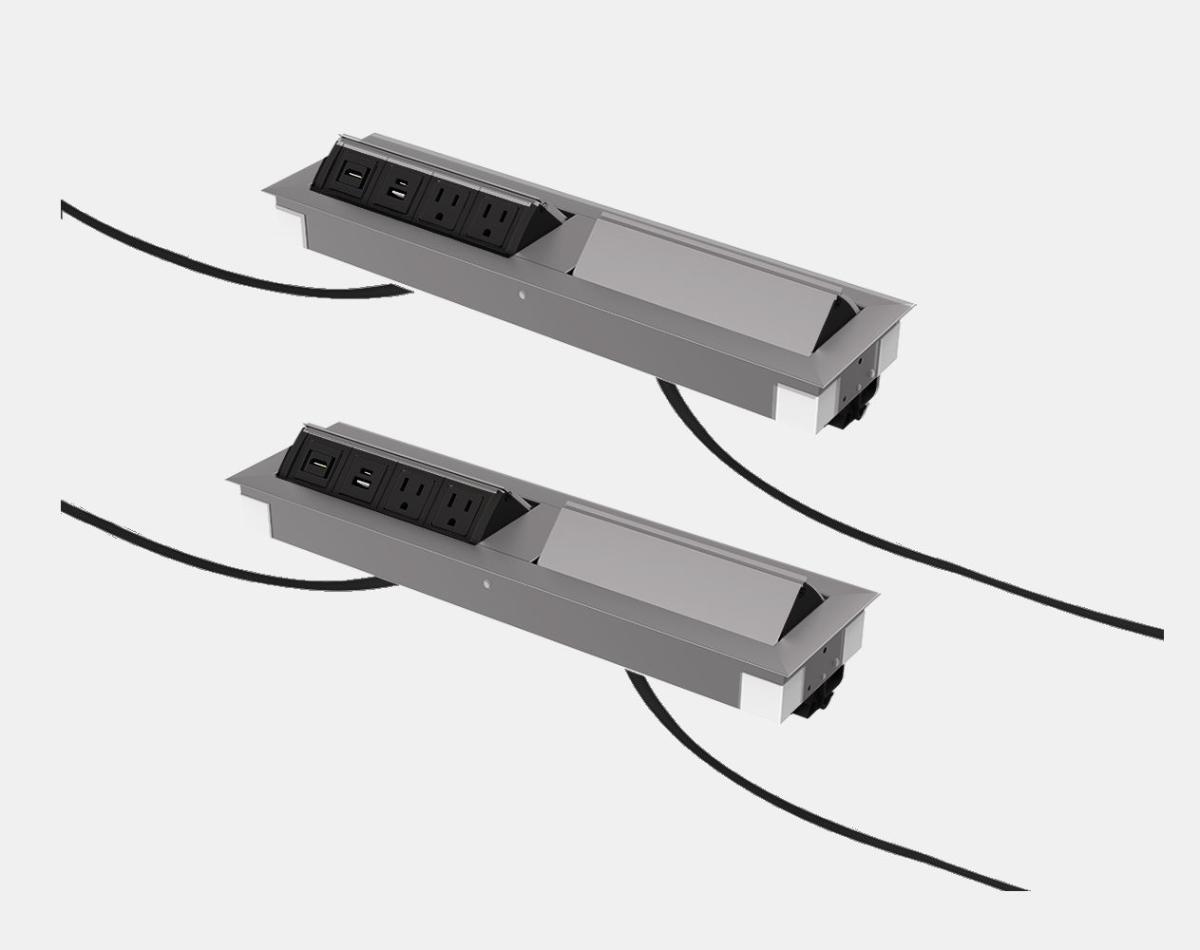

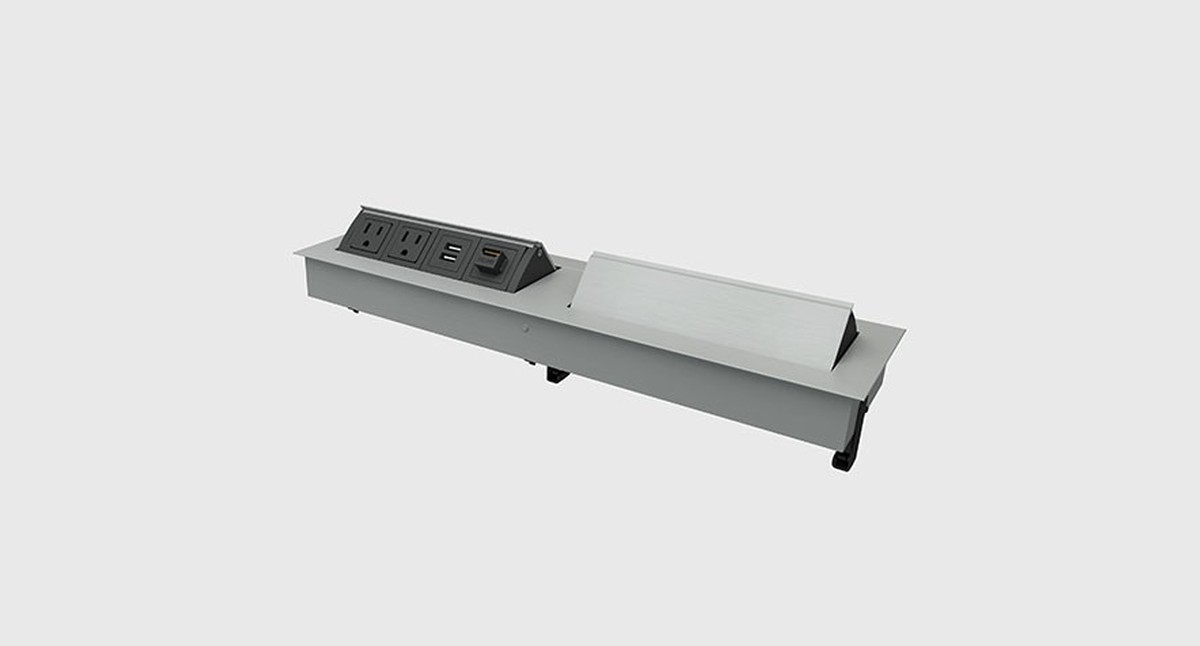

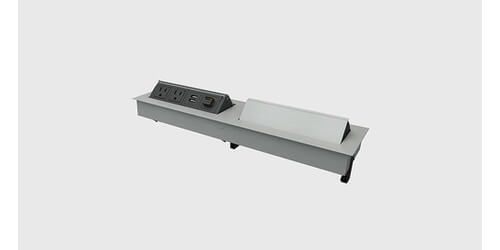

The Byrne Electrical MS2 is an in-surface table box that installs flush in the table, when needed press the top and the connections tilt open so they can be plugged into. What is truly unique about this unit is that the 2 boxes are side-by-side and opposite facing, each side tilts open independently of each other. This allows access from either side of the table, this is perfect for larger tables and multiple people

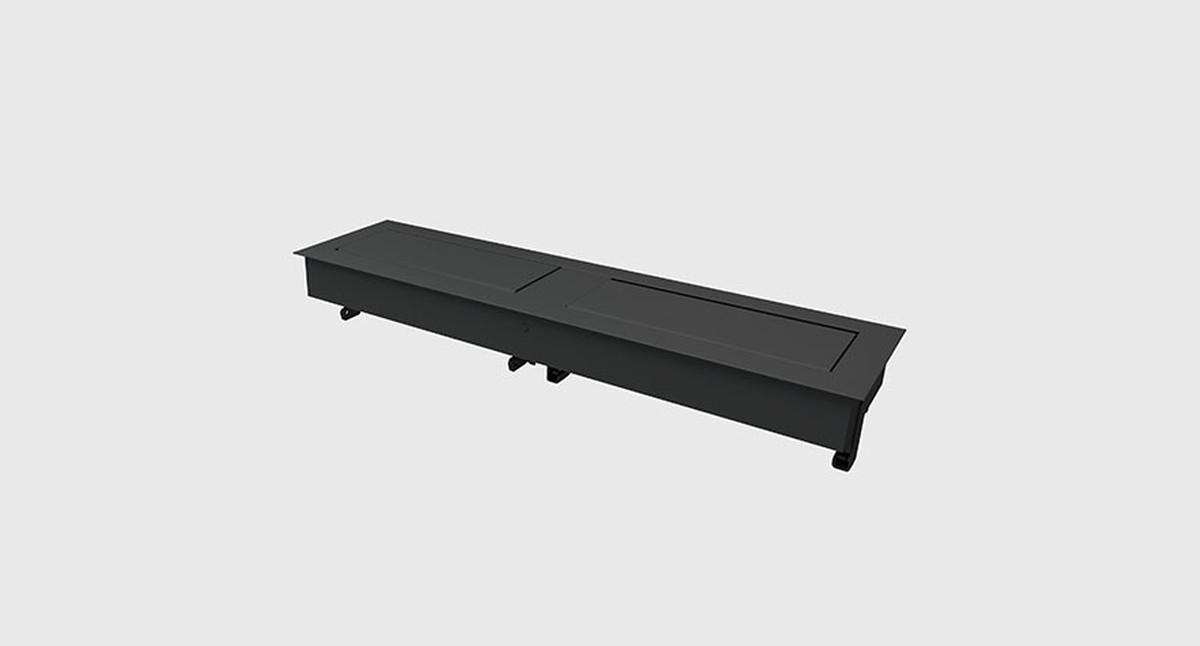

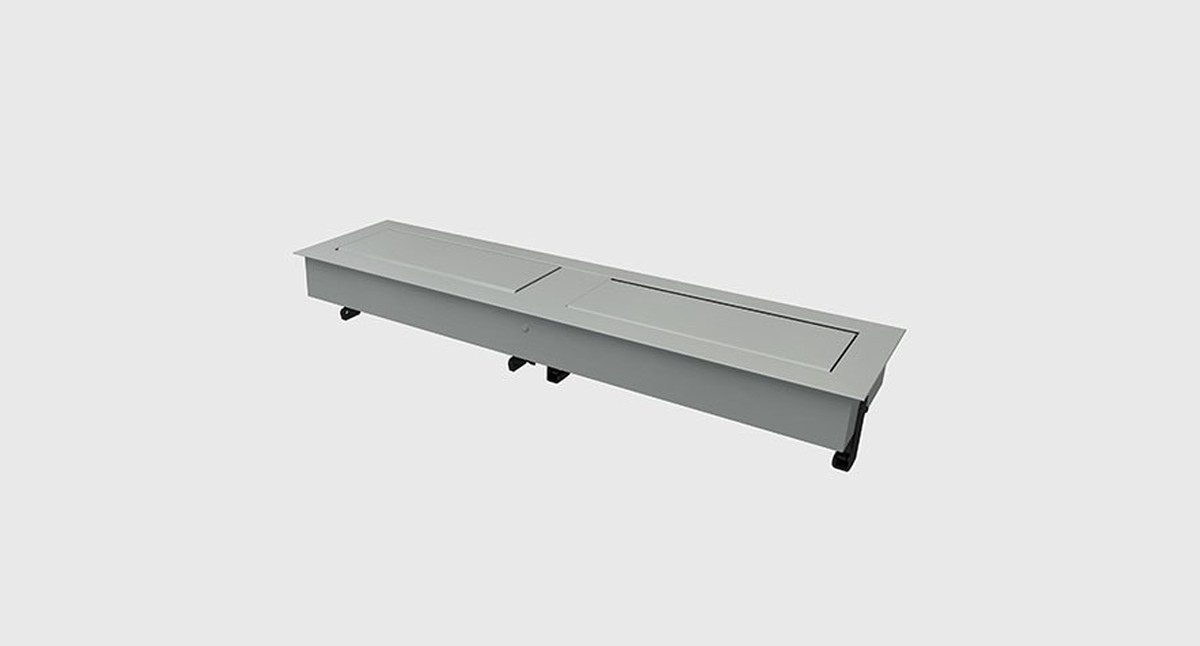

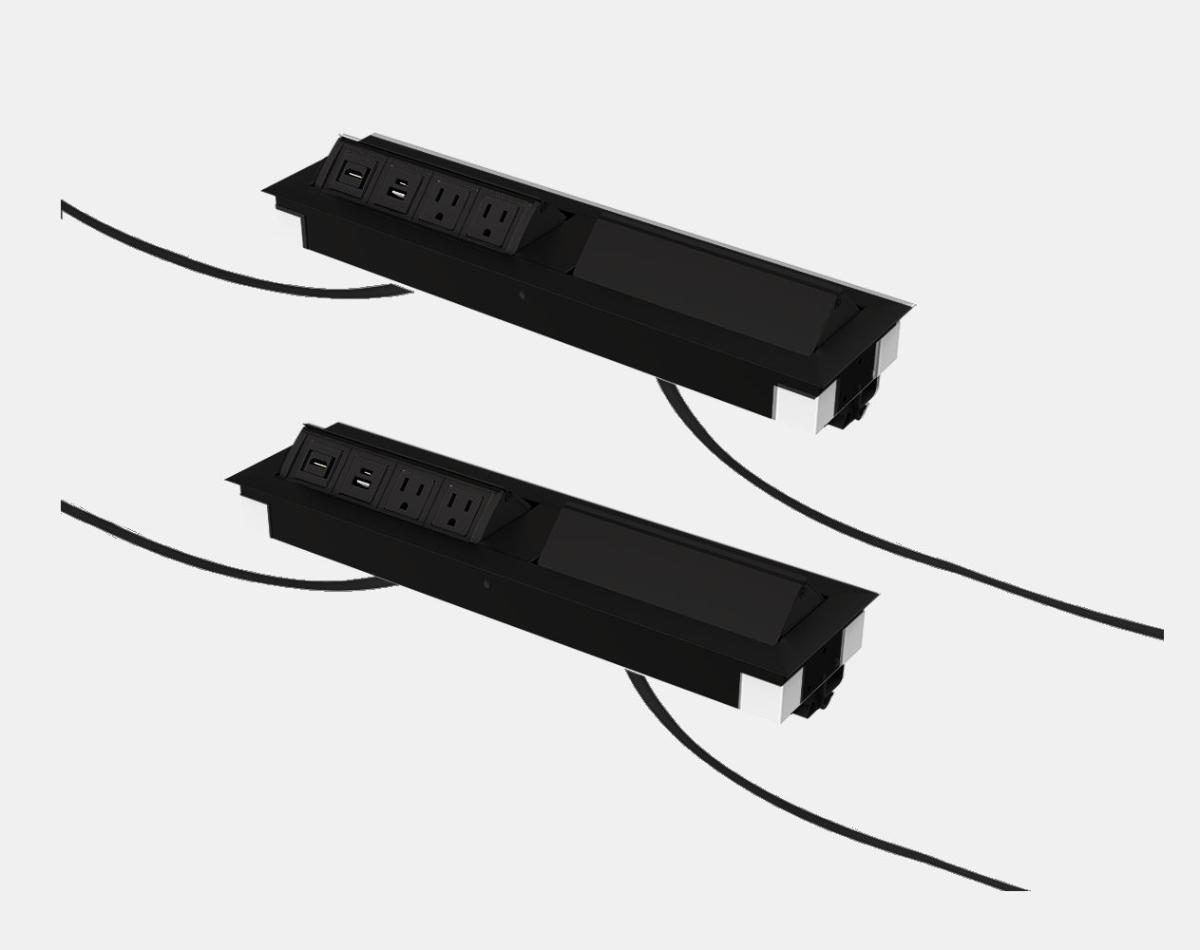

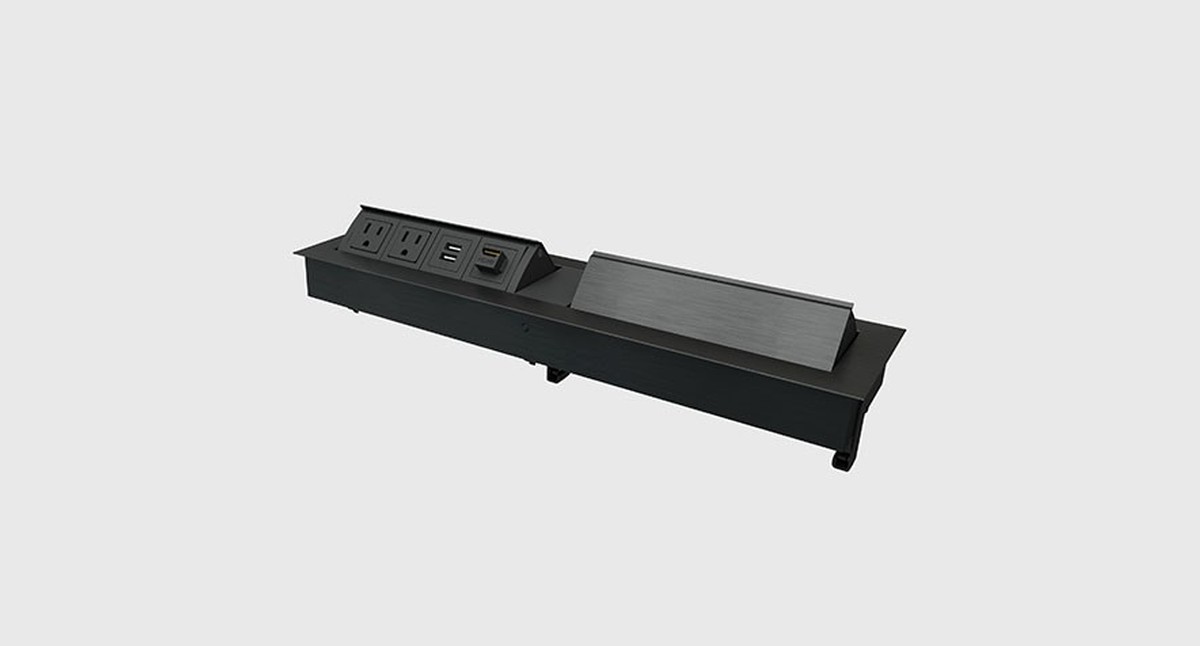

This unit comes with the following connections on each side, 2 power, dual charging USB (1 of each type A/C), and 1 18" F-F HDMI. The charging USB ports are integrated into the power in the box so no separate power cable needs to be plugged in, only a single 10' power cord coming out of the box needs to be plugged in. The unit comes standard in silver but can be upgraded to black. To install cut your hole and drop in the unit and secure with the included clips.

The connections are customizable and 4 more ports can be added to each side. The power outlets can even be upgraded to hospital grade UL listed spill proof outlets. To request a quote for a different configuration or more connections please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Only a single 10' power cable needs to be plugged in
• Non-returnable
• Bezel dimensions: 16 1/2" x 4 1/2"
• Cutout dimensions: 16 1/8"" x 4"
• Depth under table: 2 1/2"
• Warranty: 1 year

Downloads

• Byrne MS2 Specifications (PDF)
• Byrne MS2 Installation Instructions (PDF)
