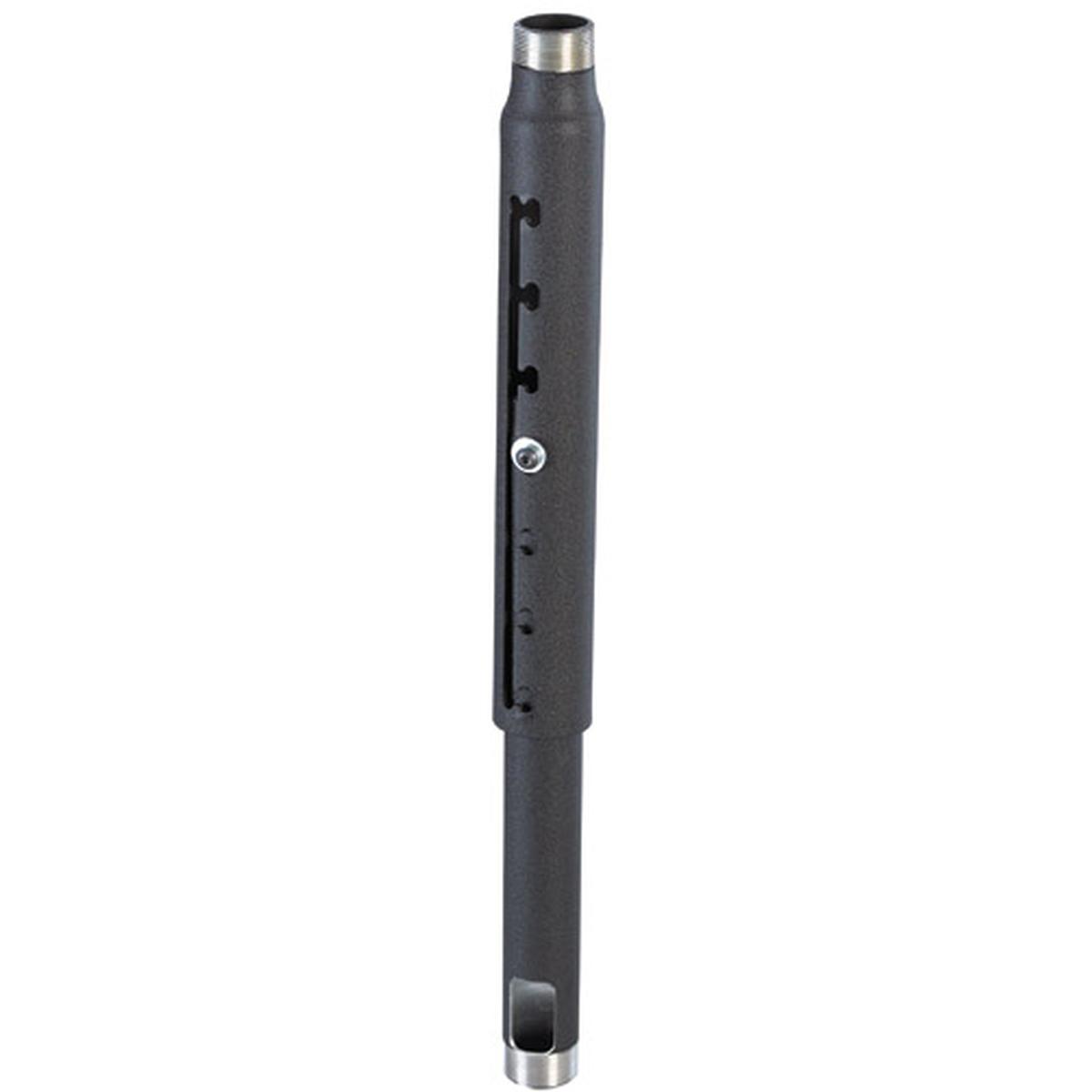

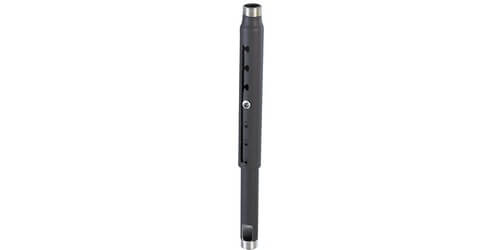

Chief CMS0305
3-5' Speed-Connect Adjustable Extension Column - Black

Description

Chief's CMS0305 is an Adjustable Speed-Connect Extension Column that is adjustable between 3 - 5' lengths. This extension column from Chief can be used with any 1.5" NPT ceiling mount or accessory to lower or adjust a ceiling mounted flat panel display or projector to your desired height. Chief designed the CMS Adjustable Extension Series Columns from a very high-quality aluminum construction and with a revolutionary notched design for length changes (1" increments) which allows for extremely fast adjustments without disassembly of the system. Also featured is a flow-through cable management that allows cables to pass through the column with an integrated port on one end for routing cables, which adds security and a more aesthetic look to your professional display system.

The CMS0305 has 1.5" NPT threads on both ends and includes a set screw for added stability to reduce building vibrations that may cause projector or screen wobble. This column has a maximum weight capacity of 500 pounds, is UL Listed and TAA Compliant and comes backed by a 10 year warranty from Chief.

The CMS Series of Adjustable Extension Columns come in Black, White, or Silver finishes.

Specifications

• Color: Black
• Notched Design: Provides height adjustment in 1" increments
• Flow Through Cable Management
• 1.5" NPT Threads on Both Ends TAA Compliant
• UL Listed
• Included Hardware: 5/16 x 5/8" Screw, 5/16" Lock Washer, 5/16" Flat Washer, 5/16 x 1/4" Nuts (2), 5/32" Allen Wrench, 5/16 x 1/14" Nut, 3/16" Allen Wrench
• Warranty: 10 Years

Downloads

• Chief CMS0305 Manual (PDF)
• Chief CMS0305 Technical Drawing (PDF)
