Chief CMS0406

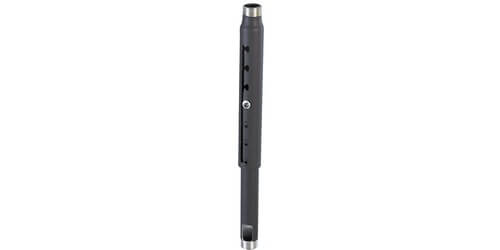

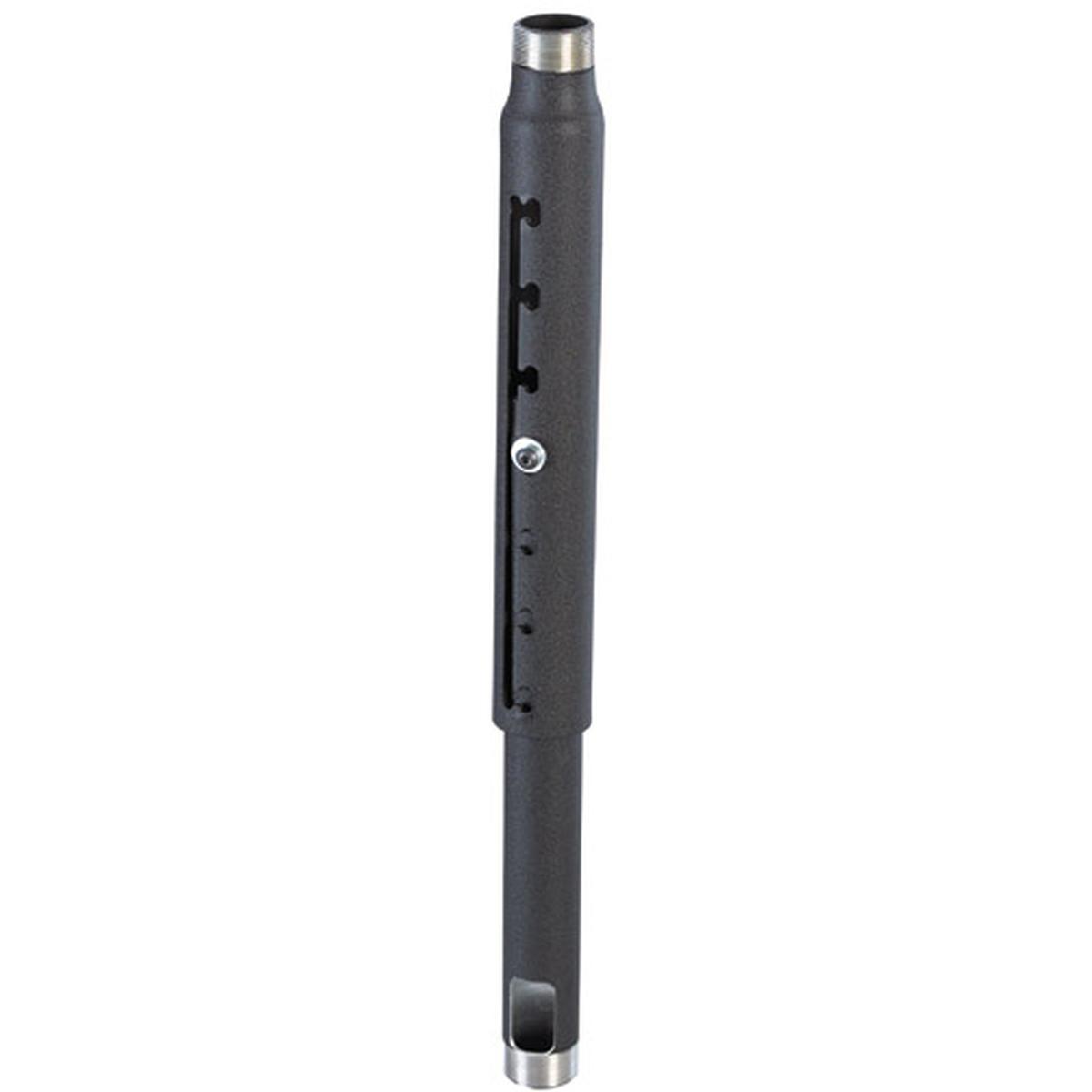

4-6' Speed-Connect Adjustable Extension Column - Black
- Length: 4' to 6'
- Weight Capacity: 500 lbs
- Compatibility: Any 1.5" NPT ceiling plate or other accessory
- Construction: Aluminum
-Lynn Y.
Description
Chief's CMS0406 is an Adjustable Speed-Connect Extension Column that is adjustable between 4 - 6' lengths. This extension column from Chief can be used with any 1.5" NPT ceiling mount or accessory to lower or adjust a ceiling mounted flat panel display or projector to your desired height. Chief designed the CMS Adjustable Extension Series Columns from a very high-quality aluminum construction and with a revolutionary notched design for length changes (1" increments) which allows for extremely fast adjustments without disassembly of the system. Also featured is a flow-through cable management that allows cables to pass through the column with an integrated port on one end for routing cables, which adds security and a more aesthetic look to your professional display system.
The CMS0406 has 1.5" NPT threads on both ends and includes a set screw for added stability to reduce building vibrations that may cause projector or screen wobble. This column has a maximum weight capacity of 500 pounds, is UL Listed and TAA Compliant and comes backed by a 10 year warranty from Chief.
The CMS Series of Adjustable Extension Columns come in Black, White, or Silver finishes.
Specifications
- Color: Black
- Notched Design: Provides height adjustment in 1" increments
- Flow Through Cable Management
- 1.5" NPT Threads on Both Ends TAA Compliant
- UL Listed
- Included Hardware: 5/16 x 5/8" Screw, 5/16" Lock Washer, 5/16" Flat Washer, 5/16 x 1/4" Nuts (2), 5/32" Allen Wrench, 5/16 x 1/14" Nut, 3/16" Allen Wrench
- Warranty: 10 Years
