Chief CMS445

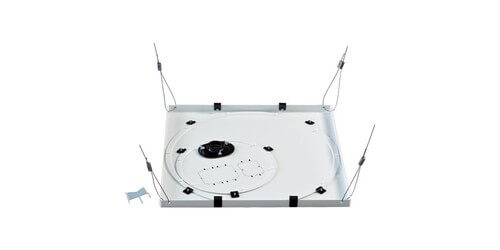

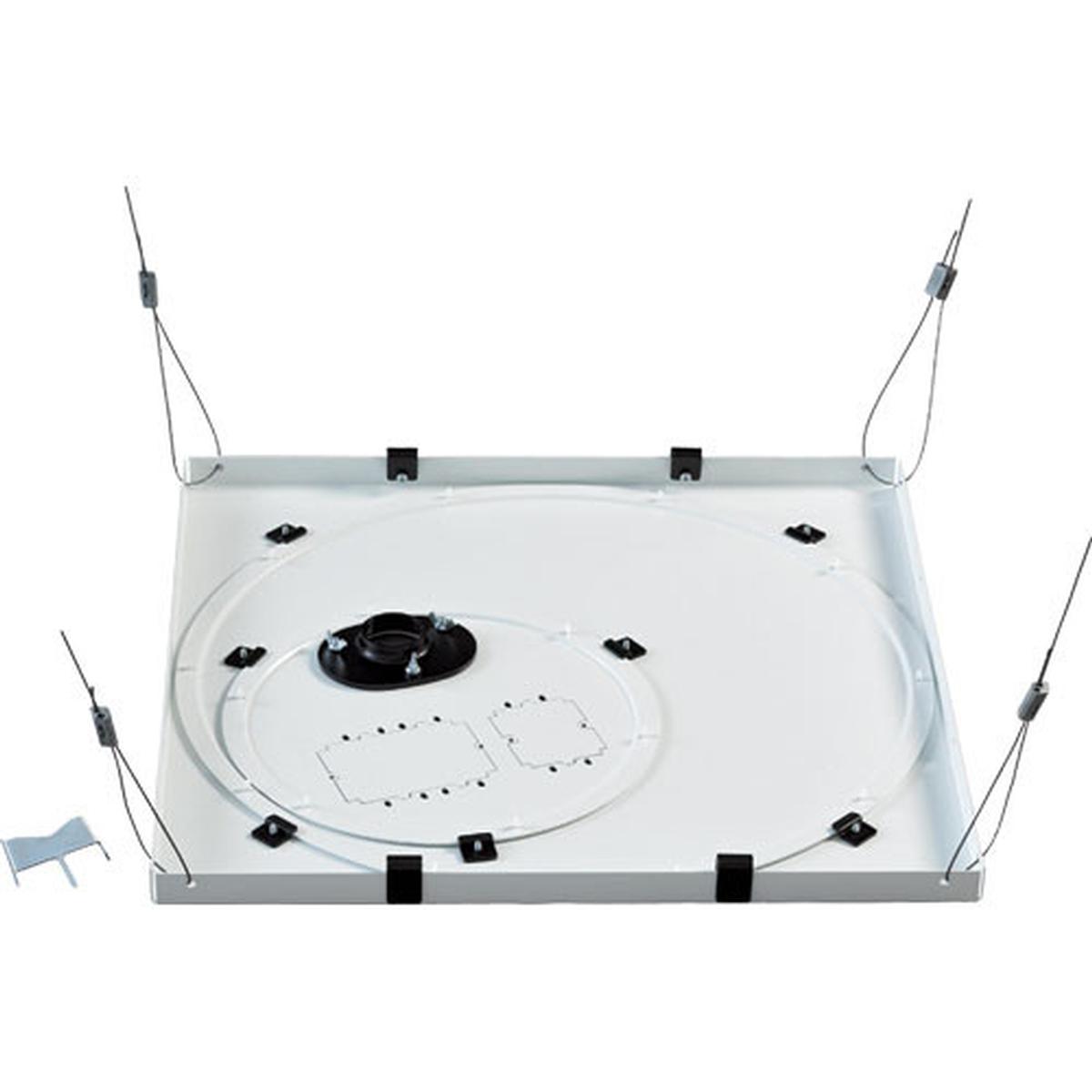

Speed-Connect Suspended Ceiling Tile Replacement Kit - White

Description

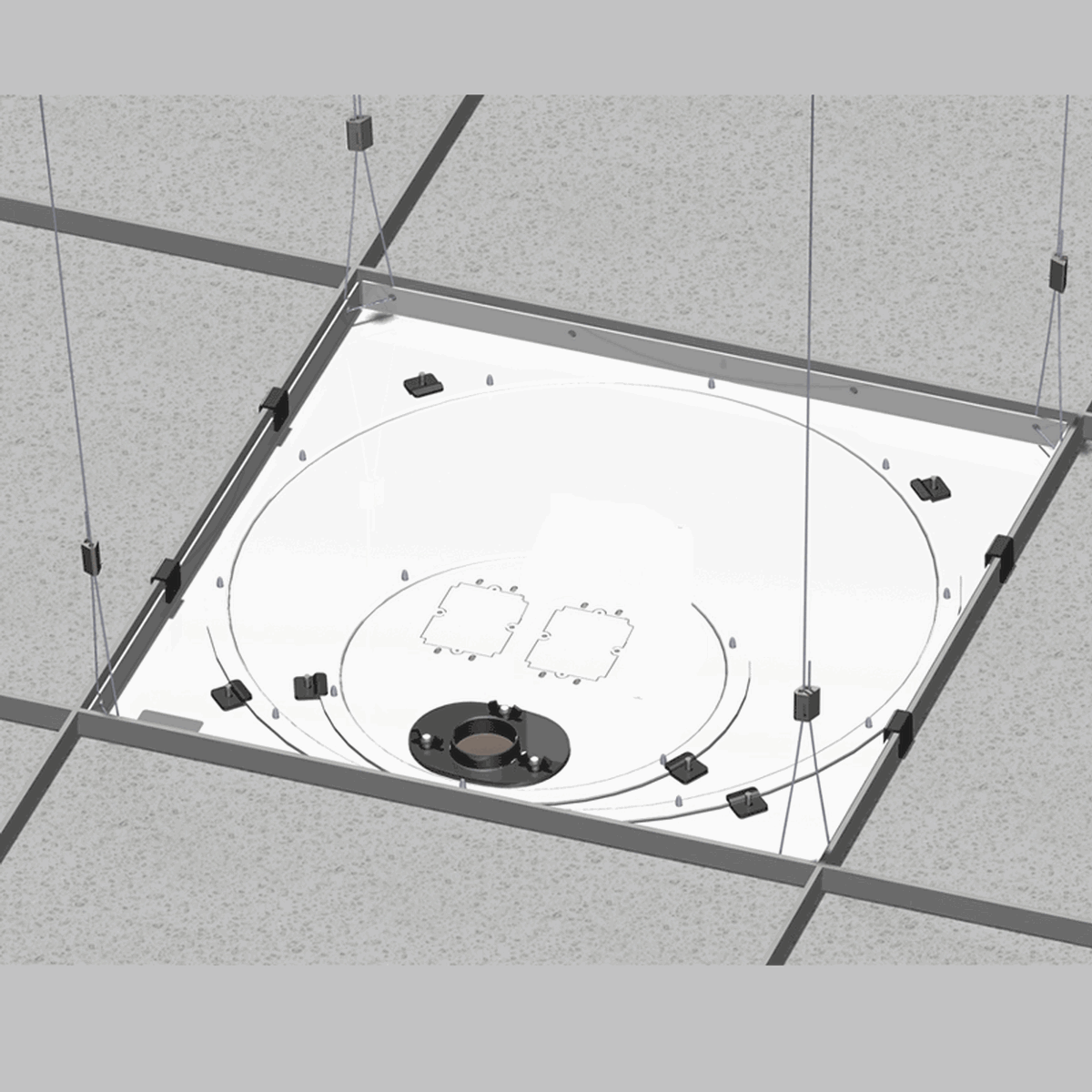

Chief's CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit focuses on speed of installation. The Speed-Connect series was designed as a step up from the popular CMA series, integrating easy-to-use features that focus on saving time and maximizing security of your high-end projection systems. This suspended ceiling tile replacement kit is truly a unique product from Chief and is great for situations where you may not want to cut into existing ceiling tiles and rather use this a pre-cut pop-in for situations where you may be renting or leasing space and don't want the hassle of cutting new holes in a ceiling tile. With 2 rotating circles within the 2'x2' replacement tile kit you will find the perfect space for your ceiling mount and column placement, making this a highly customizable solution. For aesthetic looks this suspension ceiling tile replacement can alternatively be hung above a current ceiling tile as well.

The CMS445 features an array of highly sought after features for above tile suspended ceiling mounts that make most out of your projection systems. These innovative features from Chief include the WireVice Cable Suspension System for quick and easy tie-off, and the TwisTile Tile Cutter, used for piercing holes into your ceiling tile. This design also features a continuously adjustable mounting slot for infinite placement options, along with single and dual electrical outlet cutouts, and All-Points tamper-resistant hardware at the column connection point.

The WireVice Cable Suspension System allows for a quick and easy tie-off. TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for an added extension column. Within a 2' x 2' or 2' x 4' ceiling tile this solution provides almost infinite column placements. The single and dual electrical outlet cutouts are a perfect addition to add power to this supsension system, and an All-points security system provides exclusive locking hardware at column connection point to protect against theft. The CMS445 has a weight capacity of up to 50lbs, is 1.5" NPT compatible, fits into 24" wide ceiling tile grids, and comes with a 10 year warranty from Chief.

Specifications

• NPT 1.5" Compatible
• Single & Dual Electrical Outlet Cutouts: to add a power source
• TwisTile Ceiling Tile Cutter
• All-Points Security Systems: Locking hardware at column connection
• Infinite Column Placement within a 2' x 2' ceiling tile space
• WireVice Cable Suspension System
• In the Box: Chief Speed-Connect Replacement Ceiling Tile Kit CMS-445 (Silver/White), (4) 1/16" x 25' Wire, (4) 1/4 x 2" Tap Anchor, (4) 0.262 x 1-5/16" Eye Lag, (4) Cable Locks, (4) #10 x 5/8" Screws, (1) #10 x 1/4" Screws, (1) #10 x 1/4" Screw, (1) Locking Collar, (1) 5/32" Allen Wrench
• Warranty: 10 Years

Downloads

• Chief CMS445 Manual (PDF)
• Chief CMS445 Additional Information (PDF)
