Chief K1D120B

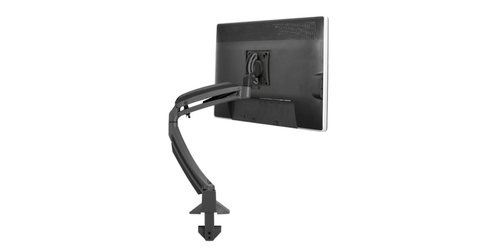

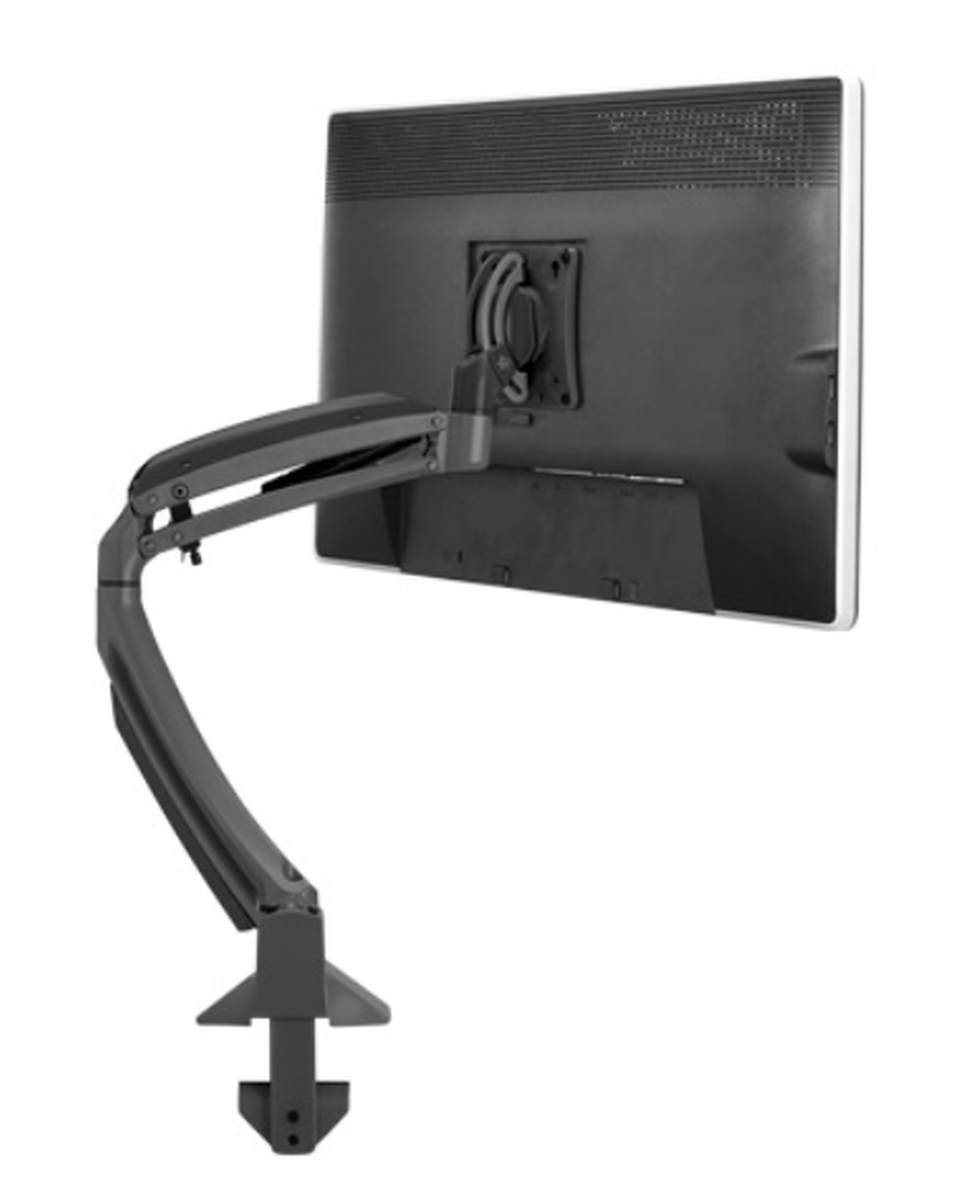

Kontour K1D Dynamic Desk Clamp Mount for 1 Monitor, Black

Description

Chief's K1D line of height-adjustable desk clamp mounts are the ideal solution for monitor mounting in your office space. The K1D120B is a single-monitor mount solution. It features a best-in-class weight capacity range, ranging from 5 to 25 pounds.

Chief's proprietary Centris Extreme Tilt technology gives your fingertips the power to adjust the tilt of your monitor. The K1D120B positions your work monitor in an ergonomic position ideal for you. It is a flexible solution for arranging your desk or monitor, so you can use your monitor to present information to others or reposition it to accommodate a standing position. Other key features of this desk mount include the following:

• Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
• Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
• 13" of dynamic height adjustment using smooth motion gas-spring technology
• Enhanced 3-step installation and quick-release monitor interface with tool storage included in the base
• Easily clamps to edge of desk through standard grommet hole or through bolt hole with included kit
• Tool-free cable management covers

Specifications

• Maximum Extension: 20.6"
• Minimum Depth: 2.45"
• Mounting Pattern Compatibility (Universal Versions): 75x75mm ,100x100mm
• Notes: Weight capacity is per monitor
• Number of Monitors: 1
• Shipping Weight: 11.7 lbs
• Tilt: +75 , -10
• Typical Screen Sizes: 10-30" diagonals
• Weight Capacity: 5-25 lbs
• Orientation: Landscape, Portrait
• Warranty: 10 years

Downloads

• Chief K1D120B Technical Drawing (PDF)
• Chief K1D120B Manual (PDF)
