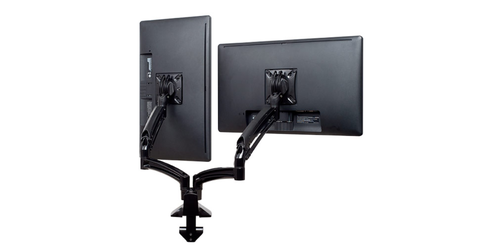

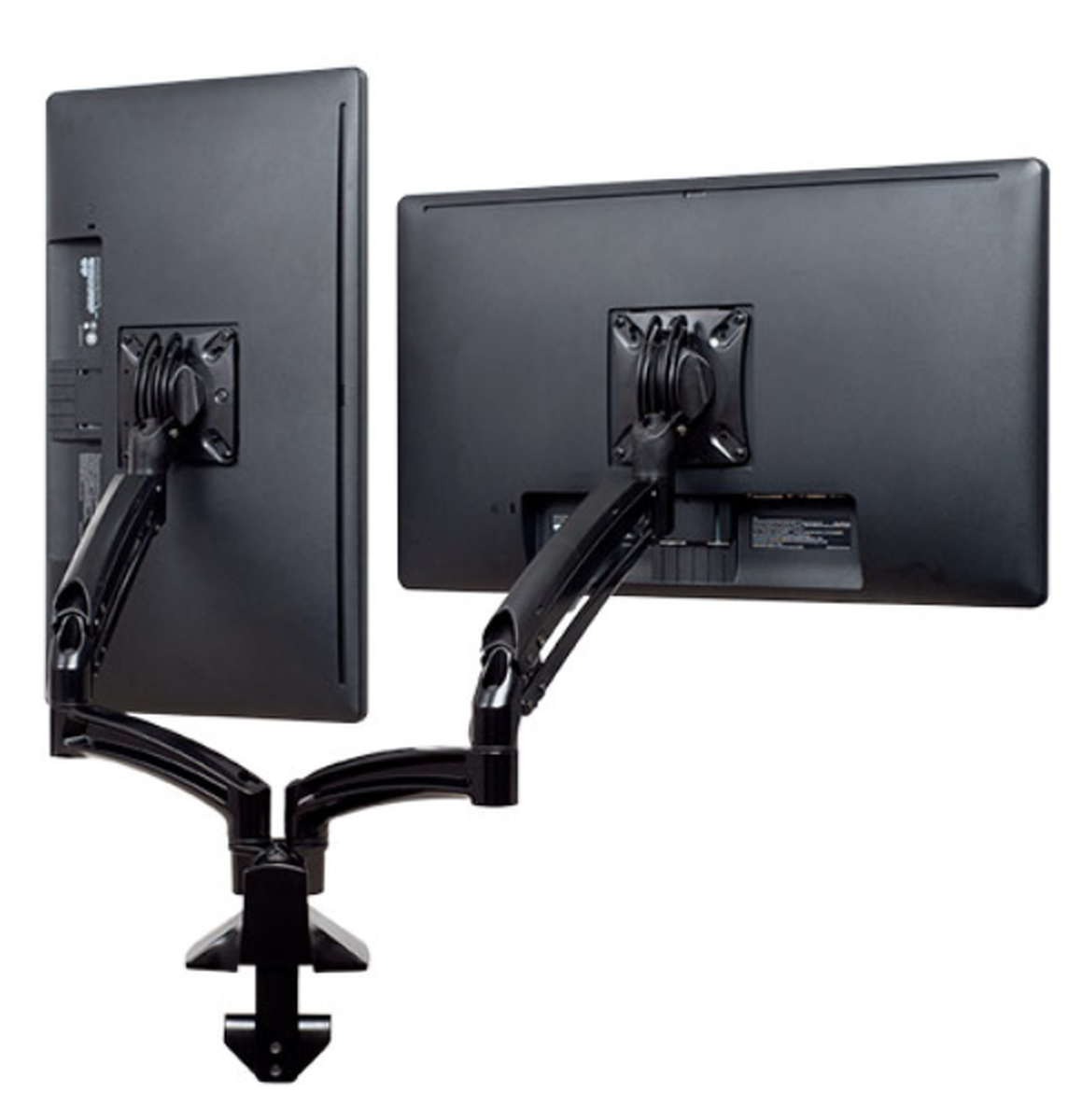

Chief K1D220BXRH
Kontour K1D Dual Monitor Dynamic Desk Mount, Reduced Height

Description

Chief's K1D line of dynamic, reduced-height desk clamp mounts are the ideal solution for monitor mounting in your office environment. The K1D220BXRH is a dual-monitor mount solution. It features a best-in-class weight capacity range, ranging from 5 to 25 pounds. The reduced height is designed for deeper desks, and it is an ideal solution for bi-focal wearing users or those who use touch panel technology.

Chief's proprietary Centris Extreme Tilt technology gives your fingertips the power to adjust the tilt of your monitors. The K1D220BXRH positions your monitors in an ergonomic position ideal for you. It is a flexible solution for arranging your desk or monitor, so you can present information to others or reposition it to accommodate a standing position. Other key features of this dual-screen desk mount include the following:

• Reduced height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible
• Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
• 13" of dynamic height adjustment using smooth motion gas-spring technology
• Enhanced 3-step installation and quick-release monitor interface with included tool storage in the updated base
• Easily clamps to edge of desk through standard grommet hole or through bolt hole with included kit
• Tool-free cable management covers

Specifications

• Maximum Extension: 20.32"
• Minimum Depth: 2.45"
• Mounting Pattern Compatibility (Universal Versions): 75x75mm,100x100mm
• Notes: Weight capacity is per monitor
• Number of Monitors: 2
• Shipping Weight: 14 lbs (6.35 kg)
• Tilt: +75 , -10
• Typical Screen Sizes: 10-30" diagonals
• Weight Capacity: 5-25 lbs
• Orientation: Landscape, Portrait
• Warranty: 10 years

Downloads

• Chief K1D220BXRH Technical Drawing (PDF)
• Chief K1D220BXRH Manual (PDF)
