Chief K1D22HBXRH

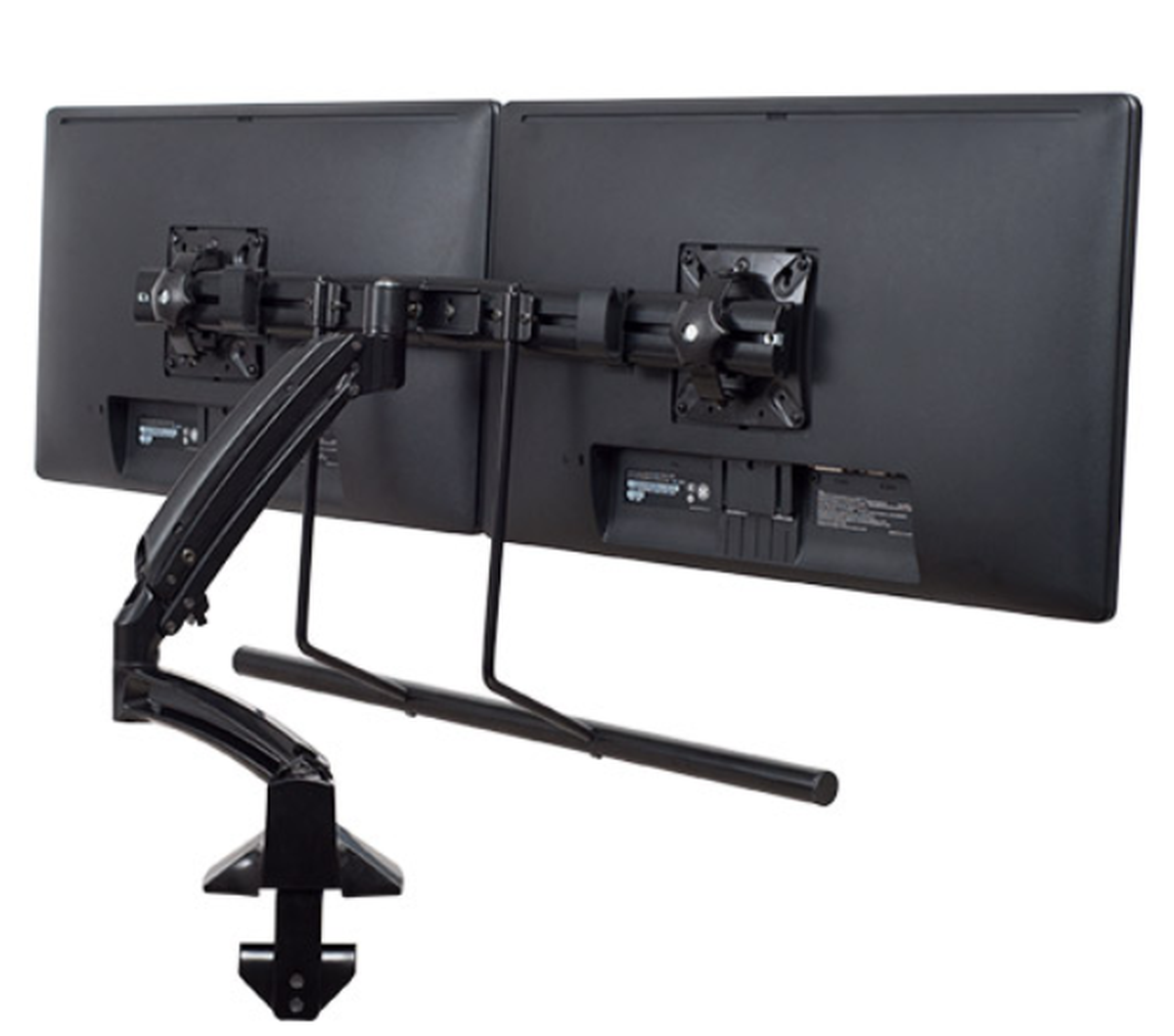

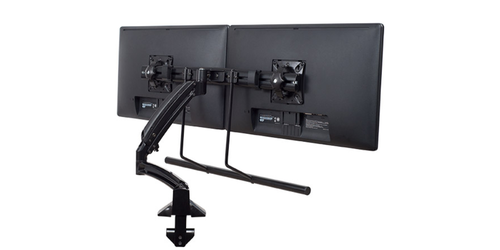

Kontour K1D Dynamic Desk Mount, Dual Monitor, Reduced Height

Description

Chief's K1D line of dynamic, height-adjustable desk clamp mounts are the ideal solution for monitor mounting in your office environment. The K1D22HBXRH is a dual-monitor array-style mount solution. It features a best-in-class weight capacity range, ranging from 2 to 9 pounds.

Chief's proprietary Centris Extreme Tilt technology gives your fingertips the power to adjust the tilt of your monitors. The K1D22HBXRH positions your monitors in an ergonomic position ideal for you. It is a flexible solution for arranging your desk or monitor, so you can present information to others or reposition it to accommodate a standing position. Other key features of this dual-screen desk mount include the following:

• New dual-monitor array bar with low-profile tilt and rotation adjustment
• Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
• 13" of dynamic height adjustment using smooth motion gas-spring technology
• Enhanced 3-step installation and quick-release monitor interface with included tool storage in the updated base
• Easily clamps to edge of desk through standard grommet hole or through bolt hole with included kit
• Tool-free cable management covers

Specifications

• Maximum Extension: 22.17"
• Minimum Depth: 4.3"
• Mounting Pattern Compatibility (Universal Versions): 75x75mm,100x100mm
• Notes: Weight capacity is per monitor
• Number of Monitors 2
• Screen Array Configuration: 2 x 1
• Shipping Weight: 20.5 lbs
• Tilt: +/- 10
• TV Width Range: Up to 24.9"
• Typical Screen Sizes: 10-24" diagonals
• Weight Capacity: 2-9 lbs
• Orientation: Landscape, Portrait
• Warranty: 10 years

Downloads

• Chief K1D22HBXRH Technical Drawing (PDF)
• Chief K1D22HBXRH Manual (PDF)
