Chief MTTU

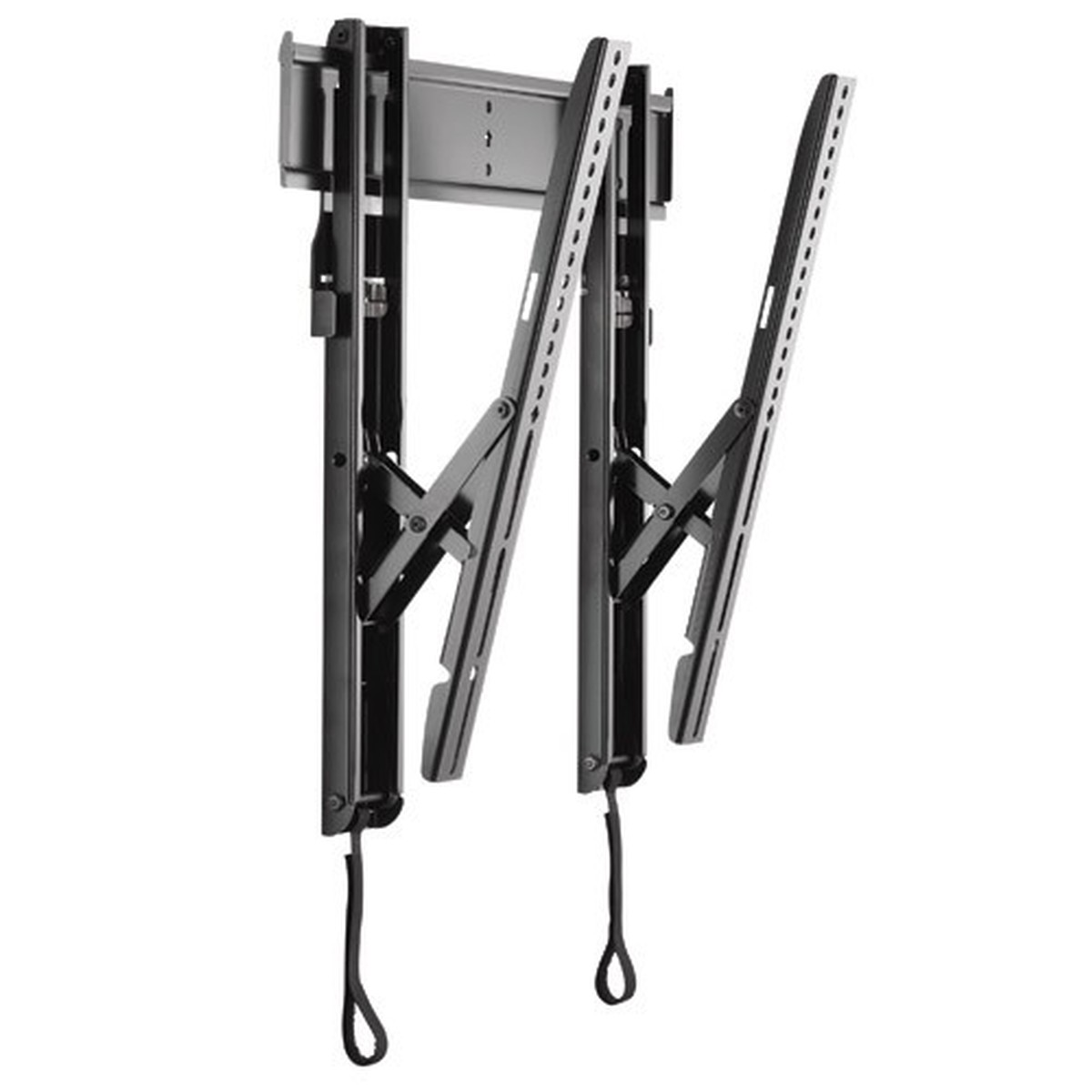

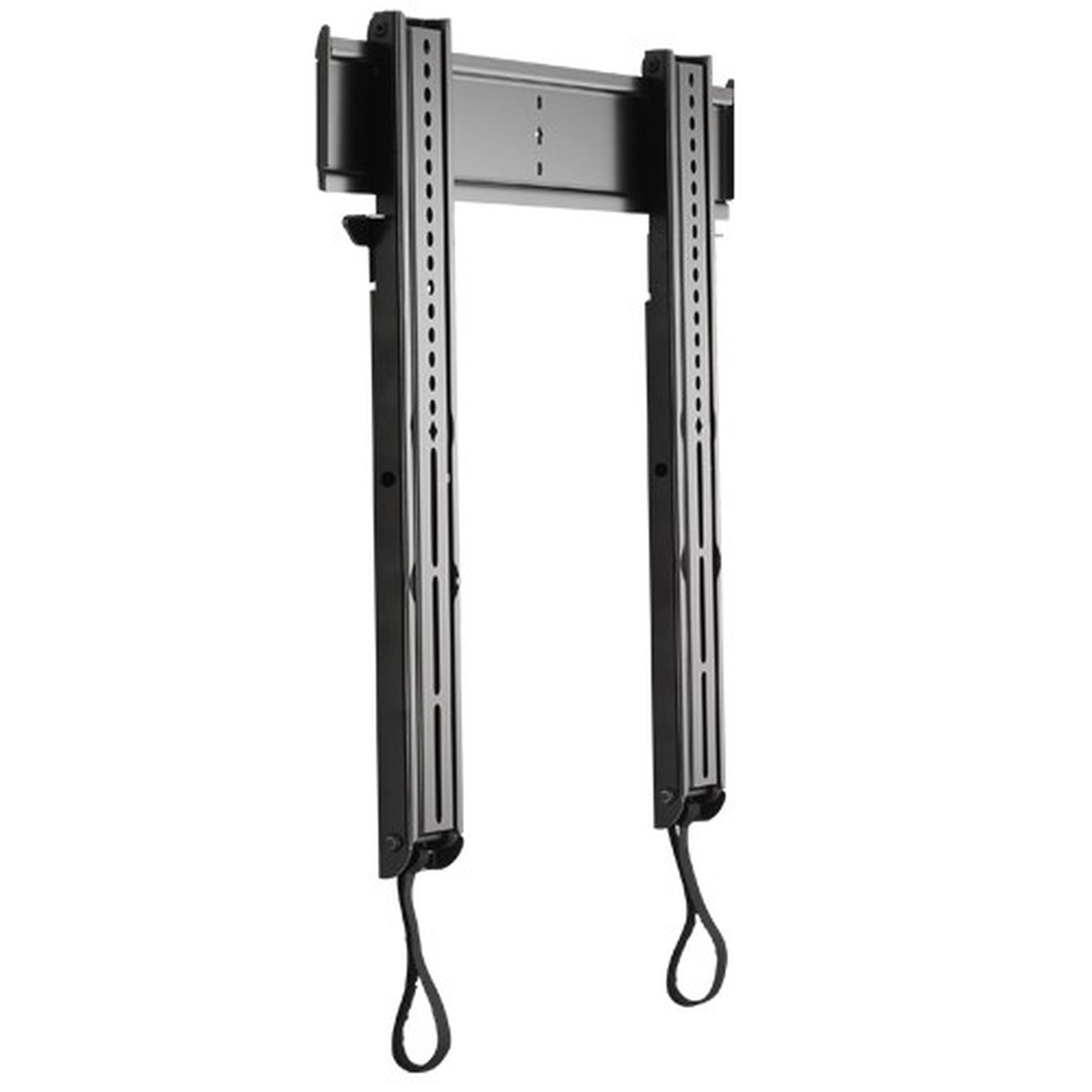

Thinstall Universal Flat Panel Tilt Wall Mount - 26-47" Screens
- Mount Type: Tilting Wall Mount
- Depth From Mounting Source: 0.75"
- Max Screen Depth: 2"
- Max Screen Size: 26-47" Displays
-Brandon K.
Description

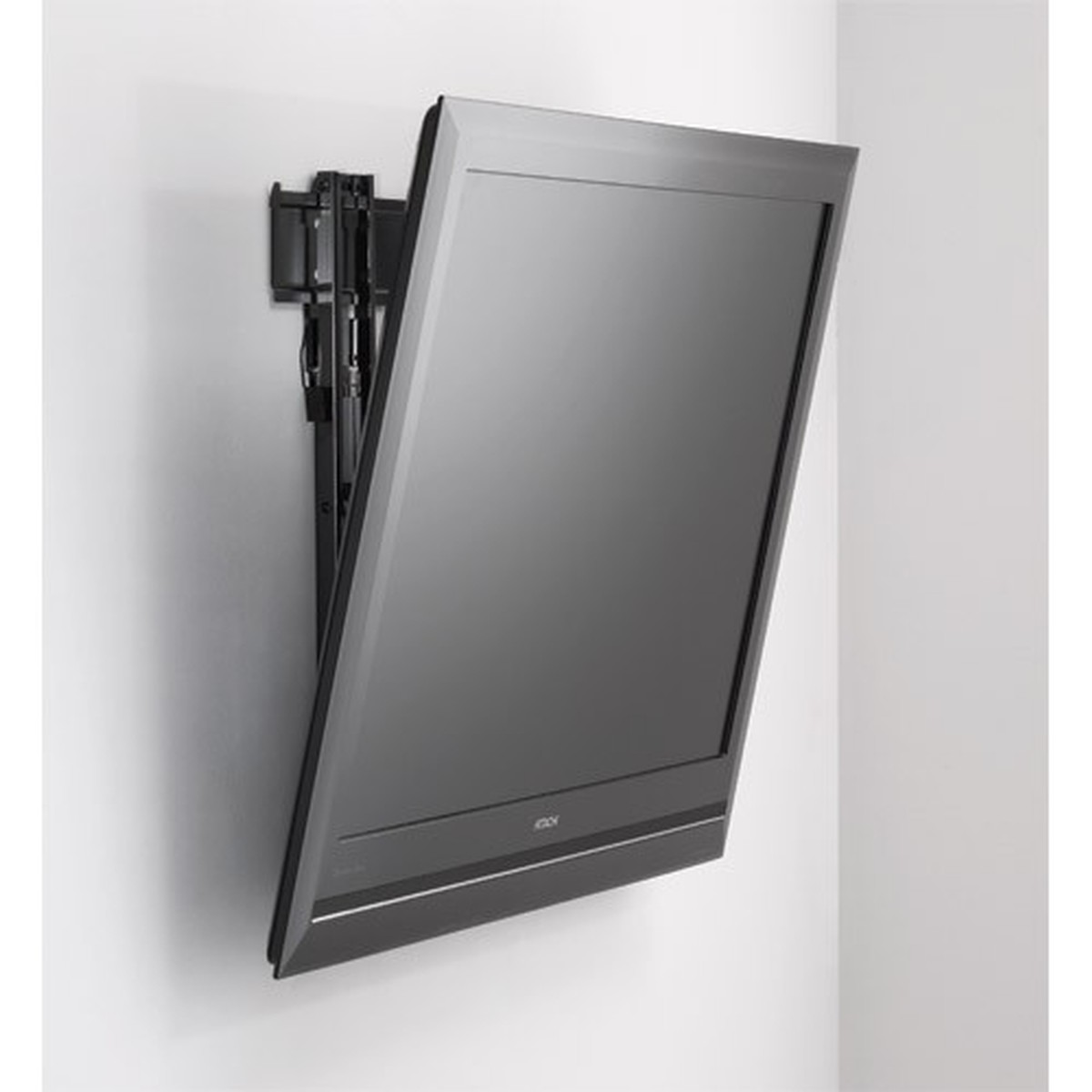

The MTTU Thinstall Universal Flat Panel Tilt Wall Mount from Chief. One of the thinnest wall mounts available on the market, Chief designed this mount as a complement to the latest ultra-thin flat panel TV's on today's market. With that in mind this wall mount is only compatible with ultra-thin TV's 2" deep or less, between 26-47" diagonal, and for screens less than 100 pounds. By mounting your monitor less that an inch from the wall this unit completely eliminates the bulky eyesore commonly associated with traditional larger sized mounts. The mount will place the screen nearly flush with the wall, adding to the aesthetics of your lobby, boardroom, or home entertainment area.
The primary features of the MTTU include a 12 degree range of smooth, fingertip tilting action. GlideLocking for a tool-less latching that allows for faster installations. Consists of one-piece steel bracket with two tilting interface, and each interface includes a sliding flag for an increased level of security. For additional flexibility it is also capable of lateral shifts. The MTTU will only support landscape orientation installations.
Specifications
- Weight Capacity: Up to 100 lbs
- Mounting Patterns: 100 x 100mm - 600 x 400mm
- Tilt Range: 12-degrees
- Color: Black
- Wall Stud Compatibility: 16"
- Orientation: Landscape
- Certifications: UL Listed
- Overall Dimensions (H x W x D): 17.6" x 27.8" x 0.8"
- Features a cable stand and bottom pullout for cable access
- Included Accessories: Hardware for Mounting, Installation Manual
- Warranty: 10 Years
