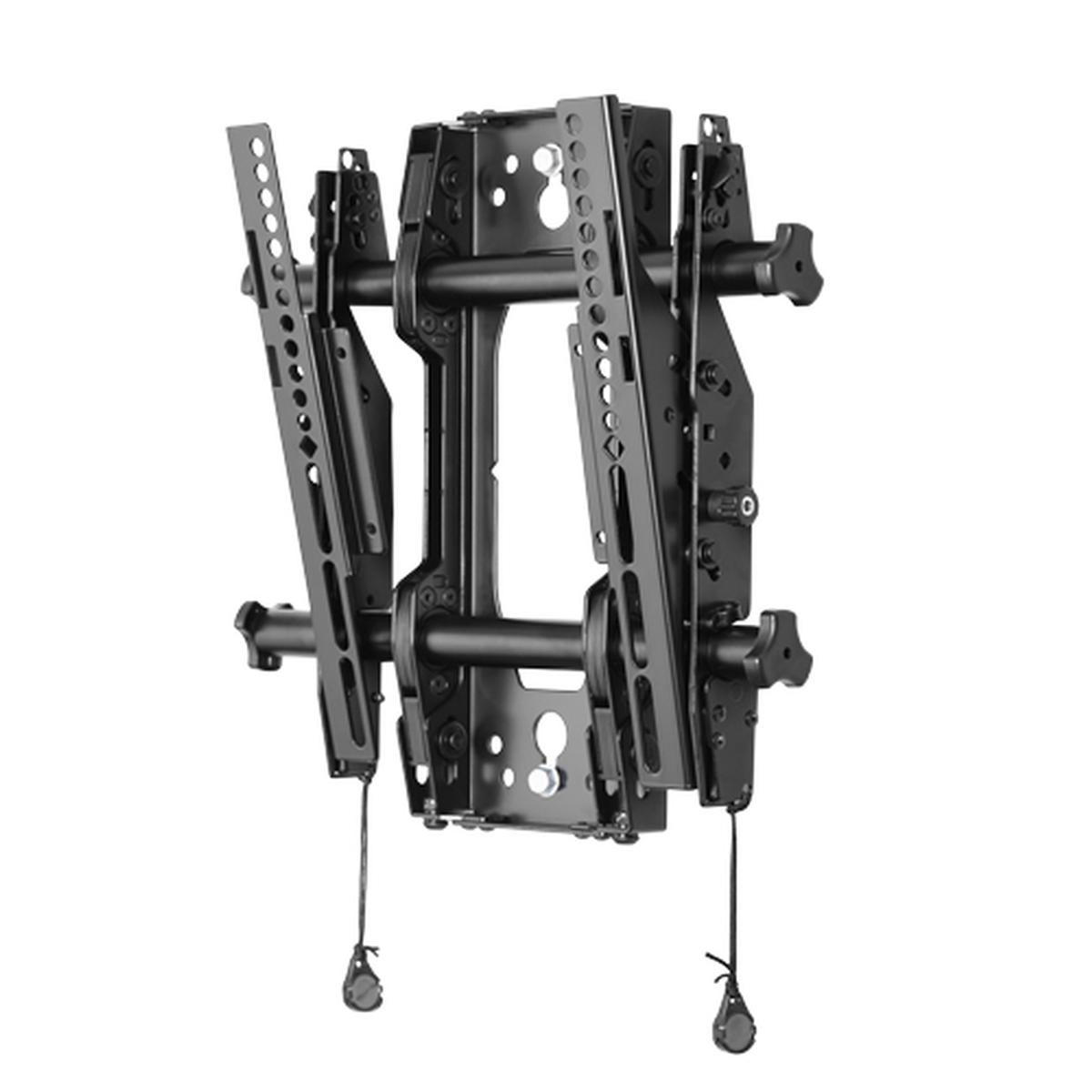

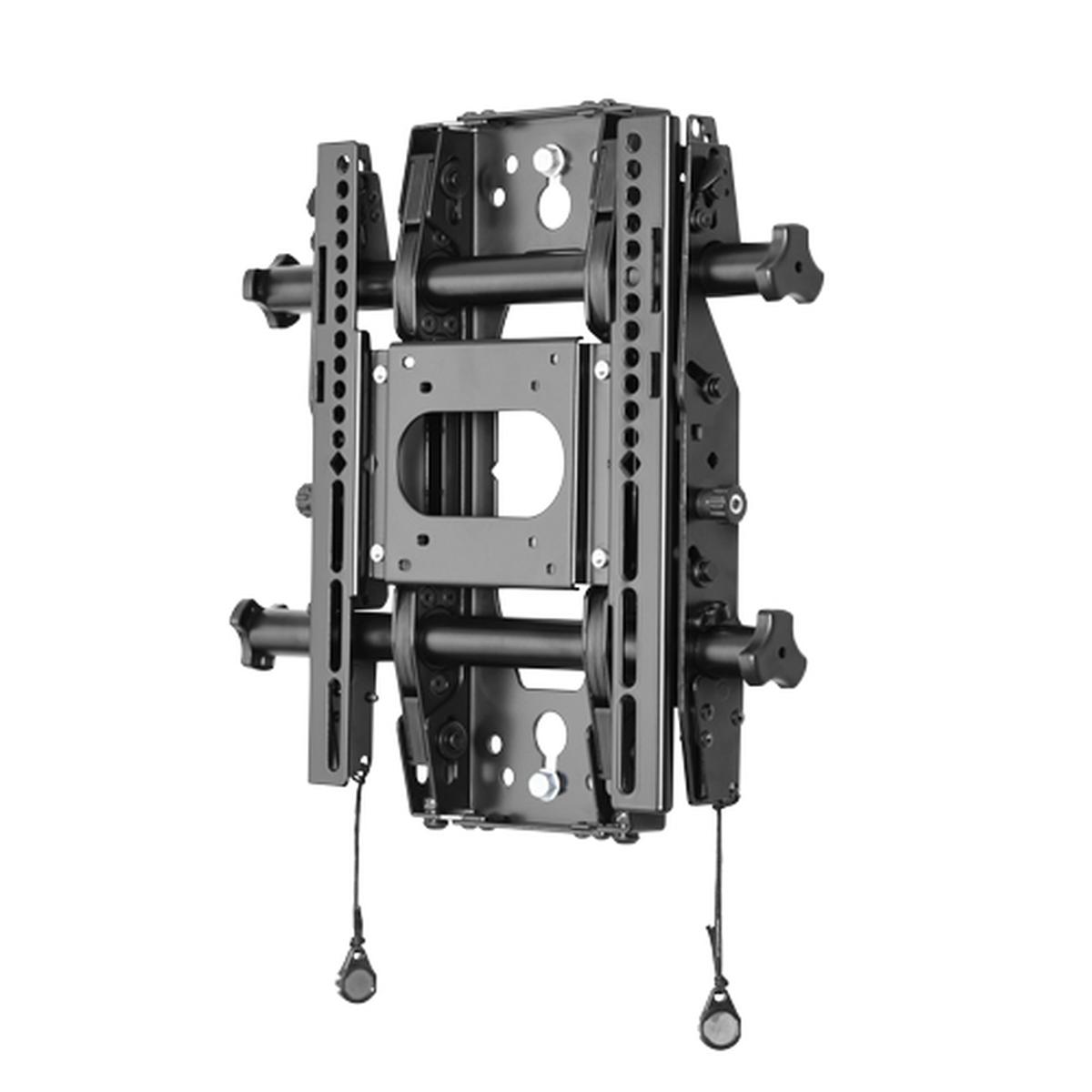

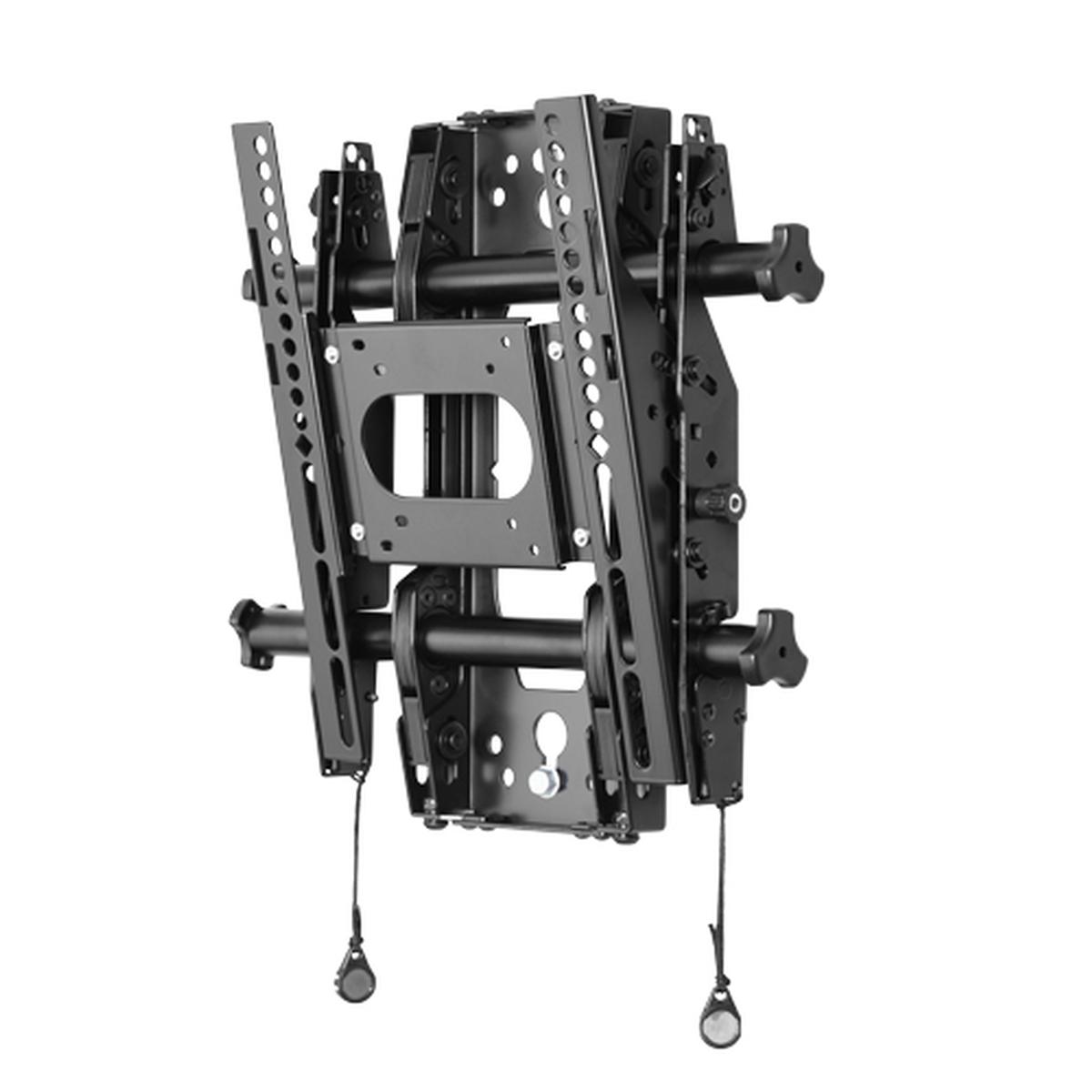

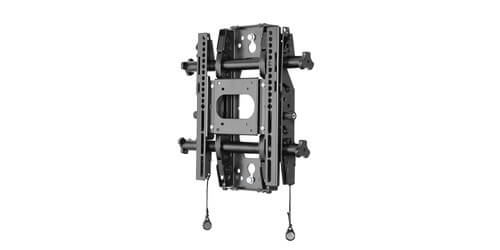

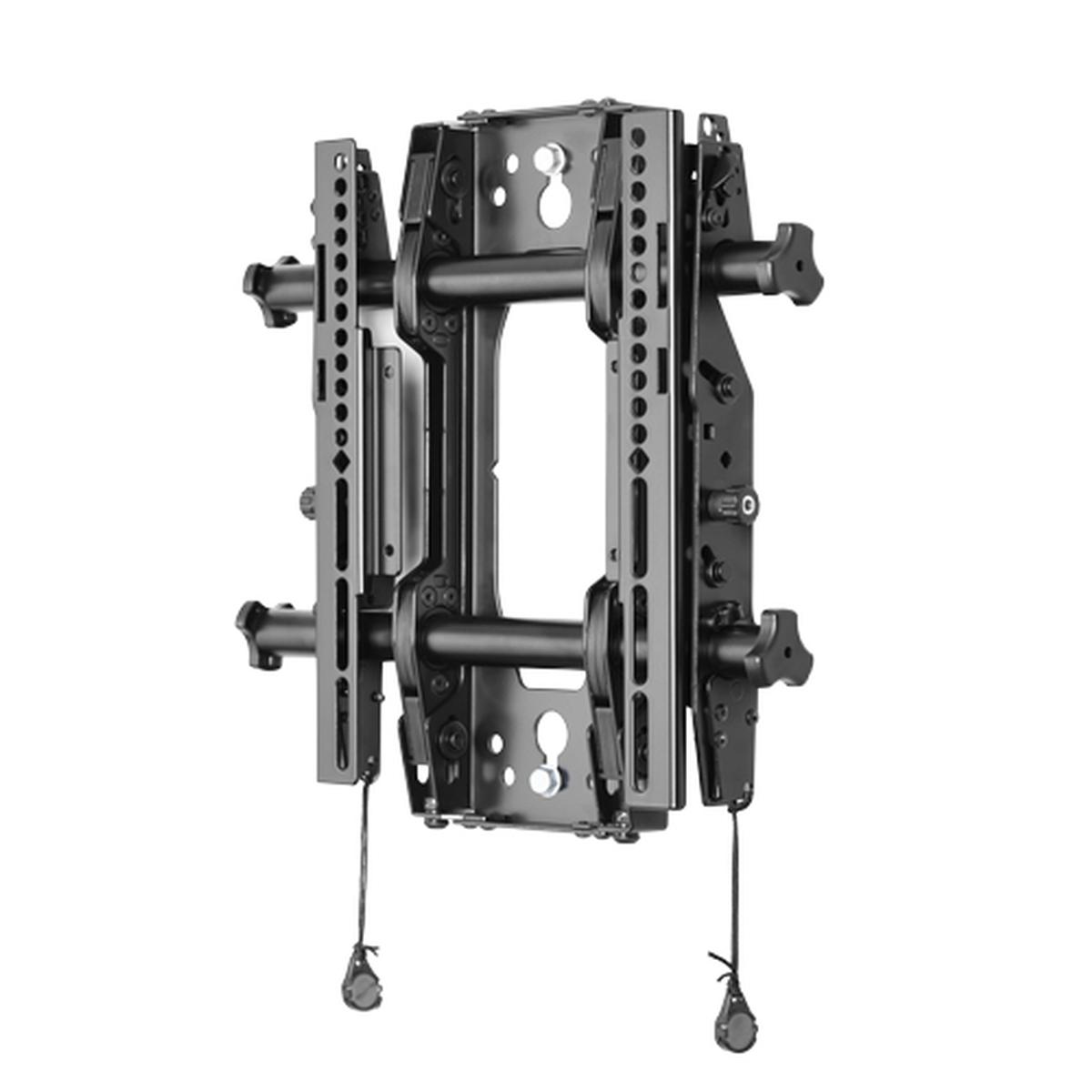

Chief STMS1U
Fusion Flat Panel Tilt Wall Mount Single Stud - Displays 24" - 32"

Description

Chief's STMS1U is a quality made, installer inspired Fusion Series Flat Panel Tilt Wall Mount that offers flexible adjustments for small displays for a low-profile display mounting solution. The STMS1U wall mount uses a single stud installation and with a low profile design hides nicely behind narrow bezel displays that are in the 24" and 32" range. With an array of installer-friendly features and a highly aesthetic design this mount incorporates a ton of fusion exclusive favorites like Centris tilt, ControlZone leveling adjustment, and ClickConnect Latching.

Centris low-profile tilt works by using the center of gravity to balance the screen while maintaining a low profile. Tilting adjustments have a range between +2° degrees and -12° with preset locking points at 0°, -6°, or 12°. "ControlZone" leveling allows for post-installation fine-tuning of the height and leveling of the display to achieve optimum balance in your digital signage. Chief's Fusion wall mounts are very secure and give you great peace of mind knowing your displays are safely secure through "ClickConnect" which literally offers an audible "click" sound when the display safely engages with the mount, letting the installer instantly know the product is properly attached and safely mounted. This mount also has the ability for post-installation lateral positioning which means heights can be adjusted after flat panel has been mounted. This mount can be setup for either Portrait or Landscape orientations.

Other Chief Fusion series exclusives include nesting spaces that can be stacked to achieve any depth, set screws that keep the mount rigid, stable and secure throughout the life of the installation, and integrated security to keep the display locked to the mount for applications where the flat panel may be used in digital signage applications that might be more prone to tampering with. Quick-store cords dangle from the bottom of the mount and use magnets to easily store and access pull cords. This is extremely beneficial to the installer and end user as with just a simple pull of both the cords, allows you to offset the screen from the wall, gaining access to the cables underneath or to do work on the display if necessary. At the same time it allows you to have a tool-less disconnect of the screen without taking the wall mount installation off the wall.

These fusion series mounts have a wide-range of customization, the end caps can be removed for a multiple screen setup so you can screw in the next mount and next mount and so on, if for example your making a video wall and worry about alignment later through post installation lateral height adjustments. Perfect for multiple kinds of professional installations by adding video conferencing shelves, side speaker adapters, or over/under video conferencing cameras. The STMS1U comes backed by a 10 year warranty, a universal hardware kit, wall mounting hardware kit, and tilting mounting hardware.

A professionally designed system for the professional installer, Chief's Fusion series mounts are truly a one of a kind mount, designed with extreme flexibility and adaptability for all forms of flat panel applications and can handle some of the most rugged of install situations. A perfect solution for any digital signage type application.

Specifications

• Color: Black
• Tilt: +2 degrees to -12 degrees
• Post Installation Lateral Positioning
• Manual Height Adjustments: 1"
• Minimum Depth: 2"
• Integrated Security
• ClickConnect: audible "click" when display safely engages to the mount
• ControlZone Leveling: allows for post-installation fine-tuning of height and level
• Centris Low-Profile Tilt: uses center of gravity to balance the screen
• Exclusive nesting spacers can be stacked to achieve any depth
• Ships with a custom hardware kit that can be hung from mount rails if installing in stages
• Warranty: 10 years

Downloads

• Chief STMS1U Manual (PDF)
• Chief STMS1U AutoCad Drawing (PDF)
