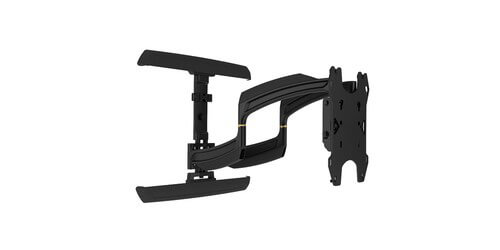

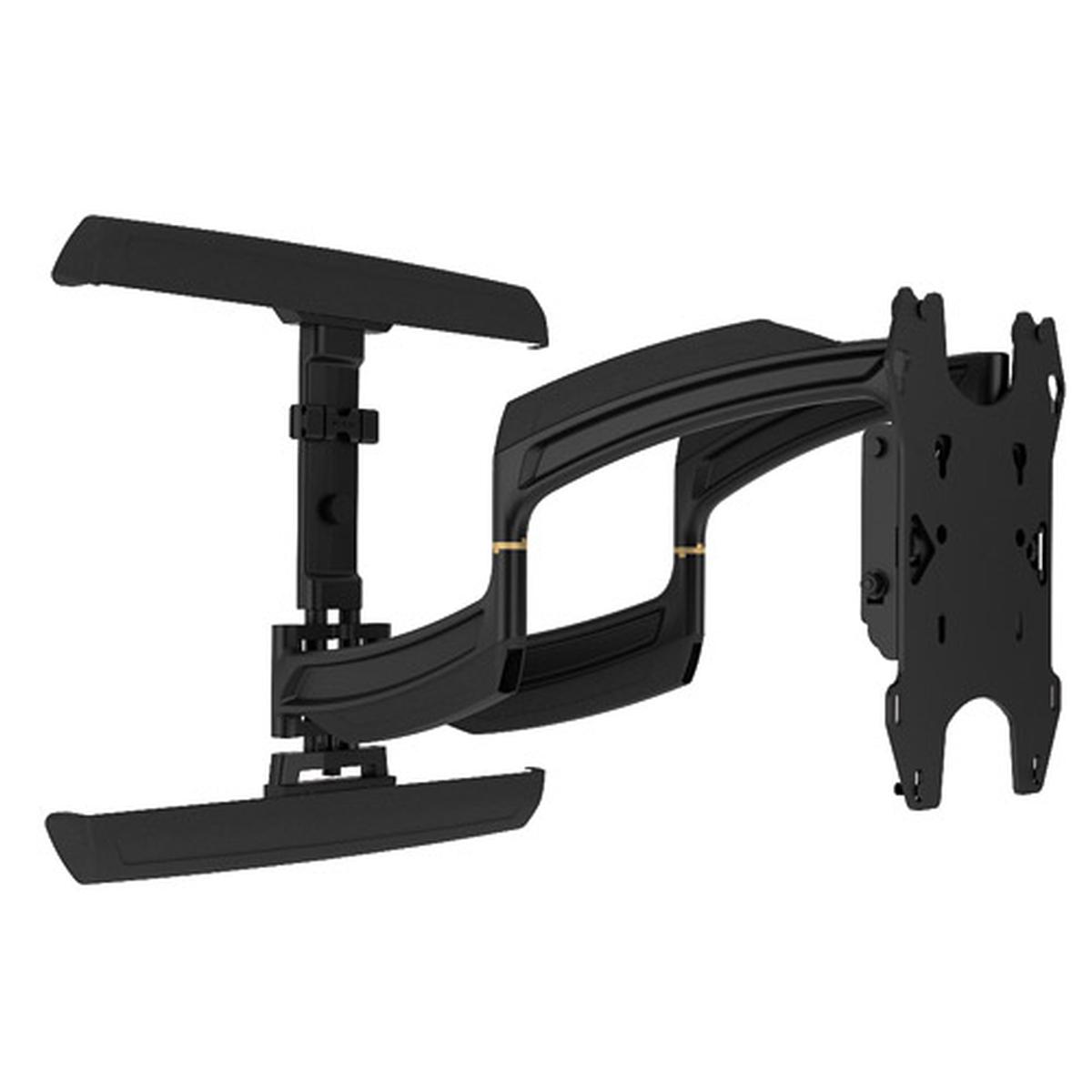

Chief TS325TU
Medium ThinStall Dual Swing Arm Wall Display Mount - 25" Extension

Description

The Chief TS325TU Thinstall Swing Arm Wall Mount is an articulating flat panel display mount for TV's ranging between 26" to 52" and has a maximum weight capacity load of 75 lbs. This lightweight ltra low-profile sleek design collapses down to 1.8", providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma. The Dual Swing Arms can extend up to 25" from the wall to maximize angles and viewing potential. With Centris low-profile tilt it provides 15° of effortless fingertip tilt to achieve the best possible viewing angle to suit your needs. With "Centerless" Lateral Shift there is up to 16" of lateral shift for post installation adjustments to create a virtual limitless centering capability. The TS325TU equally has a 1" post install height adjustment to obtain perfect screen placement and alignment. Finally the wall mount uses integrated cable management which offers enclosed, tool-free cable covers and a wide-open wall plate making it very easy to route power and signal cables, and connect to the wall for a seamless installation. This model is for landscape orientations is UL Listed, and comes with a 10 year warranty from Chief.

Specifications

• Orientation: Landscape
• Centris Low-Profile Tilt: up to 15 degrees, effortless fingertip tilt
• Centerless Lateral Shift: Post installation adjustment of up to 16", limitless centering capability
• Integrated Cable Management: Enclosed tool free cover
• Post Installation Height Adjustments: 1" height adjustments for placement and alignment
• Certifications: UL Listed
• Maximum Screen Thickness: 5"
• Minimum Depth: 1.5"
• Color: Black
• Wall Stud Compatibility: 16"
• Included Items: Assembly Hardware, Mounting Hardware
• Warranty: 10 Years

Downloads

• Chief TS325TU Manual (PDF)
• Chief TS325TU Technical Drawing (PDF)
