Chief VCMUW
Heavy Duty Custom Ceiling Projector Mount - White

Description

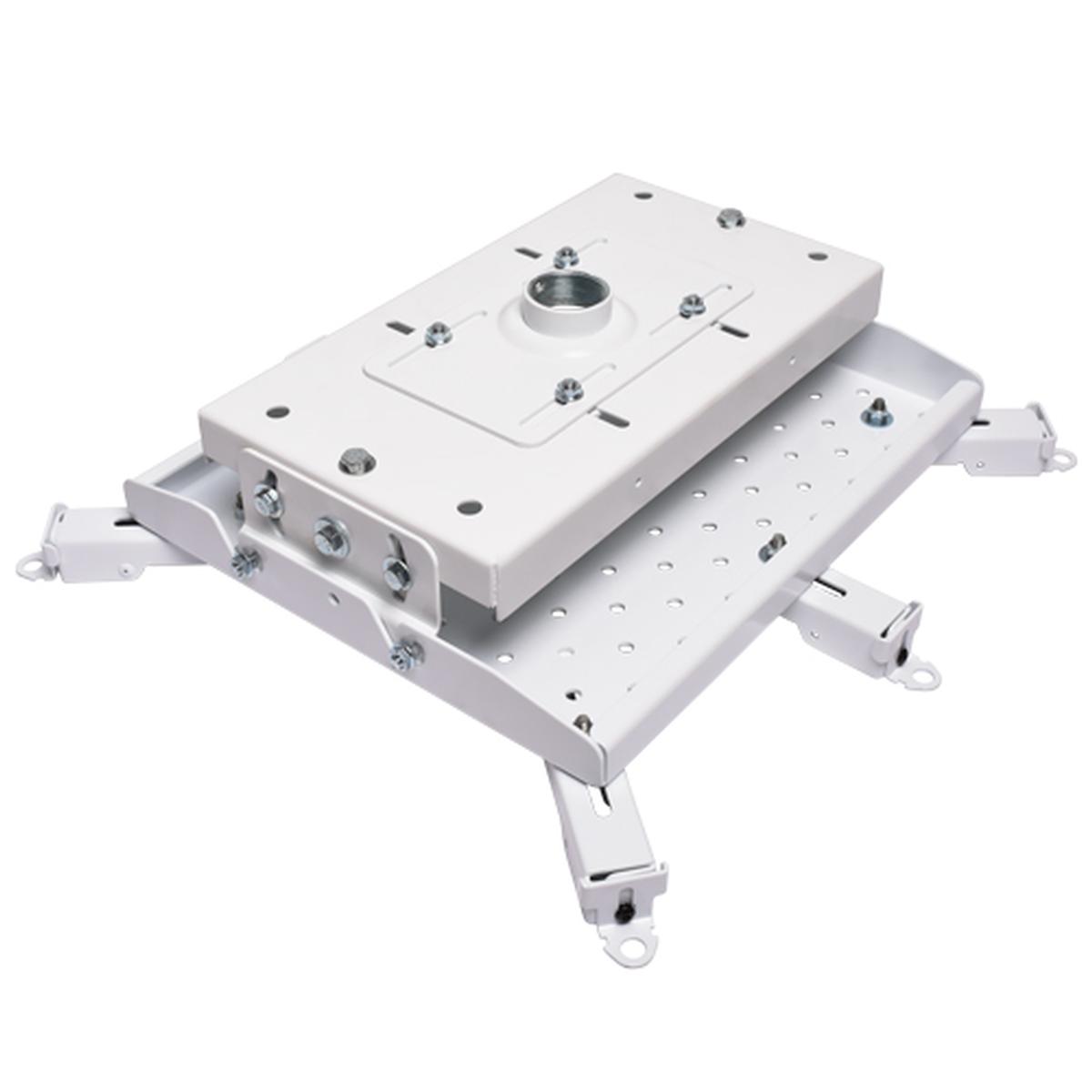

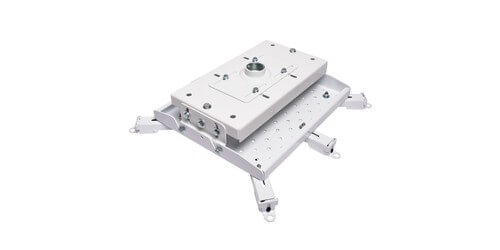

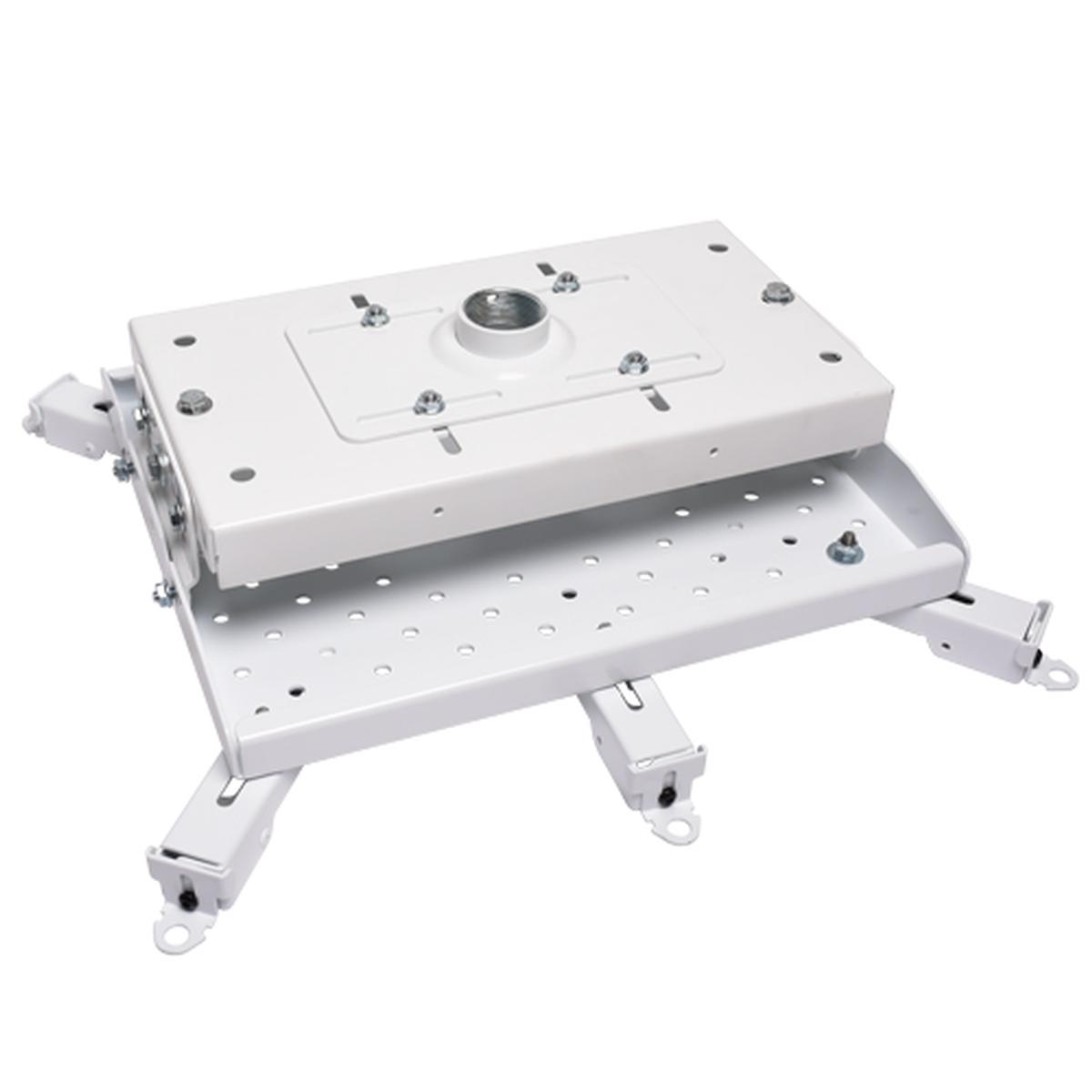

The VCMUW Ceiling Mount from Chief, is a heavy duty steel construction 250lbs system capacity universal projector mount. This mount provides the strong support you need for mounting heavy projectors and giving you the peace of mind you high-quality projectors are mounted safely and secure. Micro adjustments allow you to quickly achieve registration with independent roll, pitch and yaw adjustments. The VCMUW comes with the HBUW Universal Interface Bracket which features superior flexibility for mounting most heavy duty projectors. This heavy duty projector mount has a weight capacity of 250lbs maximum uses a quick connect/disconnect for convenient lamp and filter access of most projectors, and manages cables through top of the mount without additional accessories required. Independent roll, pitch and yaw allows for quick and precise adjustments to the projector once installed.

The VCMUW has multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column, installation is a quick 3 step process, and the VCMUW comes backed by a 10 year warranty from Chief.

To install the VCMUW:

• Assemble Legs to the projector
• Fasten Legs to the HBUW Universal Bracket
• Hook the HBUW bracket onto the VCM mount

Specifications

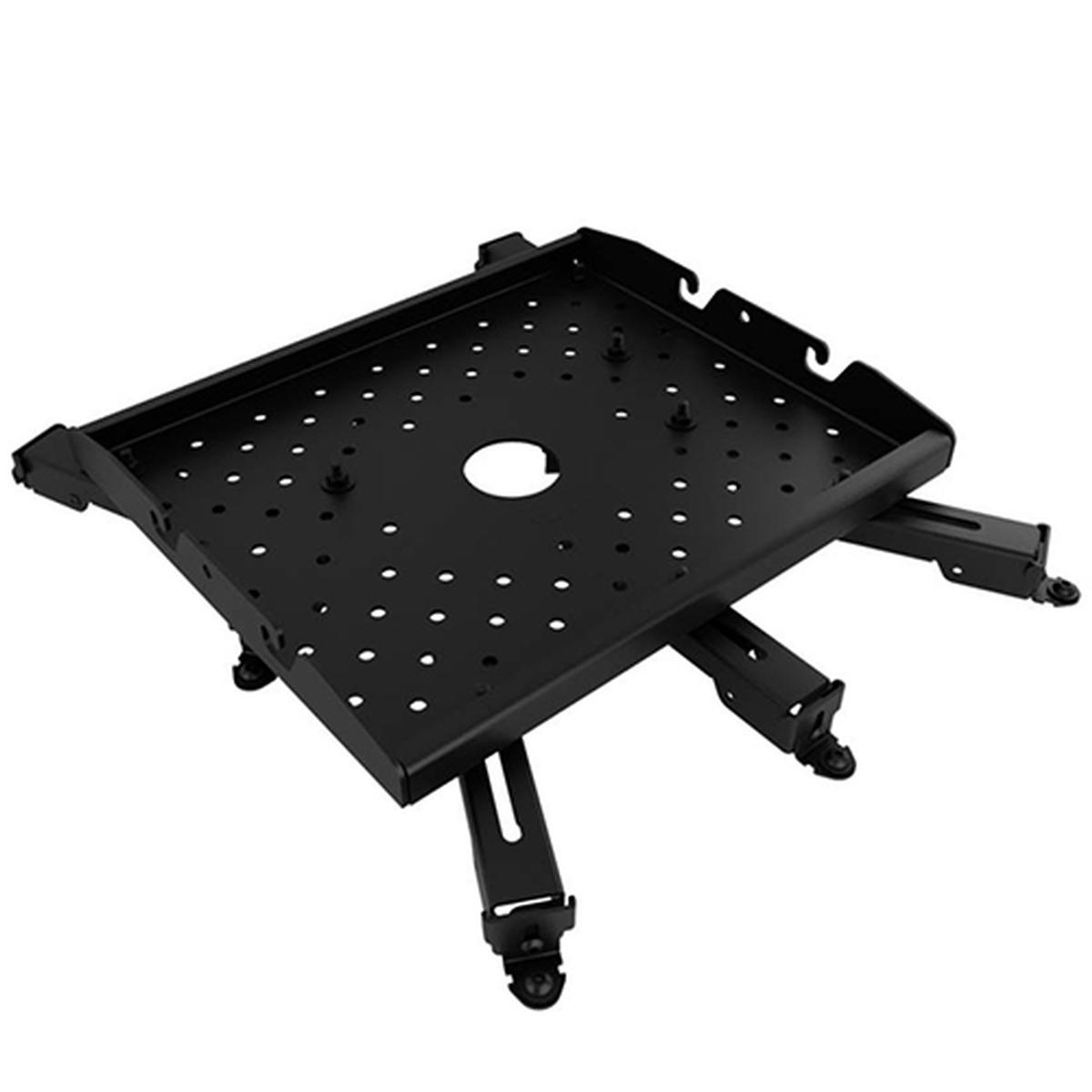

• Includes HBUW Universal Interface Bracket
• Multiple Installation Options: flush mount to ceiling, use 0.5" threaded rods, or with 1.5" NPT extension column
• Quick Connect/Disconnect: for lamp and filter access
• Warranty: 10 years

Downloads

• Chief VCMUW Manual (PDF)
• Chief VCMUW AutoCad Drawing (PDF)
