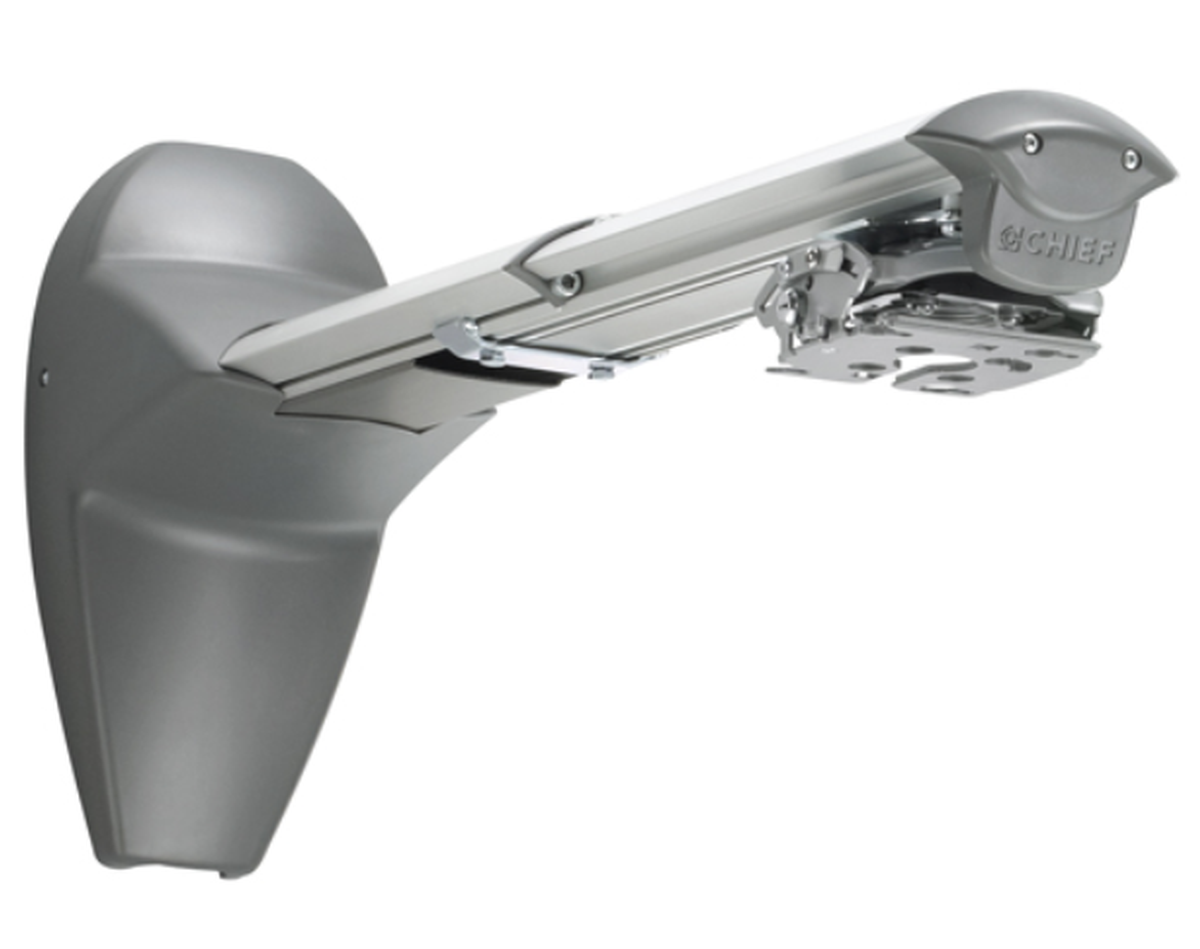

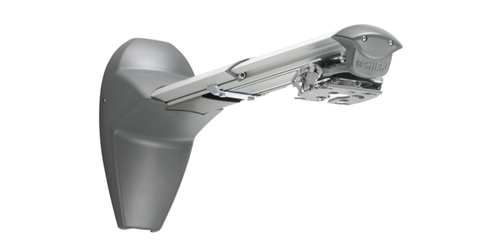

Chief WM110S
Ultra-Short Throw Wall Mount, Single Stud

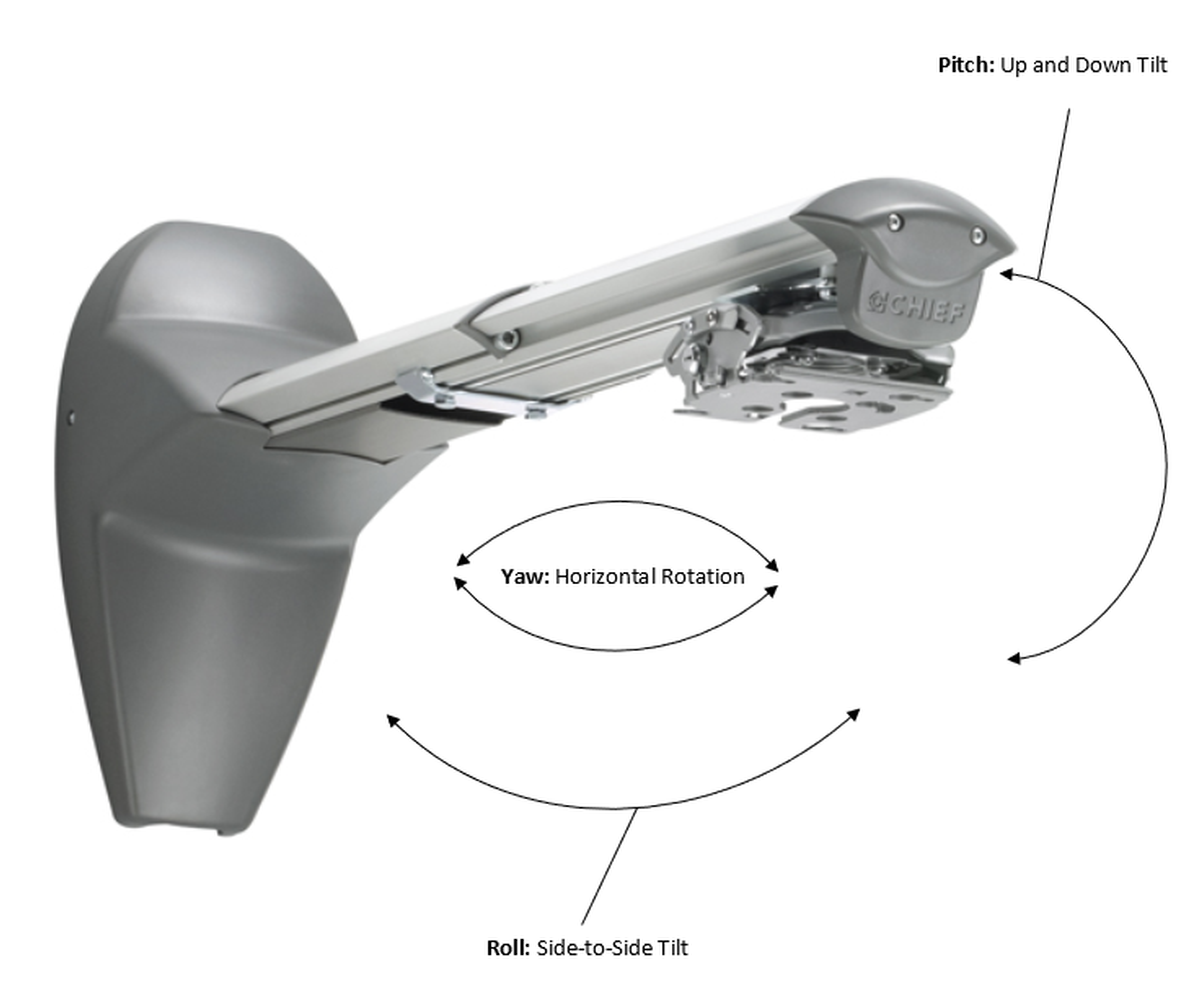

- Roll Adjustment: 0
- Pitch Adjustment: 3
- Yaw Adjustment: 0
- Certifications: UL Listed
-Gregory W.
Description
The WM110S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud. Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)
Also supports wall-mounted long-throw projectors. Fast installation with innovative quick-connect system.
Extension from wall, 11.25-18.00" (285.75-457 mm)
Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
Integrated cable management system conceals and protects cables for a clean finish
Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
Includes short throw arm only, projector mount must be ordered separately
Includes hardware for wood stud, steel stud and concrete wall construction
Also supports long-throw projectors
Specifications
- Color: Silver
- Extension: 16-29"
- Lateral Shift: 10"
- Overall Dimensions (H x W x D): 11.5" x 19.6" x 34.2"
- Shipping Weight: 25.6 lbs
- Solution Type: Universal
- Weight Capacity: 25 lbs
- Warranty: 10 years
