Cisco
TelePresence SX80 Codec
Video Conference System
- Video Resolution: 1920 x 1080, HD @ 60fps
- Feature-rich codec for diverse deployment and use
- Customizable through available integrator packages
- Interoperable with existing standards, including H.264 and H.265 video
-Brandon K.
Description
The CTS-SX80-K9 by Cisco is the SX80 Telepresence Codec. This high-end and flexible platform was designed with integrators in mind for creating the ultimate video collaboration addition to your conference room av system. Being extremely customizable this Codec offers an array of setups to most effectively suit you client or business needs. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, conference rooms and purpose-built or vertical application rooms. Simply Rack mount the Cisco Telepresence SX80 codec then design and create the conference room however you choose. The SX80 was engineered to support practically any feasible video conferencing system, with support of up to 3 monitors and supporting 4 video inputs and 8 microphone inputs all at once. Designed with the future in mind the SX80 Codec is compatible with the H.265 standard to support future voice and video solutions, allowing it to grow with your company, and the fast paced technology industry.
The Cisco SX80 delivers up to 1080p@60 for end-to-end, for high definition video, making this the ideal solution for team-based video collaboration for boardrooms, meeting rooms, and industry applications.
Add a new level of workplace video conferencing sophistication to your business. The SX80 uses Cisco's Intelligent Proximity support, allowing users to use their current iOS and Android devices to wirelessly control the SX80 and receive important workspace content or documents, which are shared through connected HDMI cable, for a more in depth video collaboration meeting. Laptop's and PC's are also supported for wireless content sharing. To create an even more in depth optimal experience the SX80 can be used in conjunction with Cisco's Telepresence Touch 10(optional) to easily control room peripherals such as lights, room dividers, and curtains through a customizable API which requires an external third-party control system processor.
Want even more use out of this amazing product? The SX80 is now Spark ready. The Cloud based Cisco Spark Services allows users once registered, to connect via mobile app, to control, cancel, extend, share, or join in to meetings. In this fast paced business world, sometimes issues arise where one may not be able to make it to the meeting on time, with Spark Services that is a thing of the past. Through the Spark App, simply join the meeting if running late to avoid missing out on important information, and when in room, your mobile device will automatically be detected and paired with the SX80 through the Spark Application. If you have to leave a meeting early, you have the option to end or transfer the call to allow others to continue in your absence by simply transferring the call over to the SX80 with a few clicks of on your mobile device. Seamlessly transfer important documents through the provided HDMI cable so all users connected can be on the same page and up to date.
Specifications

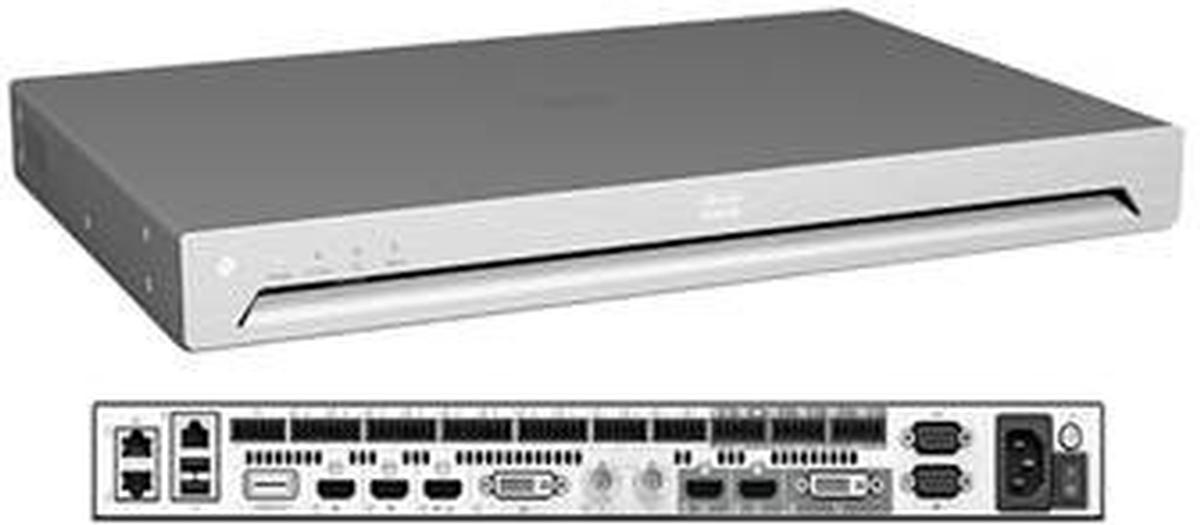

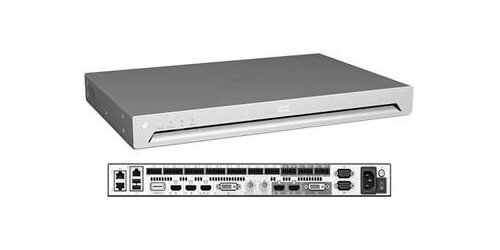

- Inputs: 3x RJ-45, 2x Composite Video, DVI, 3x HDMI, 4x Audio Line
- Outputs: DVI, 2x HDMI, 6x Audio Line
- Supports four video and eight microphone inputs at once
- Can also support three video outputs
- Rack-mountable, 1U form factor for quick installation
- HD video, stereo sound and and expandable design
- H.323/SIP point-to-point content sharing up to 10Mbps
- Cisco SX80 Codec Includes: Cisco TelePresence SX80 codec, Rack mount ears, Power cord
