Comprehensive CDA-HD14018G
1x4 HDMI Distribution Amplifier, Full UHD 4K60 4:4:4, 18Gb

Description

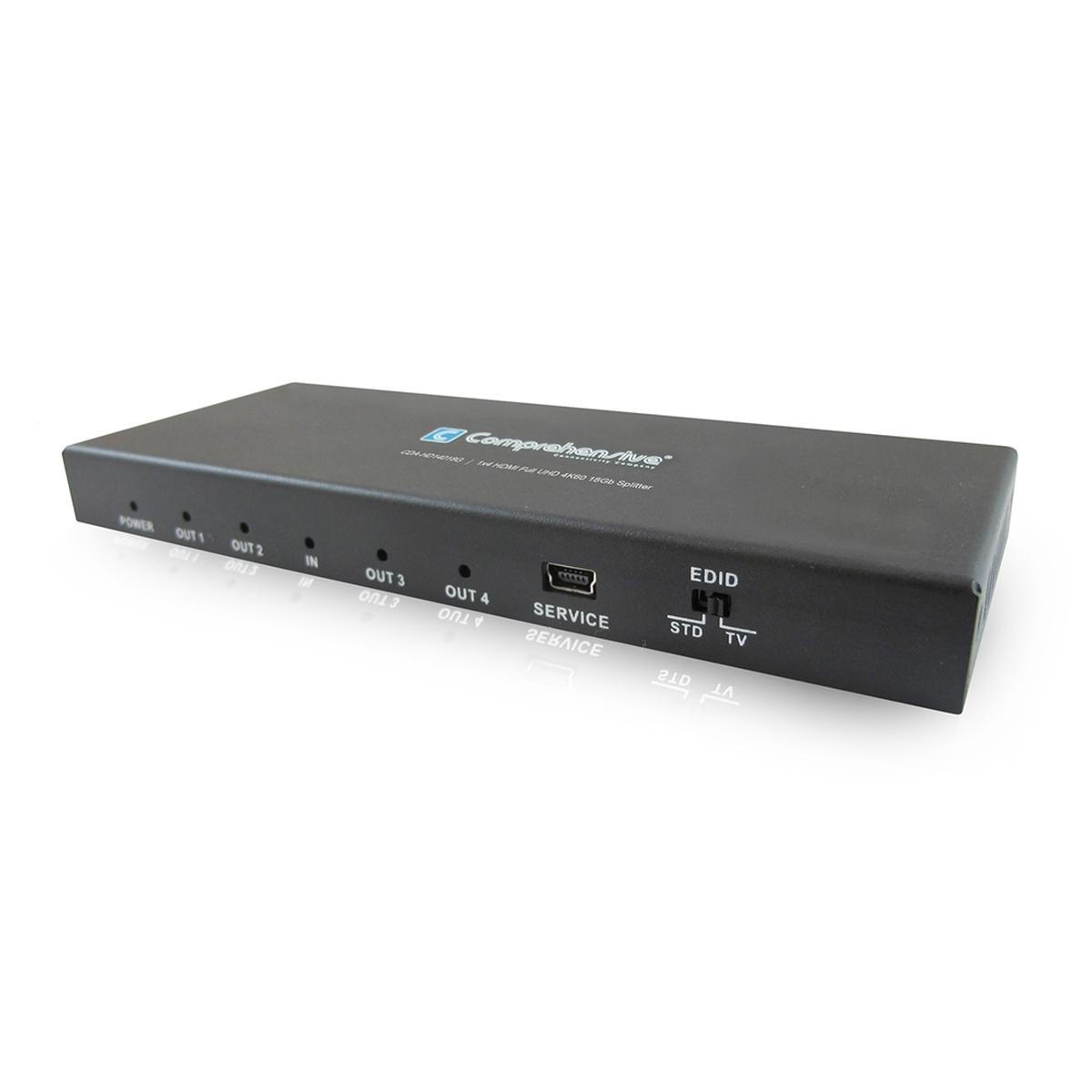

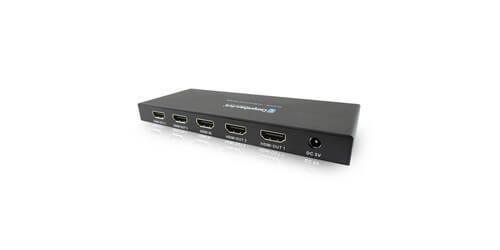

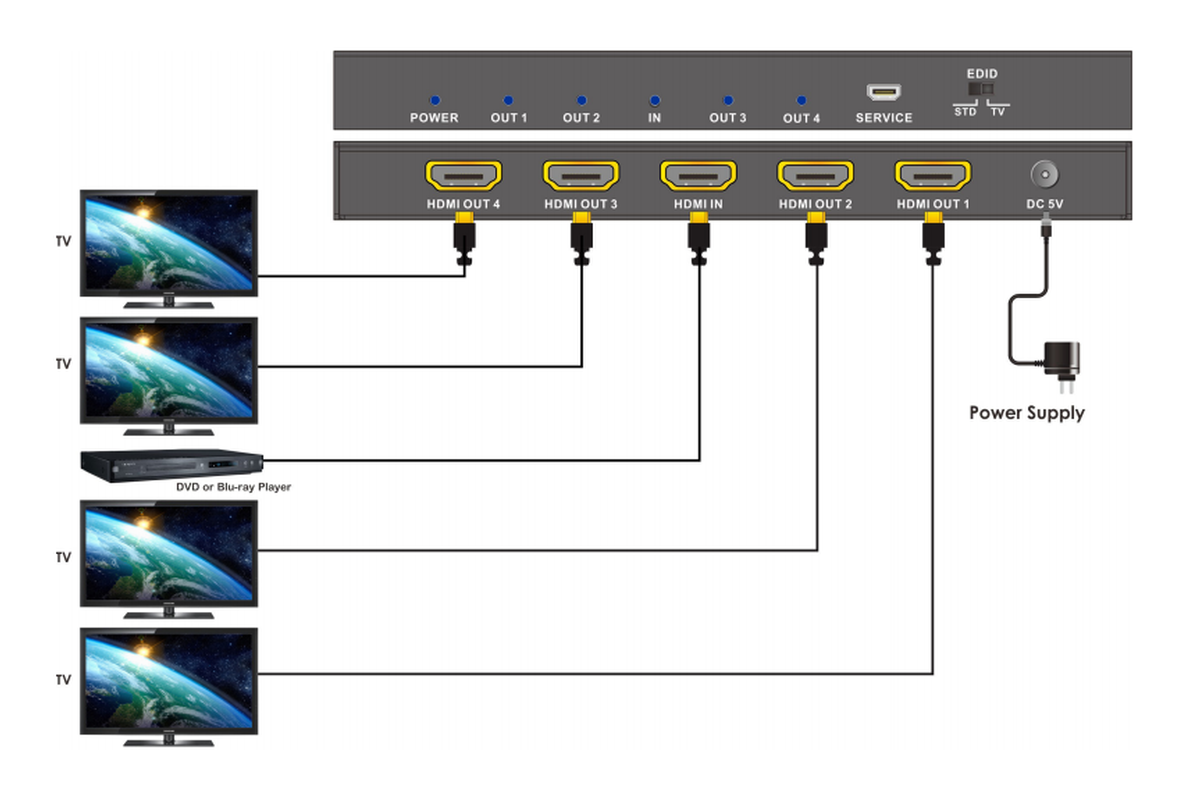

Introducing Comprehensive's CDA-HD14018G 1x4 HDMI Distribution Amplifier supporting Full UHD 4K60 4:4:4 with bandwidth speeds up to 18Gbps. This device allows the user to connect one HDMI input and distribute it to up to four HDMI outputs simultaneously. It supports HDCP 2.2, 3D, 12-bit Deep Color, and High Definition Lossless Audio. Also included is Smart EDID control that provides users with the choice between STD (fixed) or TV (downstream) settings. Another feature of this splitter is its slim chassis design with a durable, metal enclosure. This CDA-HD14018G Distribution Amplifier from Comprehensive is an ideal solution for settings such as classrooms, conference rooms, huddle spaces, retail and showroom displays, as well as lecture halls. This splitter comes backed by a two year warranty from Comprehensive.

Specifications

• HDMI Compliance: HDMI 2.0a / HDMI 1.4b
• HDCP Compliance: HDCP 1.4 / HDCP 2.2
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth 10-bit, 12-bit
• Audio Formats: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• ESD Protection: 8kV (air-gap discharge) & 4kV (contact discharge)
• Housing: Metal
• Dimensions (WxDxH): 7.1 x 3.3 x 0.5"
• Net Weight: 0.66lbs.
• Power Supply: 5V/2A DC
• Power Consumption (Max): 10W
• Included Accessories: Power Adaptor, Operation Manual
• Warranty: 2 Years

Downloads

• Comprehensive CDA-HD14018G Specifications (PDF)
• Comprehensive CDA-HD14018G Manual (PDF)
