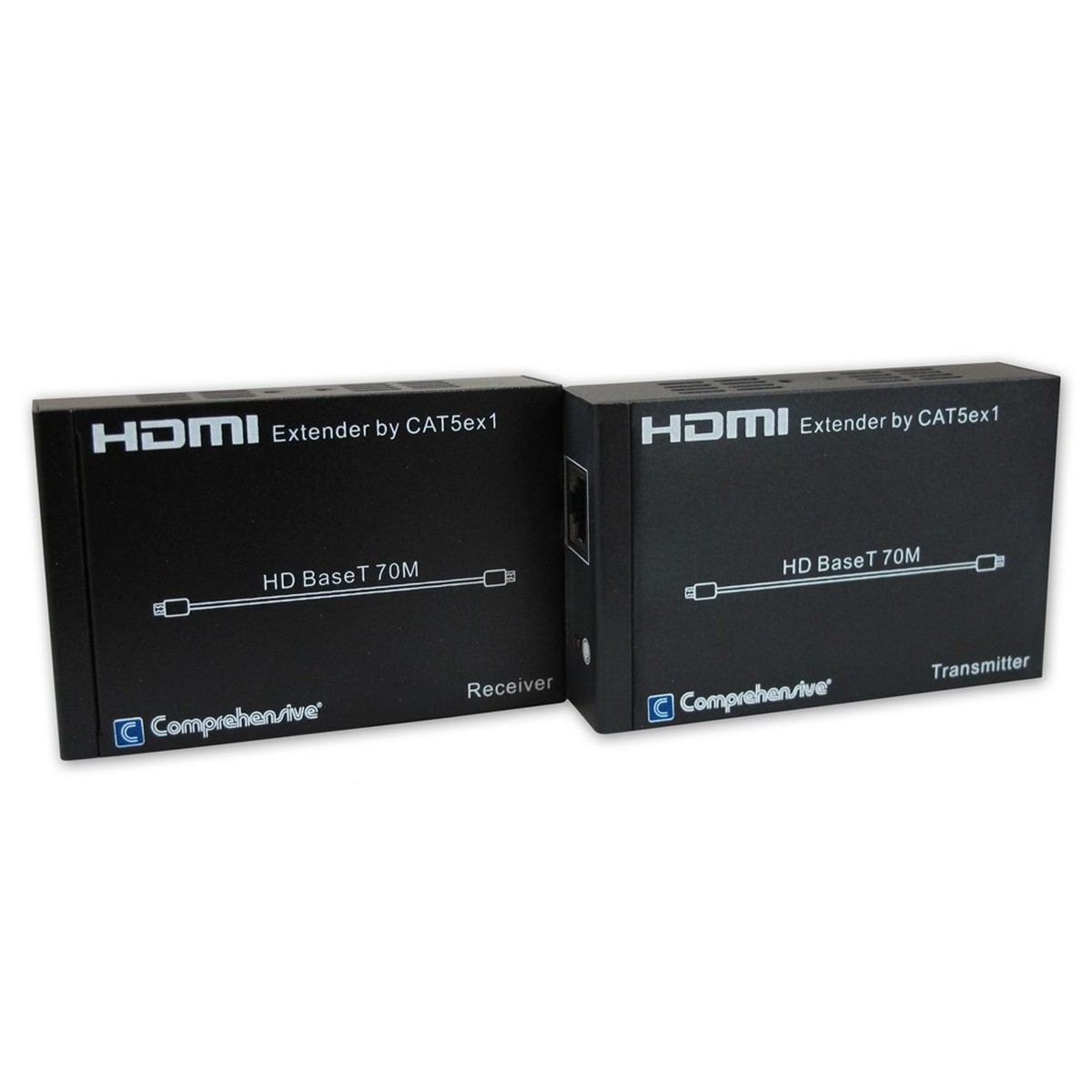

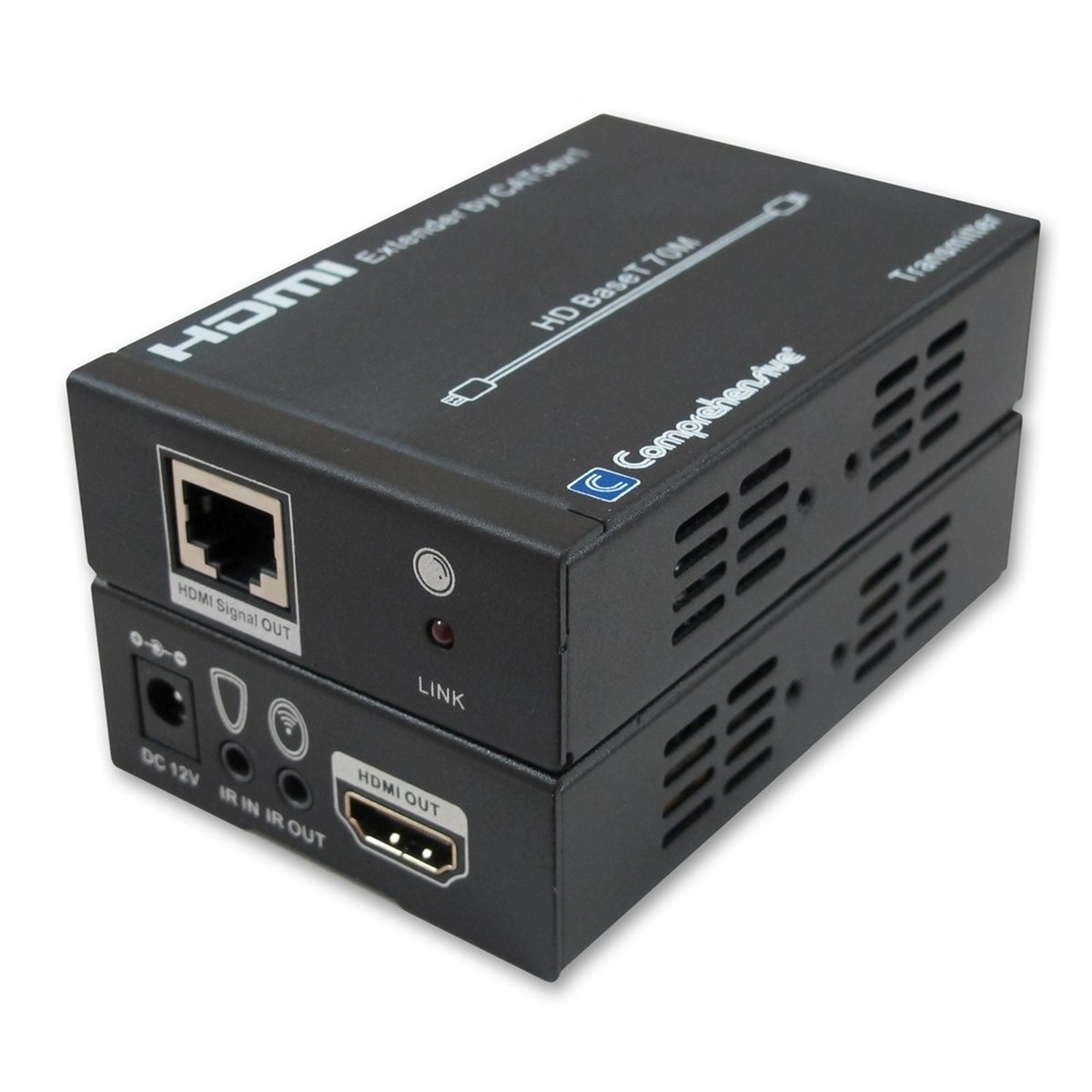

Comprehensive CHE-HDBT200
Pro AV/IT HDBaseT HDMI Extender Kit, Tx & Rx, CAT5e/6/7 - 230'

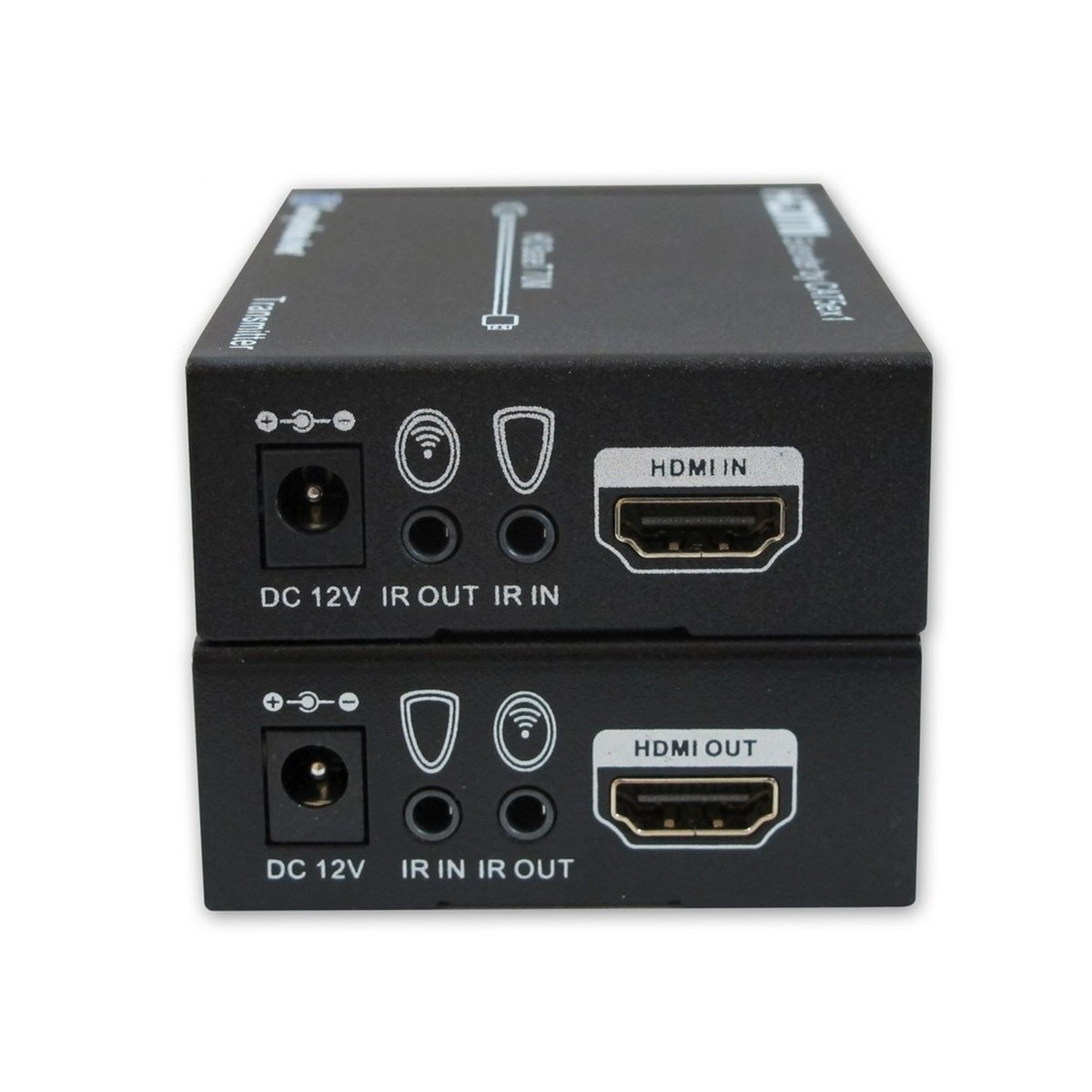

- Transmitter Inputs: 1x HDMI, 1x IR Tx

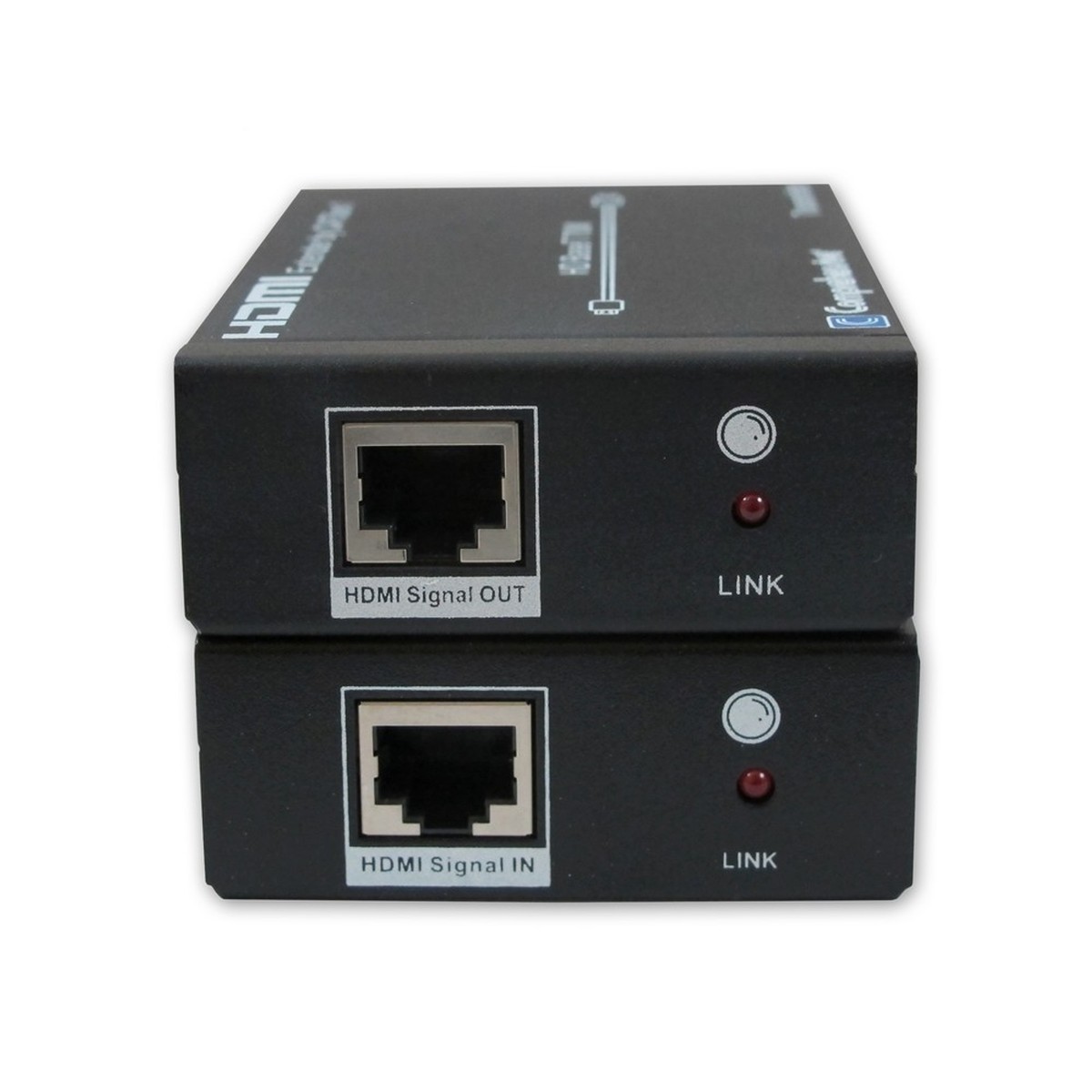

- Tx Outputs: 1x Shielded RJ45, 1x IR Rx
- Receiver Inputs: 1x Shielded RJ45, 1x IR Rx
- Rx Outputs: 1x HDMI, 1x IR Tx
Description
Featuring the CHE-HDBT200 4K30 Pro AV/IT HDBaseT HDMI Extender Kit, Transmitter and Receiver from Comprehensive with range up to 230 feet over Cat 5e, 6, or 7. These devices support bi-directional IR control, allowing the user to remotely control the source (230' away). With advanced functions like Power Over Ethernet (POE) support from either the transmitter or receiver (power consumption less than 10W). Other great features of these units are Consumer Electronics Control (CEC) Bypass, as well as RoHS Compliance.
The Comprehensive CHE-HDBT200 Extender Kit is ideal in settings such as home theaters, conference presentations, and classrooms. These durable metal enclosed units are easy to install and come backed by a two year warranty from Comprehensive.
Specifications
- Resolution: Up to 4K30
- Frequency Bandwidth: 2.97Gbps
- HDMI: 3D, HDCP and DVI compliant
- Transmission: Simultaneous uncompressed data over a single Cat5e, 6, 7 cable
- Distance: up to 230'
- HDBaseT 3Play convergence: uncompressed high-def Video, Audio, and IR control
- High-def audio support: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- PSU: 12V/2.5A
- Weight: 0.9 lb.
- Tx and Rx Dimensions(WxDxH): 2.5" x 3.9" x 0.9"
- Included Items: HDMI Transmitter, HDMI Receiver, 2x IR Transmitter, 2x IR Receiver, Power Adapter, Operation Manual
- Warranty: 2 Years
