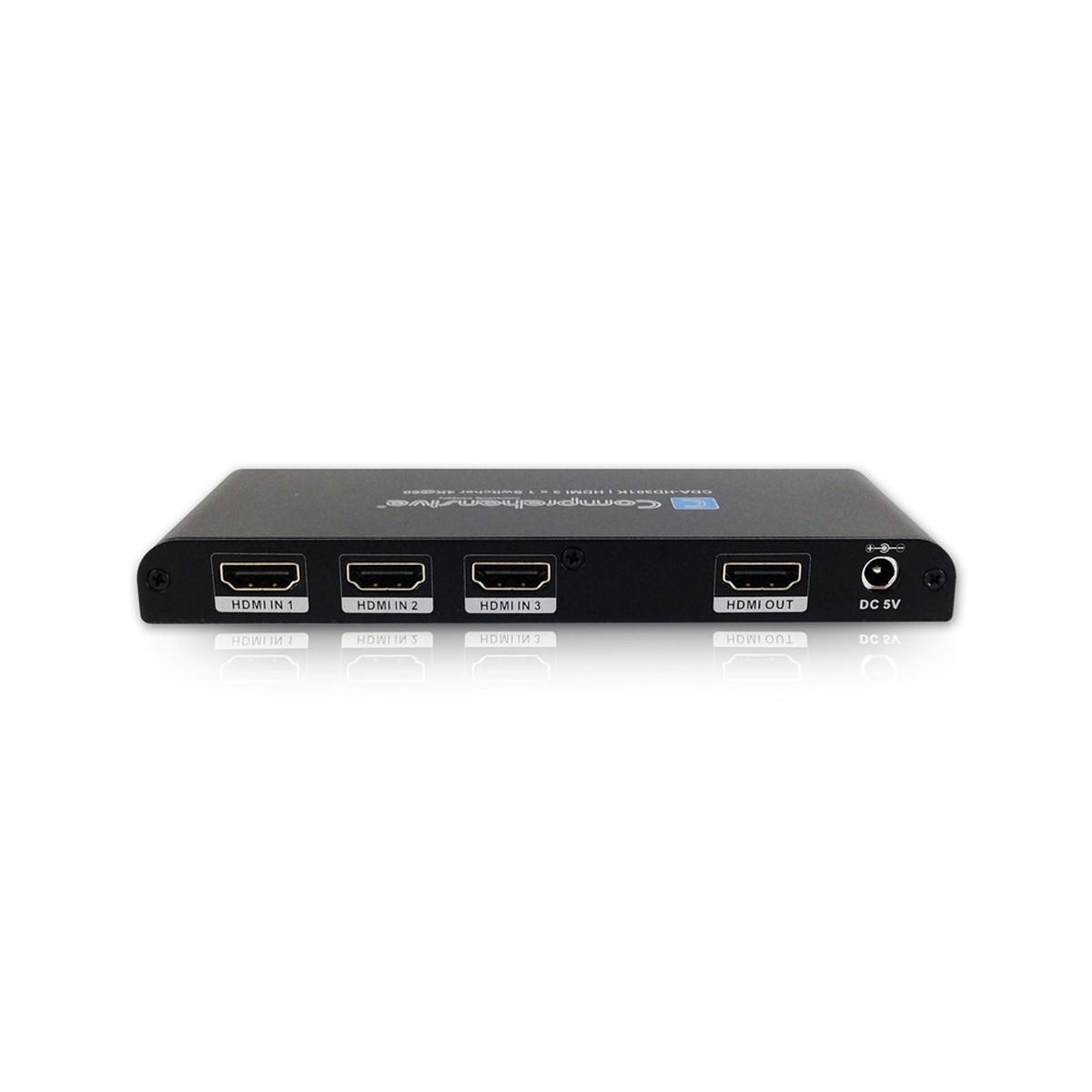

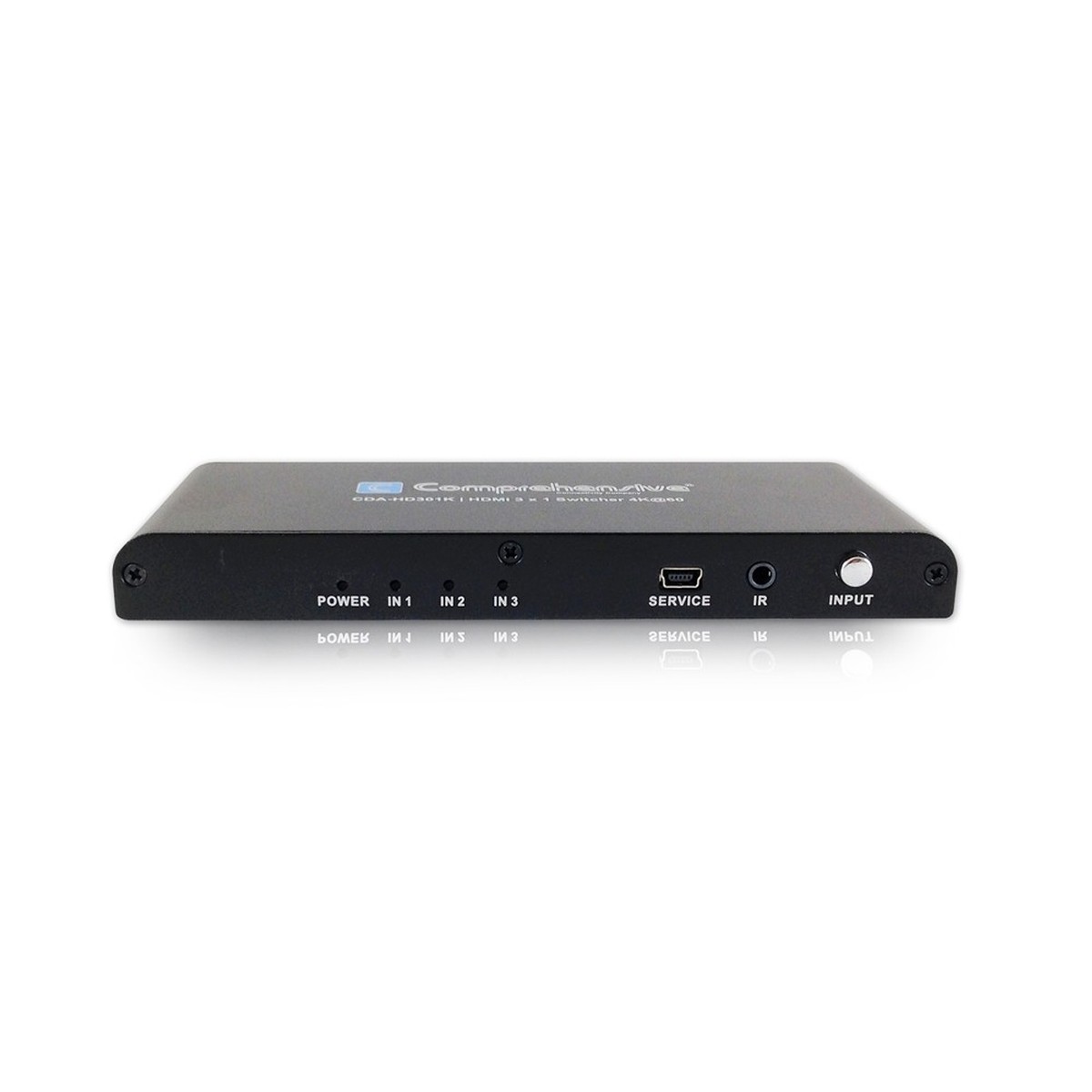

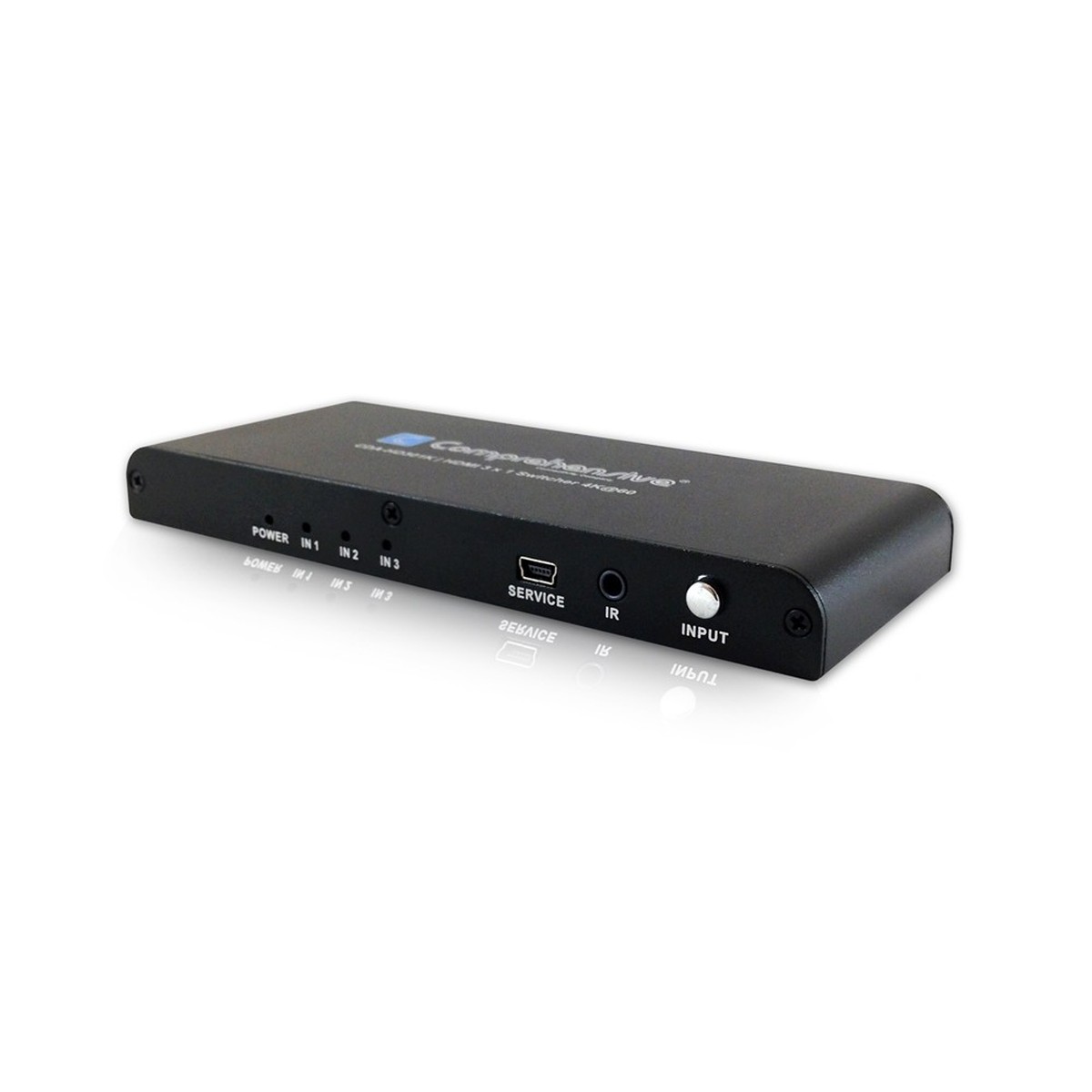

Comprehensive CSW-HD301K
3x1 HDMI Switcher with HDCP 2.2 - 4K60 4:2:0
- Inputs: 3x HDMI
- Outputs: 1x HDMI
- Resolutions: 480i to 4K60(YUV420)
- Bandwidth: 300MHz/10.2Gbps
-Patrick S.
Description
The CSW-HD301K 3x1 HDMI Switcher from Comprehensive comes with HDCP 2.2 compliance and high quality resolutions up to 4K60 4:2:0. This device allows the user to easily switch between any of three HDMI signals, while also supporting auto switching function. Users can control the input of the device by way of the IR remote control or the front panel push-button. It is capable of receiving and transmitting bandwidth up to 10.2 Gbps with no data loss. With RoHS compliance, a slim chassis design and a durable metal enclosure, this unit is a convenient and cost-effective solution for a variety of situations. Applications of this device include settings such as conference rooms, lecture halls, as well as showroom and retail displays. The CSW-HD301K Switcher comes backed with a two year warranty from Comprehensive.
Additional Features of this Switch Include:
- Supports 3D, LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- 36-bit Deep Color and High Definition Lossless Audio
- Smart EDID control
Specifications
- Power Supply: 5V/1A DC
- Power Consumption: 2W(Max)
- ESD Protection: ~8kV (air-gap discharge) ~4kV (contact discharge)
- Chassis Material: Metal
- Silkscreen Color: Black
- Dimensions(WxDxH): 6.10" x 2.51" x 0.66"
- Weight: 0.39 lb.
- Included Accessories: Power Adapter, Operation Manual
- Warranty: 2 Years
