Comprehensive CSW-HD440
4x4 HDMI Matrix Switcher, 4K30, RS232, HDCP

Description

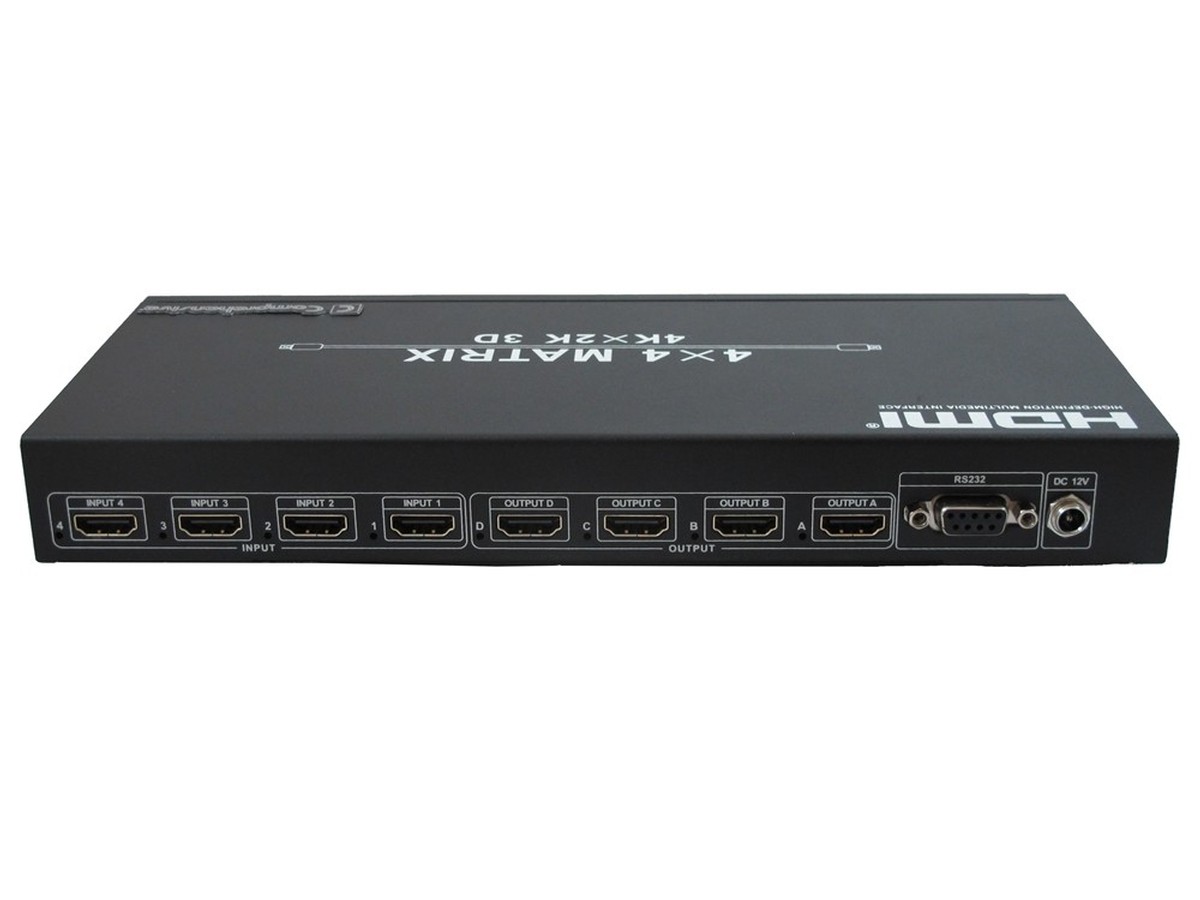

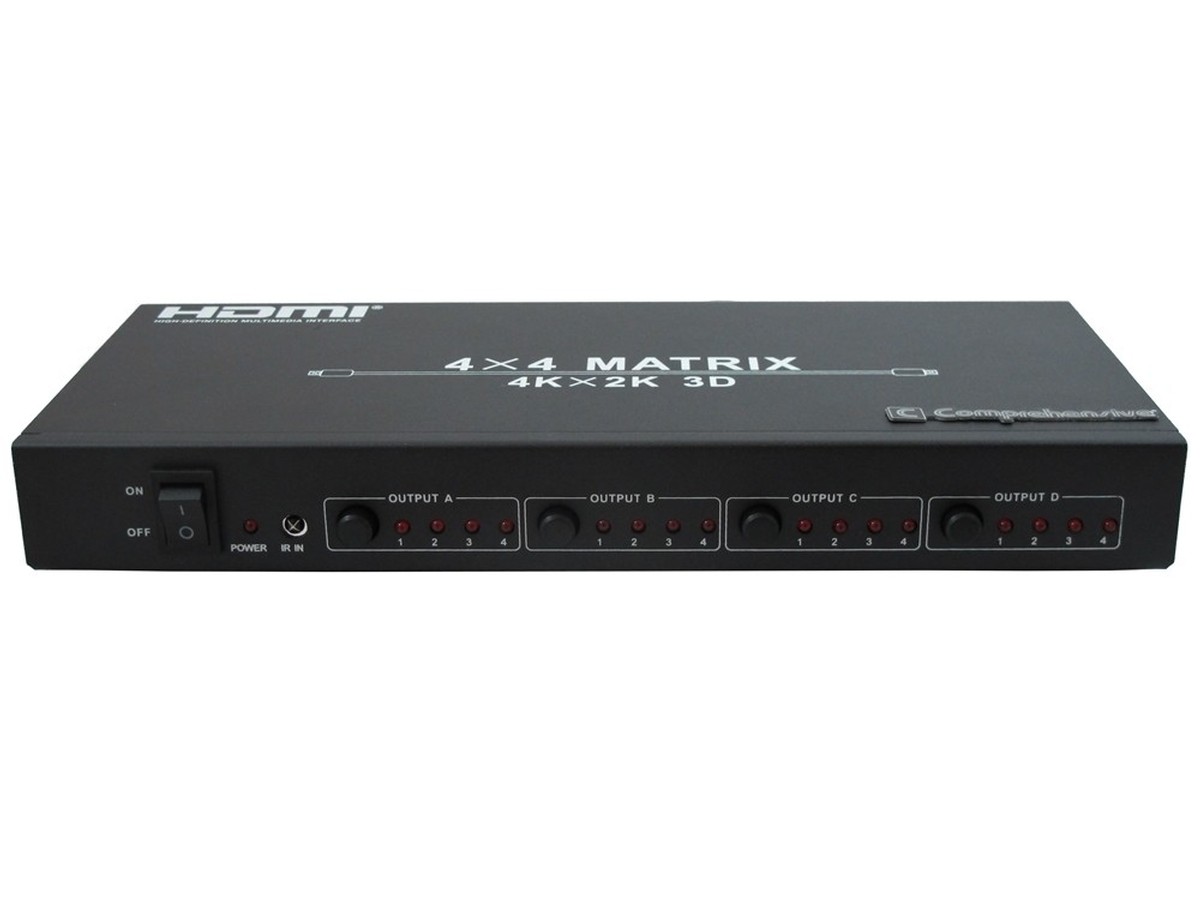

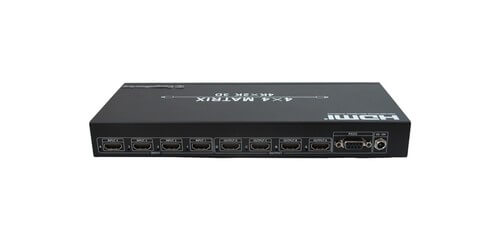

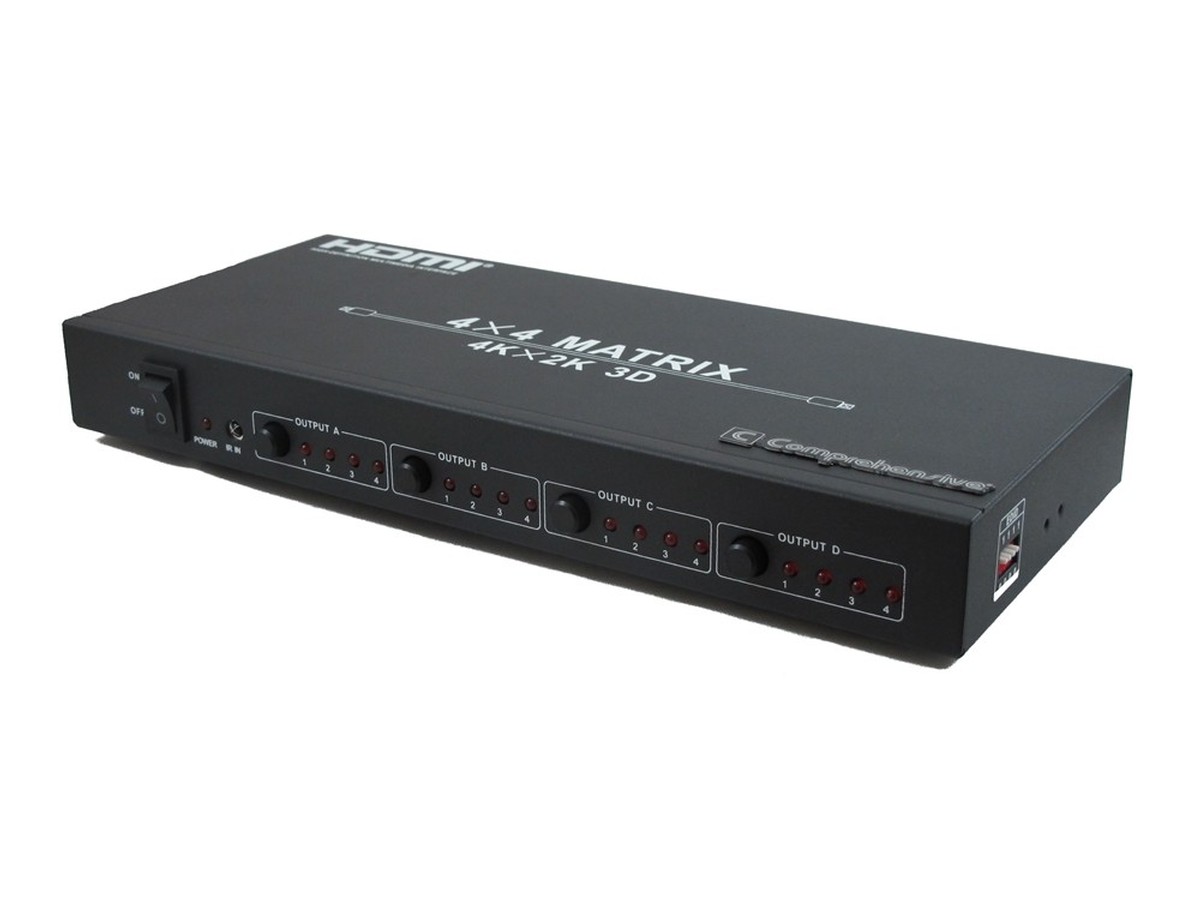

Featuring the CSW-HD440 4x4 HDMI 1.4 Matrix Switcher from Comprehensive, with 4K30 resolutions, RS-232 control, and HDCP compliance. This device allows the user to connect any of four separate HDMI sources and display them across any of four separate 4K30 screens, projectors, or monitors. This added convenience eliminates the need for the user to connect and disconnect the sources to a display. It is compatible with Blu-ray and DVD players, cable boxes, satellite boxes, and HT PCs that are manufactured with HDMI ports. To control the ports and sources, the user can utilize either the IR remote, front panel push buttons, or the RS-232 control port. This matrix switcher comes backed from Comprehensive with a two year warranty.

Additional Features of this Matrix Switcher Include:

• Maintains highest HDMI digital audio signal
• Maintains highest HDMI single link video resolution
• Allows any source to be displayed on multiple displays at the same time
• HDMI or DVI to HDMI cables are used to connect the inputs and the matrix output

Specifications

• Input DDC Signal: 5 volts p-p (TTL)
• Remote Control Port: RS-232 female, 3.5mm Mini-Stereo
• Support HDCP and HDMI 1.4
• Power Supply: 12V DC
• Power Consumption: 20 watts (max)
• Rackmountable
• Weight: 2.5 lbs.
• Included Accessories: Power Adapter, IR Remote, Operation Manual IR Remote
• Warranty: 2 Years

Downloads

• Comprehensive CSW-HD440 Specifications (PDF)
• Comprehensive CSW-HD440 Manual (PDF)
