Comprehensive CSW-HD501K
5X1 HDMI 2.0 Switcher, HDCP 2.2, 10.2Gbps, EDID, 4K60
- Inputs: 5x HDMI
- Outputs: 1x HDMI
- Video Resolutions: Up to 4Kx2K@60Hz(YUV420)
- Video Bandwidth: 300MHz/10.2Gbps
-Timothy J.
Description

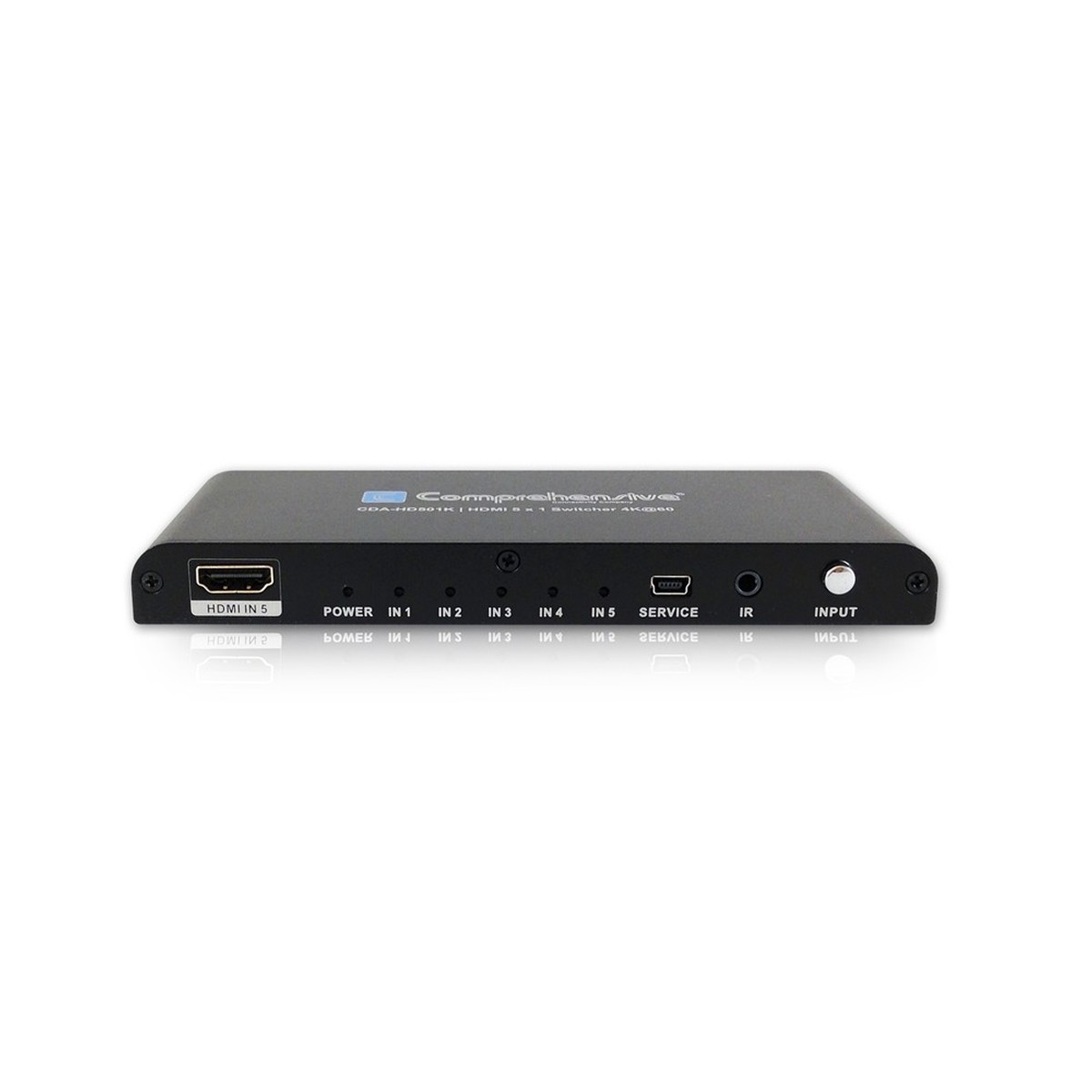

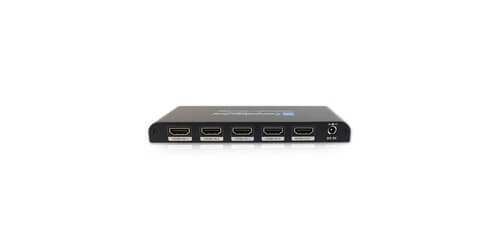

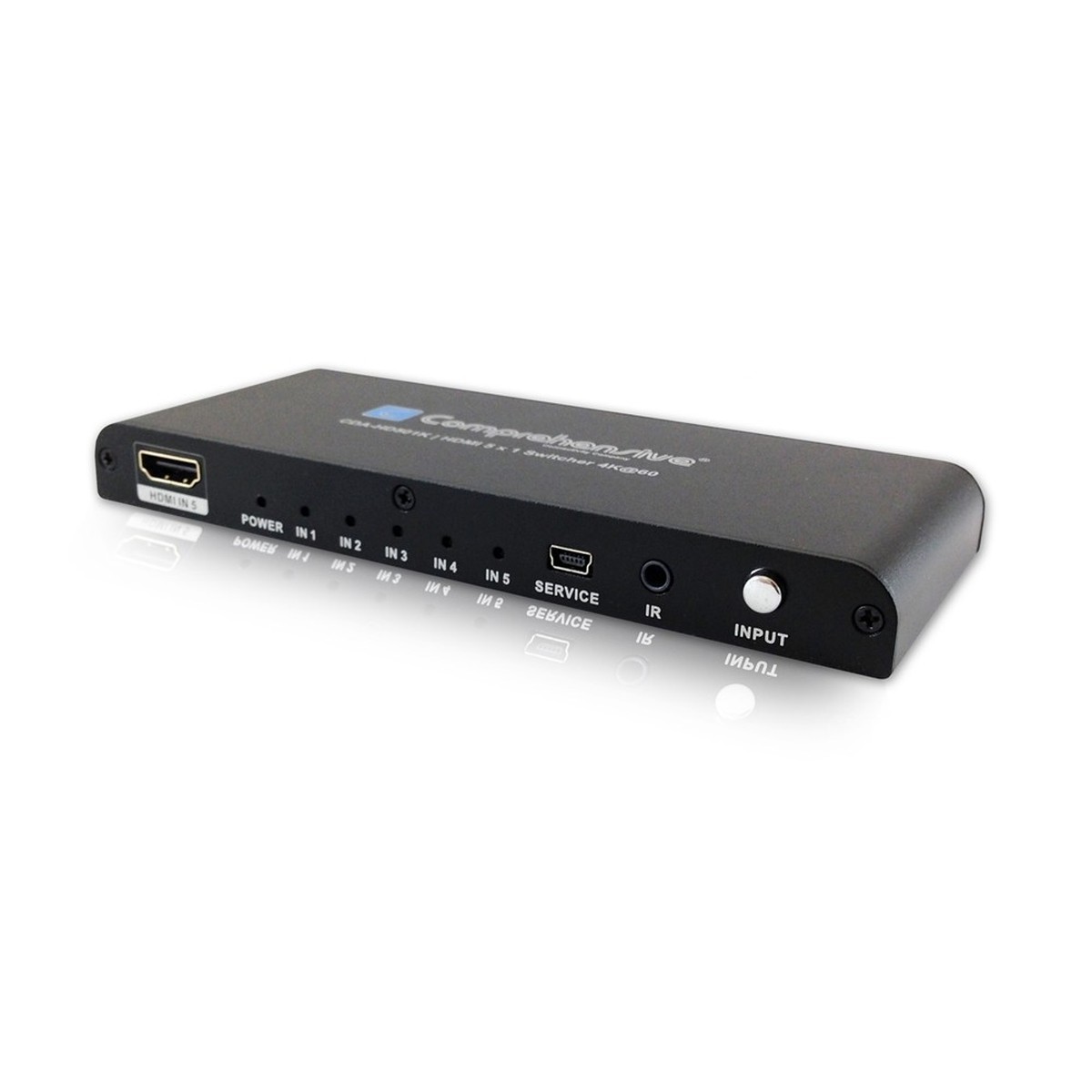

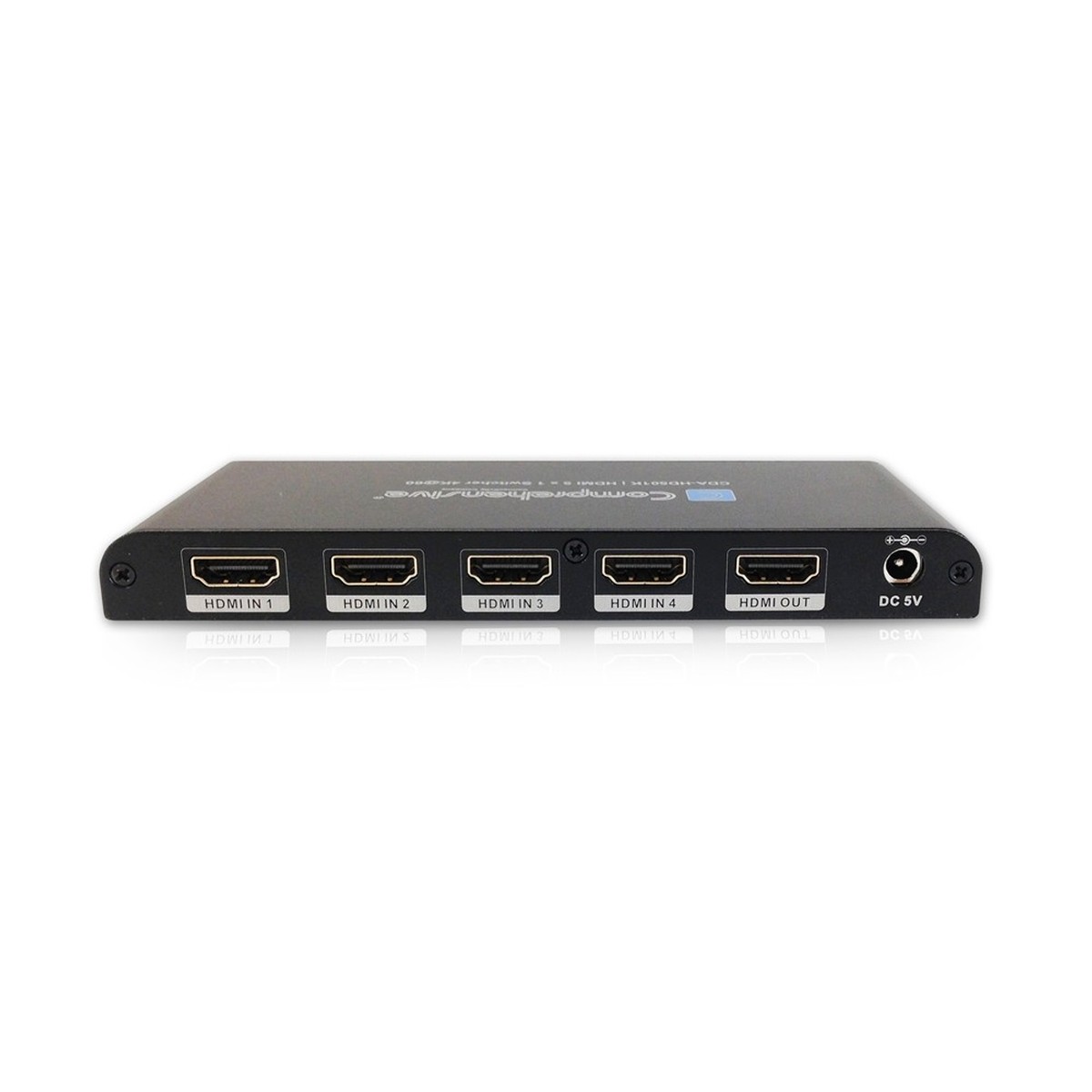

The Comprehensive CSW-HD501K 5X1 4K60 HDMI 2.0 Switcher comes with EDID control, HDCP 2.2 compliance, and has data transfer rates up to 10.2 Gbps with no data loss. With this switch the user can connect up to five HDMI sources to one display and easily switch between them via the auto switch function, the IR remote, or by way of the front panel push buttons. It supports High Definition Lossless Audio as well as all 3D TV formats in addition to 4K HDTV formats.
This unit is easy to install and is built with a durable, metal enclosure and a slim chassis design. It is an ideal solution in a variety of settings and applications such as lecture halls, retail sales displays, home theaters, and showroom displays. The CSW-HD501K from Comprehensive comes backed, from the manufacturer, with a two year warranty.
Additional Features of this Product Include:
- Supports 3D, LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Deep Color and High Definition Lossless Audio
- Power Supply US, CE/FCC/UL Certified
Specifications
- Power Supply: 5V/1A DC
- Power Consumption: 2W(Max)
- ESD Protection: ~8kV (air-gap discharge) ~4kV (contact discharge)
- Chassis Material: Metal
- Silkscreen Color: Black
- Weight: 0.39 lbs.
- Dimensions (WxDxH): 6.10" x 2.51" x 0.66"
- Included Accessories: Power Adapter, Operation Manual
- Warranty: 2 Years
