Comprehensive CSW-HDBT300M
8x1 Multi-Input Switcher to HDMI: HDBaseT Receiver, 330'
- Input Ports: 4x HDMI, 1x DVI, 2x VGA, 1x RCA, 1x RS-232, 1x RJ-45(Control), 1x IR IN, 7x3P captive screw connector(3.81mm), 1x USB
- Output Ports: 1x HDMI, 2x RJ-45(LAN), 2x RCA, 1x RJ-45(HDBaseT), 8x IR OUT
- Input Resolutions: 4Kx2K@30Hz
- Output Resolutions: Up to 4K30 (HDMI Bypass), Up to 1080p (Scaler)
-Chad R.
Description

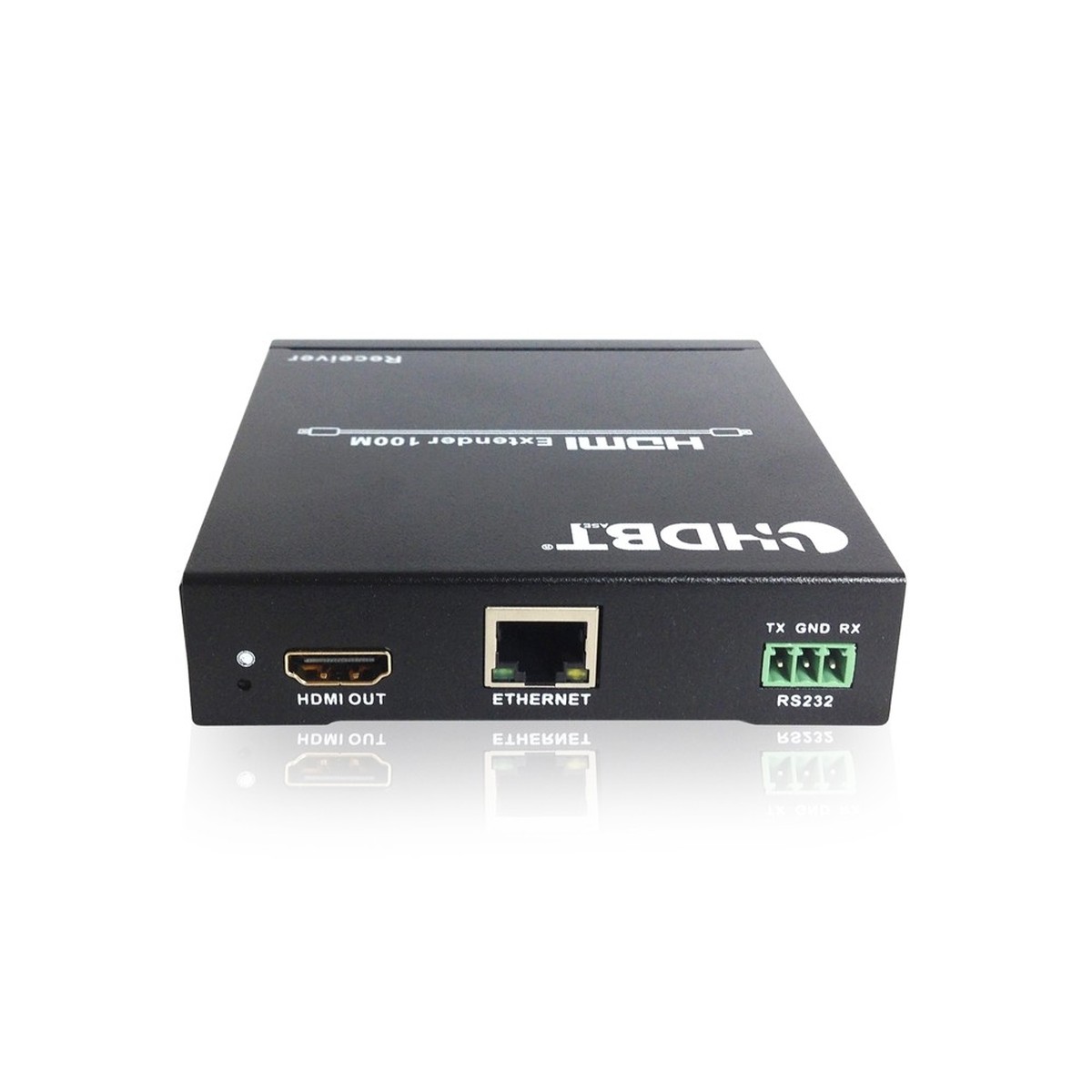

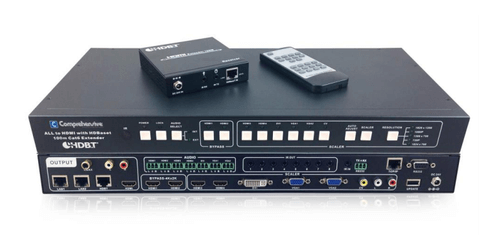

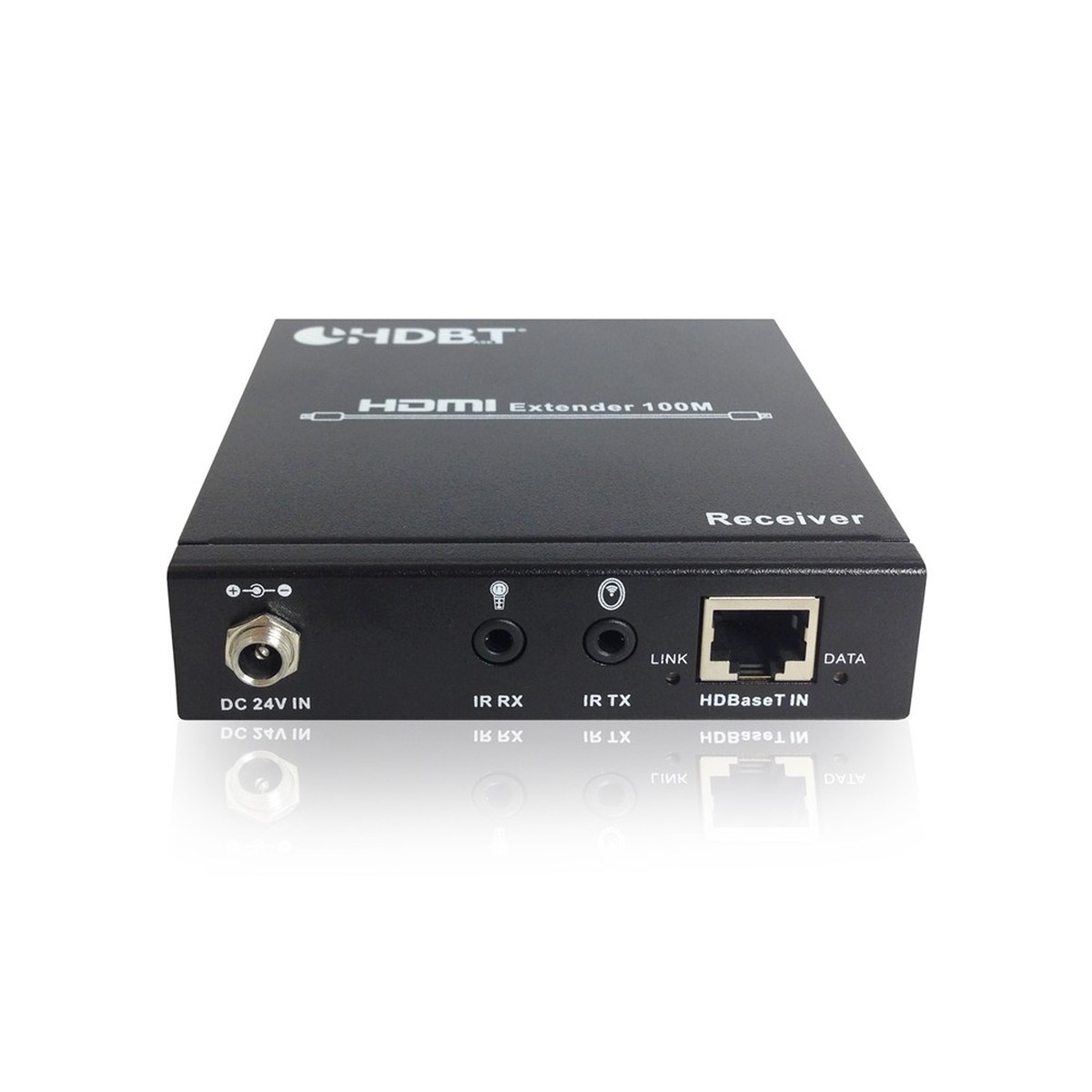

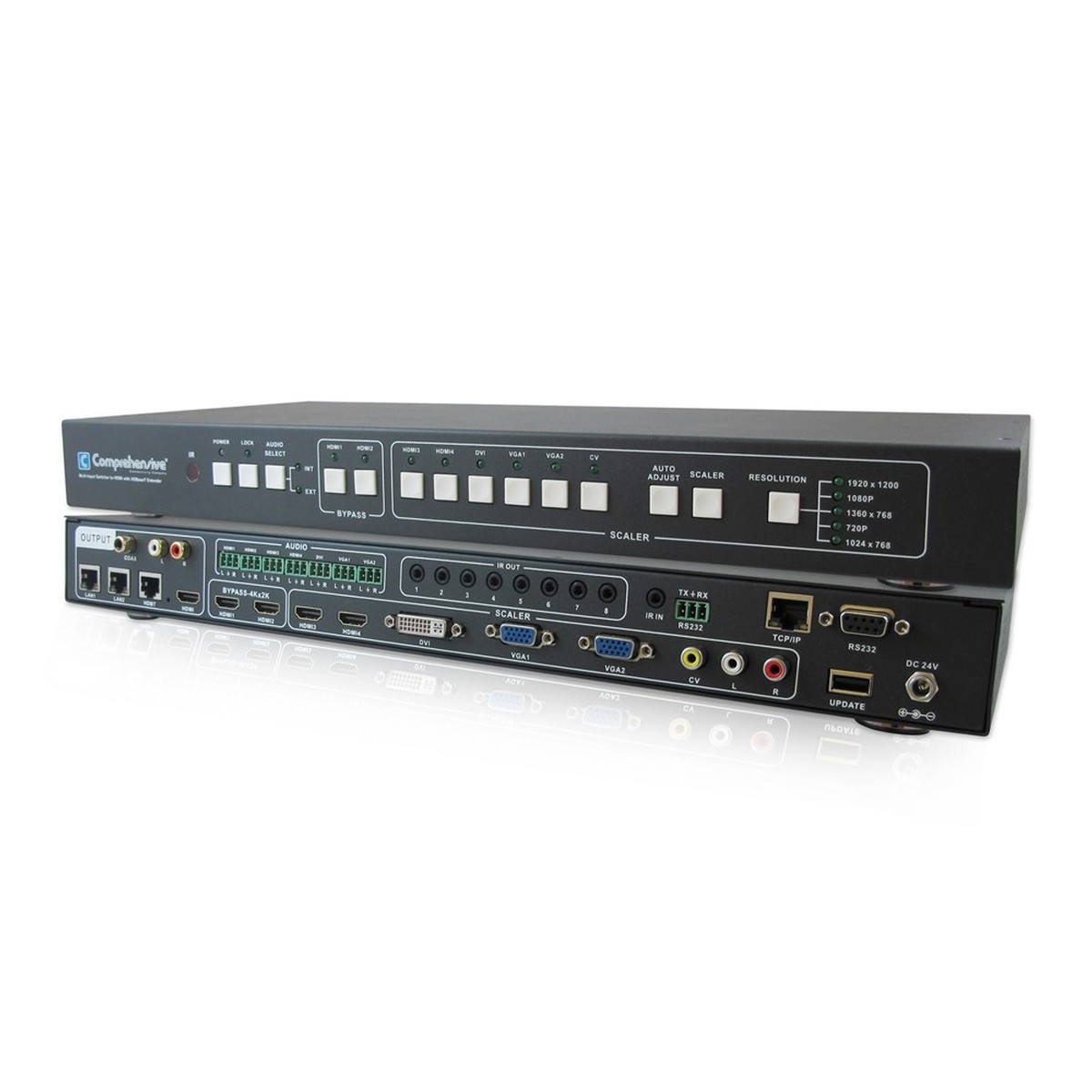

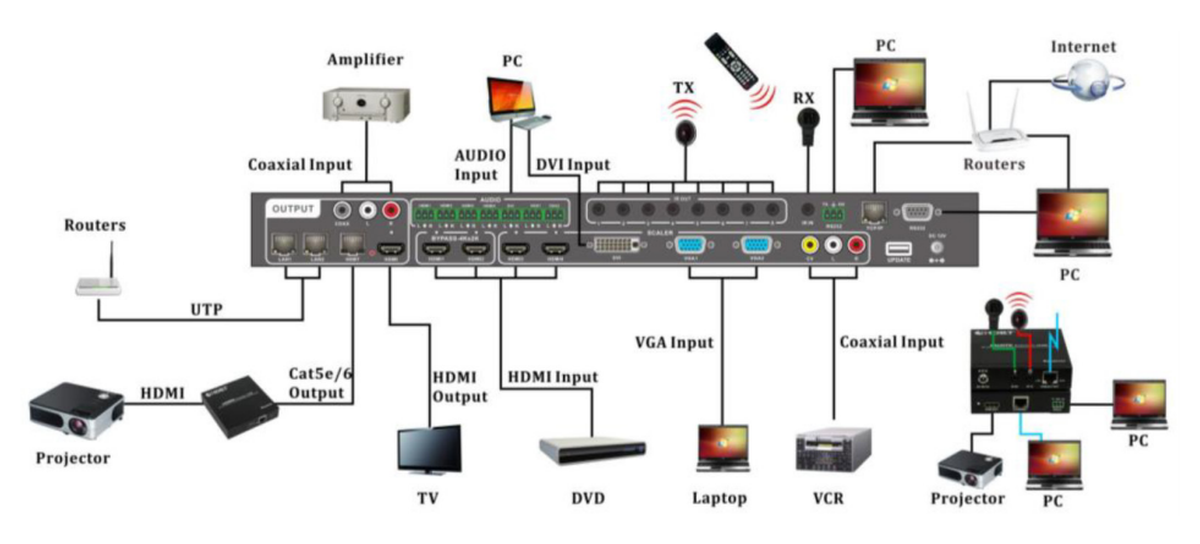

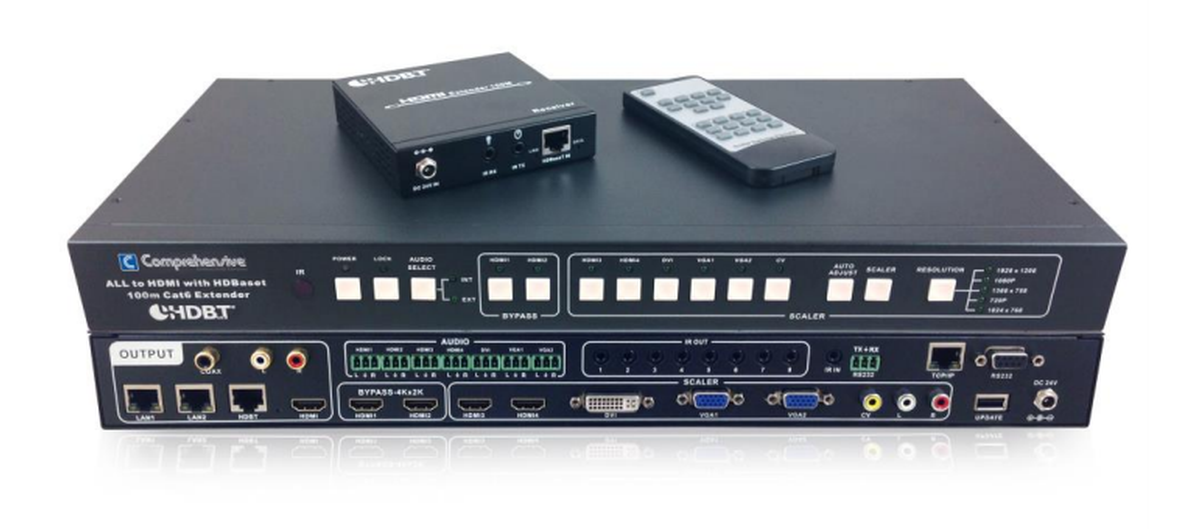

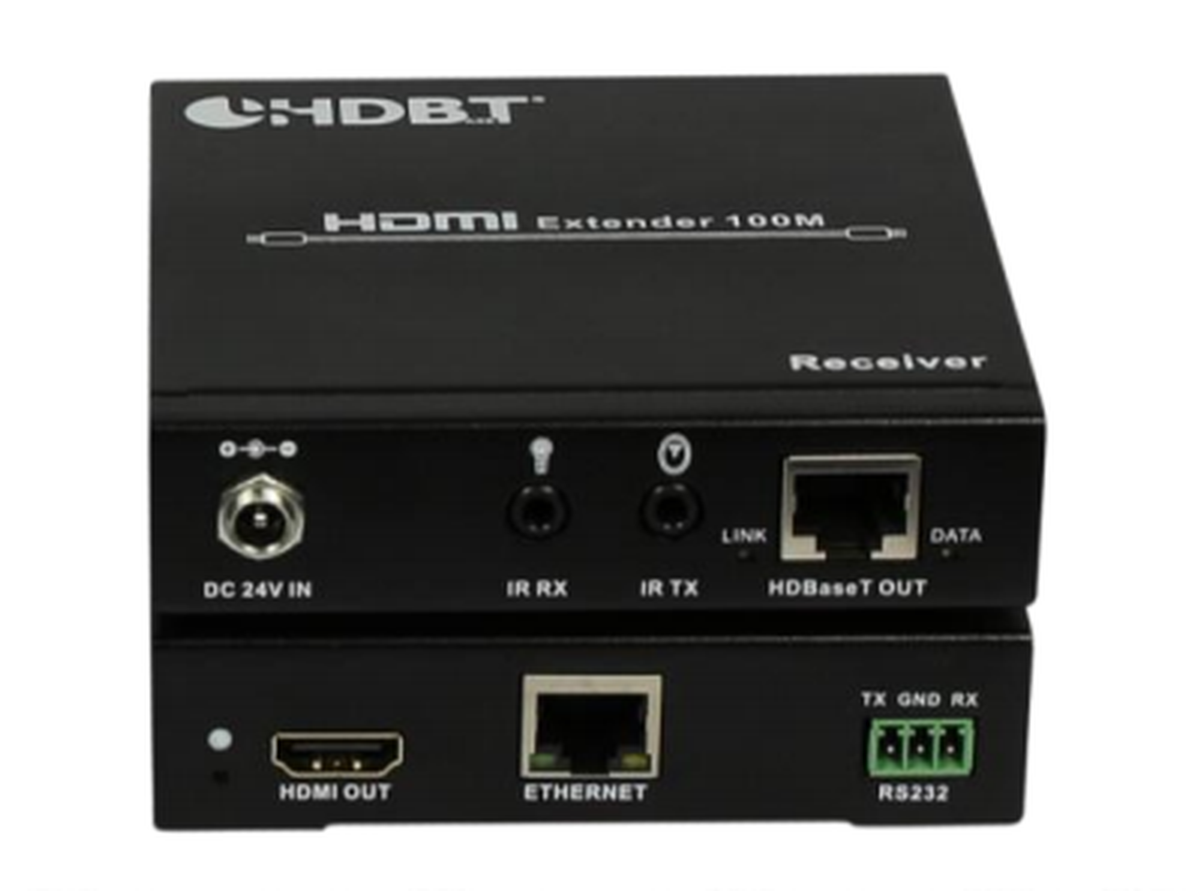

Introducing the CSW-HDBT300M 8x1 Multi-Input Switcher to HDMI w/ HDBaseT Receiver Unit from Comprehensive. These devices accepts up to eight inputs (1 DVI, 2 VGA, 1 Composite Video, and 4 HDMI signals) and can scale all of the users inputs up to 330 feet away. The HDMI1, HDMI2 Bypass Input Function supports input resolutions up to 4K30, while HDMI3, HDMI4, DVI, VGA1, VGA2, CV scales the video, and supports output resolutions up to 1080p.

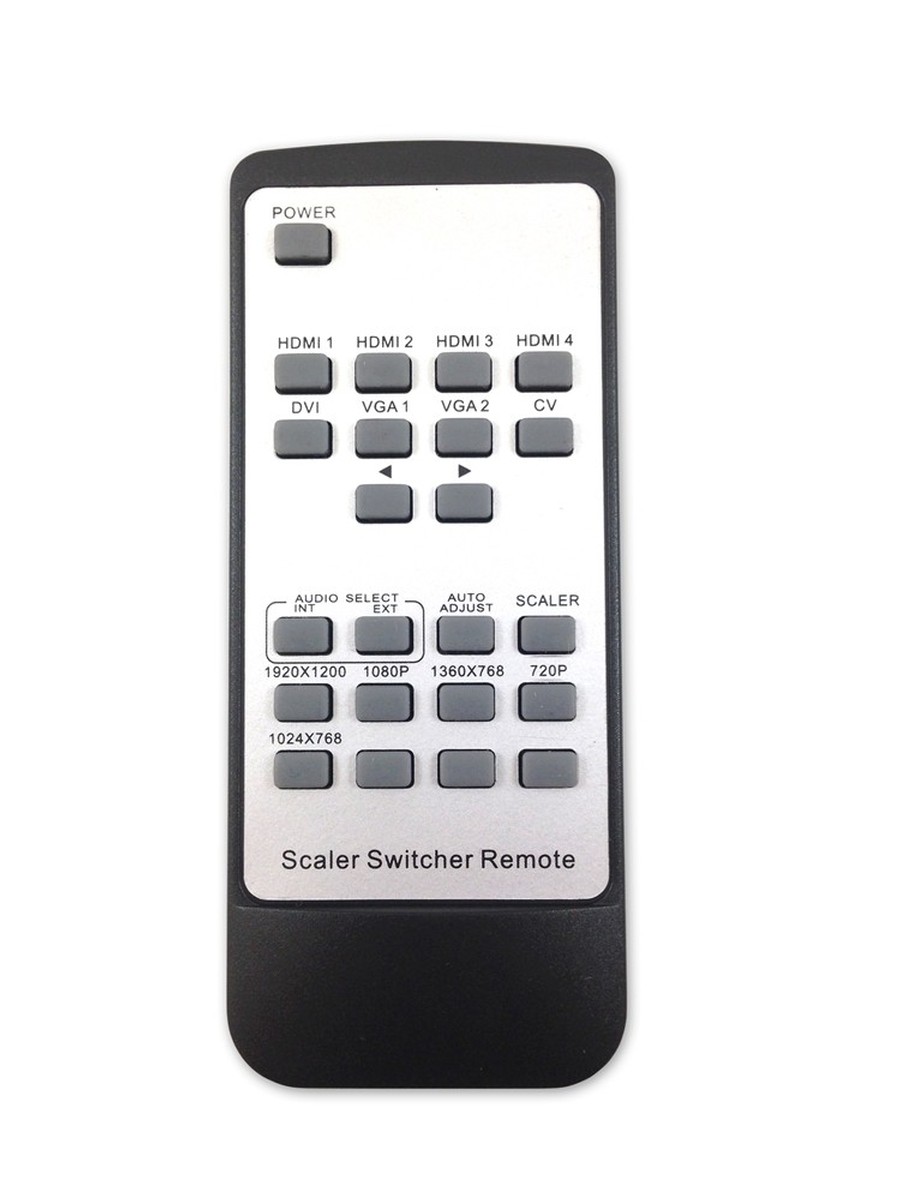

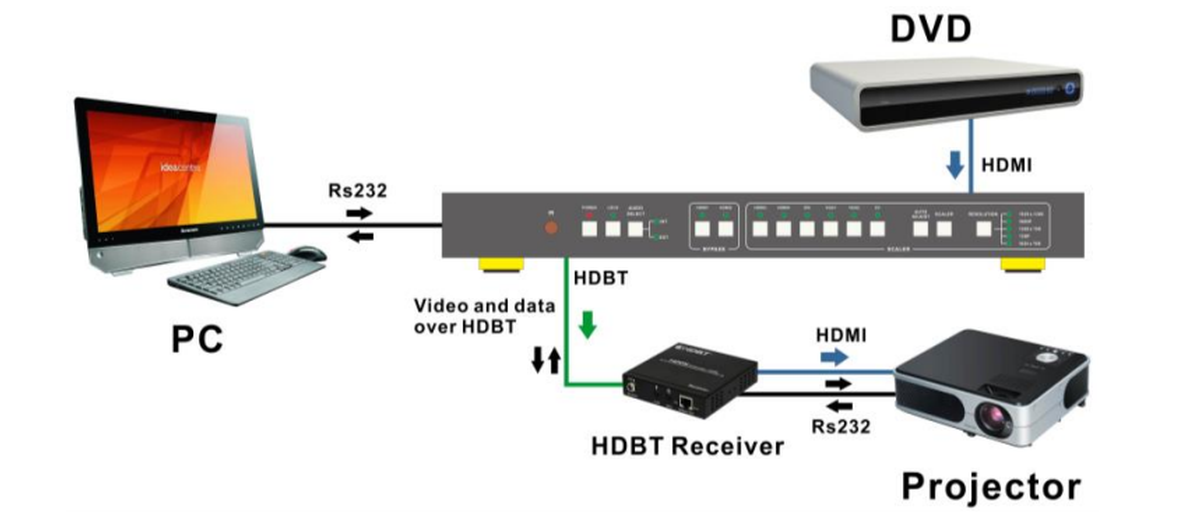

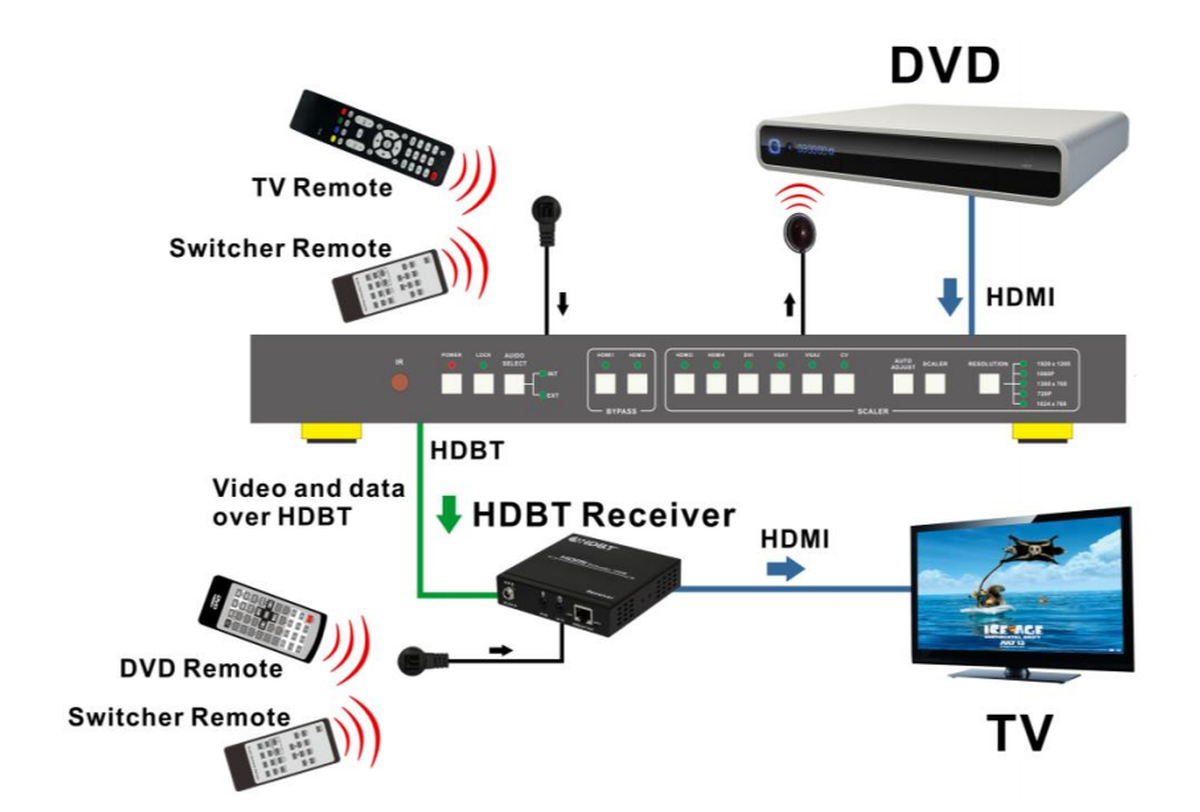

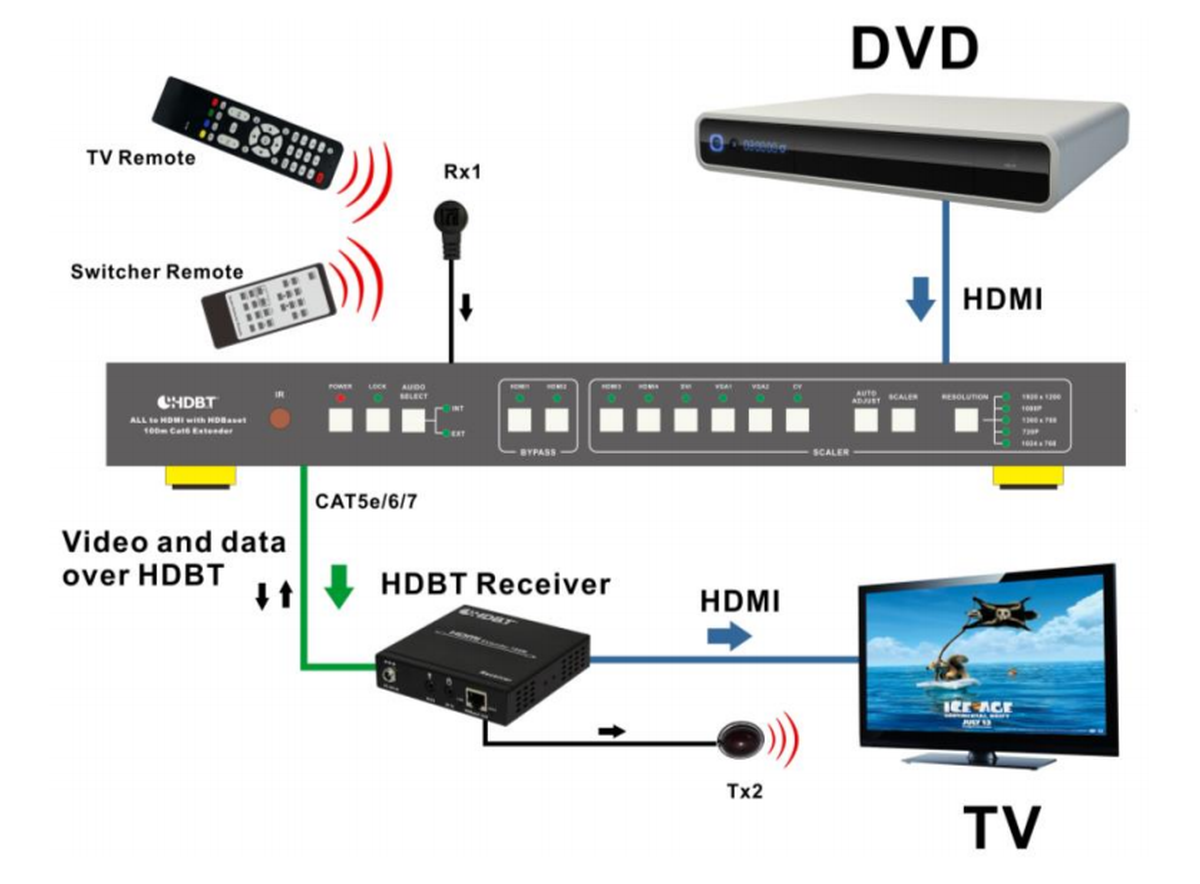

These units scale video and embed audio, while simultaneously outputting the signal to HDMI and HDBaseT output. The HDBaseT output can transmit through Cat 6 or Cat7 cable across distances up to 330'. It has flexible control mode diversity through the IR remote control, RS-232, TCP/IP control, and front panel push buttons. These devices are compliant with HDMI 1.4 and HDCP 1.3, in addition to supporting smart EDID management and Power over Ethernet (PoE).
This extender kit is an ideal solution for a variety of applications and settings such as classrooms, conference rooms, lecture halls, retail displays, and many more. The Comprehensive CSW-HDBT300M Multi-Input Switcher and Receiver comes backed, from the manufacturer, with a two year warranty.
Specifications
- Deep Color Support: 48/36/30/24-bit
- Control: IR, RS-232, TCP/TP, Front-Panel Buttons
- Power Supply: DC 24V 1A
- Power Consumption (Max): 14.5W
- ESD Protection: 8kV (air-gap discharge), 4kV (contact discharge)
- Supports S/PDIF and stereo audio outputs
- Weight: 5 lbs.
- Dimensions (WxDxH): 17.5 x 8 x 1.75"

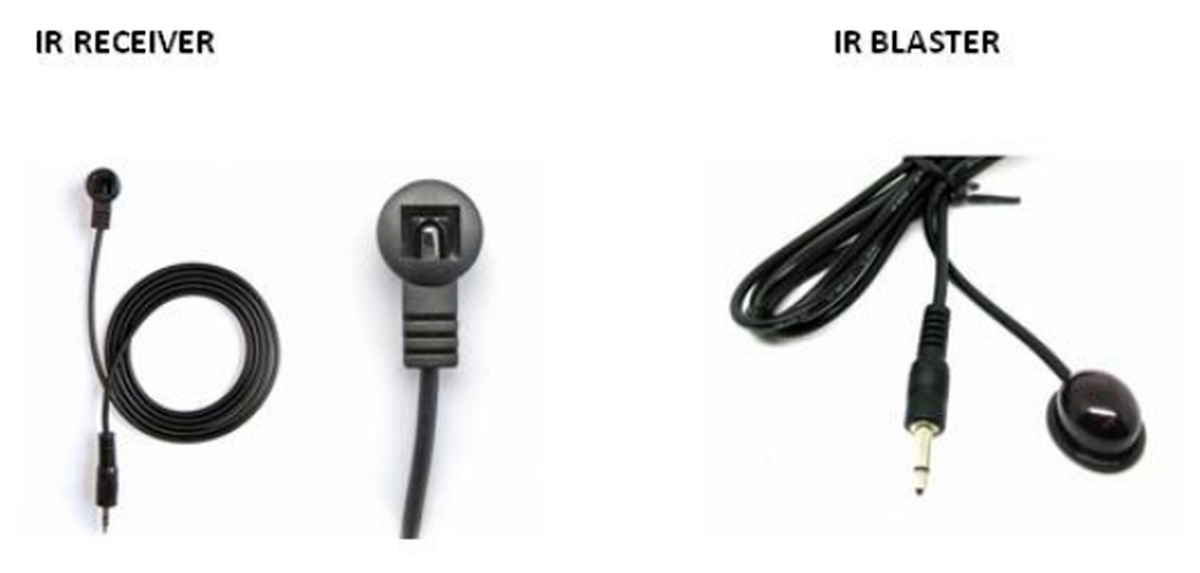

- Included Items: HDMI/HDBaseT Extender, HDBaseT Receiver, Power Adapter, Operation Manual, 9x Wideband IR Tx Cable, 2x Wideband IR Rx Cable, IR Remote, 2x Mounting Ears, RS-232 Cable
- Warranty: 2 Years
