DigiBird DB-VRC4H
DigiBird Advanced Video Wall Processor HDMI 1.4 - EDID Management

Description

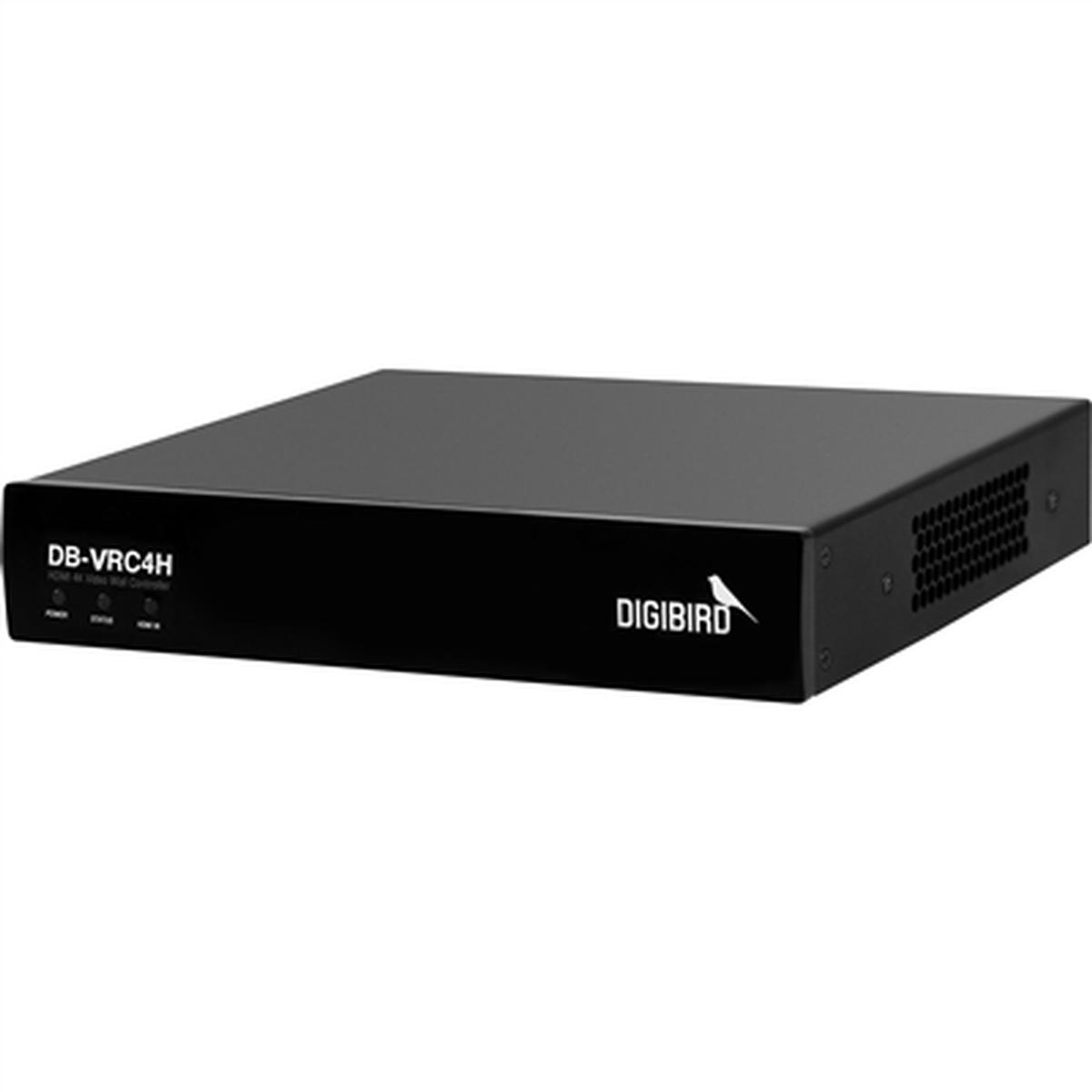

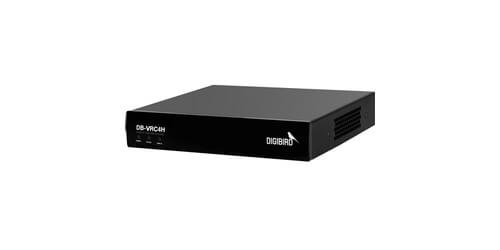

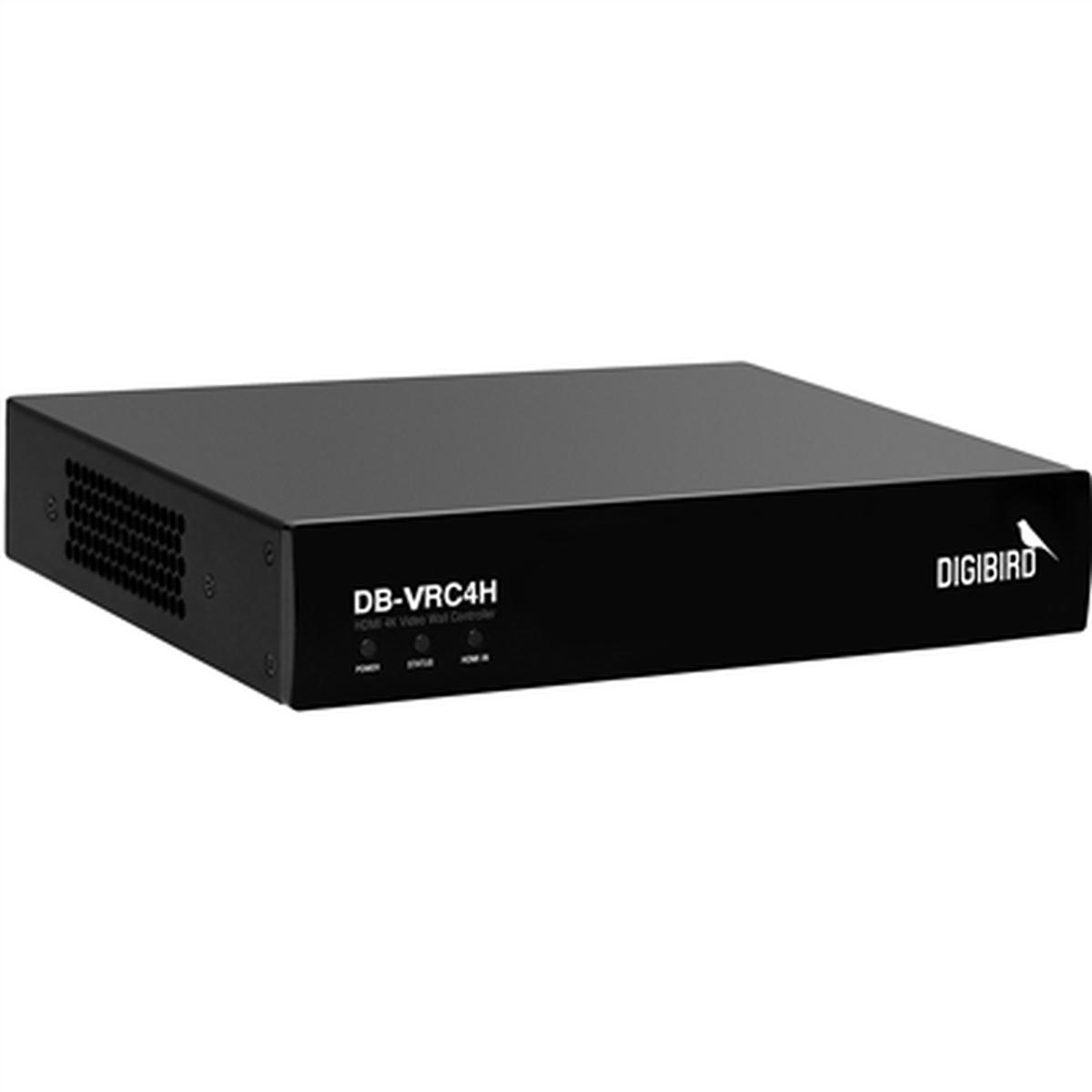

The DB-VRC4H from DigiBird is a 1x4 cascadeable video wall controller w/ 4K input, rotation and can handle any custom array up to 16 displays. Being one of the most simplest and most cost effective video wall controllers on the market this device is both high-tech and user friendly and allows for a quick solution to create eye-catching and creative video wall arrays. Making this device an ideal solution for retail stores, sports bars, hotel lobbies, trade shows and entertainment venues. Setting this device apart from other video wall controllers found in today's market is the fact that unlike traditional wall controllers, the DB-VRC4H has the ability to independently flip or rotate 45, 90, 135, 180, 225, 270, or 315 degrees each output. It will also support alignment of varying resolutions and display sizes to build an asymmetrical, yet distinctive video wall. TheDB-VRC4H is a very rugged, yet compact video wall controller/processor that features one 4K HDMI input which provides stunning 4K UHD input capability, while flexibly routing the input to four full HD output displays.

Additional key features of the DB-VRC4H are frame lock support, embedded HDMI audio, flexible EDID management, and automatic input and output signal detection. Frame Lock Support works when the timings of the four monitors are the same it will activate genlock, the genlock feature guarantees a fluid motion video and minimizes latency to a single frame. Cascading of multiple DigiBirds can extend the users ability to create walls with more than four displays using the HDMI 1.4 loop out port. Also the input source can be cropped at the users discretion and copied to output monitors, the smallest cropping area is on pixel.

Specifications

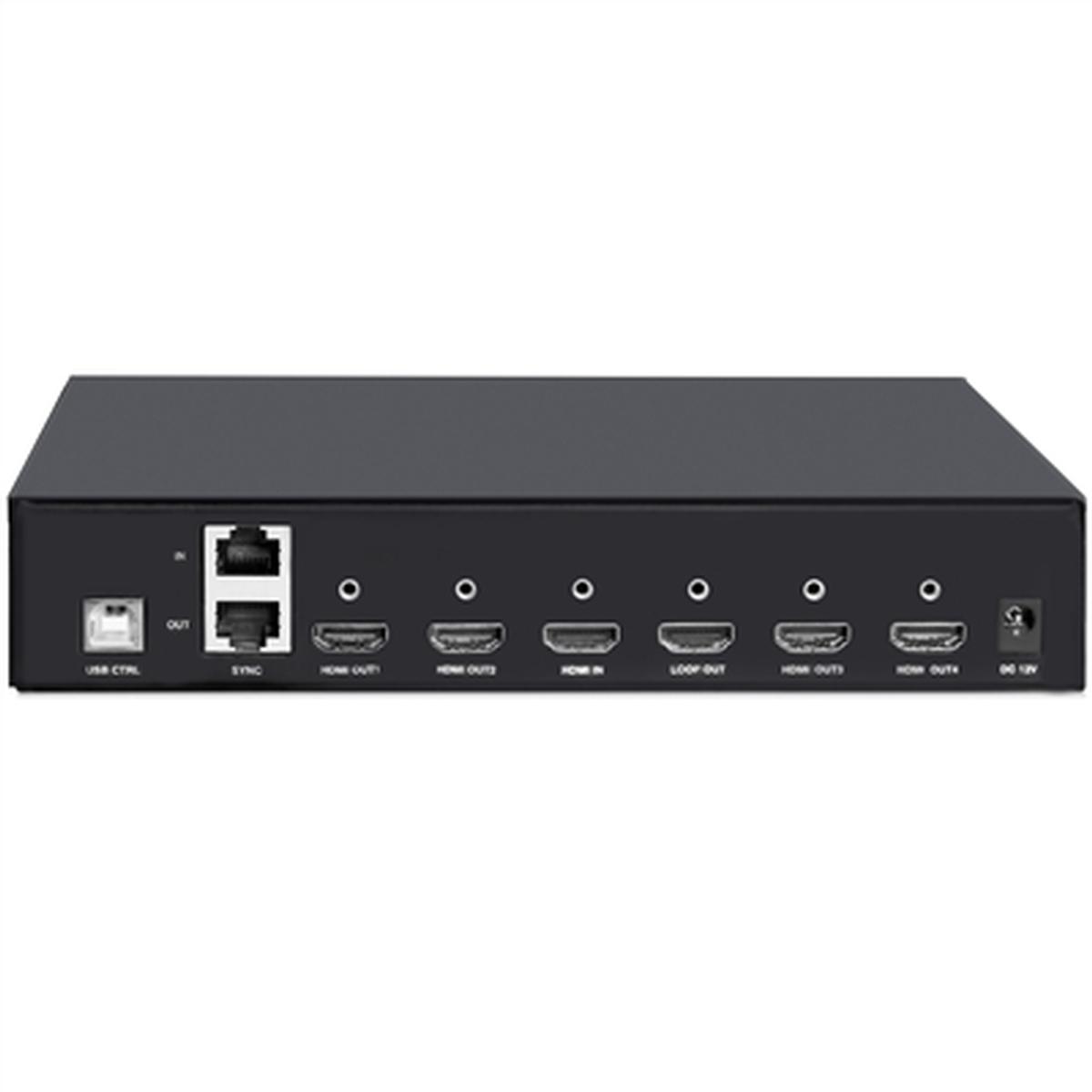

• Outputs: (4) HDMI Type A, 19-pin, female, locking, power connector female, USB-B female, HDMI Loop Out, Ethernet Port
• Loop Out: HDMI Type A, 19-pin, female, locking, HDMI 1.4
• Output Resolution: Up to 1920x1200 60Hz
• Output Display Sizes: Different display size for each output channel

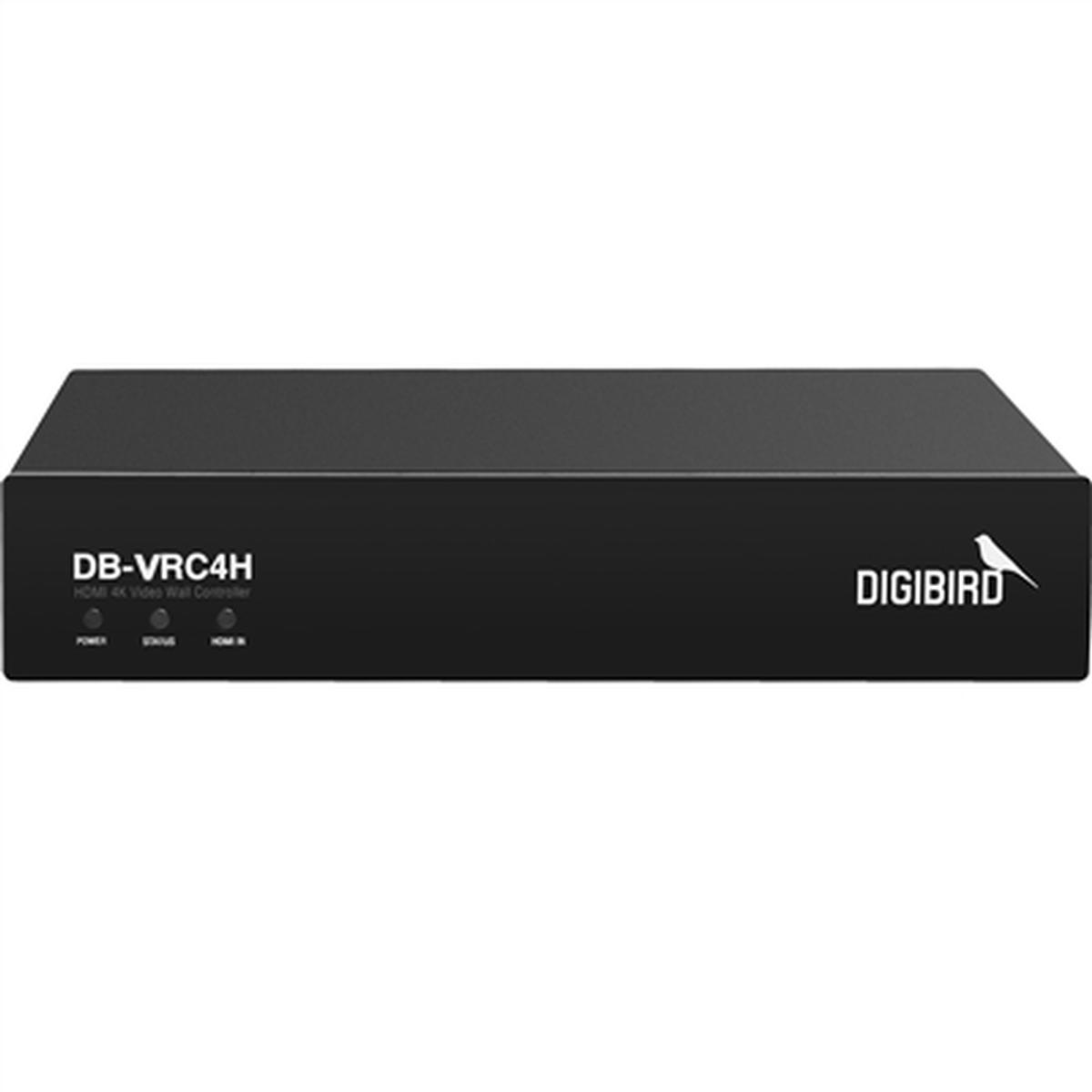

• LED Indicators: Power, Input, Status
• Independent Screen Rotation: 45, 90, 135, 180, 225, 270 or 315 Degrees
• Unlimited up-scaling for original cropped area
• EDID Management
• Video Display Control: Bezel Compensation, Cropping, Flipping, Cascading
• Control: USB-B Connector (USB 2.0)
• Control Software: Windows-based GUI software
• Windows XP, Windows 7, Windows 8, and Windows 10 compatible
• Power: 100-240V AC, 0.8A
• Power Output: 12V DC
• Power Consumption: 24W
• Warranty: 10 Years

Downloads

• DigiBird DB-VRC4H Specifications (PDF)
• DigiBird DB-VRC4H Quick Setup Guide (PDF)
• DigiBird DB-VRC4H Brochure (PDF)
