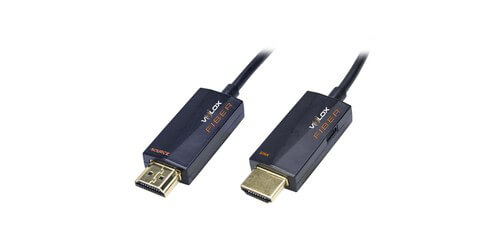

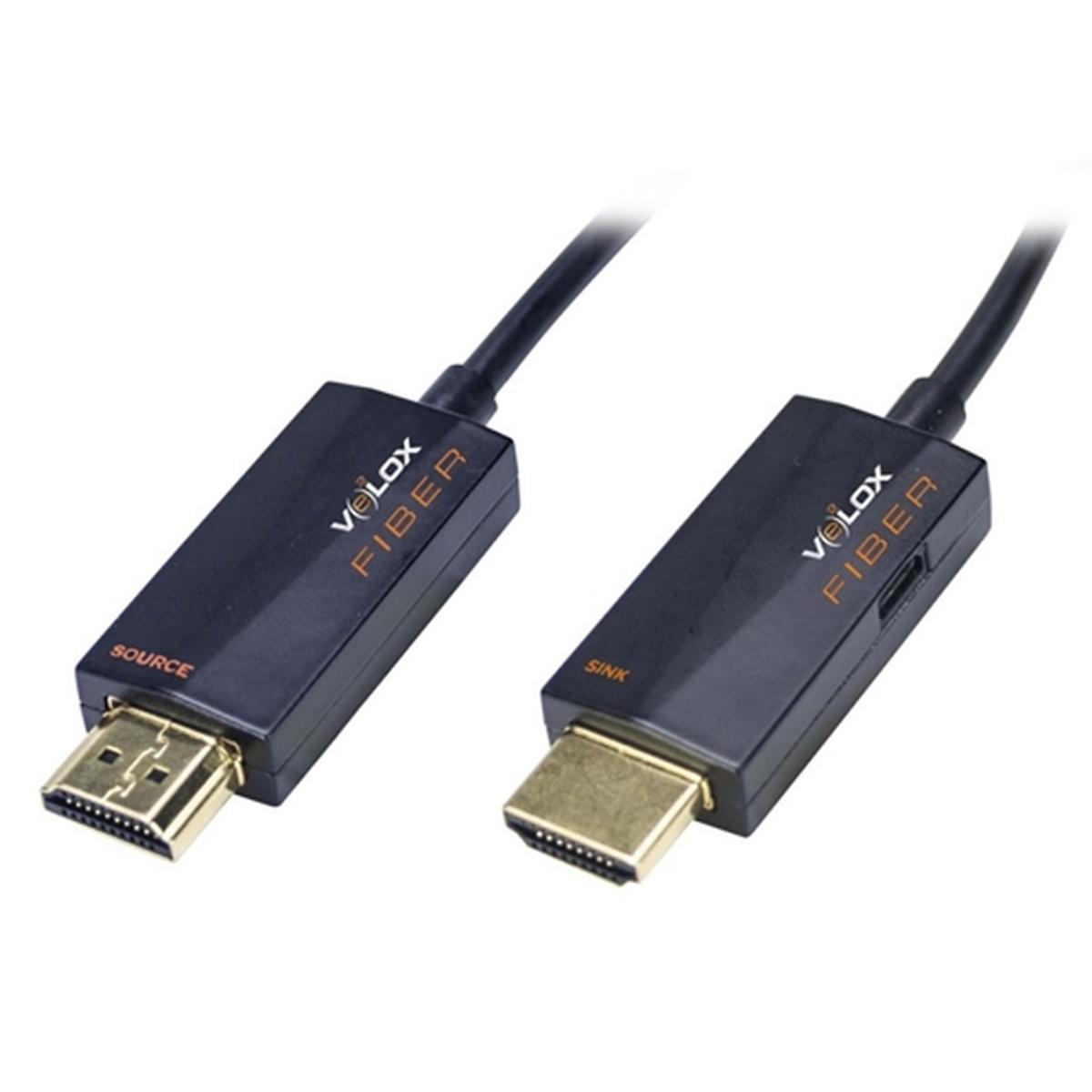

Ethereal EHV-HDAOC100
AOC Fiber Cable HDMI 2.0a, HDCP 2.2, 4K60 4:4:4 - 328'

Description

The EHV-HDAOC100 from Ethereal is an 328' Active Optical Fiber Cable. This lightning fast 18Gbps bandwidth active optical HDMI cable is a part of Ethereal's new Velox Fiber System family. These Velox Fiber System cables bring the latest in 4K resolutions to users and installers alike, bringing in the best in 4K resolutions (4K@60 4:4:4) at a whopping 18Gbps transmission speed. Ethereal has spared no expense when designing these very high-quality cables by using existing EDID repair tool technology found in some of there other great products. To correct the problem sometimes found in older DDC components that sometimes will not communicate with other devices, Ethereal has add technology to their cables that will combat any voltage shift errors that may occur over the DDC (EDID) lane by automatically shift the required voltage levels in a smooth and seamless fashion to help adapt these older systems with the more state of the art DDC electronics.

These Velox Fiber System Cables are HDMI 2.0a and HDCP 2.2 compliant, are CL Listed for in-wall installations, and use HDMI Type A Male connectors. However to achieve these amazing super fast speeds and the best in 4K resolutions, this cable does require power, and uses a 3' Micro USB cable to achieve this. Whether your an integrator working on a new project, or a home theater enthusiast that wants the fastest speeds and best in 4K for video and audio signal transmission in your system, the EHV-HDAOC100 Velox Active Optical Fiber HDMI cable is definitely the right choice to ensure you or your customers are receiving the best possible resolutions and ensure compatibility between an array or source and displays.

The cable comes with two ribbon HDMI jumper cables. It does require power at both ends of the cable. Typically one end can almost always plug one end into the display. Included as well is a wall wart power supply for the source end. Also included are two 3' micro USB cables , one for each end to power the device. This cable comes complete, ready for install.

Specifications

• HDCP 2.2 and HDMI 2.0a Compliant
• Connector Type: HDMI Type A (Male)
• CL Listed for in-wall installations
• Power: 3' Micro USB Cables
• Input Impedance: 100 Ohms
• Included Items: 2 Micro USB 3' cables, wall wart power supply for the source end, 2 ribbon HDMI jumper cables

Downloads

• Ethereal EHV-HDAOC100 Brochure (PDF)
