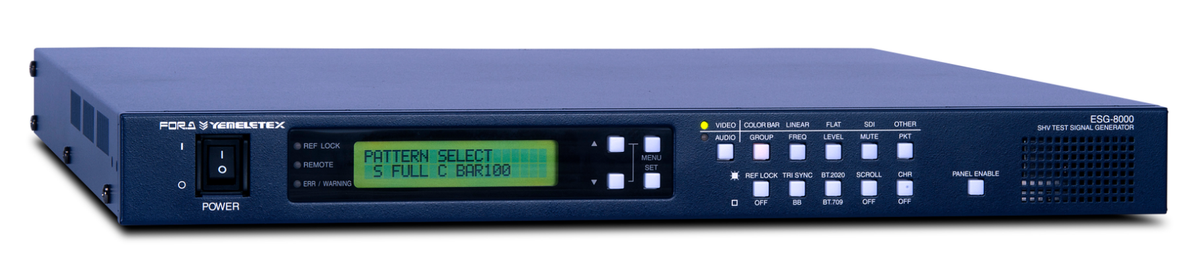

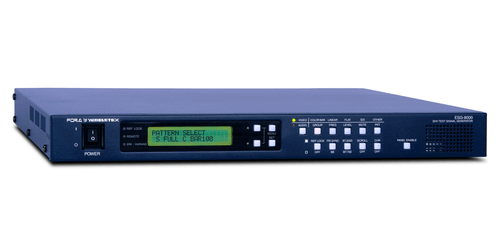

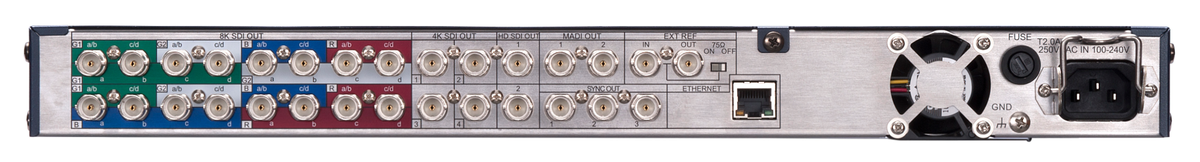

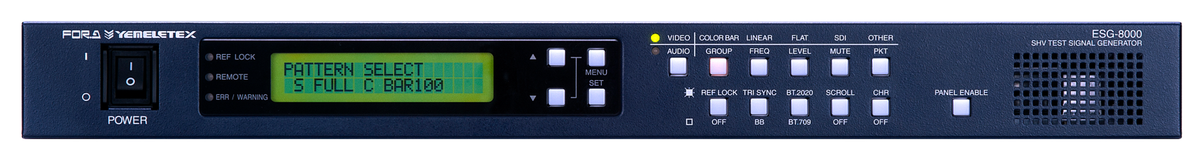

FOR-A ESG-8000
8K/4K/HD Test Signal Generator with SDI Embedded Audio
Part #: ESG-8000
Satisfaction Guaranteed!
Need a price or product info?
Complete and submit the below
Top ESG-8000 Specifications
- Video Outputs (FS-SHV Mode)
- 8K: 7680 x 4320/59.94p (50p)
- 3G-SDI (Level-A): BNC x 16 (1 line), SMPTE ST 424-compliant
- Square Division (SQD) Supported
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008

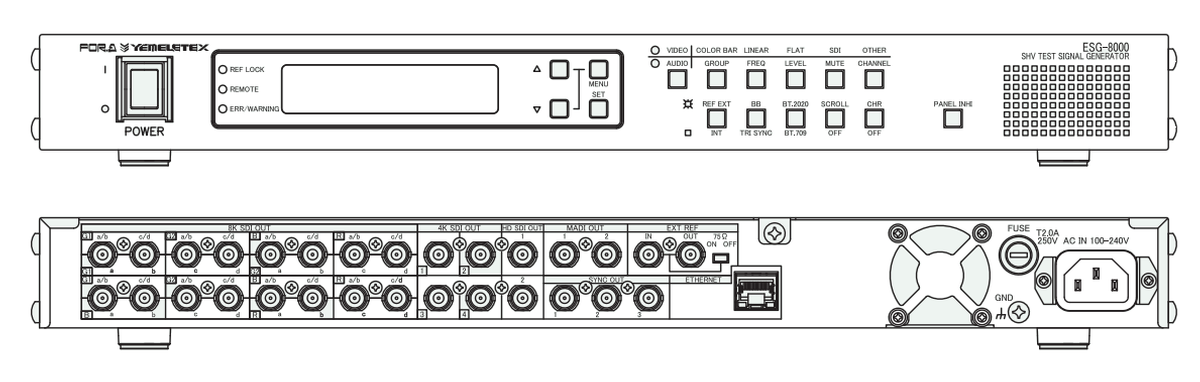

Description
The ESG-8000 from FOR-A is a high-performance 8K/4K/HD Test Signal Generator. This test signal generator is compatible with YCbCr 4:2:2 10-bit FS-SHV (Super Hi-Vision Full Resolution) signals, it also produces DG-SHV (Super Hi-Vision Dual Green) signals. It features standard test patterns that include color bars, ramp, steps, white, black, pathological, crosshatch, multiburst, and noise. There are up to 10 custom test patterns created on a computer can be registered. Additionally this unit offers colorimetry switching, test pattern scrolling, character display, output frame frequency switching, audio test signals, full-featured outputs, payload information multiplexing, reference signal outputs, and external control SNMP monitoring.
Specifications
- Video Outputs (DG-SHV Mode)
- 8K: 7680 x 4320/59.94p (50p)
- Switches the following SDI output: 3G-SDI (Level B): BNC x8 (2 lines), SMPTE ST 424-Complaint
- 1.5G-SDI: BNC x16 (1 line), SMPTE 292-1-compliant
- 4K: 3840 x 2160/59.94i (50i) pr 4096 x 2160/59.94p (50p)
- 3G-SDI (Level-A or-B): BNC x4 (1 line), SMPTE ST 424-compliant
- Square Division (SQD) and 2-Sample Interleave Division (2SI)-compliant
- HD: 1920 x 1080/59.94i (50i)
- HD-SDI: BNC x1 (2 lines), SMPTE ST 292-1-compliant
- Square Division (SQD) supported
- Audio Formats
- 48 kHz, 24-bit, 32 channels (AES3-compliant)
- Audio Output
- 8K: 3G-SDI: BNC x2 (16 channels, 2 lines), SMPTE 299-1-compliant
- HD-SDI: BNC x4 (8 channels, 1 line), SMPTE ST 299-1-compliant
- 4K: 3G-SDI: BNC x2 (16 channels, 1 line) SMPTE ST 299-1-compliant
- HD-SDI: BNC x1 (16 channels, 2 lines) SMPTE ST 299-1-compliant
- MADI: BNC x1 (32 channels, 2 lines) AWS10-compliant
- Reference Input
- Black burst: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p
- Tri-level sync: 0.6 Vp-p
- 75 Ohms, BNC x1 with loop-through
- Reference Output
- BNC x3 (tri-level sync or black burst available for each)
- Formats: HD Reference: Tri-level sync, SMPTE ST 240-compliant
- SD Reference: Black burst, SMPTE ST 170-compliant
- LTC Output
- BNC x1
- SMPTE ST 12-1/ST 12-2-compliant time code
- Interface
- Ethernet: 10/100 Base-Tx, RJ-45 x1
- Power/Consumption
- 100 VAC to 240 VAC +/- 10%, 50/60 HZ/ max. 80 watts at 100 VAC
- Dimensions
- 430 mm x 44 mm x 450 mm
