FOR-A FC-ONE
Flicker Corrector 3G/HD-SDI I/O, Process Amplifier, Color Corrector
Part #: FC-ONE
Satisfaction Guaranteed!
Need a price or product info?
Complete and submit the below
Top FC-ONE Specifications
- Video Format
- 1080/59.94i,1`080/50i, 1080/59.94p (level A-B), 1080/50p (Level A/b), 720/59.94p, 720/50p
- Video Input
- 3G-SDI (Level A/B): 3.0 Gbps, HD-SDI: 1.5 Gbps, 75 Ohms, BNC x 4
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008
Description

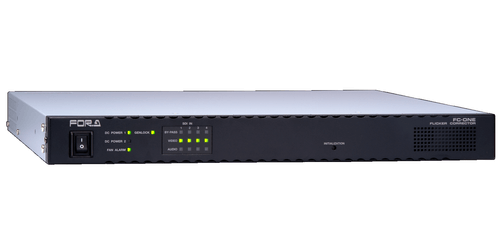

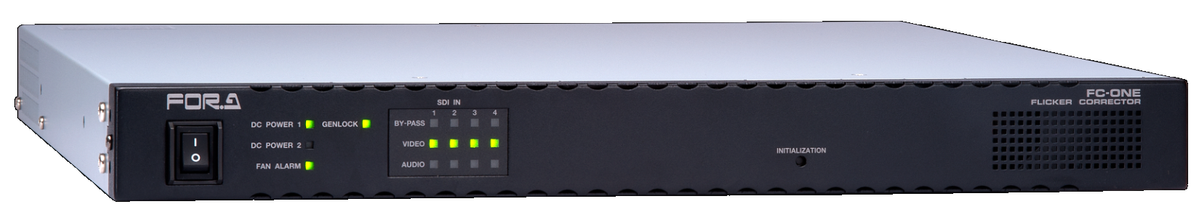

FOR-A's FC-ONE flicker corrector, color corrector, and process amplifier is plug-and-play device that suppresses flicker from high-speed cameras and poor lighting conditions.
Key Features:
- Corrects video flicker
- 1 input/output standard
- Maintains image brightness and detail
- Ideal for live or recorded media
- Compact 1U enclosure
- Control via network or software GUI
- Supports 3G/HD-SDI input and output
Specifications
- Video Output
- 3G-SDI (Level A/B): 3.0 Gbps, Hd_SDI: 1.5 Gbps, 75 Ohms, BNC x 4
- Video I/O Processing
- Standard: Processes the selected input (1 of 4) as one line for distribution to four manually assigned outputs
- Processing
- 4:2:2 digital component
- Quantization
- 3G/HD-SDI: 10-bit
- Genlock Input
- BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75 Ohms, loop-through, BNC x 1 (terminates with 75 Ohms terminator)
- Synchronizer Modes
- Reference mode, input mode
- Video Delay
- 2 frames (FS function)
- Video Functions
- Process amplifier, color corrector
- Process Amplifier
- Video Level: 0.0% to 200%
- Chroma Level: 0.0% to 200%
- Black Level: -20% to 100%
- Hue: -179.8 degrees to +180 degrees
- Video Clip
- YPbPr, RGB
- Color Correction
- Balance, Differential, Sepia
- Power Consumption
- 100 V AC to 240 V AC +/- 1-%
- Dimensions (W x H x D)
- 430mm x 44mm x 400mm
- Weight
- 7 kg
- Accessories
- CD-ROM, AC cord, mounting brackets
