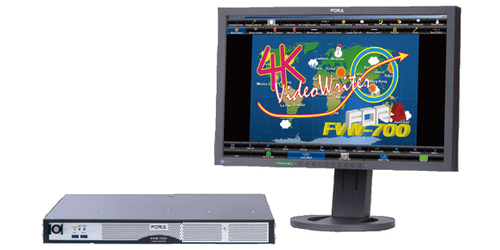

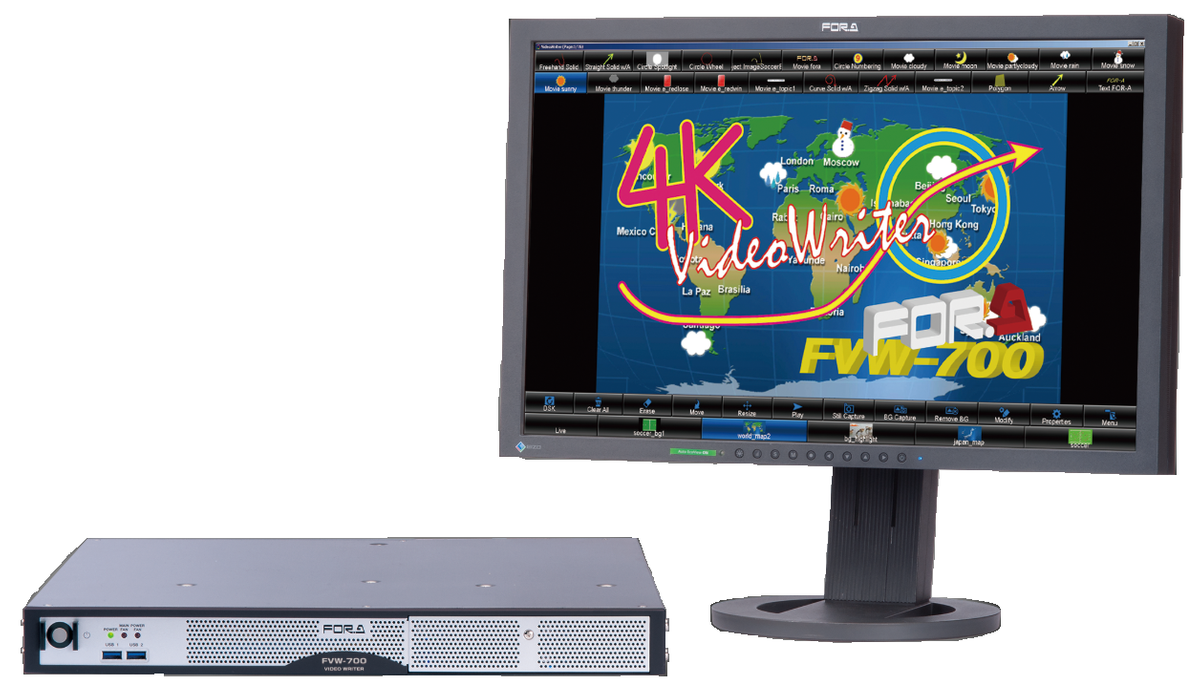

FOR-A FVW-700
HD Video Writer without Touch Screen - Video Writer

Description

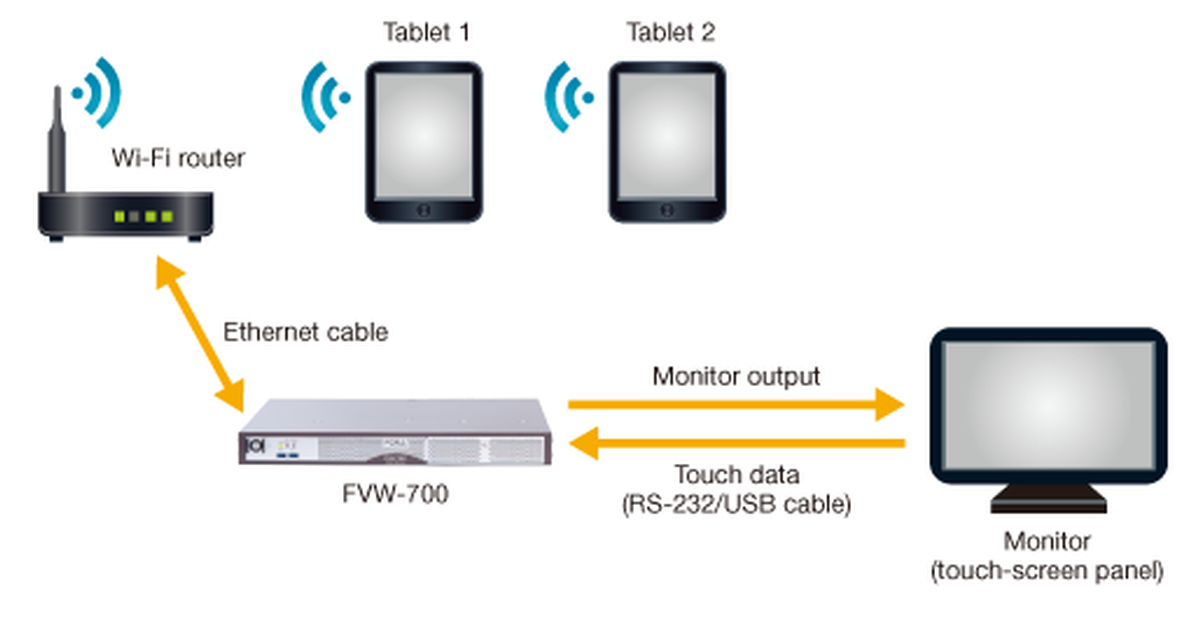

The FVW-700 from FOR-A is a new, high-quality video writer telestrator designed for the broadcast video industry. This unit gives operators the ability to annotate or draw on video using a touch-screen computer monitor (optionally purchased) or a wirelessly connected tablet as you check the point of insertion. Without requiring you to work at a console, the system enables a variety of scenarios. The FVW-700 offers amazing end user functions which include: Edge joining, Automatic freehand formation, Chroma keyer, and simultaneous input from multiple tablets. In addition this telestrator provides ongoing development for enabling connections from more devices and applications with its optional MTS-100 plug-in, Multi-viewer plug-in, connection for FOR-A Hanabi switchers, effect plug-ins, 2K extraction plug-in and Video playback equipment plug-ins.

Specifications

• Video Inputs
• 4K: 3G-SDI (3 Gbps), Level A, 75 Ohms, BNC x 4 (1 channel), SQD/2SI supported
• 3G: 3G-SDI (3 Gbps), Level A, 75 Ohms, BNC x 1
• HD: HD-SDI (1.5 Gbps), 75 Ohms, BNC x 1
• Video Outputs
• 4K: 3G-SDI (3 Gbps), Level A, 75 Ohms, BNC x 8 (2 channel), SQD/2SI supported
• 3G: 3G-SDI (3 Gbps), Level A, 75 Ohms, BNC x 4 (4 channel)
• HD: HD-SDI (1.5 Gbps), 75 Ohms, BNC x 4 (4 channels)
• Genlock Input
• BB: NTSC: 0.429 Vp-p/PAL: 0.45 vp-p or tri-level sync: 0.6 Vp-p, 75 Ohms, BNC x 1, loop-through
• Monitor Output
• Display port x 4 ( DisplayPort 1.2 compatible)
• Interfaces
• Alarm: D-sub 9-pin (female) x 1 for power supply and fan alarm
• Serial: D-sub 9-pin (female) x 1, RS-232C compatible
• Power
• 100 V to 240 V AC +/- 10% 50/60 Hz
• Dimensions
• 430mm x 44mm x 500mm
• Weight
• 9 kg

Downloads

• FOR-A FVW-700 Specifications (PDF)
• FOR-A FVW-700 Manual (PDF)
